Ford 6.7 Powerstroke Fuel System Diagram: Component & Repair Guide 2026

The Ford 6.7 Powerstroke engine, known for its robust performance in Super Duty trucks since 2011, relies on a sophisticated and high-pressure common rail fuel system. Understanding the intricacies of this system is paramount for accurate diagnostics, effective maintenance, and successful repairs. This detailed guide and accompanying ford 6.7 powerstroke fuel system diagram provide a comprehensive overview, outlining critical components, their functions, common failure modes, and essential service procedures. Whether you are troubleshooting a no-start condition or performing routine maintenance, a thorough grasp of the fuel delivery and injection process is indispensable for maintaining the integrity and longevity of your 6.7L Powerstroke.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Ford 6.7 Powerstroke Fuel System Components Breakdown

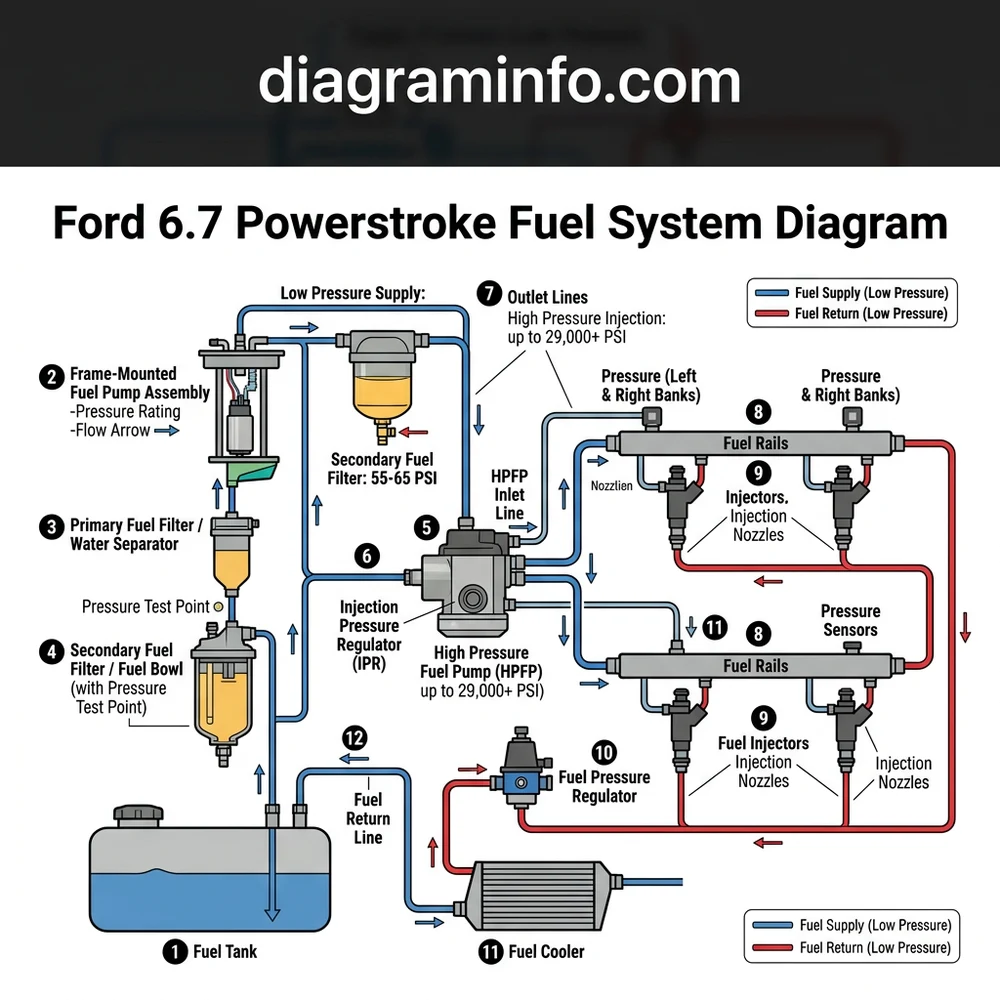

The 6.7 Powerstroke fuel system is a complex network designed to deliver precisely metered, high-pressure diesel fuel to the injectors. As depicted in the accompanying ford 6.7 powerstroke fuel system diagram, fuel flow begins at the tank and culminates in combustion. Each component plays a vital role in this process:

• Fuel Tank: Stores the diesel fuel supply. It typically includes an in-tank fuel pickup module, which may house a primary filter screen and a low-pressure lift pump in some configurations.
• Low-Pressure Fuel Pump (Lift Pump): Located either in-tank or chassis-mounted (depending on the model year), this pump draws fuel from the tank and supplies it to the primary fuel filter housing, maintaining approximately 60-70 PSI.
• Primary Fuel Filter (Fuel Bowl): Often integrated into a module containing a fuel heater and water-in-fuel (WIF) sensor. This filter removes larger contaminants and separates water from the fuel. The term “fuel bowl” refers to the housing for this filter. A primer pump is usually co-located here, allowing for manual priming after filter changes.
• Secondary Fuel Filter: Located on top of the engine, this filter is a finer filter than the primary, designed to protect the High Pressure Fuel Pump (HPFP) and injectors from microscopic particles.
• High Pressure Fuel Pump (HPFP): The heart of the system, this pump (e.g., Bosch CP4.2) generates injection pressures exceeding 29,000 PSI. It’s driven by the engine and is highly sensitive to fuel quality. The HPFP integrates a Fuel Volume Control Valve (VCV) or Metering Unit which regulates the amount of fuel entering the high-pressure pumping elements.
• Fuel Pressure Sensor (FRP Sensor): Monitors the pressure within the high-pressure fuel rail, sending feedback to the Powertrain Control Module (PCM).
• Injection Pressure Regulator (IPR): In some systems, this valve, often integrated into the HPFP or rail, controls the pressure in the high-pressure fuel system by directing excess fuel back to the return line. The PCM uses this to maintain target rail pressure.
• High-Pressure Fuel Rails: These accumulate and distribute the ultra-high-pressure fuel from the HPFP to each individual fuel injector.
• Fuel Injectors: Electronically controlled units that precisely atomize and spray fuel directly into the combustion chambers. They are commanded by the PCM to deliver the exact amount of fuel at the optimal time.
• Fuel Return Line: Excess fuel from the HPFP and injectors, which is used for cooling and lubrication or not consumed, is routed back to the fuel tank via the fuel return line.
• Fuel Cooler: Located in the return line, this component dissipates heat from the returning fuel, preventing the fuel tank and remaining fuel from overheating.

Common Failure Points & Symptoms in the 6.7 Powerstroke Fuel System

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

The high-pressure demands and precision of the 6.7 Powerstroke fuel system make it susceptible to specific failure modes. Identifying the symptoms early can prevent catastrophic damage.

1. High Pressure Fuel Pump (HPFP) Failure:
   • Symptom: Sudden loss of power, rough running, hard starting, no-start condition, metallic clatter from the engine, or DTCs like P0087 (Fuel Rail/System Pressure – Too Low). Often, metal shavings are present in the fuel system.
   • Diagnosis: Conduct a fuel pressure test to verify low rail pressure. Inspect fuel filters for metallic particles, indicating internal HPFP wear. A full system contamination test may be necessary. For a deeper dive into HPFP diagnostics, refer to our article on High Pressure Fuel Pump Diagnostics.
2. Fuel Injector Malfunction:
   • Symptom: Misfires, excessive smoke (black or white), poor fuel economy, rough idle, knocking sounds, or DTCs such as P0201-P0208 (Injector Circuit Malfunction).
   • Diagnosis: Perform an injector contribution test using a diagnostic scanner. A cylinder balance test can also pinpoint underperforming injectors. A return flow test can identify leaking injectors. Detailed information on injector health can be found in our article on 6.7 Powerstroke Injector Maintenance.
3. Clogged Fuel Filters:
   • Symptom: Reduced engine power, hesitation under acceleration, hard starting, or stalling, especially under load. This can also lead to premature HPFP wear due to increased suction.
   • Diagnosis: Check fuel pressure before and after the filters. A significant pressure drop across a filter indicates a restriction. Visual inspection may reveal heavily discolored or debris-laden filters.
4. Low-Pressure Fuel Pump (Lift Pump) Failure:
   • Symptom: Hard starting, extended cranking, lack of power, or a no-start condition. The engine may run briefly on residual fuel pressure before stalling.
   • Diagnosis: Measure fuel pressure at the primary filter housing. If pressure is below manufacturer specifications (typically 60-70 PSI), the lift pump or its circuit is suspect.
5. Fuel Pressure Sensor (FRP Sensor) or Wiring Issues:
   • Symptom: Erratic engine behavior, sudden power surges or losses, rough idle, or DTCs related to fuel rail pressure (e.g., P0191, P0192).
   • Diagnosis: Monitor live data for the FRP sensor using a diagnostic tool. Compare actual pressure to desired pressure. Inspect wiring harness for damage or corrosion.

Fuel Filter Replacement: A Critical Maintenance Procedure

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Regular fuel filter replacement is the single most important preventative maintenance task for the 6.7 Powerstroke fuel system, crucial for preventing costly damage to the HPFP and injectors. This procedure outlines the steps for a 2011-2016 model (dual filter system). Always refer to your specific model year’s service manual for precise instructions.

1. Safety First:
   ⚠️ Warning

   Ensure the engine is cool and the vehicle is on a level surface. Wear appropriate personal protective equipment (PPE) including eye protection and gloves. Diesel fuel is flammable; keep open flames and sparks away. Collect all drained fuel in an approved container.

2. Gather Tools and Parts:
   • New primary and secondary fuel filters (Motorcraft FD-4615 for primary, Motorcraft FD-4616 for secondary, or equivalent high-quality aftermarket).
   • Socket wrench set (e.g., 36mm or 38mm for filter caps).
   • Torque wrench.
   • Drain pan (minimum 5-gallon capacity).
   • Shop rags.
   • Small pick or flathead screwdriver for O-rings.
   • Clean diesel fuel or petroleum jelly for O-ring lubrication.
3. Primary Fuel Filter (Frame-Mounted) Replacement:
   • Locate the primary filter housing on the driver’s side frame rail, typically near the transmission.
   • Place your drain pan underneath the housing. Open the yellow drain valve at the bottom of the housing and allow all fuel and water to drain.
   • Once drained, close the valve. Using a large socket (e.g., 36mm), carefully unscrew the filter housing cap.
   • Remove the old filter element and the old O-rings from the cap and housing. Clean the housing thoroughly.
   • Lubricate the new O-rings with clean diesel or petroleum jelly and install them on the new filter element and cap.
   • Insert the new filter element into the housing, ensuring it seats correctly. Screw the cap back on by hand until snug.
   • Use a torque wrench to tighten the cap to the manufacturer’s specification. Manufacturer specs typically indicate 18-22 ft-lbs (24-30 Nm).
4. Secondary Fuel Filter (Engine-Mounted) Replacement:
   • Locate the secondary filter housing on top of the engine, typically in the center, underneath the engine cover.
   • Place rags around the housing to catch any spilled fuel. Using a large socket (e.g., 38mm), carefully unscrew the filter housing cap.
   • Remove the old filter element and the old O-ring from the cap. Clean the cap and housing.
   • Lubricate the new O-ring with clean diesel or petroleum jelly and install it on the new filter cap.
   • Insert the new filter element into the housing, ensuring it seats correctly. Screw the cap back on by hand until snug.
   • Use a torque wrench to tighten the cap to the manufacturer’s specification. Manufacturer specs typically indicate 10 ft-lbs (14 Nm).
5. Priming the Fuel System:
   • After replacing both filters, you must prime the fuel system to remove air. Cycle the ignition key from the “OFF” position to “RUN” (without starting the engine) for 30 seconds, then back to “OFF.” Repeat this cycle 6-8 times. Listen for the lift pump running during each “RUN” cycle.
   • Alternatively, use the integrated primer pump on the primary filter housing (if equipped) to manually pump fuel until firm pressure is felt.
   • Attempt to start the engine. It may crank longer than usual. If it doesn’t start after a few attempts, repeat the priming procedure.
6. Final Checks:
   • Once the engine is running, check both filter housings for leaks.
   • Monitor for any unusual noises or performance issues.

Consult our guide on Diesel Fuel Contamination Prevention for more insights on protecting your fuel system.

Frequently Asked Questions About the 6.7 Powerstroke Fuel System

What are the primary differences in the fuel system between early (2011-2016) and late (2017+) 6.7L Powerstrokes?

The most significant difference lies in the low-pressure fuel system components. Early models typically feature a frame-mounted primary fuel filter and water separator, often with a separate low-pressure fuel pump (lift pump) on the frame. The 2017 and newer models integrate the lift pump and primary fuel filter into a single module located inside the fuel tank. While the high-pressure common rail design and HPFP generally remain consistent, specific component locations and service procedures for the low-pressure side vary considerably. Always confirm your vehicle’s model year before purchasing replacement parts or commencing service.

How often should I replace the fuel filters on my 6.7 Powerstroke?

Manufacturer specifications for the 6.7L Powerstroke typically recommend replacing both the primary and secondary fuel filters every 15,000 to 20,000 miles or annually, whichever occurs first. However, operating conditions play a critical role. If you frequently tow heavy loads, drive in dusty environments, or use fuel from less reputable sources, more frequent filter changes (e.g., every 10,000 miles) are highly advisable. Neglecting filter changes can lead to reduced performance, premature wear of the HPFP, and costly repairs.

What are the immediate signs of a failing High Pressure Fuel Pump (HPFP) on a 6.7 Powerstroke?

A failing HPFP often presents with severe symptoms due to its critical role in fuel delivery. Common indicators include a sudden and significant loss of engine power, extended cranking times leading to a no-start condition, rough engine idle, and, in severe cases, metallic knocking noises emanating from the engine bay. Diagnostic trouble codes (DTCs) related to low fuel rail pressure, such as P0087, are almost always present. If you suspect HPFP failure, immediately shut down the engine to prevent further contamination from metal particulates throughout the entire fuel system.

Is it safe to run biodiesel or aftermarket fuel additives in my 6.7 Powerstroke?

Using biodiesel blends up to B20 (20% biodiesel, 80% petroleum diesel) is generally acceptable for the 6.7 Powerstroke, as Ford has approved these blends. However, using higher concentrations of biodiesel (B30 or greater) is typically not recommended without specific modifications and can void your warranty. When it comes to aftermarket fuel additives, exercise caution. Only use additives that are specifically formulated for modern common rail diesel engines and are endorsed by a reputable manufacturer. Avoid products containing alcohol or unknown chemicals, as these can degrade fuel system components, especially seals and O-rings, and potentially lead to costly damage. Always ensure any additive is compatible with your Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR) system.
