Volvo Penta Fuel System Diagram: Component & Repair Guide 2026

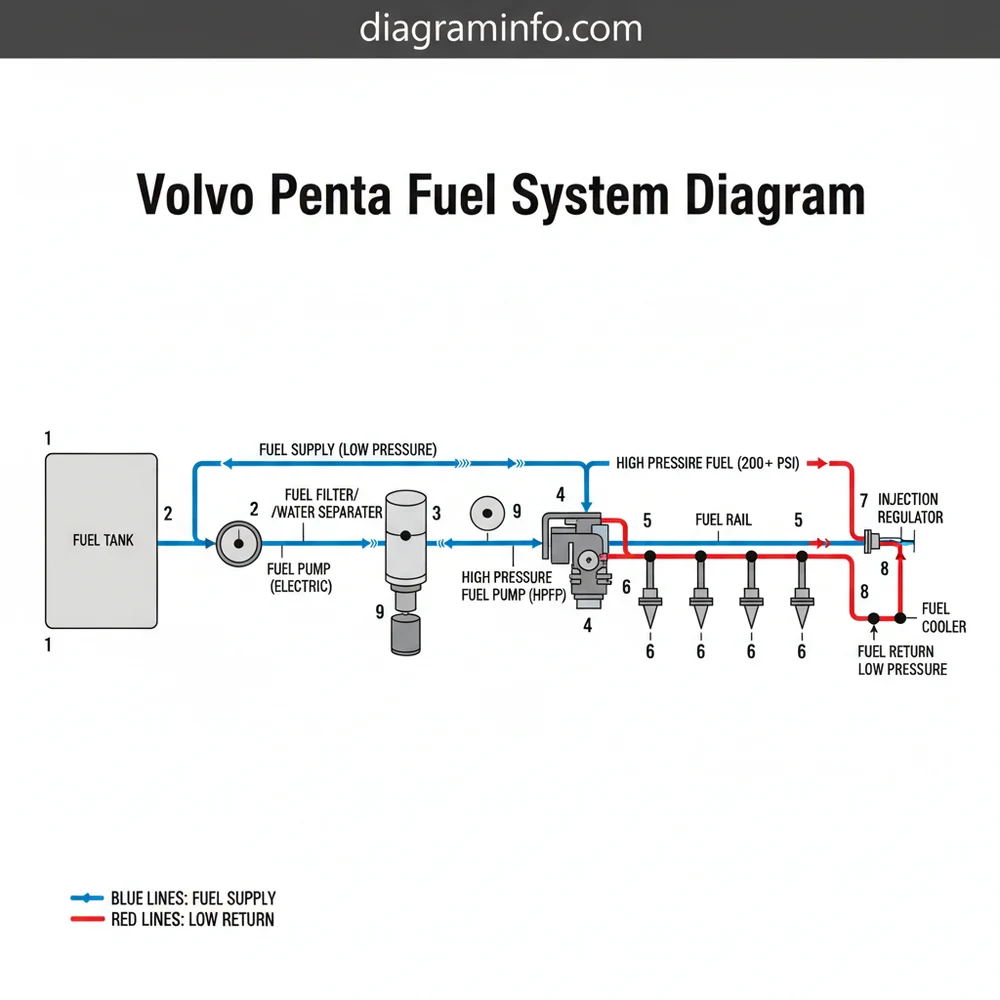

This article provides a comprehensive overview of the Volvo Penta D4/D6 series common rail fuel system. Understanding this complex system is paramount for accurate diagnostics, maintenance, and repair operations. The accompanying diagram, based on typical D4/D6 engine configurations, illustrates the intricate network of components responsible for delivering precisely pressurized and metered fuel to the engine’s combustion chambers. Familiarity with this layout is essential for both experienced marine mechanics and equipment owners performing their own service, enabling efficient troubleshooting and ensuring optimal engine performance.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Fuel System Components Breakdown

The Volvo Penta D4/D6 common rail fuel system is engineered for precise fuel delivery, efficiency, and emission control. As depicted in the diagram, fuel travels through several stages before injection. Starting from the fuel tank, fuel is initially drawn by a pre-feed pump, often integrated into the primary fuel filter assembly or as part of the low-pressure fuel pump. This pump ensures a steady supply of fuel to the entire system. Before reaching critical components, fuel often passes through a fuel cooler, especially in marine applications, to regulate its temperature, which impacts density and lubrication properties. Some systems also incorporate a fuel heater, primarily for cold weather operation, preventing paraffin crystallization in diesel fuel.

The first line of defense against contaminants is the primary fuel filter, typically equipped with a water separator. Following this, the low-pressure fuel pump, often a gear-type pump, boosts the fuel pressure to an intermediate level, supplying it to the main fuel filter. A crucial component in this section is the primer pump, typically a hand-operated or electric pump, used for bleeding air from the system after maintenance. The main fuel filter, often a high-efficiency cartridge type, removes finer particulates before fuel enters the high-pressure circuit. A fuel bowl, integrated into the filter housing, collects water and sediment, providing a visual inspection point and drainage.

The heart of the high-pressure system is the high-pressure fuel pump (HPFP). This precision component, camshaft-driven, generates extremely high pressures (up to 1800-2000 bar or more) required for common rail injection. It feeds a common rail accumulator, a robust manifold that stores fuel under constant high pressure. The fuel pressure within this rail is meticulously controlled by an injection pressure regulator (also known as a pressure control valve or PCV/IMV), which is an electronically controlled solenoid valve. This regulator modulates the fuel flow into the rail or bypasses it, maintaining the desired pressure based on engine load and speed demands communicated by the Engine Control Unit (ECU).

From the common rail, individual high-pressure lines lead to each electronically controlled injector. These injectors precisely atomize and spray fuel directly into the combustion chamber. Excess fuel not injected, along with fuel used for cooling and lubrication within the HPFP and injectors, is returned to the tank via the fuel return line, often passing through the fuel cooler again to dissipate heat. This entire system is meticulously monitored and controlled by the ECU, ensuring optimal combustion, fuel efficiency, and compliance with emission standards. For a deeper dive into engine management, consider our resource on Volvo Penta EVC System Explained.

Common Failure Points & Symptoms

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

1. High-Pressure Fuel Pump (HPFP)
   • Symptoms: Engine hard starting or no start, rough idle, loss of power under load, excessive smoke, engine warning light (DTCs P0087 – Fuel Rail/System Pressure Too Low, P0088 – Fuel Rail/System Pressure Too High).
   • Diagnosis: Low fuel pressure readings at the common rail during cranking or operation, metallic shavings in fuel filters (indicating internal pump wear), abnormal noise from the pump. Verify proper low-pressure supply to the HPFP before condemning.
2. Fuel Injectors
   • Symptoms: Misfires, excessive black or white smoke, rough engine operation, increased fuel consumption, engine knocking, loss of power, difficulty starting.
   • Diagnosis: Cylinder contribution test, leak-off test (measuring return fuel volume), injector coding issues, carbon buildup on injector tips, faulty spray pattern or dribbling. Consult our article on Common Rail Injector Diagnostics for advanced procedures.
3. Injection Pressure Regulator (PCV/IMV)
   • Symptoms: Erratic rail pressure, engine stalling, surging, hard starting, poor throttle response, DTCs related to fuel pressure regulation (e.g., P0190 – Fuel Rail Pressure Sensor Circuit Malfunction).
   • Diagnosis: Monitor rail pressure actual vs. desired values using diagnostic software. Check electrical continuity and resistance of the solenoid. A faulty regulator can cause rapid pressure fluctuations or inability to build/maintain pressure.
4. Fuel Filters (Primary & Secondary)
   • Symptoms: Reduced engine power, hesitation, hard starting, frequent stalling, engine dying under load, excessive black smoke, fuel system air intrusion.
   • Diagnosis: Visible clogging or contamination when inspecting the filter element. Water in fuel sensor alarm activation. A significant pressure drop across the filter indicates restriction.
5. Primer Pump / Low-Pressure Fuel Pump
   • Symptoms: Difficulty bleeding the system, engine hard starting or no start (especially after fuel filter changes), erratic idle, low fuel pressure readings before the HPFP.
   • Diagnosis: Manual operation test for primer pump effectiveness. Measure low-pressure fuel supply with a gauge; inadequate pressure or flow rate indicates a failing low-pressure pump. Verify voltage supply to electric primer pumps.
6. Fuel Return Line / Fuel Cooler
   • Symptoms: Excessive fuel temperature warnings, engine power derating due to high fuel temperature, fuel leaks, or air in the return system.
   • Diagnosis: Inspect lines for kinks, damage, or leaks. Verify coolant flow through the fuel cooler if it’s a heat exchanger type. Blockages in the return line can lead to dangerously high rail pressure or overheating fuel.

Repair & Replacement Steps: Volvo Penta Fuel Filter Replacement (D4/D6)

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Replacing fuel filters on your Volvo Penta D4/D6 engine is a critical maintenance task to prevent costly damage to the high-pressure fuel system. This procedure focuses on both the primary (pre-filter/water separator) and secondary (fine filter) filters. Always refer to your specific engine’s workshop manual for precise part numbers, torque specifications, and year-specific variations. Understanding your engine’s Volvo Penta Maintenance Schedule is vital for proactive care.

1. Preparation and Access:
   • Gather necessary tools: suitable wrench for filter canisters, drain pan, clean rags, new primary and secondary fuel filters (Volvo Penta P/N: Primary e.g., 21608511; Secondary e.g., 21765574 – always verify for your specific engine model and year), filter wrench, and a container for old fuel.
   • Locate the primary fuel filter (often near the fuel tank or on the engine block) and the secondary fuel filter (usually on the engine block, closer to the HPFP).
   • Place a drain pan under each filter housing to catch spilled fuel.
2. Draining the Primary Filter/Water Separator:
   • Open the drain valve at the bottom of the primary fuel filter’s fuel bowl to drain fuel and any accumulated water into your waste container. Close the drain valve once empty.
3. Removing and Replacing Primary Fuel Filter:
   • Using a filter wrench or appropriate tool, carefully unscrew the primary fuel filter cartridge or housing. Note the orientation of the filter element.
   • Remove the old filter element and associated O-rings/gaskets. Thoroughly clean the filter head mounting surface.
   • Lubricate new O-rings with clean diesel fuel or a suitable lubricant. Install the new filter element and O-rings.
   • Screw on the new filter cartridge or housing by hand until the gasket makes contact, then tighten according to manufacturer specifications (e.g., 3/4 to 1 turn past contact, or to a specific torque value, typically 25-30 Nm, consult your manual).
4. Removing and Replacing Secondary Fuel Filter:
   • The secondary fuel filter is often a spin-on canister type or a cartridge within a housing.
   • If spin-on, use a filter wrench to remove the old filter. Clean the mounting surface. Apply a thin film of clean diesel fuel to the new filter’s gasket. Spin the new filter on until the gasket makes contact, then tighten to specification (e.g., 1/2 to 3/4 turn past contact, or 18-22 Nm).
   • If cartridge type, unscrew the housing cap, remove the old cartridge and O-rings. Clean the housing. Install new cartridge and lubricated O-rings. Reinstall and torque the housing cap to specification (e.g., 20-25 Nm).
5. Priming the Fuel System:
   • This is a critical step to remove air. Locate the primer pump (often a plunger type or electric button/switch).
   • Operate the primer pump (pump the plunger or activate the electric pump) until resistance is felt or the pump’s sound changes, indicating fuel flow and air evacuation. Some systems may require opening a bleed screw, typically found on the secondary filter housing or common rail, until bubble-free fuel emerges. Consult your manual for the exact priming procedure, as incorrect priming can lead to hard starting or damage to the HPFP.
   • Visually inspect all new connections for leaks.
6. Start-Up and Final Checks:
   • Reconnect the battery.
   • Attempt to start the engine. It may take several cranking cycles to fully purge any remaining air. Do not excessively crank the engine; allow the starter to cool between attempts.
   • Once running, check carefully for any fuel leaks around the new filters. Monitor engine performance for a few minutes.
   • Observe the fuel bowl on the primary filter for signs of air bubbles or water.

FAQ

What is the function of the fuel cooler in a Volvo Penta D4/D6 fuel system?

The fuel cooler in a Volvo Penta D4/D6 engine plays a crucial role in maintaining optimal fuel temperature, especially given the high pressures and circulation within the common rail system. Fuel that is not injected and returns to the tank (via the fuel return line) absorbs heat from the engine and the high pressure fuel pump (HPFP). If this returned fuel becomes too hot, it can reduce fuel density, leading to less efficient combustion, and decrease the lubricating properties of the diesel, potentially causing premature wear on pump and injector components. The fuel cooler dissipates this excess heat, often using engine coolant or seawater, ensuring the fuel temperature remains within specified operating parameters for efficiency and component longevity.

How does the injection pressure regulator work to control common rail pressure?

The injection pressure regulator (also known as a Fuel Pressure Control Valve or IMV) is an electronically controlled solenoid valve situated on the common rail or the HPFP. It receives signals from the Engine Control Unit (ECU) based on engine load, speed, and other operational parameters. The regulator precisely controls the amount of fuel entering the common rail from the HPFP or, in some designs, regulates the amount of fuel bypassed back to the low-pressure circuit. By rapidly opening and closing, it modulates the fuel flow, maintaining the target pressure in the common rail within very tight tolerances, essential for precise injection and optimal engine performance. Malfunctions can lead to under- or over-pressurization of the common rail.

What are the common signs of air in the fuel system after maintenance?

Air in the fuel system, often introduced during filter changes or component replacement, manifests as distinct symptoms. The most common are difficulty starting (prolonged cranking), engine running rough or surging at idle, intermittent power loss, and eventual engine stalling. Air bubbles can also be visible in the fuel bowl of the primary filter or transparent sections of the fuel return line. It’s crucial to thoroughly bleed the system using the primer pump after any maintenance involving fuel lines or filters to prevent air-related issues, which can even damage the HPFP if it runs dry.

Can I use off-brand fuel filters for my Volvo Penta D4/D6 engine?

While some aftermarket filters claim to meet OEM specifications, using genuine Volvo Penta filters or high-quality, certified alternatives is strongly recommended for the D4/D6 fuel system. The common rail system operates at extremely high pressures and requires exceptionally fine filtration to protect delicate components like the high-pressure fuel pump (HPFP) and injectors. Inferior filters may have lower filtration efficiency, bypass issues, or inadequate water separation capabilities, leading to premature wear, expensive repairs, and potential voiding of warranty. Always prioritize filter quality over minimal cost savings.
