EFI System Fuel Pressure Regulator Diagram: Component Breakdown & Repair 2026
An EFI fuel pressure regulator (FPR) maintains consistent fuel rail pressure, typically by bleeding excess fuel back to the tank via a fuel return line. It’s often located on the fuel rail, sensing manifold vacuum to adjust pressure for optimal fuel injection. Incorrect pressure affects fuel delivery and engine performance.
📌 Key Takeaways
- The EFI fuel pressure regulator maintains fuel rail pressure typically between 35-45 PSI, critical for proper injector function and atomization.
- Identify the FPR by its location on the fuel rail or adjacent to the fuel return line, often with a vacuum hose connection.
- Always relieve fuel system pressure before disconnecting fuel lines to prevent fuel spray and fire hazards; wear appropriate eye protection.
- A common failure point is a ruptured vacuum diaphragm, leading to rich running conditions or black smoke, often mistaken for other fuel delivery issues.
- While basic FPR replacement can be DIY, diagnosing complex fuel pressure issues, especially those involving the high pressure fuel pump (HPFP) or injection pressure regulator, often requires professional diagnostic tools.
This article delves into the intricate workings of the Duramax LBZ/LLY 6.6L common rail direct injection (CRDI) fuel system, providing an in-depth analysis of its architecture and the crucial role played by the EFI fuel pressure regulator. Understanding this system, as depicted in a comprehensive fuel system diagram, is paramount for accurate diagnosis and effective repair. It showcases how various components collaborate to maintain precise fuel delivery and injection pressure, essential for optimal engine performance, emissions control, and fuel efficiency in this robust diesel platform.
FUEL SYSTEM COMPONENTS BREAKDOWN
The Duramax LBZ/LLY fuel system is a sophisticated network designed for high-pressure, electronically controlled fuel delivery. Below is a detailed breakdown of its key components, as typically illustrated in an efi fuel pressure regulator diagram:
| Component | Function | Key Characteristic |
|---|---|---|
| Fuel Tank | Stores diesel fuel. | Typically steel or plastic construction, vented. |
| Lift Pump (Low-Pressure Fuel Pump) | Draws fuel from the tank and supplies it to the filter housing and then to the HPFP at a consistent low pressure (e.g., 4-10 PSI). | Electric, in-tank or frame-mounted. Essential for priming and supplying the `HPFP`. |
| Fuel Heater | Warms fuel to prevent gelling in cold weather, often integrated into the fuel filter head. | Thermostatically controlled electric heating element. |
| Fuel Filter Housing / `Fuel Bowl` | Houses the primary fuel filter and typically incorporates a water separator, drain valve, and a hand `primer pump`. The `fuel bowl` collects water which is heavier than diesel. | Removable filter element, often with a WIF (Water In Fuel) sensor. |
| `High Pressure Fuel Pump (HPFP)` (e.g., Bosch CP3) | Raises fuel pressure from lift pump pressure to extreme pressures (up to 23,000-26,000 PSI) for the common rail. | Cam-driven, precision plunger pump. Critical component for common rail systems. |
| `Injection Pressure Regulator (IPR)` / Fuel Metering Unit (on HPFP) | An electronically controlled valve on the `HPFP` that regulates the amount of fuel entering the high-pressure pumping chambers, thereby controlling the output pressure of the HPFP. | Solenoid-actuated valve, often supplied with 12V and controlled via a Pulse Width Modulation (PWM) signal from the ECM. |
| Fuel Rail (Common Rail) | A high-pressure accumulator that stores fuel at constant high pressure, feeding individual injectors. | Thick-walled steel tube, designed to withstand immense pressure. |
| Fuel Rail Pressure Sensor | Monitors the actual fuel pressure within the common rail, providing feedback to the Engine Control Module (ECM). | Piezoelectric or strain gauge sensor. Typically a 3-wire sensor (5V reference, ground, signal). |
| Fuel Rail Pressure Regulator (FPR) / Fuel Pressure Control Valve | An electronically actuated valve, typically located on one end of the fuel rail, that precisely controls the fuel pressure within the common rail by bleeding off excess fuel to the `fuel return line`. This is often the component central to the efi fuel pressure regulator diagram in discussions of rail pressure. | Solenoid-actuated valve, controlled by PWM signal from ECM. |
| Fuel Injectors | Deliver a precisely atomized spray of high-pressure fuel directly into the combustion chamber. | Piezoelectric or solenoid-driven; common rail injectors are highly complex and precise. |
| `Fuel Return Line` | Carries excess fuel (from HPFP, rail pressure regulator, and injectors) back to the fuel tank. | Low-pressure line, often routed through a `fuel cooler`. |
| `Fuel Cooler` | Cools the warm return fuel before it re-enters the tank, preventing excessive fuel temperature which can impact density and lubricity. | Typically a finned heat exchanger, often mounted on the frame. |

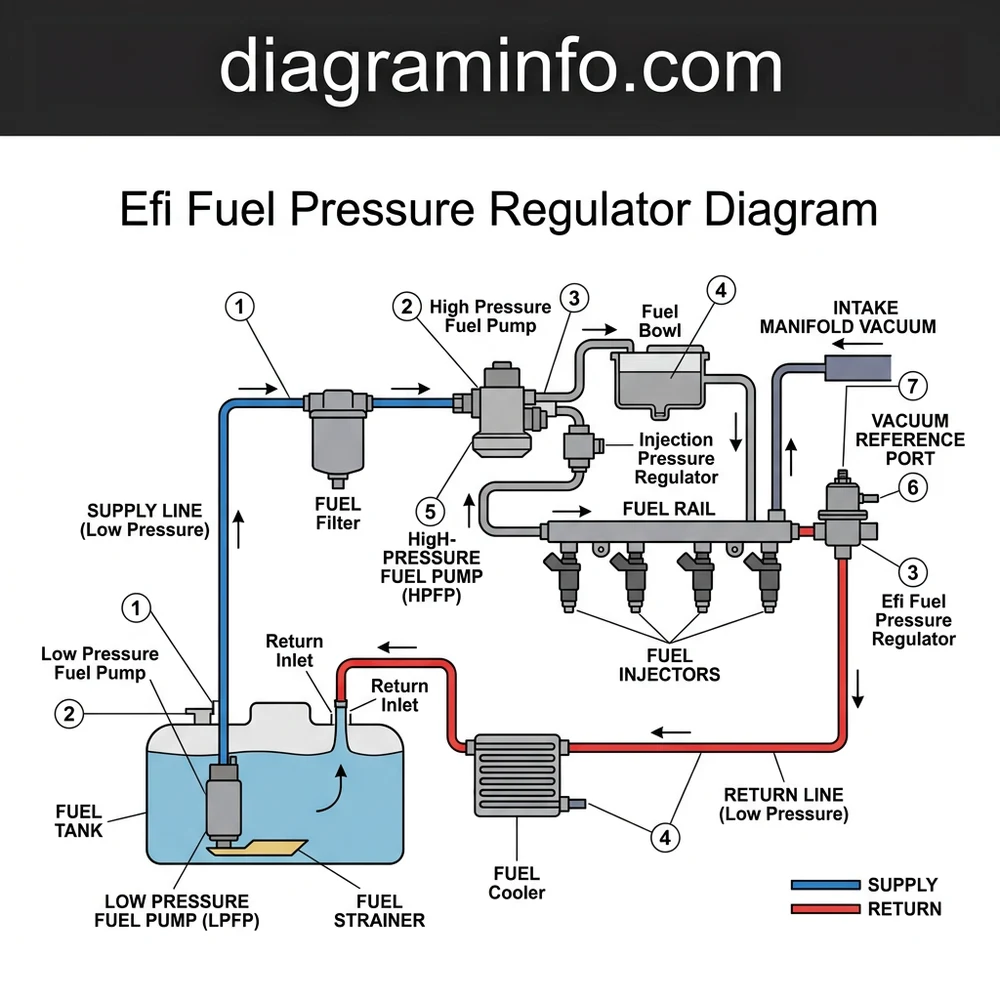

As indicated in the diagram, fuel travels from the tank, through the lift pump and filter, to the `HPFP`. The `injection pressure regulator` (metering unit) on the `HPFP` controls the volume of fuel pressurized, while the fuel rail pressure regulator on the common rail finely tunes the pressure by diverting excess fuel through the `fuel return line`. This dual regulation system ensures incredibly precise pressure management. For more details on diagnostic strategies, refer to our article on Duramax injector diagnostics.
COMMON FAILURE POINTS & SYMPTOMS
Understanding the typical failure modes of the Duramax LBZ/LLY fuel system is crucial for efficient troubleshooting. Here are common issues associated with the components outlined in the efi fuel pressure regulator diagram:
1. Fuel Rail Pressure Regulator (FPR) / Fuel Pressure Control Valve (FRPCV):
Symptom: Hard starting (especially hot), extended cranking, erratic idle, reduced power, check engine light with codes P0087 (Fuel Rail/System Pressure – Too Low), P0088 (Fuel Rail/System Pressure – Too High), P1093 (Fuel Pressure Regulation).
Diagnosis: Monitor fuel rail pressure with a scan tool during cranking and at idle. A faulty FPR may show erratic pressure readings or a significant deviation from commanded pressure. An authorized service manual will detail the specific diagnostic steps, often involving resistance checks and commanded duty cycle testing.
2. `High Pressure Fuel Pump (HPFP)` (Bosch CP3):
Symptom: No start, extremely low or fluctuating rail pressure, excessive metal shavings in fuel filter (indicating internal pump wear), limp mode, repeated P0087 codes.
Diagnosis: First, rule out low-pressure supply issues. Then, use a scan tool to monitor commanded vs. actual rail pressure. If the `HPFP` cannot meet commanded pressure even with sufficient fuel supply, it’s a strong indicator of internal wear. Inspect the fuel filter for metal contamination. For detailed testing, refer to procedures for HPFP failure modes.
3. `Injection Pressure Regulator (IPR)` / Fuel Metering Unit (on HPFP):
Symptom: Rough idle, poor acceleration, engine stalling, excessive smoke, P0087, P0088, P1093. This component directly influences the volume of fuel going into the high-pressure chambers of the `HPFP`.
Diagnosis: Similar to the FPR, a scan tool will reveal discrepancies between commanded and actual fuel pressure. The ECM controls this solenoid valve via a Pulse Width Modulation (PWM) signal. Checking the signal integrity and resistance of the IPR solenoid may be necessary.
4. Lift Pump (Low-Pressure Fuel Pump):
Symptom: No start, hard start, engine surging, lack of power under load, fuel starvation, excessive `HPFP` noise (cavitation).
Diagnosis: Check fuel pressure at the inlet of the fuel filter housing or `HPFP` using a mechanical gauge. Manufacturer specifications indicate a typical pressure range (e.g., 4-10 PSI for Duramax). Low or no pressure indicates a failing lift pump or obstruction.
5. Fuel Filter / `Fuel Bowl`:
Symptom: Reduced power, stalling, hard starting, rough running, check engine light with P0087 or P0093 (Fuel System Leak Detected – Small Leak). Water in fuel (WIF) light illuminated.
Diagnosis: Replace the fuel filter. Drain the `fuel bowl` regularly for water. A clogged filter restricts fuel flow to the `HPFP`, leading to low rail pressure.
6. Fuel Rail Pressure Sensor:
Symptom: Erratic rail pressure readings on a scan tool, P0191 (Fuel Rail Pressure Sensor Range/Performance), P0192 (FRP Sensor Low), P0193 (FRP Sensor High), engine stalling, limp mode.
Diagnosis: Monitor the sensor’s voltage output with a multimeter or scan tool, comparing it to specified values at different pressures. Verify wiring integrity. For proper calibration, consult our article on common rail pressure sensor calibration.
REPAIR & REPLACEMENT STEPS: Fuel Rail Pressure Regulator (FPR)
Replacing the Fuel Rail Pressure Regulator (FPR) on a Duramax LBZ/LLY 6.6L engine requires precision and adherence to manufacturer specifications. This component, prominently featured in any detailed efi fuel pressure regulator diagram, is critical for maintaining correct common rail pressure.
Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves. Diesel fuel systems operate at extremely high pressures, posing a significant risk of injury from fuel spray. Ensure the engine is cool before beginning work and disconnect the negative battery terminal to prevent accidental starting or electrical shorts. High-pressure diesel fuel can penetrate skin, leading to severe injury requiring immediate medical attention.
Applicable Vehicle: 2006-2007 Duramax LBZ / 2004.5-2005 LLY 6.6L Diesel (FPR is typically located at the rear of the driver-side fuel rail).
Required Tools & Materials:
Metric socket set (10mm, 17mm, 19mm)
Metric wrench set
Torque wrench (ft-lb and in-lb)
Clean shop rags
New FPR (GM Part No. 97371536 or equivalent high-quality aftermarket)
New O-rings and seals (often included with new FPR)
Brake cleaner or suitable degreaser
Diagnostic scan tool
Procedure:
1. Depressurize Fuel System: On most common rail systems, the rail will automatically depressurize when the engine is off for a period. However, always exercise caution. Cycle the ignition key on/off several times without starting the engine to allow the ECM to release residual pressure.
2. Access the FPR:
Remove any engine covers or components obstructing access to the driver-side fuel rail. This may include air intake piping, intercooler pipes, or wiring harnesses.
Locate the FPR at the rear of the driver’s side fuel rail. It will have an electrical connector and be secured by two bolts.
3. Disconnect Electrical Connector: Carefully unplug the electrical connector from the FPR. Inspect the connector and wiring for any signs of damage.
4. Remove Fuel Line (if applicable): Some FPRs have a dedicated `fuel return line` banjo bolt directly on the regulator. If present, use a 17mm or 19mm wrench to loosen and remove this bolt, catching any residual fuel with a clean rag. Discard the copper sealing washers.
5. Remove FPR Mounting Bolts: Use a 10mm socket to remove the two mounting bolts securing the FPR to the fuel rail. Carefully set these aside.
6. Extract the Old FPR: Gently wiggle and pull the old FPR straight out from the fuel rail. Be prepared for a small amount of residual fuel to escape. Immediately cap the opening in the fuel rail to prevent contamination.
7. Clean Mounting Area: Thoroughly clean the FPR mounting bore in the fuel rail using a clean rag and brake cleaner. Ensure no debris or old O-ring material remains.
8. Prepare New FPR:
Lubricate the new O-rings on the new FPR with a small amount of clean diesel fuel or assembly lube. This aids in installation and prevents O-ring damage.
Ensure the new FPR is identical to the old one and includes all necessary seals.
9. Install New FPR:
Carefully insert the new FPR into the fuel rail bore, ensuring it seats fully and correctly. Do not force it.
Install the two mounting bolts and hand-tighten them.
Using a torque wrench, tighten the FPR mounting bolts to the specified torque.
FPR Mounting Bolt Torque (GM Duramax LBZ/LLY): 89 in-lbs (10 Nm). Always verify with OEM service information for your specific model year, as specifications can vary slightly.
10. Reinstall Fuel Line (if applicable): If a `fuel return line` banjo bolt was removed, install it with new copper sealing washers and torque to specification.
Fuel Return Line Banjo Bolt Torque (GM Duramax LBZ/LLY): 18 ft-lbs (24 Nm). Use new sealing washers.
11. Reconnect Electrical Connector: Plug the electrical connector firmly onto the new FPR.
12. Reassemble Components: Reinstall any removed air intake components, intercooler pipes, and wiring harnesses. Ensure all clamps and fasteners are secure.
13. Prime Fuel System: After replacing any fuel system component, it is essential to prime the system to remove air.
Reconnect the negative battery terminal.
Operate the hand `primer pump` on top of the fuel filter housing until it becomes firm. This indicates the low-pressure side is filled with fuel.
Cycle the ignition key to the ON position (without starting) for 10-15 seconds several times. This activates the lift pump and helps purge air. For more details on the process, consult our guide on diesel fuel system priming.
14. Start Engine and Check for Leaks: Start the engine and allow it to idle. Carefully inspect the new FPR and surrounding fuel lines for any signs of fuel leaks. Monitor engine operation and check for any diagnostic trouble codes (DTCs) with a scan tool. Clear any old codes. Take the vehicle for a test drive to confirm proper operation and performance.
On some common rail systems, the Engine Control Module (ECM) may require a “fuel system learn” or “parameter reset” procedure via a diagnostic scan tool after replacing components like the FPR to optimize fuel pressure regulation and injector calibration. Consult your specific OEM service manual for any such requirements.
FAQ
What is the primary function of the EFI fuel pressure regulator in a common rail diesel system?
The EFI fuel pressure regulator, often referred to as the Fuel Rail Pressure Regulator (FPR) or Fuel Pressure Control Valve (FRPCV) on common rail systems, precisely controls the pressure of fuel within the common rail. It works in conjunction with the `injection pressure regulator` (metering unit) on the `HPFP` to maintain optimal fuel pressure for the injectors, regardless of engine load or RPM. It achieves this by modulating the amount of fuel that is bled off from the high-pressure rail back into the `fuel return line`.
Can a faulty EFI fuel pressure regulator cause engine stalling?
Yes, a malfunctioning EFI fuel pressure regulator can absolutely cause engine stalling. If the regulator fails in a way that causes rail pressure to drop below the minimum threshold required for injection, the engine will stall. Conversely, if it fails to relieve excess pressure, the `HPFP` may struggle, leading to incorrect injection timing or over-pressurization conditions that could also cause stalling or prompt the ECM to shut down the engine for protection.
How do I test an EFI fuel pressure regulator on a Duramax LBZ/LLY?
Testing the EFI fuel pressure regulator primarily involves using a diagnostic scan tool to monitor live data, specifically “Commanded Fuel Rail Pressure” and “Actual Fuel Rail Pressure.” During cranking and engine operation, these values should closely match. Significant discrepancies (e.g., actual pressure consistently much higher or lower than commanded, or erratic fluctuations) indicate a problem with the FPR, `HPFP`, or a related sensor. Additionally, resistance checks of the FPR solenoid can be performed with a multimeter while referencing OEM specifications.
What are the symptoms of a clogged `fuel return line`?
A clogged `fuel return line` can lead to several issues, primarily due to the buildup of excessive pressure within the low-pressure side of the fuel system or improper regulation of high pressure. Symptoms may include hard starting, especially when hot, engine surging, erratic idle, and potentially reduced power. If the `fuel return line` from the fuel rail is restricted, the rail pressure regulator cannot effectively reduce rail pressure, which could lead to excessively high rail pressure codes (e.g., P0088) or damage to the `HPFP` or injectors. In severe cases, it can cause the engine to stall or go into limp mode.
Why is `fuel cooling` important in diesel fuel systems, particularly for the Duramax LBZ/LLY?
`Fuel cooling` is vital in modern diesel systems like the Duramax LBZ/LLY because a significant portion of the fuel circulated by the `HPFP` and through the common rail does not get injected; instead, it is returned to the tank via the `fuel return line`. This high-pressure pumping and the work done by the injectors heat the fuel considerably. A `fuel cooler` dissipates this heat before the fuel re-enters the tank. Overheated fuel can lead to several problems: it reduces fuel density (affecting power and efficiency), degrades fuel lubricity (increasing wear on fuel system components like the `HPFP`), and can lead to vapor lock or boiling issues in the low-pressure system, particularly in high-temperature operating conditions.
Step-by-Step Guide to Understanding the Efi System Fuel Pressure Regulator Diagram: Component Breakdown & Repair 2026
Identify – Locate the fuel pressure regulator (FPR) on your engine’s fuel rail, typically a small, cylindrical component with a vacuum line and a fuel return line connection.
Locate – Find the specific position of the FPR and its associated components on the provided efi fuel pressure regulator diagram.
Reference – Use the diagram to trace the fuel supply line from the high pressure fuel pump to the fuel rail and back to the tank via the return line, noting connections.
Connect/Route – If replacing, ensure the new FPR is correctly oriented, and vacuum and fuel lines are securely reconnected, paying attention to hose clamps.
Verify – After installation, cycle the ignition key several times without starting to prime the fuel system, then check for any leaks around the FPR and lines.
Troubleshoot – If fuel pressure issues persist, consult the diagram to inspect the fuel filter, fuel pump, or check for issues with the injection pressure regulator, which could mimic FPR failure.
Frequently Asked Questions
What are the main components of an EFI fuel pressure regulator diagram?
The diagram typically shows the fuel tank, electric fuel pump, fuel filter, fuel rail with injectors, and the fuel pressure regulator (FPR). The FPR, often connected to a fuel return line, manages excess fuel flow, while the high pressure fuel pump ensures adequate supply to the rail.
What are symptoms of a failing EFI fuel pressure regulator or pump?
A failing FPR can cause rough idle, poor acceleration, black smoke (too rich), or hard starting. A failing fuel pump might present as a whining noise from the tank, engine misfires under load, or complete no-start conditions due to insufficient fuel delivery to the injectors.
How do I diagnose a fuel leak in an EFI fuel system?
Visually inspect all fuel lines, injector seals, and the fuel pressure regulator for visible wet spots or a strong fuel odor. Use a fuel pressure gauge to check for drops in pressure after the engine is off, which could indicate a leaking injector or a faulty check valve in the pump assembly.
What is the fuel pressure spec for an EFI fuel system?
Typical EFI fuel pressure specifications vary, but most non-returnless systems operate between 35-45 PSI (pounds per square inch) at idle, increasing slightly with engine load. Consult your vehicle’s service manual for the exact specification. An accurate fuel pressure gauge is essential for this diagnosis.
How long does an EFI fuel pump last?
An EFI fuel pump typically lasts between 100,000 to 150,000 miles, but this can vary greatly based on fuel quality, filter maintenance, and driving conditions. Running the tank consistently low can shorten its lifespan due to increased heat and lack of fuel for cooling.
Can I replace an EFI fuel filter myself?
Yes, replacing an EFI fuel filter is often a DIY task, usually located in the fuel line beneath the vehicle or in the engine bay. Always relieve fuel system pressure first, wear eye protection, and use proper fuel line disconnect tools. Refer to a repair manual for exact location and procedure.
