Homelite Chainsaw Fuel Line Diagram: Routing & Repair 2026
The Homelite chainsaw fuel system typically consists of a fuel tank, an in-tank fuel filter, fuel lines (supply and fuel return line), a primer bulb, and the carburetor. Correct routing ensures the primer bulb draws fuel and the carburetor receives an uninterrupted supply, crucial for starting and running.
📌 Key Takeaways
- Always use fresh, correctly mixed fuel (gasoline and 2-stroke oil) to prevent fuel line degradation and carburetor issues.
- Identify the two main fuel lines: one from the tank to the carburetor (often via the primer bulb), and the smaller fuel return line back to the tank.
- Ensure all fuel lines are free from cracks, kinks, or hardening, as these are primary causes of air leaks and fuel starvation.
- The primer bulb and in-tank fuel filter are common failure points; inspect them regularly for proper function and debris.
- While many fuel line repairs are DIY, persistent starting or running issues after line replacement may indicate carburetor problems, warranting professional service.
This comprehensive guide delves into the intricate fuel delivery system of Homelite chainsaws, primarily focusing on common 2-stroke air-cooled engines found in models like the UT10514, UT10516, or UT10518 series, though the principles apply broadly across their range. Understanding the Homelite chainsaw fuel line diagram is paramount for accurate diagnosis, efficient maintenance, and successful repairs. This article will deconstruct each component, explain its function, illustrate common failure points, and provide practical, step-by-step repair procedures to keep your equipment running reliably. Mastering this diagram is essential for any technician or experienced owner tackling fuel-related issues.

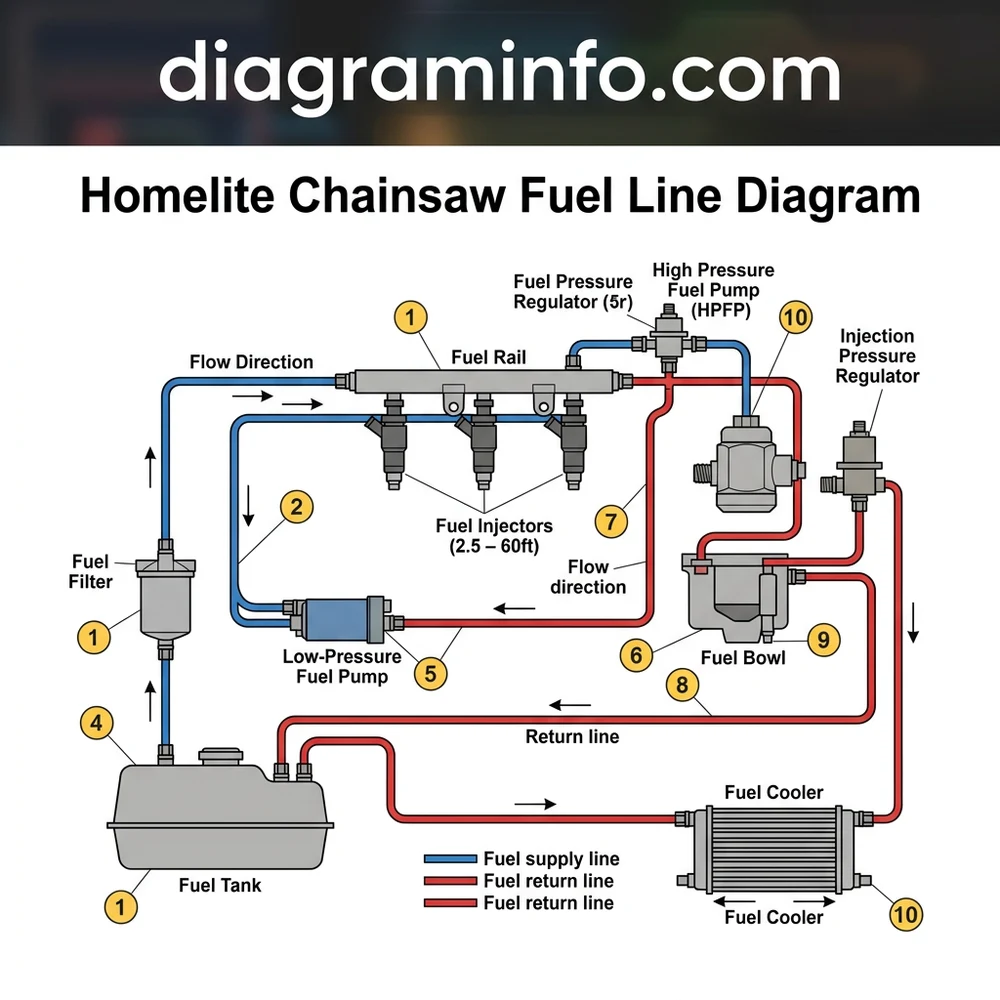

A detailed Homelite chainsaw fuel line diagram, depicting the fuel tank, fuel filter, primary (supply) fuel line, return fuel line, primer bulb, vent line, and carburetor connections, would be inserted here.
FUEL SYSTEM COMPONENTS BREAKDOWN
The fuel system of a Homelite chainsaw is deceptively simple yet highly critical for engine operation. As depicted in the Homelite chainsaw fuel line diagram, fuel travels from the tank, through filtration, to the carburetor, and often involves a primer circuit. Unlike larger automotive engines with complex high pressure fuel pumps (HPFP) or injection pressure regulators, these small 2-stroke systems rely on vacuum and atmospheric pressure.
- Fuel Tank: This polyethylene reservoir stores the fuel mixture (gasoline and 2-stroke oil). Its design often incorporates baffles to prevent sloshing and maintain fuel delivery during various operating angles.
- Fuel Filter: Submerged inside the fuel tank, typically at the end of the primary fuel line, this small sintered bronze or felt filter screens out particulate matter, preventing clogs in the fuel lines and carburetor jets. Regular inspection and replacement of the fuel filter are crucial for consistent fuel flow.
- Primary (Supply) Fuel Line: This line, often with a 1/8-inch (3.2mm) inner diameter, connects the fuel filter within the tank directly to the fuel inlet port of the carburetor. It’s the main conduit for the fuel mixture traveling to the engine.
- Return Fuel Line: Generally thinner, with a 3/32-inch (2.4mm) inner diameter, this line connects the outlet port of the primer bulb back into the fuel tank. Its function is to return excess fuel to the tank, completing the primer circuit. Some older or simpler models might omit a dedicated return line if no primer bulb is present.
- Primer Bulb (Primer Pump): This transparent, flexible bulb, often positioned externally on the chainsaw casing, manually draws fuel from the tank, through the carburetor, and returns it via the fuel return line. Depressing the primer bulb purges air from the fuel system and fills the carburetor with fuel, aiding in cold starting.
- Carburetor: The heart of the fuel system, the carburetor mixes air and fuel in precise ratios. For Homelite chainsaws, these are typically diaphragm-type carburetors, which do not feature a traditional float-style fuel bowl like older automotive carburetors. Instead, they use a metering diaphragm and fuel pump diaphragm driven by crankcase pressure pulses to deliver fuel to the jets. Understanding the internal workings of these carburetors is essential for advanced troubleshooting; consider consulting a “Chainsaw Carburetor Adjustment Guide” for more in-depth information.
- Vent Line/Tank Vent: This small line or valve allows air into the fuel tank as fuel is consumed, preventing a vacuum lock that would starve the engine of fuel. It also allows pressure to escape from the tank as temperatures fluctuate.
While LSI keywords like ‘high pressure fuel pump (HPFP)’ and ‘injection pressure regulator’ are common in modern automotive and diesel applications, they are explicitly NOT present in a typical Homelite chainsaw’s 2-stroke carbureted fuel system. Fuel delivery is achieved via vacuum pulses and the primer pump, operating at ambient pressures or slight negative pressures. Similarly, ‘fuel cooler’ and ‘fuel heater’ components are absent, as the operating parameters of these small engines do not necessitate such thermal management for fuel.
COMMON FAILURE POINTS & SYMPTOMS
Understanding the Homelite chainsaw fuel line diagram also means anticipating where issues commonly arise. Fuel system failures can manifest in a wide range of performance issues, from difficult starting to complete engine shutdown.
-
Fuel Lines (Primary & Return):
- Symptom: Fuel leaks, particularly at connections, hardening, cracking, or swelling (often due to ethanol in fuel). Engine runs lean, stalls, or refuses to start. Primer bulb does not firm up or draws air.
- Diagnosis: Visually inspect all fuel lines for obvious degradation. Pinch tests can reveal hidden cracks. If the primer bulb action is weak or air bubbles are visible in the lines during priming, an air leak is highly probable. Over time, original PVC lines become brittle; replacement with ethanol-resistant Tygon or Viton is recommended.
-
Fuel Filter:
- Symptom: Engine struggles under load, loses power, runs erratically, or won’t start despite having fuel.
- Diagnosis: Remove the fuel cap and carefully pull the fuel filter assembly out of the tank (it’s often weighted). Inspect the filter element for discoloration, debris, or crumbling material. A clogged filter restricts fuel flow, leading to a lean condition.
-
Primer Bulb (Primer Pump):
- Symptom: Primer bulb doesn’t draw fuel, stays collapsed, cracks, or feels spongy after multiple presses. Chainsaw is difficult to start, especially when cold.
- Diagnosis: Inspect the bulb for visible cracks. Press the bulb and observe if fuel moves through the lines. If the bulb remains collapsed or does not firm up, it indicates a tear in the bulb itself or an air leak elsewhere in the primer circuit, often a loose or cracked fuel line connection to the carburetor or tank.
-
Carburetor:
- Symptom: Chainsaw starts but stalls, idles poorly, won’t rev up, or floods easily. Fuel leaks from the carburetor body.
- Diagnosis: While a complete “Chainsaw Carburetor Adjustment Guide” covers this extensively, common fuel-related issues include clogged metering jets (especially the low-speed jet), hardened or torn metering diaphragms, or a worn inlet needle valve. A faulty carburetor might be the root cause if fuel flow to the carburetor is confirmed, and other components are sound. For further troubleshooting, one might need to inspect internal carburetor components; a task often requiring special tools.
-
Vent Line/Tank Vent:
- Symptom: Engine runs for a short period and then bogs down or dies, only to restart after opening the fuel cap. You might hear a “hiss” when opening the fuel cap.
- Diagnosis: This indicates a vacuum lock within the fuel tank. The vent is either clogged with debris, or the check valve within the vent assembly (if present) is stuck closed. Inspect the vent line for kinks or blockages.
REPAIR & REPLACEMENT STEPS
One of the most frequent repairs on a Homelite chainsaw’s fuel system involves replacing aged or damaged fuel lines and the fuel filter. This procedure is critical for addressing common no-start or poor-running conditions. Always refer to your specific model’s service manual for precise torque specifications and exploded diagrams.
Before commencing any work, ensure the chainsaw is cool, the spark plug boot is disconnected to prevent accidental starting, and the fuel tank is drained. Always work in a well-ventilated area away from open flames or sparks. Wear appropriate personal protective equipment, including safety glasses and gloves, as gasoline is highly flammable and irritating to skin.
Procedure: Fuel Line and Filter Replacement
- Drain Fuel Tank: Remove the fuel cap and carefully pour all existing fuel into an approved, sealed container. Run the engine briefly if possible (until it stalls from lack of fuel) to empty the carburetor of residual fuel.
- Access Components: Depending on your Homelite model, you may need to remove the top engine cover, air filter housing, or even the rear handle assembly to gain clear access to the carburetor and fuel tank fittings. Use appropriate Torx or Phillips drivers. Keep fasteners organized.
- Disconnect Fuel Lines from Carburetor: Locate the two or three fuel lines entering/exiting the carburetor. Gently but firmly pull them off their respective barbed fittings. Note which line goes to which port (e.g., the primary fuel line typically connects to the main fuel inlet, while the primer output connects to the tank return). If lines are brittle, they may break, which is expected.
- Remove Old Fuel Lines from Tank: Using needle-nose pliers or a hooked tool, carefully fish the fuel filter and its attached primary fuel line out of the fuel tank opening. Pull the return line (and potentially a vent line) out as well. It’s often easiest to cut the old lines flush with the tank opening and then pull the internal portions out.
- Prepare New Fuel Lines: Cut new lengths of ethanol-resistant fuel line (e.g., Tygon or Viton, typically 1/8″ ID for supply and 3/32″ ID for return). Manufacturer specs indicate specific lengths for optimal routing and performance; aim for slightly longer than necessary and trim as needed. Homelite chainsaws often use specific fuel line routing, sometimes with a grommet.
🔧 Specification
For most Homelite 2-stroke chainsaws, the primary fuel line (carburetor inlet) is 1/8 inch (3.2mm) I.D., and the primer return line is 3/32 inch (2.4mm) I.D. Ensure the replacement material is rated for ethanol-blended fuels (e.g., SAE J30R7 or higher equivalent).
- Install New Fuel Filter and Lines: Push the new primary fuel line onto the new fuel filter. Carefully feed the filter and its attached line into the fuel tank opening, ensuring the filter drops to the bottom. Next, feed the new return line (and vent line if applicable) through the tank opening. You might find it easier to insert a wire or stiff guide first, then push the fuel line over it.
- Connect Lines to Carburetor and Primer Bulb: Reconnect the primary fuel line to the carburetor’s main fuel inlet. Connect the return line to the proper fitting on the primer bulb (typically the inlet, where fuel enters the bulb). Then, connect the primer bulb’s output fitting to the carburetor’s primer port (if applicable) or a separate return line. Refer carefully to your diagram or take photos before disassembly.
- Secure and Test: Ensure all lines are snug on their fittings and routed correctly, avoiding kinks or contact with hot engine components. Reinstall any covers or housings removed earlier. Refill the tank with fresh, properly mixed 2-stroke fuel.
- Prime the System and Test Start: Press the primer bulb repeatedly until it feels firm and you see fuel circulating and entering the carburetor. For “Troubleshooting 2-Stroke Engine Starting Issues,” refer to dedicated guides. Attempt to start the chainsaw. If it starts, allow it to idle for a few minutes and check for any leaks.
FAQ
Why are there two fuel lines from the fuel tank on my Homelite chainsaw?
Most Homelite chainsaws feature a two-line system for fuel delivery, which is integral to the primer bulb’s function. One line (the primary or supply line) runs from the fuel filter in the tank directly to the carburetor’s main fuel inlet. The second line is the fuel return line, which connects the outlet of the primer bulb back to the fuel tank. When you press the primer bulb, it draws fuel from the tank, through the carburetor, and pushes any excess fuel and air back into the tank via this return line, effectively purging air from the system and filling the carburetor with fuel.
My Homelite chainsaw’s primer bulb doesn’t draw fuel. What’s the common problem?
If your primer bulb isn’t drawing fuel, several issues could be at play. The most common cause is a cracked or torn primer bulb itself, allowing air to be drawn in instead of fuel. Other possibilities include a clogged fuel filter, which restricts fuel flow from the tank; air leaks in the fuel lines (cracks or loose connections); or an incorrect connection of the fuel lines to the primer bulb or carburetor. A thorough inspection of the lines and bulb, coupled with ensuring the fuel filter isn’t blocked, is the first step in diagnosis.
What type of fuel line material should I use for replacing Homelite chainsaw lines?
For optimal longevity and performance, you should always use ethanol-resistant fuel line material when replacing Homelite chainsaw lines. Modern gasoline often contains ethanol, which can quickly degrade older PVC or standard rubber lines, leading to hardening, cracking, and swelling. High-quality Tygon or Viton fuel lines are highly recommended as they are specifically designed to resist ethanol’s corrosive effects. Always match the inner diameter (ID) of the original lines; typically 1/8 inch (3.2mm) for the main supply and 3/32 inch (2.4mm) for the primer return.
How often should Homelite chainsaw fuel lines be replaced?
While there’s no strict mileage interval like in a car, Homelite chainsaw fuel lines should generally be inspected and potentially replaced every 2 to 5 years, or immediately upon showing signs of degradation. These signs include visible cracks, hardening, excessive flexibility, swelling, or fuel leaks. Proactive replacement, especially if you regularly use ethanol-blended fuels or your saw is several years old, can prevent frustrating starting issues and costly carburetor repairs down the line. Regular “Chainsaw Spark Plug Maintenance” and air filter checks should also be part of your routine.
Can I bypass the primer bulb on my Homelite chainsaw?
Technically, it is possible to bypass the primer bulb on some Homelite chainsaw models by directly connecting the fuel supply line to the carburetor, eliminating the primer circuit. However, this is generally not recommended for regular use. The primer bulb is crucial for purging air from the fuel system and ensuring the carburetor bowls are filled for easier cold starts, especially after the chainsaw has been sitting. Bypassing it will make starting significantly more difficult and time-consuming, requiring many more pulls of the starter cord to draw fuel to the carburetor. It might be used as a temporary diagnostic step in a pinch, but a failed primer bulb should always be replaced for proper operation.
Step-by-Step Guide to Understanding the Homelite Chainsaw Fuel Line Diagram: Routing & Repair 2026
Identify – Locate the fuel tank, primer bulb (if present), and carburetor on your Homelite chainsaw.
Locate – Find the main fuel supply line originating from the fuel filter inside the tank, and the fuel return line (smaller) going back to the tank.
Reference – Use the diagram to confirm the correct routing paths for both the supply and fuel return line, especially noting connections to the primer bulb and carburetor inlets/outlets.
Connect/Route – Carefully remove old, cracked lines and install new ones, ensuring proper length and a secure, airtight fit at all connection points.
Verify – After replacement, prime the system several times with the primer bulb. Check for any leaks and ensure the bulb fills and expels fuel correctly.
Troubleshoot – If the engine still won’t start or runs poorly, re-check for air leaks, ensure the fuel filter is clean, and confirm the fuel return line is not kinked; consider carburetor adjustment or rebuild if issues persist.
Frequently Asked Questions
What are the main components of the homelite chainsaw fuel line diagram?
The main components include the fuel tank, the in-tank fuel filter, two primary fuel lines (one supply line to the carburetor, often connected to a primer bulb, and a smaller fuel return line back to the tank), and the carburetor itself. Some models also feature a vent line to equalize tank pressure, preventing vacuum lock.
What are symptoms of a failing homelite chainsaw fuel line diagram pump?
A failing fuel pump, typically integrated within the carburetor diaphragm or the primer bulb, can cause hard starting, no start, or stalling. Symptoms include the primer bulb not filling with fuel, staying collapsed, or not drawing fuel from the tank, indicating a lack of proper vacuum or fuel delivery to the carburetor.
How do I diagnose a fuel leak in homelite chainsaw fuel line diagram?
To diagnose a fuel leak, visually inspect all fuel lines, the primer bulb, and fuel tank connections for cracks, wet spots, or drips. Pressurize the tank slightly with a few primer bulb pumps and look for visible seeping. A strong fuel odor without visible leaks can suggest a pinhole leak in a fuel return line or dry-rotted tubing under the housing.
What is the fuel pressure spec for homelite chainsaw fuel line diagram?
Homelite chainsaws do not operate with a high-pressure fuel pump (HPFP) or specific fuel pressure specifications like automotive systems. They rely on engine vacuum and a carburetor’s diaphragm pump for fuel delivery from the fuel bowl (tank). The key is proper fuel flow and an airtight system, not measured pressure, as issues usually stem from air leaks or blockages, not inadequate pressure from an injection pressure regulator.
How long does homelite chainsaw fuel line diagram fuel pump last?
The lifespan of a Homelite chainsaw’s fuel pump (primer bulb/carburetor diaphragm) varies but is typically 3-5 years, depending on fuel quality and usage. Ethanol in gasoline is a common cause of premature degradation, hardening or cracking the rubber and plastic components, including the fuel return line. Regular inspection can extend its service life.
Can I replace the homelite chainsaw fuel line diagram fuel filter myself?
Yes, replacing the fuel filter is a common DIY task. It’s located inside the fuel tank, attached to the end of the main fuel supply line. Use a hook or thin pliers to carefully retrieve the line from the tank, pull off the old filter, and push on the new one. Ensure the fuel return line and other connections remain undisturbed.
