5.3 Vortec Fuel System Diagram: Component & Repair Guide 2026
The 5.3 Vortec fuel system typically features an in-tank electric fuel pump delivering 50-60 PSI to the fuel rail. It includes a fuel filter, fuel pressure regulator (often vacuum-referenced), and fuel injectors. A fuel return line routes excess fuel back to the tank, maintaining consistent rail pressure for optimal engine performance.
📌 Key Takeaways
- The 5.3 Vortec fuel system operates typically between 50-60 PSI fuel pressure at the rail.
- Identify the fuel return line by its smaller diameter and connection back to the tank or pump module.
- Always depressurize the fuel system and disconnect the battery before working on fuel components.
- The most common failure points are the in-tank high pressure fuel pump (HPFP) and clogged fuel filter, leading to poor performance.
- While basic filter replacement is DIY-friendly, complex diagnostics involving an injection pressure regulator or complete fuel pump replacement often require professional tools and expertise.

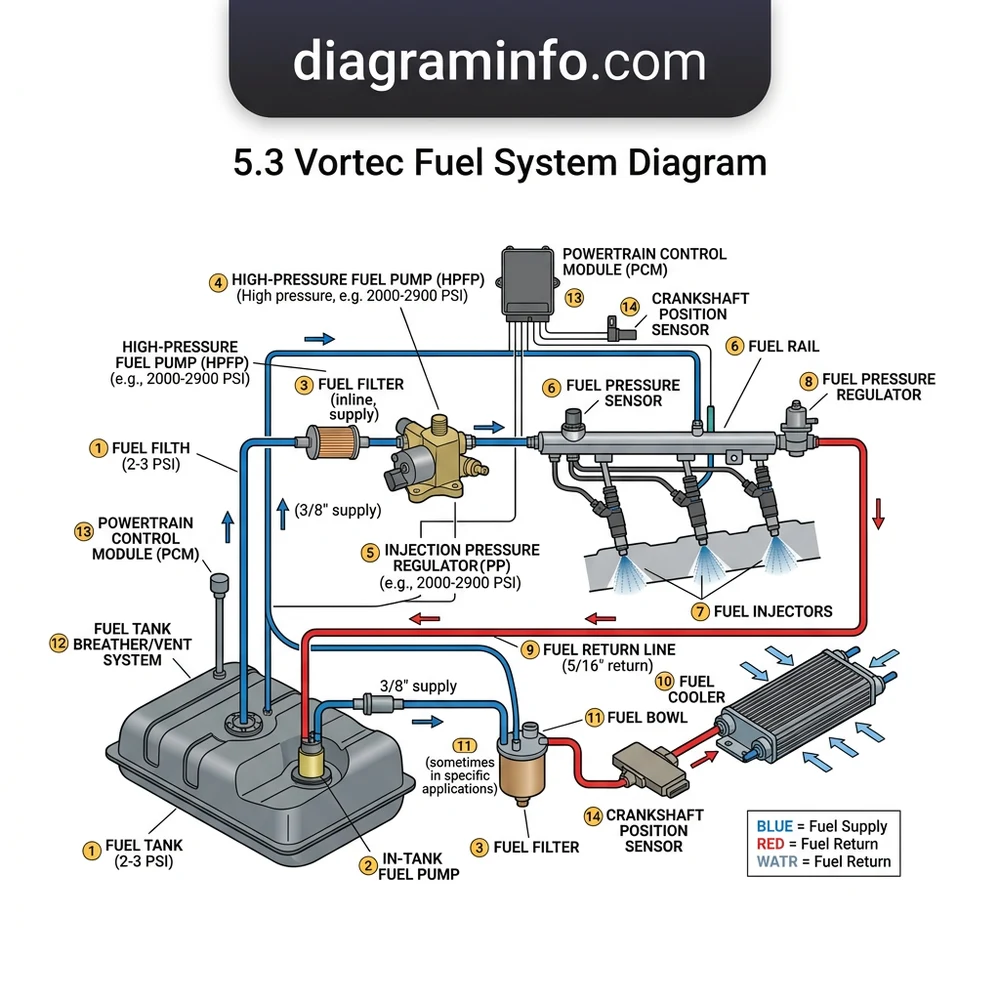

Understanding the intricacies of the 5.3 Vortec fuel system diagram is critical for accurate diagnostics and effective repairs. This article provides an in-depth exploration of the fuel delivery architecture common to many General Motors 5.3L Vortec engines, predominantly Gen III and Gen IV variants (e.g., LM7, L59, L33, LC9, LMG). We will deconstruct the system from the fuel tank to the fuel injectors, identifying key components, their functions, and common failure modes. A comprehensive grasp of this fuel system diagram is indispensable for technicians and advanced DIYers tackling performance issues or driveability concerns.
FUEL SYSTEM COMPONENTS BREAKDOWN
The 5.3 Vortec fuel system is a sophisticated, electronically controlled network designed to deliver precise fuel quantities to the engine. Below is a detailed breakdown of its primary components, essential for interpreting any 5.3 Vortec fuel system diagram.
- Fuel Tank: Stores the vehicle’s gasoline supply. Modern tanks are typically constructed from high-density polyethylene (HDPE) or steel, incorporating baffles to prevent fuel sloshing during vehicle motion. It houses the fuel pump module.
- Fuel Pump Module (In-Tank): This assembly is the heart of the fuel delivery system. It typically includes:
- Electric Fuel Pump: A positive displacement roller vane or turbine pump that draws fuel from the tank and pressurizes it. For most 5.3 Vortec applications, this is a low-pressure (relative to GDI) but high-flow pump, maintaining system pressure around 50-60 PSI.
- Fuel Pressure Regulator (FPR): On many Gen III/IV 5.3 Vortec engines, particularly those with a returnless fuel system, the FPR is integrated into the fuel pump module. It maintains a constant fuel pressure to the fuel rail by routing excess fuel back to the tank, eliminating the need for a separate fuel return line from the engine bay. Earlier systems might have an external FPR and a return line.
- Fuel Sender Unit (Fuel Level Sensor): A float and rheostat assembly that provides fuel level information to the vehicle’s Powertrain Control Module (PCM) or Instrument Cluster.
- Fuel Strainer/Filter: A coarse pre-filter often attached to the fuel pump inlet to prevent large contaminants from entering the pump.
- Fuel Lines (Supply & Return – if applicable):
- Supply Line: Transports pressurized fuel from the fuel pump module to the fuel rail. Typically constructed from nylon, steel, or a combination for durability and corrosion resistance.
- Return Line: Present only on older, return-style fuel systems. This line carries excess fuel from the fuel pressure regulator back to the fuel tank. Most Gen III and all Gen IV 5.3 Vortec engines utilize a returnless system, eliminating this line from the engine bay forward.
- In-Line Fuel Filter: On some 5.3 Vortec applications, a separate, replaceable fuel filter is located along the supply line, usually on the frame rail. Its function is to trap fine particulate matter before it reaches the fuel injectors. Newer systems often integrate a lifetime filter within the fuel pump module.
- Fuel Rail: A manifold that distributes pressurized fuel evenly to all fuel injectors. It also serves as a mounting point for the fuel pressure sensor on returnless systems, which provides real-time fuel pressure data to the PCM.
- Fuel Injectors: Electronically controlled solenoids that spray a finely atomized mist of fuel into the engine’s intake ports (port fuel injection). The PCM precisely controls the opening duration (pulse width) of each injector based on engine load, RPM, and other sensor inputs.
- Evaporative Emissions (EVAP) System: Although not directly involved in fuel delivery to the engine, the EVAP system manages fuel vapor. Key components include:
- EVAP Canister: Stores fuel vapors from the tank.
- EVAP Purge Valve: Controlled by the PCM, it allows stored fuel vapors to be drawn into the engine’s intake manifold for combustion.
- EVAP Vent Valve: Controls the flow of fresh air into the EVAP canister.
While the term “high pressure fuel pump” (HPFP) is common in modern Gasoline Direct Injection (GDI) systems, the 5.3 Vortec (Gen III/IV) utilizes port fuel injection. Its in-tank electric fuel pump provides sufficient pressure (typically 50-60 PSI) for the manifold injectors, but it is not a true HPFP in the context of GDI systems which operate at pressures of several thousand PSI. The term “injection pressure regulator” usually refers to the FPR controlling this 50-60 PSI range.
COMMON FAILURE POINTS & SYMPTOMS
Diagnosing issues within the 5.3 Vortec fuel system diagram requires understanding where common failures occur and the symptoms they manifest. Prompt and accurate diagnosis prevents further damage and ensures optimal engine performance.
- Fuel Pump Module Failure:
- Symptoms: Long crank times, engine cranking but not starting, sudden loss of power at high load, engine stalling, vehicle running lean (P0171/P0174 codes), or a noticeable whining noise from the fuel tank area.
- Diagnosis: Perform a fuel pressure test at the service port on the fuel rail. Verify pressure matches OEM specifications (typically 50-60 PSI key on, engine off, and at idle). Check fuel pump relay and circuit continuity.
- Clogged Fuel Filter (In-line or integrated):
- Symptoms: Engine hesitation under acceleration, reduced engine power, misfires under load, rough idle, or hard starting. Symptoms often worsen as the engine demands more fuel.
- Diagnosis: Fuel pressure test showing low pressure, especially under load. A restricted filter will impede fuel flow. This is a common issue that can mimic a failing fuel pump.
- Leaking or Sticking Fuel Injectors:
- Symptoms: Rough idle, misfires (P030x codes), poor fuel economy, fuel smell, black smoke from exhaust (running rich if leaking open), or hard starting.
- Diagnosis: Injector balance test using a diagnostic scanner to identify a cylinder with a significant pressure drop. Visual inspection for external leaks. Ohm test injector coils.
- Fuel Pressure Regulator (FPR) Malfunction:
- Symptoms: (Integrated FPR in tank) Similar to a failing fuel pump: hard starts, low power, lean codes. If the regulator fails to hold pressure, residual pressure will drop rapidly after engine shutdown.
- Diagnosis: Perform a fuel pressure leak-down test. Pressure should remain stable for a specified period after the pump primes. If it drops rapidly, the FPR or check valve within the pump assembly is suspect.
- EVAP System Faults (Purge or Vent Valve):
- Symptoms: Check Engine Light (CEL) with P04XX diagnostic trouble codes (DTCs), fuel odor, difficulty filling the fuel tank, or a slight decrease in fuel economy.
- Diagnosis: Use a diagnostic scanner to command EVAP purge and vent valves open/closed. Perform a smoke test on the EVAP system to locate leaks in hoses, canister, or valve seals.
Always depressurize the fuel system before disconnecting any fuel lines or components to prevent personal injury and fire hazards. Refer to the OEM service manual for the specific depressurization procedure for your vehicle’s year and model.
REPAIR & REPLACEMENT STEPS
📤 Share
💾 Download
One of the most frequent repairs on a 5.3 Vortec fuel system is the replacement of the fuel pump module. This procedure, while straightforward for experienced technicians, requires careful attention to safety and detail. The following steps outline a general procedure for replacing the in-tank fuel pump module on a typical 5.3 Vortec, often accessible by dropping the fuel tank.
- Safety First & Depressurization:
- Disconnect the negative terminal of the battery.
- Locate the fuel pump fuse/relay in the underhood fuse block and remove it.
- Start the engine and allow it to run until it stalls due to fuel starvation. Crank the engine for an additional 5-10 seconds to ensure full depressurization. Replace the fuse/relay.
- Alternatively, on some models, a Schrader valve on the fuel rail can be used to relieve pressure using a specialized tool.
- Ensure adequate ventilation and have a fire extinguisher readily available.
- Vehicle Preparation:
- Raise the vehicle safely on a hoist or secure jack stands.
- If replacing the fuel pump from below, you will need to support and lower the fuel tank. For bed removal access, follow manufacturer guidelines.
- Drain the fuel tank as much as possible to reduce weight and spill risk.
- Fuel Tank Removal (If necessary):
- Support the fuel tank with a transmission jack or suitable support.
- Disconnect fuel lines, electrical connectors, and EVAP lines from the fuel tank. Label connections to prevent mix-ups.
- Remove the tank straps or bolts securing the fuel tank to the vehicle frame.
- Carefully lower the fuel tank.
- Fuel Pump Module Removal:
- Once the tank is lowered or accessed, clean the area around the fuel pump module to prevent contamination.
- Use a specialized fuel pump lock ring tool or a brass punch and hammer to loosen and remove the large retaining ring that secures the fuel pump module to the tank.
- Carefully lift the old fuel pump module out of the tank, being mindful of the fuel level sender float arm and any remaining fuel.
- Inspection and Installation of New Module:
- Inspect the inside of the fuel tank for debris or contamination. Clean if necessary.
- Ensure the new fuel pump module comes with a new O-ring or gasket. Lubricate the O-ring with clean fuel.
- Carefully insert the new module into the tank, ensuring the float arm is free and not bent. Align it correctly with any indexing marks.
- Install the retaining ring, tightening it securely with the specialized tool. Manufacturer specs indicate a specific torque for the retaining ring, often around 35-45 ft-lbs, but always refer to the service manual for the exact value.
- Reconnect all fuel lines, electrical connectors, and EVAP lines to the new module.
- Reassembly and Testing:
- Carefully raise and secure the fuel tank to the vehicle. Reconnect tank straps or bolts. OEM specs often require specific torque for tank strap bolts, typically 20-30 ft-lbs.
- Reconnect the negative battery terminal.
- Turn the ignition to the “ON” position (without starting the engine) several times for 2-3 seconds each to prime the fuel system and check for leaks.
- Start the engine and check for proper operation and any fuel leaks. Monitor fuel pressure with a gauge to confirm it’s within specifications.
Typical Fuel Pressure (5.3 Vortec Gen III/IV): 50-60 PSI (Key On, Engine Off & Idle).
Fuel Pump Module Electrical Connector: Typically a 4-wire or 5-wire connector (Power, Ground, Fuel Level Signal, Fuel Level Ground, sometimes a separate pump control line). Refer to specific wiring diagrams for terminal identification and wire colors (e.g., Gray wire for pump power, Black for ground).
FAQ
What is the typical fuel pressure for a 5.3 Vortec engine?
For most Gen III and Gen IV 5.3L Vortec engines, the specified fuel pressure at the fuel rail should be between 50 and 60 PSI (pounds per square inch). This pressure should be consistent with the key on (engine off, after priming) and while the engine is running at idle. Significant deviations from this range indicate a potential issue with the fuel pump, fuel pressure regulator, or a restriction in the fuel system.
How do returnless fuel systems differ from return-style systems on Vortec engines?
A return-style fuel system, common on older vehicles, uses a fuel return line from the engine bay back to the fuel tank. The fuel pressure regulator on the fuel rail maintains pressure by diverting excess fuel through this return line. In contrast, most 5.3 Vortec engines (especially Gen III/IV) utilize a returnless fuel system. Here, the fuel pressure regulator is integrated into the fuel pump module inside the fuel tank. This design eliminates the return line from the engine compartment, reducing underhood heat, fuel vapor emissions, and simplifying plumbing, while maintaining precise pressure at the fuel rail.
Can a faulty EVAP system affect fuel delivery or engine performance?
While the EVAP system primarily handles fuel vapor emissions and is not directly on the liquid fuel delivery path to the injectors, a severe EVAP system fault can indirectly impact engine performance. For instance, a stuck-open EVAP purge valve can create a vacuum leak, leading to a lean condition, rough idle, or misfires. Conversely, a restricted EVAP vent valve can cause difficulty in refueling or create excessive pressure/vacuum in the fuel tank, potentially affecting fuel pump operation or fuel level readings. The PCM will typically set P04XX diagnostic codes to indicate EVAP system malfunctions.
What are the common signs of a clogged in-line fuel filter on a 5.3 Vortec?
A clogged fuel filter restricts the flow of fuel, especially when the engine demands a higher volume. Common signs include engine hesitation or a feeling of “bogging down” during acceleration, a noticeable loss of power under load, frequent misfires that worsen under increased RPMs, and extended crank times or difficulty starting the engine. If the filter is severely restricted, the fuel pump may also draw excessive current and fail prematurely due to overwork. Regular fuel filter replacement (if equipped with an external filter) is a critical preventive maintenance item.
Are there year-specific variations in the 5.3 Vortec fuel system that technicians should be aware of?
Yes, significant variations exist. Early Gen III 5.3L Vortec engines (e.g., some 1999-2003 models) often employed a return-style fuel system with an external fuel pressure regulator located on the fuel rail or near the engine. Later Gen III and virtually all Gen IV 5.3L Vortec engines transitioned to a returnless system, integrating the fuel pressure regulator into the in-tank fuel pump module. Additionally, fuel line materials (steel vs. nylon), fuel filter placement (in-line vs. in-tank only), and fuel pressure sensor location can vary by year and vehicle platform. Always consult the specific year’s 5.3 Vortec fuel system diagram and service information for accurate component identification and diagnostic procedures. For detailed fuel pump module diagnostics for specific years, refer to our guide on GM Fuel Pump Diagnostics.
Step-by-Step Guide to Understanding the 5.3 Vortec Fuel System Diagram: Component & Repair Guide 2026
Identify – Key components like the fuel return line, high pressure fuel pump (in-tank), and fuel pressure regulator using the diagram.
Locate – The fuel filter and fuel rail on the engine, referencing the diagram for precise positioning.
Reference – The diagram to understand the flow path from the tank, through the HPFP, to the injectors and back via the fuel return line.
Connect/Route – New fuel lines or replacement components, ensuring proper routing and secure connections as shown in the diagram.
Verify – Fuel pressure after any component replacement using a gauge to ensure proper system operation.
Troubleshoot – Fuel delivery issues by following the diagram’s flow path, systematically checking components like the fuel pump, filter, and fuel return line for blockages or leaks.
Frequently Asked Questions
What are the main components of the 5.3 vortec fuel system?
The 5.3 Vortec fuel system comprises an in-tank electric high pressure fuel pump (HPFP), fuel filter, fuel pressure regulator, and individual fuel injectors. Some systems include a fuel return line. The pump delivers pressurized fuel through the supply line to the fuel rail for injection into the engine cylinders.
What are symptoms of a failing 5.3 vortec fuel pump?
Symptoms of a failing 5.3 Vortec fuel pump include extended cranking, engine stalling, poor acceleration, reduced fuel economy, and a whining noise from the fuel tank. Low fuel pressure readings, especially under load, confirm pump weakness or failure, necessitating replacement of the unit.
How do I diagnose a fuel leak in 5.3 vortec fuel system?
To diagnose a fuel leak, visually inspect all fuel lines, the fuel tank, and injector areas for wet spots or fuel odors. Use a fuel pressure gauge to check for pressure drops that might indicate a leak. Pay close attention to connections and the fuel return line for seepage.
What is the fuel pressure spec for 5.3 vortec fuel system?
For most 5.3 Vortec engines (Gen III/IV), the fuel pressure specification at the rail should be approximately 50-60 PSI (pounds per square inch) with the engine running. A stable reading within this range ensures proper fuel delivery and injector operation for optimal engine performance.
How long does 5.3 vortec fuel pump last?
A 5.3 Vortec fuel pump typically lasts between 100,000 to 150,000 miles, but this can vary based on fuel quality, driving habits, and maintenance. Regularly replacing the fuel filter and avoiding consistently running on a low fuel tank can help extend its lifespan.
Can I replace the 5.3 vortec fuel filter myself?
Yes, replacing the 5.3 Vortec fuel filter is a common DIY task. Ensure the fuel system is depressurized first. Locate the filter, typically along the frame rail, disconnect the lines carefully using proper tools, and install the new filter, observing correct flow direction indicated by arrows.
