Walbro Carburetor Fuel Line Routing Diagram: Proper Routing 2026
Walbro carburetor fuel line routing involves three main lines: the main fuel supply from the tank/pump to the carb inlet, the impulse line connecting the crankcase pulse port to the fuel pump diaphragm, and often a fuel return line back to the tank for excess fuel or priming.
📌 Key Takeaways
- The impulse line (often clear or black small diameter) connects the crankcase pressure pulse to the Walbro’s internal fuel pump diaphragm, critical for fuel delivery.
- Proper identification of the main fuel supply, impulse, and fuel return line (if present) is crucial to avoid misconnection and engine issues.
- Ensure all fuel line connections are secured with appropriate clamps (e.g., spring clips) to prevent air leaks or fuel leaks, and route lines away from heat.
- The most common failure point for Walbro carburetor fuel lines is dry rot, cracking, or kinking, leading to air ingress or fuel starvation.
- Consult a small engine mechanic if the carburetor continues to exhibit fuel delivery issues despite correct fuel line routing and inspection.
Understanding the precise Walbro carburetor fuel line routing diagram is paramount for maintaining optimal performance and troubleshooting fuel delivery issues in small engines and specialized equipment. This guide provides a detailed analysis of the typical Walbro fuel system, focusing on its components, their functions, and the correct hose connections. While Walbro produces a wide range of carburetors for various applications, this documentation centers on the common diaphragm-type carburetors often found in handheld equipment, such as chainsaws, trimmers, blowers, and small generators. Precise fuel line installation directly impacts engine starting, idling, and full-throttle operation, making this diagram an essential reference for any technician or experienced enthusiast.
For clarity, this guide specifically addresses common Walbro WT, WA, and HDA series diaphragm-type carburetors. While principles apply broadly, always consult the specific equipment’s service manual or the carburetor’s model-specific diagram for precise part numbers and routing variations, particularly concerning different engine configurations or equipment models across production years.

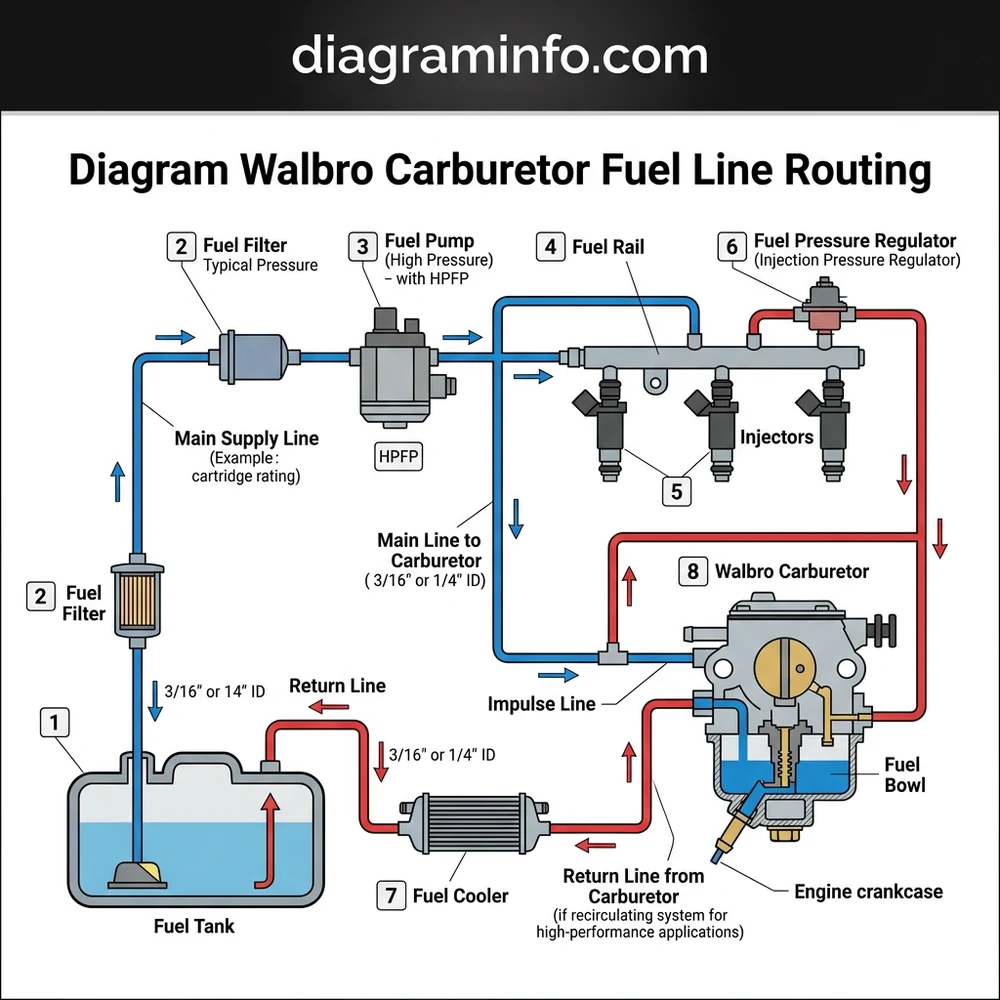

Figure 1: Typical Walbro Diaphragm Carburetor Fuel Line Routing Diagram (Example)
FUEL SYSTEM COMPONENTS BREAKDOWN
The fuel system for a Walbro carburetor, as depicted in the typical Walbro carburetor fuel line routing diagram (Figure 1), is designed for efficient, low-pressure fuel delivery. It operates without complex electronic controls or high-pressure components found in modern EFI systems. Instead, it relies on vacuum/pressure pulses and mechanical diaphragms to function. Each component plays a critical role in ensuring consistent fuel supply from the tank to the engine’s combustion chamber.
- Fuel Tank (1): The primary reservoir for gasoline. It often includes an integrated fuel filter screen (fuel sock) to prevent large debris from entering the lines.
- Main Fuel Line (2): Connects the fuel tank to the carburetor’s fuel inlet. This line carries filtered fuel under suction from the carburetor’s internal fuel pump. Typically, it is a larger diameter line (e.g., 3/16″ or 1/8″ ID) compared to the return line.
- Fuel Filter (3): Submerged inside the fuel tank, this filter ensures that only clean fuel reaches the carburetor. Modern filters are often made of a sintered material or fine mesh, capable of filtering particles down to 50-70 microns. Regular inspection and replacement are crucial.
- Primer Bulb/Pump (4): An external, manually operated pump designed to pre-fill the carburetor’s metering chamber with fuel, facilitating easier cold starting. Depressing the bulb draws fuel through the carburetor and expels air/excess fuel via the return line.
- Primer Inlet Line (5): Connects the carburetor’s purge port (or fuel pump outlet) to the inlet side of the primer bulb.
- Primer Return Line (6): Connects the outlet side of the primer bulb back to the fuel tank. This line returns air and excess fuel pushed by the primer bulb. It’s usually a smaller diameter line (e.g., 3/32″ ID).
- Walbro Carburetor (7): The central component, responsible for mixing air and fuel in the correct proportions. It houses an internal pulse-driven fuel pump, a metering diaphragm chamber (often mistaken for a fuel bowl in float-type carbs, but serving a different principle here), and high/low-speed mixture adjustment screws. It does not contain an injection pressure regulator or operate with the high pressures associated with an HPFP (High Pressure Fuel Pump); instead, it relies on engine vacuum pulses to draw fuel.
- Carburetor Fuel Inlet (8): The port on the carburetor where the main fuel line connects.
- Carburetor Purge/Return Port (9): On some Walbro models, this is where a primer bulb connects, or where a dedicated fuel return line might connect directly if no primer is used. Its function is to facilitate priming and sometimes to allow air to bleed from the fuel system.
- Throttle Linkage & Choke (Not Numbered): Essential for controlling engine speed and assisting cold starts, these mechanical components interact directly with the carburetor.
Unlike automotive systems, these small engine setups do not incorporate a fuel cooler or a fuel heater, as their operating conditions and fuel volumes do not necessitate such thermal management. The simplicity is key to their reliability in diverse environments.
COMMON FAILURE POINTS & SYMPTOMS
Understanding the typical Walbro carburetor fuel line routing diagram is essential for diagnosing issues, as many common problems stem from component failures within the fuel system. Addressing these issues often requires careful inspection and adherence to OEM specifications for replacement parts and procedures.
- Fuel Lines (Main, Primer Inlet, Primer Return):
- Symptom: Fuel leaks, engine sputtering, loss of power, difficulty starting, or complete failure to start. You might observe fuel seepage or air bubbles in clear lines.
- Diagnosis: Visually inspect all lines for cracks, hardening, softening (swelling due to ethanol), or kinks. Use a bright light and gently flex the lines. Often, deterioration is most visible near connections or where lines pass through grommets. A related article on small engine fuel line types can provide further detail.
-
⚠️ Warning
Ethanol in modern fuels significantly degrades older rubber or PVC fuel lines. Always replace with ethanol-resistant (e.g., Tygon or Viton) lines, even if the original lines were not.
- Fuel Filter:
- Symptom: Engine starves for fuel at higher RPMs, runs lean, bogs down under load, or fails to start despite a full tank.
- Diagnosis: Remove the fuel line from the carburetor inlet and check for fuel flow into a clear container. If flow is weak or intermittent, the filter is likely clogged. Inspect the filter visually for debris or discoloration.
- Primer Bulb/Pump:
- Symptom: Engine is hard to start when cold, primer bulb does not draw fuel or becomes hard/cracked and loses suction, or it’s constantly collapsing/expanding.
- Diagnosis: Inspect the primer bulb for cracks or hardening. If pressing it doesn’t draw fuel and expel it via the fuel return line into the tank, there’s a problem with the bulb, its check valves, or the associated lines.
- Carburetor (Internal Fuel Pump/Diaphragms):
- Symptom: Engine runs poorly, erratic idle, lack of power, or won’t start even with proper fuel delivery to the carburetor. Fuel might leak from carburetor vents.
- Diagnosis: This indicates an internal carburetor issue, often related to hardened or torn metering and pump diaphragms. The internal low-pressure fuel pump (driven by crankcase pulses) may be failing, or the metering diaphragm might be stiff, preventing proper fuel regulation. A Walbro carburetor rebuild guide can assist with this.
- Fuel Tank Vent:
- Symptom: Engine runs for a few minutes, then slowly dies, restarts after a delay, and repeats. The fuel tank might appear “sucked in.”
- Diagnosis: A clogged fuel tank vent prevents air from entering the tank as fuel is consumed, creating a vacuum that starves the engine. Check the vent for obstructions or test by running the engine with the fuel cap slightly loose (caution: fuel spill risk).
REPAIR & REPLACEMENT STEPS: Fuel Line & Primer System
Replacing the fuel lines and primer system components is one of the most common and impactful repairs for small engines with Walbro carburetors. This procedure ensures proper fuel flow and addresses issues caused by ethanol degradation. Always refer to your equipment’s specific service manual for model-specific instructions and torque values, as variations can occur between engine years and manufacturers. This guide outlines a general procedure applicable to many setups illustrated in the Walbro carburetor fuel line routing diagram.
- Safety First:
- Ensure the engine is cool and disconnected from its power source (e.g., spark plug wire removed).
- Work in a well-ventilated area, away from open flames or sparks.
- Have a fire extinguisher readily available.
- Drain all fuel from the tank into an approved container. A detailed resource on proper fuel draining procedures is recommended.
- Component Access:
- Remove any shrouds, air filters, or covers that obstruct access to the fuel tank, fuel lines, primer bulb, and carburetor. Document or photograph current routing before disassembly.
- Disconnect Old Fuel Lines:
- Carefully pull the existing fuel lines off their respective ports on the carburetor, primer bulb, and fuel tank grommet. Be prepared for residual fuel leakage.
- If the fuel filter is integrated into the main fuel line inside the tank, gently pull the line and filter out through the tank opening.
- Remove the old primer bulb if it’s being replaced. This often involves twisting it out of a rubber grommet or detaching clips.
- Inspect and Clean:
- Inspect the fuel tank grommet for cracks or hardening; replace if necessary.
- Clean any debris from the fuel tank or around the carburetor ports.
- Install New Fuel Lines and Filter:
- Cut new fuel lines (e.g., Tygon 1/8″ ID for main, 3/32″ ID for return/primer) to approximate length, allowing for slight slack but avoiding kinks. Always use ethanol-resistant lines.
- Attach the new fuel filter to one end of the main fuel line. Ensure a snug fit.
- Route the main fuel line with the filter into the fuel tank opening, pushing it through the tank grommet until the filter sits at the bottom of the tank.
- Connect the main fuel line to the carburetor’s fuel inlet port (8 in Figure 1).
- Install the new primer bulb (4) into its housing or grommet.
- Connect the primer inlet line (5) from the carburetor’s purge port (9) to the inlet side of the primer bulb. Consult the diagram carefully as primer bulb ports are directional (often indicated by arrows).
- Connect the primer return line (6) from the outlet side of the primer bulb to the fuel tank’s return port (often through the same tank grommet as the main line or a separate one).
- Ensure all connections are tight and secure. Small hose clamps (OEM P/N: 730-080) may be used on critical connections for added security, though friction fit is often sufficient with correct line sizing.
- Final Checks and Testing:
- Reinstall all covers and shrouds.
- Refill the fuel tank with fresh, correctly mixed fuel (if 2-stroke).
- Prime the system repeatedly until fuel flows through the carburetor and the primer bulb feels firm. You should observe fuel returning to the tank via the fuel return line.
- Reconnect the spark plug wire and attempt to start the engine.
- Check for any fuel leaks while the engine is running and immediately after shut down.
Typical Fuel Line Diameters for Walbro Carburetors:
| Line Type | Approximate ID (Inner Diameter) | Common Walbro Port |
|---|---|---|
| Main Fuel Line | 1/8″ (3.2mm) to 3/16″ (4.8mm) | Carburetor Inlet |
| Primer Inlet/Return Lines | 3/32″ (2.4mm) | Primer Bulb, Tank Return, Carburetor Purge |
Always verify with OEM documentation or measure existing lines before purchasing replacements.
FAQ
Why do Walbro carburetor fuel systems not use a high pressure fuel pump (HPFP) or injection pressure regulator?
Walbro carburetors are predominantly used in small, non-automotive engines that are naturally aspirated and do not utilize electronic fuel injection (EFI). Unlike EFI systems that atomize fuel under extreme pressure, Walbro carburetors rely on venturi effect and engine crankcase pressure/vacuum pulses to mechanically draw and meter fuel. This low-pressure operation (typically less than 1 PSI) eliminates the need for an HPFP or an injection pressure regulator, simplifying the system and reducing manufacturing costs, which is ideal for the power-to-weight ratio and cost-effectiveness demanded by handheld equipment.
How can I differentiate between the main fuel line and the fuel return line when no diagram is available?
When studying a Walbro carburetor fuel line routing diagram is not possible or the lines are disconnected, you can often identify them by diameter: the main fuel line (from tank filter to carburetor inlet) is typically larger in inner diameter (e.g., 1/8″ or 3/16″) to facilitate greater fuel flow to the carburetor’s internal pump. The fuel return line (from the primer bulb or carburetor purge to the tank) is usually smaller (e.g., 3/32″) as it primarily handles displaced air and excess fuel. Additionally, the main line connects directly to the carburetor’s primary fuel inlet, often located nearest the engine side, while return/purge lines connect to separate, smaller ports.
What is the function of the “fuel bowl” in a Walbro carburetor, and why is it not always present?
The term “fuel bowl” traditionally refers to the float-controlled reservoir in gravity-fed or older constant-level carburetors. Most Walbro carburetors, especially those for small engines, are diaphragm-type carburetors. These do not have a traditional fuel bowl. Instead, they utilize a sealed metering chamber (controlled by a metering diaphragm and inlet needle) that stores a small, regulated amount of fuel. Fuel is delivered to this chamber by an internal pulse-driven pump. This design allows for operation in any orientation without fuel spillage, which is crucial for handheld equipment. If you encounter a Walbro with a traditional fuel bowl, it’s likely a float-type carburetor designed for stationary or less orientation-sensitive applications.
Are fuel coolers or fuel heaters necessary for Walbro carburetor systems?
No, fuel coolers and fuel heaters are generally not necessary for Walbro carburetor systems. These components are primarily found in advanced automotive or heavy-duty diesel engines. Fuel coolers are used to prevent fuel boiling and maintain density in high-pressure, high-temperature EFI systems or in racing applications. Fuel heaters are used in diesel engines to prevent waxing in cold conditions. Walbro carburetor systems operate at low pressures and typically in environments where fuel temperature management is not critical for their intended application, making these features extraneous to their design and function.
Step-by-Step Guide to Understanding the Walbro Carburetor Fuel Line Routing Diagram: Proper Routing 2026
Identify – Identify the Walbro carburetor model and its specific fuel line ports: main fuel inlet, impulse port, and any fuel return or primer ports.
Locate – Locate the fuel tank outlet, fuel filter (if external), and the engine’s crankcase impulse port (usually a small barb near the intake).
Reference – Reference the engine’s service manual or a specific diagram walbro carburetor fuel line routing for your model to confirm correct line connections.
Connect/Route – Connect the main fuel line from the filter/tank to the carb inlet, the impulse line from crankcase to the pump port, and the return/primer line (if applicable) back to the tank.
Verify – Verify all connections are secure with clamps, ensuring no kinks or tight bends in the lines that could restrict fuel flow or create air pockets.
Troubleshoot – Troubleshoot by priming the system, checking for leaks, and starting the engine. If fuel delivery issues persist, re-check line routing and carburetor adjustments.
Frequently Asked Questions
What are the main fuel-related components of a Walbro carburetor’s system?
A Walbro carburetor’s fuel system includes the main fuel supply line, impulse line, and often a fuel return line. Internally, it features a diaphragm fuel pump, metering needle and lever, and on some models, a small fuel bowl or float chamber.
What are symptoms of a failing Walbro carburetor fuel pump?
Symptoms of a failing Walbro fuel pump (integrated or external) include engine hard starting, stalling, lack of power under load, or inconsistent RPMs. This often stems from cracked impulse lines, a worn pump diaphragm, or clogged inlet screens preventing proper fuel flow.
How do I diagnose a fuel leak in Walbro carburetor fuel line routing?
To diagnose a fuel leak, visually inspect all lines, connections, and the carburetor body for weeping or drips, especially around hose barbs and the primer bulb. Check for dried fuel residue. A pressurized smoke test for small engines can also pinpoint elusive vacuum or fuel leaks.
What is the fuel pressure spec for a Walbro carburetor?
Walbro carburetors, particularly for small engines, operate at very low fuel pressure, typically in the range of 3-5 PSI. The internal pump is diaphragm-driven by crankcase pulses, not by a high-pressure electric pump. Consult the specific engine’s service manual for exact specifications.
How long do Walbro carburetor fuel lines last?
Walbro fuel lines, especially rubber or plastic, typically last 3-7 years depending on fuel quality, exposure to UV light, and ethanol content. Ethanol can degrade lines prematurely. Regular inspection and replacement every few years are recommended to prevent common fuel delivery issues.
Can I replace the Walbro carburetor fuel filter myself?
Yes, replacing a Walbro fuel filter is a common DIY task. Locate the in-line filter between the tank and carburetor, usually secured with clamps. Note the flow direction, remove old filter, and install new one, ensuring tight connections to prevent air leaks.
