FUEL SYSTEM COMPONENTS BREAKDOWN

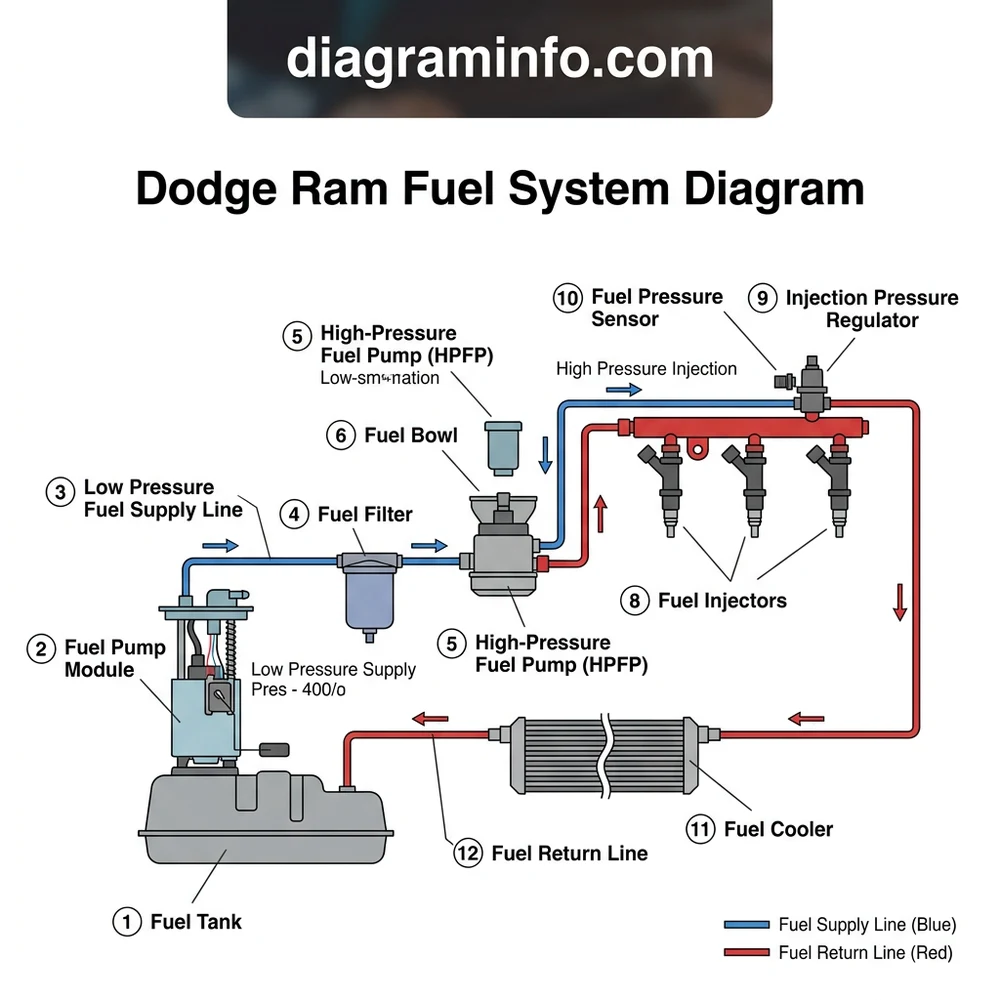

The Dodge Ram 6.7L Cummins fuel system is a sophisticated high-pressure common rail (HPCR) design, meticulously engineered for precise fuel delivery. As depicted in the diagram, fuel travels through a series of components, each serving a critical function in preparing and pressurizing fuel for injection. Understanding these elements is foundational to any diagnostic or repair process.

1. Fuel Tank and Sending Unit: The primary reservoir for diesel fuel. The sending unit integrates a fuel level sensor and often houses the pre-filter screen to prevent large debris from entering the system.
2. Lift Pump (Fuel Transfer Pump): Positioned on the frame rail (or in-tank on some models), this low-pressure pump draws fuel from the tank and pushes it forward. It typically maintains a pressure of 8-15 PSI, priming the system and supplying the primary fuel filter housing. Early 6.7L models often had an in-tank pump; later models moved to a frame-mounted unit.
3. Fuel Filter Housing / Fuel Bowl: This assembly, often mounted on the engine or frame, contains both the primary fuel filter and a water separator filter. The fuel heater, a crucial component for cold weather operation, is integrated here to prevent fuel gelling. It also houses the Water-In-Fuel (WIF) sensor, alerting the driver to water contamination.
4. Fuel Cooler: Located after the fuel filter housing on the return side, the fuel cooler helps to reduce the temperature of the excess fuel returning from the fuel rail and injectors. This is vital because high fuel temperatures can reduce lubricity, increase fuel volume, and degrade fuel components.
5. High Pressure Fuel Pump (HPFP): On 2007.5-2018 6.7L Cummins engines, this is typically a Bosch CP3 pump (see diagram). Driven by the engine’s camshaft gear, the HPFP takes the low-pressure fuel from the lift pump and pressurizes it to extreme levels, ranging from 5,000 PSI at idle to over 29,000 PSI at full load. It is also responsible for controlling fuel volume to the high-pressure rail. For a deeper dive into common Dodge Ram diesel diagnostic codes, consult our guide on [Dodge Ram Diagnostic Codes].
6. Injection Pressure Regulator (IPR) / Fuel Control Actuator (FCA) / Metering Unit (MProp): Mounted on the HPFP, this electronically controlled valve regulates the volume of fuel allowed into the high-pressure pumping elements, thereby controlling rail pressure. The powertrain control module (PCM) commands its operation based on engine load and speed.
7. Fuel Rail (Common Rail): A robust steel manifold that stores the high-pressure fuel delivered by the HPFP. It acts as an accumulator, dampening pressure pulsations and ensuring uniform pressure at all injector inlets.
8. Fuel Pressure Sensor (FPS) / Rail Pressure Sensor (RPS): Located on the fuel rail, this sensor provides real-time fuel pressure feedback to the PCM, enabling precise control of the HPFP’s output via the IPR/FCA.
9. Fuel Injectors: Electronically actuated, solenoid or piezoelectric (less common for these years) injectors precisely atomize and deliver fuel directly into the combustion chambers. Each injector is designed for precise timing and quantity, optimizing combustion and minimizing emissions.
10. Fuel Return Line: Excess fuel not injected, as well as fuel used for injector cooling, is routed back to the fuel tank via the fuel return line. This low-pressure line often passes through the fuel cooler.

COMMON FAILURE POINTS & SYMPTOMS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Diagnosing fuel system issues in a Dodge Ram 6.7L Cummins requires an understanding of potential failure points and their associated symptoms. Early detection can prevent more severe, costly damage. Always approach diagnostics systematically.

1. Lift Pump (Fuel Transfer Pump):
   • Symptom: Extended cranking, hard starts (especially when warm), loss of power under load, surging, P0191 (Fuel Rail Pressure Sensor Range/Performance) with low actual rail pressure.
   • Diagnosis: Measure fuel pressure at the inlet of the fuel filter housing or HPFP. Manufacturer specs indicate 8-15 PSI is typical; anything below 5 PSI suggests a failing lift pump or severe restriction. You may also hear an abnormal whine from the pump itself.
2. Fuel Filters (Primary & Water Separator):
   • Symptom: Reduced engine power, engine surging, black smoke, poor fuel economy, check engine light (potentially P0087 – Fuel Rail/System Pressure Too Low). In cold weather, clogged filters are a primary cause of gelling.
   • Diagnosis: Visual inspection for debris, or monitoring fuel pressure drop across the filter housing. A significant pressure drop (e.g., more than 3-5 PSI) indicates a restricted filter. Regularly replacing filters according to OEM recommendations is crucial. For detailed fuel filter replacement guides, see our section on [Dodge Ram Maintenance Schedules].
3. High Pressure Fuel Pump (HPFP – CP3):
   • Symptom: No start condition, extended crank with low rail pressure, engine stalling, P0087 (Fuel Rail/System Pressure Too Low) or P0088 (Fuel Rail/System Pressure Too High) codes, metallic sheen or visible metal particulates in the fuel filter bowl (indicating internal wear).
   • Diagnosis: Utilize a scan tool to compare desired versus actual fuel rail pressure during cranking and running. If actual pressure is consistently much lower than desired, and the lift pump pressure is adequate, the HPFP or IPR/FCA is suspect. A fuel sample test for metal contamination is definitive for HPFP internal failure.
4. Fuel Injectors:
   • Symptom: Rough idle, misfires, excessive white or black smoke, poor fuel economy, fuel dilution in engine oil, P02xx (Cylinder X Injector Circuit/Performance) codes. A diesel knock can indicate an injector sticking open.
   • Diagnosis: Perform injector return flow tests to identify over-returning injectors. A scan tool can display injector balance rates; significant deviations indicate a failing injector. Compression tests or cylinder contribution tests can also help pinpoint issues.
5. Injection Pressure Regulator (IPR) / Fuel Control Actuator (FCA):
   • Symptom: Erratic rail pressure, fluctuating idle, hard starting (especially when hot), engine stalling, P0087/P0088 codes without HPFP internal failure.
   • Diagnosis: Monitor IPR/FCA duty cycle or current with a scan tool. A duty cycle that is consistently too high or too low for the given rail pressure command suggests a faulty IPR/FCA or a pressure leak elsewhere in the high-pressure system.
6. Fuel Cooler:
   • Symptom: Rarely a direct cause of drivability issues, but internal blockages can restrict fuel return, potentially leading to increased fuel temperatures and reduced fuel system component life over time. External leaks are more common.
   • Diagnosis: Visual inspection for leaks. If suspected internal blockage, measure pressure drop across the cooler on the return line side, or check fuel temperature differential.

REPAIR & REPLACEMENT STEPS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

One of the most critical and frequently performed maintenance tasks on a Dodge Ram 6.7L Cummins is the replacement of the fuel filters. This procedure is vital for protecting the delicate high-pressure fuel system components from contamination and ensuring optimal engine performance. The following steps detail a typical fuel filter replacement for a 6.7L Cummins (refer to diagram for component locations).

1. Gather Tools and Parts:
   • New primary fuel filter (e.g., Mopar 68197867AA or equivalent)
   • New water separator fuel filter (e.g., Mopar 68197868AA or equivalent)
   • Filter wrench for fuel filter housing cap (e.g., 28mm or specific filter tool)
   • Drain pan (minimum 5-liter capacity)
   • Clean shop rags
   • Eye protection and chemical-resistant gloves
   • Torque wrench
2. Safely Depressurize and Drain System:
   • Ensure the engine is off and the key is out of the ignition.
   • Place the drain pan beneath the frame-mounted water separator filter.
   • Open the yellow drain valve on the bottom of the water separator filter housing by turning it counter-clockwise. Allow the fuel and water to drain completely. Close the valve once drained.
   • Move the drain pan under the engine-mounted fuel filter housing (fuel bowl). Locate the black plastic drain plug/hose (if equipped) on the bottom of the housing and open it to drain the fuel.
3. Replace Engine-Mounted Fuel Filter (Fuel Bowl):
   • Using the appropriate filter wrench, carefully loosen the large black plastic cap on top of the engine-mounted fuel filter housing (see diagram, item 3).
   • Once loose, remove the cap and the old filter element attached to it. Be prepared for a small amount of residual fuel to spill.
   • Inspect the housing for any debris or sludge. Clean thoroughly with a lint-free rag if necessary.
   • Remove the old O-ring from the cap and install the new O-ring supplied with the new filter. Lightly lubricate the new O-ring with clean diesel fuel or clean engine oil.
   • Install the new fuel filter element onto the cap, ensuring it seats correctly.
   • Carefully thread the cap and new filter assembly back onto the housing. Tighten by hand until snug, then use the filter wrench to torque the cap to OEM specification. Manufacturer specs typically indicate a torque of 25 ft-lbs (34 Nm) for this cap. Overtightening can crack the housing.
4. Replace Frame-Mounted Water Separator Filter:
   • Place the drain pan beneath the frame-mounted filter (see diagram, often near item 2).
   • Use a filter wrench to loosen and remove the old water separator filter. It’s a spin-on canister.
   • Ensure the old O-ring gasket is removed from the filter head. Clean the mating surface.
   • Apply a thin film of clean diesel fuel to the gasket of the new water separator filter.
   • Thread the new filter onto the filter head by hand until the gasket makes contact. Then, tighten an additional 3/4 to 1 full turn (or as per filter manufacturer instructions). Do NOT overtighten with a wrench.
5. Prime the Fuel System:
   • Turn the ignition key to the ON position (without starting the engine) for 30 seconds. You should hear the lift pump cycle.
   • Turn the key OFF, then ON again for another 30 seconds. Repeat this cycle 3-4 times. This allows the lift pump to fill the new filters and purge air from the low-pressure system.
   • After priming, attempt to start the engine. It may take a few seconds of cranking as the remaining air is pushed through. Do not crank for more than 15-20 seconds at a time; allow the starter to cool between attempts.
   • Once the engine starts, let it idle for a few minutes and check for any leaks around the new filters. For more complex priming procedures or bleeding the high-pressure system, refer to specific OEM instructions for [Dodge Ram Fuel System Bleeding].

FAQ

What’s the difference between a CP3 and CP4 HPFP in a Ram?

The CP3 (Common Rail Pump 3) is a robust high-pressure fuel pump used on 6.7L Cummins engines from 2007.5 through the 2018 model year. It is known for its durability and reliability. The CP4 (Common Rail Pump 4) was introduced on some 2018 and all 2019+ 6.7L Cummins engines. While more efficient, the CP4 design, particularly the CP4.2 variant, has been associated with premature failure leading to metal contamination in the fuel system, often requiring complete fuel system replacement. This is a critical distinction when diagnosing newer models.

How often should I replace my Dodge Ram fuel filters?

Manufacturer recommendations generally call for replacing both the engine-mounted and frame-mounted fuel filters every 15,000 miles or 12 months, whichever comes first, under normal operating conditions. However, if you operate your Ram in dusty environments, use lower quality fuel, or regularly encounter extreme cold, more frequent changes (e.g., every 7,500-10,000 miles) are highly advisable to protect your costly fuel system components. Always refer to your vehicle’s owner’s manual for specific maintenance intervals.

What are common signs of a failing lift pump?

A failing lift pump often manifests as noticeable drivability issues. Common symptoms include extended cranking times, especially during hot starts, a noticeable loss of engine power, particularly under acceleration or heavy loads, and engine surging. You might also experience misfires or a rough idle. On a scan tool, you would typically observe lower-than-specified fuel pressure at the inlet to the fuel filter housing or HPFP, falling below the 8-15 PSI range, especially under demand.

Can I run Biodiesel in my Ram’s fuel system?

Many modern Dodge Ram diesel engines are compatible with up to B20 biodiesel (a blend containing up to 20% biodiesel). However, it is imperative to consult your vehicle’s owner’s manual for specific manufacturer recommendations and limitations. Higher blends of biodiesel can accelerate wear on fuel system components, impact fuel filter life, and may not be covered under warranty. Biodiesel can also increase water separation and fuel gelling risks in cold weather, potentially requiring more frequent fuel filter changes and attention to the fuel heater system.

How do I troubleshoot low fuel rail pressure?

Troubleshooting low fuel rail pressure (often indicated by a P0087 code) requires a systematic approach. First, verify the lift pump pressure at the HPFP inlet; if low, inspect the lift pump, fuel tank, and low-pressure lines for restrictions or leaks. If lift pump pressure is adequate, use a scan tool to monitor desired versus actual rail pressure and the IPR/FCA duty cycle. Discrepancies may point to a faulty IPR/FCA, a failing HPFP, or high-pressure fuel leaks (e.g., at injectors or rail connections). A simple return flow test can help identify leaking injectors. Understanding the principles of [Diesel Injection Timing] is crucial for diagnosing issues that affect combustion from low rail pressure.
