Yamaha Golf Cart Carburetor Diagram: Component Breakdown 2026
The Yamaha golf cart carburetor precisely mixes air and fuel for combustion, controlled by float, jets, and throttle plate. It’s crucial for engine starting and smooth operation, often requiring cleaning or adjustment for performance issues.
📌 Key Takeaways
- Carburetor jet sizes (pilot, main) are specific to engine model for optimal fuel-air mixture and performance.
- Critically identify the float bowl, main jet, pilot jet, throttle plate, and choke for proper operation.
- Always ensure fuel lines are properly seated and clamps secured to prevent leaks and potential fire hazards.
- Clogged jets or a stuck float are the most frequent causes of poor engine performance or non-starting.
- Minor cleaning and jet replacement are DIY; persistent issues or a full rebuild often require professional carburetor expertise.
Understanding the intricate electrical architecture of a Yamaha golf cart is paramount for accurate diagnostics, maintenance, and performance upgrades. While some Yamaha golf cart models utilize internal combustion engines with carburetors, this comprehensive guide is engineered specifically for technicians and experienced DIY enthusiasts working with Yamaha’s electric golf cart systems. This article delves into the complexities of Yamaha electric golf cart wiring, dissecting critical components such as the 36 volt system and 48 volt system configurations, solenoid wiring, controller wiring, the battery bank, charger port functionality, and the essential forward reverse switch and run tow switch, all illustrated through a detailed wiring diagram. Mastery of these schematics is crucial for ensuring the reliable operation and longevity of your equipment.
Always disconnect the main battery bank by placing the run/tow switch in the “TOW” position or disconnecting the main negative battery cable before performing any wiring or component service. Failure to do so can result in severe electrical shock, component damage, or fire. Consult your specific model’s service manual for exact safety procedures and torque specifications.
While general wiring principles apply across models, specific wire colors, connector types, and component locations can vary significantly between Yamaha G-Series (e.g., G14, G16, G19, G22/C, G29/Drive) and newer Drive2 models, as well as between 36V and 48V systems. Always cross-reference this information with the OEM service manual for your exact golf cart year and model.
WIRE COLOR REFERENCE TABLE
The following table provides a general reference for common wire colors found in Yamaha electric golf cart wiring. It is essential to note that these are typical assignments and may not be universally consistent across all production years or specific models. For definitive identification, refer to the manufacturer’s specific wiring diagram for your unit.
| Wire Color | Function (Typical) | Connects To (Typical) | Notes |
|---|---|---|---|
| Heavy Gauge Red | Main Positive (+) | Battery Bank (+), Solenoid (large post), Controller (B+) | Unswitched battery power. |
| Heavy Gauge Black | Main Negative (-) | Battery Bank (-), Controller (B-), Motor | Main ground path. |
| Light Gauge Red/White | Key Switch / Run Circuit (+) | Key Switch, Solenoid (small post), Controller (activation) | Switched positive for control circuits. |
| Light Gauge Green/Yellow | Solenoid Coil Ground | Solenoid (small post), Controller (ground control), F/R Switch, Microswitches | Often routed through safety interlocks. |
| Blue / Yellow | Throttle Position Sensor (TPS) Signal | Accelerator Pedal Microswitch/Sensor, Controller | Variable voltage input to controller for speed control. |
| White / Black | Forward/Reverse Signal | Forward/Reverse Switch, Controller | Indicates direction to controller. |
| Orange / Brown | Charger Interlock / OBC | Charger Port, On-Board Computer (OBC), Controller | Disables cart operation during charging. |
| Heavy Gauge White | Motor (Armature/Field) | Controller (M- or A1), Motor (A2, S1, S2) | Varies significantly by motor type (series vs. sepex). |
COMPONENT CONNECTION GUIDE

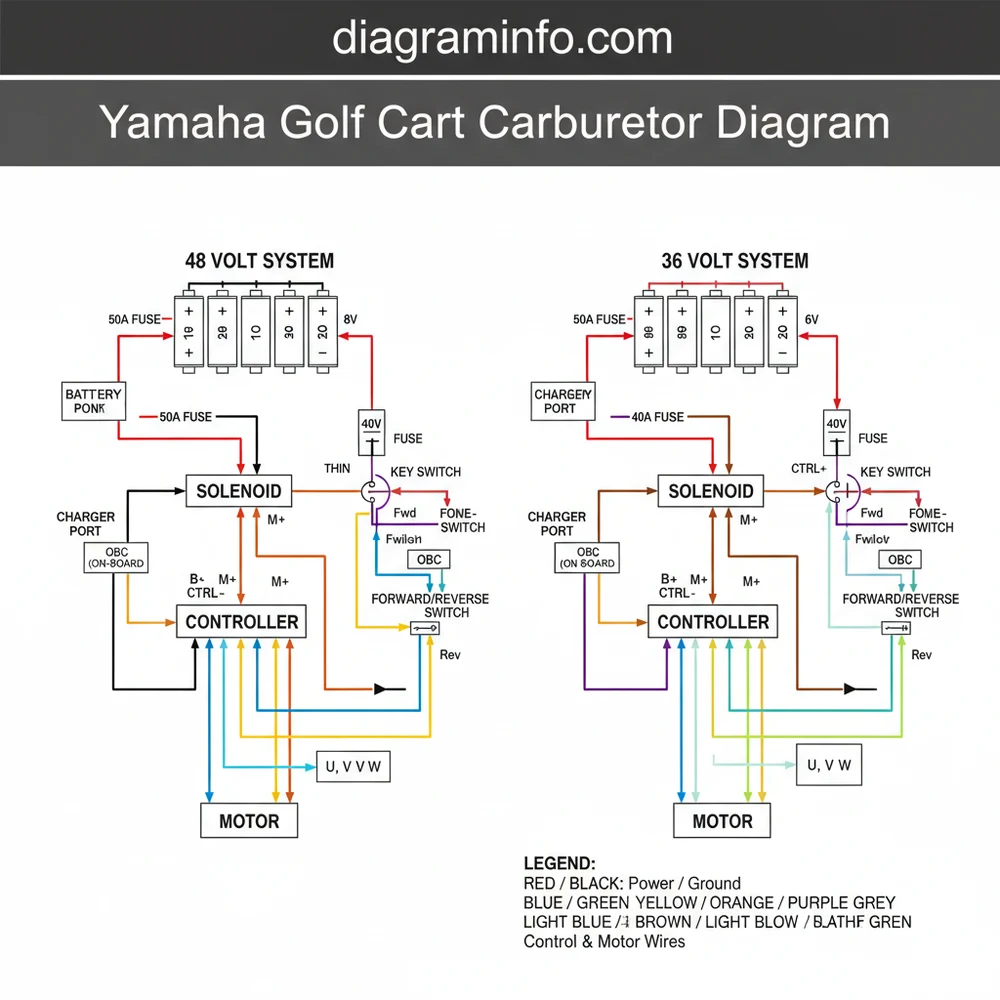

Precise wiring of each component is fundamental for the proper operation and safety of your Yamaha electric golf cart. Refer to the diagram provided for visual correlation of these connections.
Battery Bank Wiring (36 Volt System & 48 Volt System):
The heart of your electric golf cart is the battery bank. For a 36 volt system, you typically have six 6-volt batteries connected in series. For a 48 volt system, common configurations include four 12-volt batteries or six 8-volt batteries, also connected in series. In a series connection, the positive terminal of one battery connects to the negative terminal of the next, creating a cumulative voltage. The main positive (+) cable connects from the first battery’s positive terminal to the solenoid. The main negative (-) cable connects from the last battery’s negative terminal to the controller’s B- terminal and often directly to the motor’s housing or a main chassis ground point. Ensure all battery terminals are clean, free of corrosion, and torqued to manufacturer specifications, typically 95-105 in-lbs (10.7-11.9 Nm) for 5/16″ terminals. Under-torqued connections can lead to resistance and heat buildup, potentially causing severe damage.
Solenoid Wiring:
The solenoid acts as the main contactor, switching high current to the controller and motor. It typically has four terminals: two large (high current) and two small (control circuit). The main positive (+) cable from the battery bank connects to one large terminal. A heavy gauge cable then connects from the other large terminal to the controller’s B+ input. The small terminals activate the solenoid coil. One small terminal receives switched positive (+) voltage (often Red/White or a similar color) from the key switch and various safety interlocks (e.g., foot pedal microswitch, forward reverse switch microswitch, run tow switch). The other small terminal receives a ground signal (often Green/Yellow) which is typically controlled by the controller itself or a series of microswitches. When all interlocks are satisfied and the key is on, power is supplied to the solenoid coil, closing the internal contacts and allowing high current flow. Many Yamaha golf carts utilize a pre-charge resistor and a diode across the large terminals to protect the controller from voltage spikes; ensure these are correctly installed if present on your model.
Controller Wiring:
The golf cart controller is the “brain” of the electrical drive system, regulating power from the battery bank to the motor based on throttle input and other signals. It has heavy gauge input terminals (B+ and B-) for battery power and output terminals for the motor (e.g., A1, A2, S1, S2 for sepex or series motors, or M- for single output on some controllers). Additionally, it features a multi-pin connector for low-current control signals:
Throttle Input: A variable voltage signal (typically 0-5V or 0-1V) from the accelerator pedal’s potentiometer or inductive sensor.
Forward/Reverse Switch: Input signals indicating the desired direction.
Run/Tow Switch: A safety input, often disabling the controller in “TOW” mode.
Solenoid Activation: The controller often provides the ground path for the solenoid’s small coil terminal, completing the activation circuit only when conditions are met.
Charger Interlock: Receives a signal from the On-Board Computer (OBC) or charger port, disabling cart operation when the charger is connected.
Accurate connection of all these signal wires is critical for proper speed control, direction changes, and safety interlocks.
On-Board Computer (OBC) / Charger Port Wiring:
The OBC, prevalent in many Yamaha electric carts, manages the battery charging process and provides safety interlocks. The charger port connects directly to the OBC, which then communicates with the controller. The OBC typically connects to the battery bank (for voltage sensing) and has a diagnostic port. Crucially, the OBC has an interlock wire (often Orange or Brown) that connects to the controller. When the charger is plugged into the charger port, the OBC sends a signal to the controller, disabling the motor to prevent accidental movement during charging, a vital safety feature. For models without a dedicated OBC, the charger port wiring might directly interface with the main battery terminals with a simpler interlock to the controller.
Motor Wiring:
The motor type dictates its wiring.
Series Motors: These have two large terminals for the armature (A1, A2) and two smaller terminals for the field windings (S1, S2). The controller typically connects to A1, A2, S1, and S2 directly, or via an F/R switch for older models.
Separately Excited (Sepex) Motors: These also have A1, A2, S1, S2 but the field windings (S1, S2) are energized independently by the controller for greater speed and torque control. The controller’s output wires (often labeled U, V, W or similar for AC motors) connect directly to the motor terminals.
Verify your motor type and specific controller output connections in your service manual. Improper motor wiring can lead to reverse operation, reduced performance, or motor damage.
When replacing heavy-gauge cables, use only welding-grade (AWG) cables designed for high current applications. For 36V/48V systems, 4 AWG or 2 AWG cables are commonly specified for main battery and motor connections to minimize voltage drop and heat generation. Ensure proper lug crimping with a hydraulic crimper for optimal conductivity.
COMMON WIRING PROBLEMS & FIXES
Diagnosing electrical issues in Yamaha golf carts requires a methodical approach, often starting with the main power circuit and working inward.
1. No Power / Cart Completely Dead:
Symptom: No lights, no solenoid click, no movement.
Diagnosis:
Battery Bank: Check the overall voltage of the battery bank with a multimeter. A 36V system should read around 38.2V fully charged; a 48V system around 50.9V. Also, test individual battery voltages. A single weak battery can significantly impact performance.
Main Fuse: Inspect the main fuse (typically a 150A to 300A fuse, often inline near the battery bank or mounted on the controller) for continuity. A blown fuse indicates a short or severe overload.
Run/Tow Switch: Ensure the run tow switch is in the “RUN” position. Test for continuity across its terminals in both positions.
Main Solenoid: Test for pack voltage on both large terminals when the key is on and pedal is pressed. If voltage is present on one side but not the other, and the small terminals are receiving activation voltage, the solenoid is likely faulty.
Fix: Replace blown fuses (after identifying and correcting the root cause), replace faulty batteries or solenoids, or correct run/tow switch position/fault.
2. Intermittent Power / Cart Stutters or Dies Unexpectedly:
Symptom: Cart moves, then loses power, or power cuts out over bumps.
Diagnosis:
Loose Connections: Inspect all heavy gauge battery, solenoid, controller, and motor wiring connections. Look for corrosion, loose nuts, or damaged insulation. Even slightly loose connections can cause significant resistance and heat, leading to intermittent power loss.
Forward Reverse Switch: For mechanical F/R switches, inspect the internal contacts for wear or carbon buildup. On electronic F/R switches, verify the microswitches are properly actuated and sending consistent signals to the controller.
Accelerator Pedal Microswitch: The microswitch at the top of the accelerator pedal (or integrated into the TPS assembly) signals the controller that the pedal has been pressed. Test its continuity and operation.
Fix: Clean and tighten all connections. Replace corroded terminals or cables. Replace worn F/R switch components or faulty microswitches.
3. Charger Not Working / Batteries Not Charging:
Symptom: Charger does not activate, or batteries do not reach full charge.
Diagnosis:
Charger Port: Check the charger port for damage, corrosion, or debris. Verify voltage presence at the port terminals.
On-Board Computer (OBC): If equipped, the OBC is often the culprit. It requires a minimum battery pack voltage (e.g., 20-25V for a 36V system) to activate. If the pack is too low, the OBC won’t initiate charging. Test for continuity of the OBC’s interlock wiring to the controller.
Charger Itself: Test the charger’s output voltage (unplugged from cart). A faulty charger cannot deliver current.
Fix: Ensure minimum battery voltage is present (may require external charging to “wake up” the OBC). Replace faulty charger ports or OBCs. Service or replace the charger if it’s not producing adequate output.
4. Reduced Speed or Range:
Symptom: Cart runs but is slower than normal, or battery charge depletes quickly.
Diagnosis:
Battery Health: Perform a load test on individual batteries or a discharge test on the entire battery bank. A single failing battery can significantly reduce overall pack capacity and voltage under load.
Motor/Controller: While less common for wiring issues, a partially shorted motor winding or a failing controller can draw excessive current, leading to reduced efficiency. Monitor motor and controller temperatures during operation.
Throttle Position Sensor (TPS): An improperly calibrated or failing TPS can send incorrect signals to the controller, limiting motor output. Verify TPS voltage range with a multimeter (typically 0-1V or 0-5V, depending on model, from idle to full throttle).
Fix: Replace weak or failing batteries. Adjust or replace the TPS if it’s out of specification. For motor/controller issues, consult specific diagnostic procedures or a specialized repair facility.
Regularly inspect the main power cables for signs of heat damage (discolored insulation, melted plastic near terminals). Such signs indicate excessive resistance, often from loose or corroded connections, and warrant immediate attention to prevent fire hazards or component failure. Refer to your owner’s manual for recommended maintenance intervals on electrical connections.
FAQ
What is the purpose of the “run tow switch” on a Yamaha golf cart?
The run tow switch is a critical safety and maintenance component. In the “TOW” position, it completely disconnects the main power from the controller and motor, preventing the cart from accidentally moving or damaging the controller during towing, maintenance, or when the batteries are being worked on. Always switch to “TOW” mode before beginning any electrical service or connecting/disconnecting the charger.
Can I upgrade my 36 volt system Yamaha golf cart to a 48 volt system?
Upgrading from a 36 volt system to a 48 volt system is a significant modification requiring careful planning and component replacement. It typically involves replacing the battery bank, the controller, the motor (or verifying its 48V compatibility), the solenoid, and potentially the charger port and on-board computer (OBC). While possible, it’s not a simple wiring change and requires expertise to ensure all components are compatible and correctly rated for the higher voltage. Failure to properly execute this conversion can lead to severe damage and safety hazards.
What tools are essential for diagnosing Yamaha golf cart wiring problems?
For effective electrical diagnostics, essential tools include a high-quality digital multimeter (capable of measuring DC voltage, resistance, and continuity), battery hydrometer (for lead-acid batteries), terminal cleaning brushes, a torque wrench for battery terminals, and insulated hand tools. A test light or circuit tester can also be useful for quickly checking for live circuits. For more advanced diagnostics, a controller programmer or diagnostic tool may be necessary depending on the controller model.
How do I properly test the main solenoid on my Yamaha golf cart?
To test the main solenoid, first, ensure the run tow switch is in “RUN” and the key is on. With a multimeter set to DC voltage, place the positive lead on the small terminal that receives switched power (often Red/White from the key switch) and the negative lead to the main battery negative. You should read full pack voltage when the accelerator pedal is pressed. Next, place the positive lead on the same small terminal and the negative lead on the other small terminal (ground controlled by controller/microswitches). You should again read full pack voltage if the coil is activated. Finally, check voltage across the two large terminals. When the solenoid is activated, there should be less than 0.5V DC drop across the large terminals. If you read full pack voltage across the large terminals when activated, the solenoid’s contacts are not closing, indicating a fault.
Why is referring to the OEM service manual so critical for wiring diagrams?
Manufacturer specifications and OEM service manuals provide year- and model-specific wiring diagrams that accurately depict wire colors, component locations, pin assignments, and crucial safety interlock circuits. Generic diagrams, while useful for understanding basic principles, can lead to misdiagnosis or incorrect repairs due to variations in production. Adhering to the OEM documentation ensures that your troubleshooting and repair efforts are based on the correct technical data for your specific Yamaha golf cart, mitigating risks and ensuring proper function.
Step-by-Step Guide to Understanding the Yamaha Golf Cart Carburetor Diagram: Component Breakdown 2026
Identify – Your specific Yamaha golf cart carburetor model and its individual components using the provided diagram.
Locate – The carburetor on the golf cart engine, typically situated between the air filter and the intake manifold.
Reference – The diagram for the correct disassembly sequence and precise component orientation during cleaning or repair procedures.
Connect/Route – Reassemble components, ensuring all gaskets, jets, and linkages are correctly seated, secured, and tightened to specifications.
Verify – Fuel lines are securely connected, idle mixture and speed screws are adjusted per factory specifications, and the choke mechanism operates freely.
Troubleshoot – If the engine runs poorly, re-check for vacuum leaks, clogged jets, or improper float level using the carburetor diagram as a comprehensive guide.
Frequently Asked Questions
What is the primary function of a Yamaha golf cart carburetor?
The primary function is to precisely mix air and fuel in the correct ratio before it enters the engine’s combustion chamber. This mixture is crucial for engine starting, idling, and efficient power delivery across various RPMs.
What are the main adjustable components on a Yamaha golf cart carburetor?
Key adjustable components include the idle mixture screw, controlling fuel-air at idle, and the idle speed screw, setting engine idle RPM. Jet sizes (pilot, main) are critical but typically changed, not adjusted, for specific tuning.
How do I troubleshoot a Yamaha golf cart with carburetor issues if it won’t run?
First, check for fuel delivery to the carburetor. Then, inspect the float bowl for stale fuel or debris. Clogged jets are common; carefully remove and clean them using carburetor cleaner and compressed air. Ensure the choke operates correctly.
How does the choke mechanism work on a Yamaha golf cart carburetor?
The choke restricts airflow into the carburetor, creating a richer fuel-air mixture necessary for cold starts. On many Yamaha models, it’s cable-operated, manually enriching the mixture to aid ignition when the engine is cold.
What tools are essential for cleaning a Yamaha golf cart carburetor?
Essential tools include a screwdriver set, socket/wrench set for removal, carburetor cleaner spray, compressed air, and small wire brushes or jet cleaning tools. Gasket sets are also often needed for reassembly after cleaning.
When should I consider rebuilding or replacing a Yamaha golf cart carburetor?
Consider rebuilding if cleaning doesn’t resolve issues like persistent rough idling, stalling, or poor acceleration, and if internal components are visibly worn. Replacement is advised if the carburetor body is damaged or if parts are excessively corroded.
