The Bad Boy MZ Magnum 54 parts diagram illustrates the structural layout of the 54-inch mower deck system, drive belt routing (041-1470-00), dual Hydro-Gear EZT transmissions, and spindle assemblies. It maps bolt configurations, pulley placements, and tensioner springs required to troubleshoot deck mechanical drive issues.
📌 Key Takeaways
- Deck drive belt part #041-1470-00 requires precise tensioner arm spring configuration to maintain full engagement.
- Blade spindle mounting bolts must be torqued to 75 ft-lbs to secure the cutting deck assembly safely.
- Hydro-Gear EZT transaxle linkages map directly to control levers for accurate neutral bypass alignment.
- Uneven cut performance typically stems from worn spindle bearings or unaligned deck hanger brackets.
- Replace damaged belts independently, but consult professionals for internal hydrostatic transaxle rebuilds.
Navigating the complex mechanical, hydraulic, and electrical sub-assemblies of the Bad Boy MZ Magnum 54 zero-turn mower requires precise technical documentation. Equipped with a heavy-duty 11-gauge fabricated deck, dual hydrostatic transaxles, and an electric PTO clutch assembly, accurate repair depends on correct component indexing. Utilizing the official bad boy mz magnum 54 parts diagram enables technicians and experienced equipment owners to identify structural wear points, verify OEM part numbers, trace 12-volt DC electrical routes, and maintain factory assembly tolerances. This technical reference breaks down the primary system configurations, schematic interpretation steps, diagnostic workflows, and critical torque specifications.
Deconstructing the Bad Boy MZ Magnum 54 Parts Diagram and Component Layout
The structural framework of the Bad Boy MZ Magnum 54 is organized into three major sub-systems: the 54-inch fabricated cutting deck configuration, the dual hydrostatic propulsion assembly, and the engine-electrical interface layout. Understanding how these mechanical groups interact within the schematic layout prevents misdiagnosis during overhaul procedures.
Recommended Best Deal Products

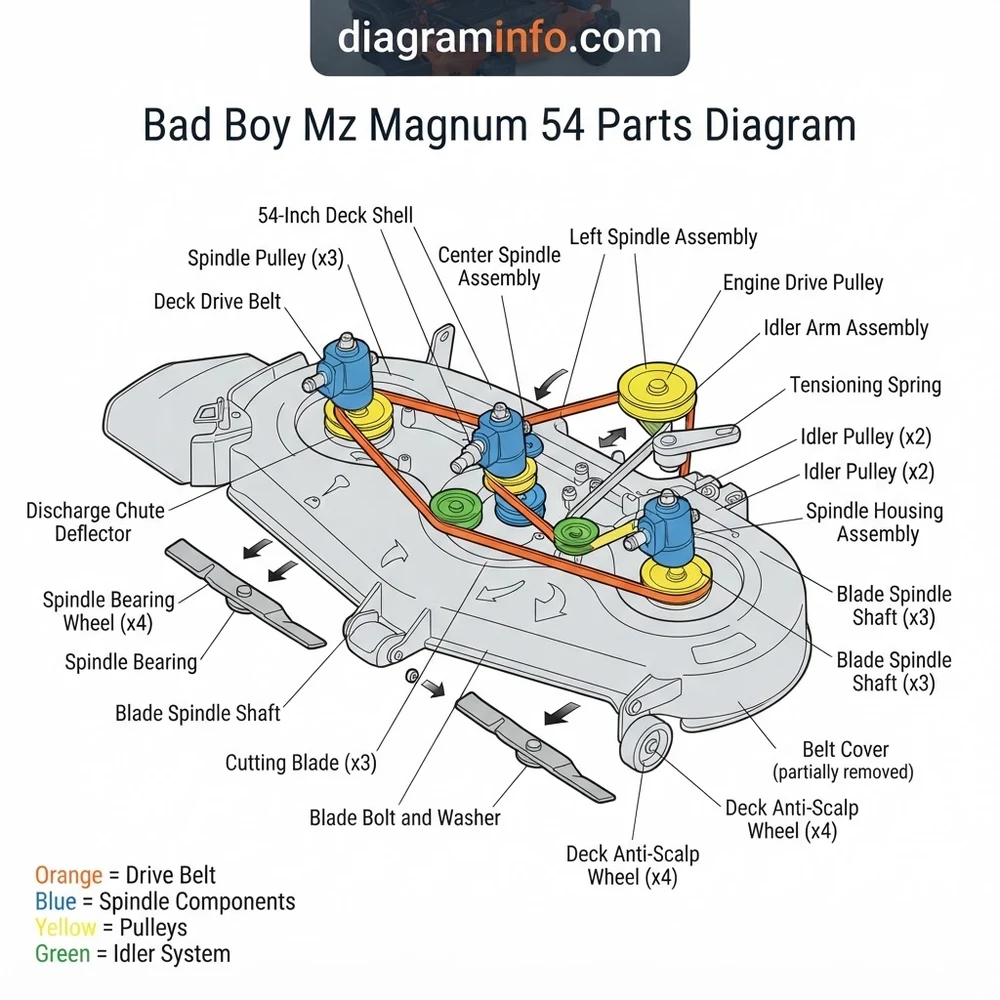

Cutting Deck Assembly and Spindle System Configuration
The 54-inch cutting deck blueprint features a triple-spindle configuration driven by a single B-section Kevlar-reinforced serpentine deck belt. Each cast-aluminum spindle housing (OEM 037-2000-00 or equivalent) houses top and bottom sealed deep-groove ball bearings separated by a internal spacer sleeve. The tensioning architecture relies on a spring-loaded idler arm assembly equipped with a steel pulley, designated to maintain dynamic belt tension against load spikes. Three 18.75-inch high-lift blades attach to the lower spindle shafts via hardened washer stacks and grade-8 hex head cap screws.
Hydrostatic Drive Train and Steering Linkage Overview
Propulsion is managed by dual Hydro-Gear EZT (ZT-2200 series) integrated hydrostatic transaxles. The schematic illustrates independent fluid circuits, internal gear pumps, and directional swashplates connected directly to the operator steering control levers. Dampener cylinders attached to the control arms regulate lever return speed and reduce operator fatigue. Drive power transfers from the lower engine crankshaft pulley to the transaxle input pulleys through a specialized rubber V-belt tightened by a stationary chassis-mounted tensioner pulley.
Engine Interface and Electrical Wiring Blueprint
The power plant configuration accommodates twin-cylinder engine options (such as Kohler 7000 or Kawasaki FR series). The schematic displays the electric Warner PTO clutch mounted at the base of the crankshaft beneath the engine drive pulley. The electrical system wiring harness links the 12-volt lead-acid battery, starter solenoid, key switch, seat safety interlock switches, and PTO control switch through a color-coded 15-amp fused harness system.
• Blade Retaining Bolt Torque: 75–90 ft-lbs (101–122 Nm)
• Spindle Mounting Housing Bolts: 30–35 ft-lbs (40–47 Nm)
• Deck Pulley Top Nut: 65–75 ft-lbs (88–101 Nm)
• Hydro transaxle Pulley Nut: 45–55 ft-lbs (61–74 Nm)
• PTO Clutch Anchor Bolt: 50–55 ft-lbs (68–74 Nm)
• Main Fused Circuit: 15 Amp ATO Blade Type
| Sub-System Component | OEM Part Reference | Functional Engineering Specifications |
|---|---|---|
| 54″ Deck Drive Belt | 041-1650-00 | 5/8″ x 148.5″ Aramid/Kevlar Corded B-Section |
| Hydrostatic Drive Belt | 041-6400-00 | 1/2″ x 64.5″ Raw Edge Molded V-Belt |
| Deck Blade (3 Required) | 038-4200-00 | 18.75″ Length, 2.5″ Width, 5/8″ Center Hole |
| Cast Aluminum Spindle Assembly | 037-2000-00 | Dual ABEC-3 Sealed Bearings, Hardened Shaft |
| Electric PTO Clutch | 070-1000-00 | 105 lb-ft Torque Capacity, 1″ Crankshaft Bore |
How to Read the Bad Boy MZ Magnum 54 Parts Schematic for Maintenance
Interpreting a technical schematic requires a structured diagnostic approach. Exploded diagrams isolate combined assemblies into individual items mapped via numerical callouts. Misreading these callouts can lead to improper fastener sequence installation or ordering incorrect replacement part variations.
Locating Part Index Numbers and Cross-Referencing OEM Part Numbers
Each component on the bad boy mz magnum 54 parts diagram corresponds to an item index number listed in the accompanying parts key. When servicing mechanical assemblies—such as the deck lift linkage—match the index number on the blueprint to the corresponding entry in the OEM parts list. Verify the specific revision code of your machine, as running engineering changes may modify part numbers between production years. Cross-referencing serial numbers located on the frame rail beneath the seat ensures part compatibility before ordering replacement hardware.
Identifying Fastener Hardware, Torque Specs, and Exploded Views
Exploded schematics depict assembly hierarchy using directional dotted lines and projection vectors. In spindle and pulley assemblies, thin Belleville washers, wave rings, and internal spacers are arranged precisely as they must be stacked on the spindle shaft. Pay close attention to lock nut orientations and bolt grade markings (e.g., three radial lines denoting Grade 5, or six lines denoting Grade 8). Refer to our technical guide on Bad Boy Mower Fastener Standards and Identification for detailed hardware specifications.
Verifying Model Year Differences Across MZ Magnum 54 Layouts
Although the 54-inch MZ Magnum frame design remains relatively consistent across model years, minor design revisions occur. Earlier models utilize alternate deck pulley spacing brackets, whereas later models feature updated spindle housing grease relief pathways and modified hydro bypass control arm rod linkages. Always check your engine code alongside the chassis schematic to ensure alignment with specific sub-assembly variations. For hydro-drive variations, consult the Hydro-Gear EZT Transaxle Servicing Blueprint.
When disassembling dynamic components like the deck tensioner arm pivot, carefully record the exact arrangement of thrust washers and bronze bushings shown in the schematic structure. Reversing the placement of thick step washers can alter pulley alignment relative to the engine drive clutch, causing accelerated belt edge wear and premature failure.
Diagnosing System Failures Using the Bad Boy MZ Magnum 54 Blueprint
A technical diagram is an essential diagnostic roadmap when troubleshooting unexpected mechanical play, excessive vibration, drive slippage, or electrical fault conditions. Tracing issues back to their origin point on the blueprint saves labor hours and prevents unnecessary component replacement.
Deck Belt Alignment and Pulley Tension Discrepancies
If the 54-inch deck belt repeatedly flips off the pulleys or shows severe side-wall glazing, consult the deck drive layout blueprint. Check the alignment of the stationary idler pulleys relative to the dynamic tensioner arm pulley. Use a straightedge across the upper pulley faces; coplanar variance must not exceed 1/16th of an inch (1.5mm). Inspect the internal torsion spring on the idler arm (OEM 034-2008-00) for fatigue. If the spring stretches past its static nominal length under tension, belt whip occurs under heavy grass loads, throwing the belt clear of the sheaves.
Hydrostatic Transmission Pressure Drops and Drive Belt Slippage
When experiencing unequal tracking or loss of drive power after the hydraulic fluid warms up, reference the hydrostatic drive layout. First, inspect the lower hydro drive belt tension spring and idler movement. If belt tension is within normal limits, inspect the bypass valve release levers shown on the hydro schematic. A partially open bypass valve allows high-pressure fluid to recirculate internally, preventing pressure buildup at the motor cylinder block. Check control linkage rod clevis pins for slop; worn clevis joints prevent full stroke movement of the hydro swashplate lever.
PTO Clutch Electrical Disengagement and Safety Interlock Failures
When the deck blades fail to engage upon pulling the PTO switch, refer to the electrical schematic layout. Using a digital multimeter, check for 12V DC across the electric clutch field coil harness connector (Blue and Black wires). If voltage is absent, trace back through the safety switch interlock circuit: seat switch (Yellow/Black wire), brake switch, and neutral position switches. If 12V DC is present at the clutch plug but engagement fails, measure field coil resistance using an ohmmeter. Standard coil resistance on the Warner PTO clutch should read between 2.4 and 3.1 Ohms. A reading outside this range indicates an open or shorted coil winding requiring clutch replacement.
Always disconnect the negative battery cable and isolate the spark plug leads before performing maintenance beneath the cutting deck or near drive belts. Stored energy in high-tension deck springs can cause severe pinch injuries. Ensure the hydraulic system and engine exhaust components have cooled completely before performing fluid service or mechanical diagnostics.
Bad Boy MZ Magnum 54 Parts Diagram Frequently Asked Questions
What Deck Belt Part Number Is Required for the Bad Boy MZ Magnum 54-Inch Deck?
The OEM standard deck drive belt for the 54-inch MZ Magnum is part number 041-1650-00. It measures 5/8 inches in width by 148.5 inches in outer length. It features an aramid/Kevlar internal tensile cord layer designed to handle shock loads from engagement of the triple 18.75-inch cutting blades. Never substitute a standard fractional horsepower (FHP) light-duty belt, as it lacks the tensile strength required for this cutting configuration.
How Do You Check Spindle Bearing Tolerances on the Bad Boy MZ Magnum 54 Schematic?
To check spindle bearing play using the spindle housing assembly diagram as a guide, remove the cutting blade and deck belt. Grasp the top pulley and pull the spindle shaft vertically and laterally. Maximum allowable axial (end play) movement is 0.005 inches, and radial play must not exceed 0.002 inches. If roughness, binding, or audible clicking is observed when rotating the shaft by hand, the sealed ABEC-3 ball bearings must be pressed out and replaced, or the complete assembly (OEM 037-2000-00) substituted.
What Torque Specifications Apply to the MZ Magnum 54 Blade Bolts?
The 5/8-inch grade-8 hex head cap screws securing the mower blades to the lower spindle shaft must be torqued precisely to 75–90 ft-lbs (101–122 Nm). Always verify the correct stacking order shown in the deck blueprint: blade Belleville cone washer oriented with the cupped side facing upward toward the blade body, followed by the heavy flat washer, and then the retaining cap screw. Improper torque can cause the blade to slip or damage the spindle shaft threads.
How Are the Dual Hydro-Gear EZT Transaxles Configured in the Drive Blueprint?
The dual Hydro-Gear EZT transaxles are configured as independent, sealed hydrostatic units mounted to the rear frame structure. Each side features an integrated axial piston pump, motor assembly, expansion tank port, and control arm interface. They receive engine power via a single continuous hydro drive belt (OEM 041-6400-00). Dynamic tracking adjustments are made using the threaded turnbuckles on the steering linkages detailed in the chassis control schematic section. For complementary electrical diagnosis, refer to our Bad Boy Mower Electrical Schematic Guide.
Where Is the Ignition Circuit Fuse Located on the Electrical Wiring Schematic?
The primary ignition fuse is located inline within the main wiring harness near the starter solenoid, typically adjacent to the battery box mounting bracket. The bad boy mz magnum 54 parts diagram shows this as a standard 15-amp ATO blade-style fuse housing protected by a weather-resistant rubber cap. Blown fuses generally indicate an intermittent short circuit along the red positive feed wire or an overloaded PTO clutch field coil circuit.
Step-by-Step Guide to Understanding the Bad Boy Mz Magnum 54 Parts Diagram
Identify – Locate the specific sub-system on the bad boy mz magnum 54 parts diagram requiring service, such as the 54-inch deck or transaxle drive layout.
Locate – Find the matching physical component on your mower, clearing debris or guards to inspect part condition and mounting hardware.
Reference – Match callout numbers on the schematic to the OEM parts list to verify correct belt lengths, pulley dimensions, and bolt sizes.
Connect/Route – Reinstall replacement components following the exact path and pulley groove alignment illustrated in the layout diagram.
Verify – Torque spindle bolts to 75 ft-lbs, check belt spring tension, and manually rotate deck pulleys to confirm smooth mechanical operation.
Troubleshoot – Inspect alignment brackets and belt tracking if abnormal noise, vibration, or slipping occurs during initial test engagement.
