NFPA 13 Fire Sprinkler System Parts Diagram: Guide 2026

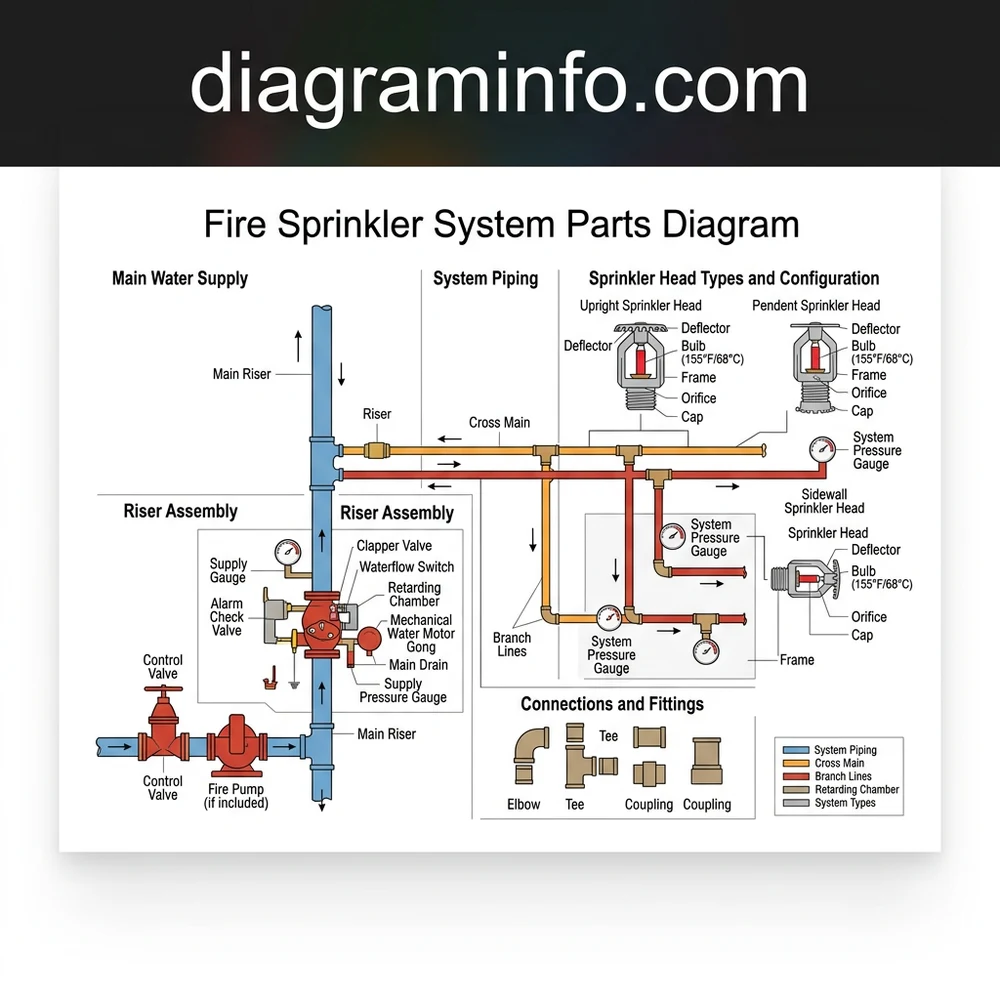

A fire sprinkler system parts diagram illustrates the water supply connection, backflow preventer, main riser, control valves, alarm check valve, water motor gong, piping grid, and sprinkler heads. NFPA 13 standards require the main drain valve and pressure gauges above and below the check valve to monitor system pressure differential.
📌 Key Takeaways
- Main riser piping typically operates under standard static pressure between 50 and 175 PSI per NFPA guidelines.
- Glass bulb sprinkler heads are color-coded by temperature rating, with orange/red bulbs rated for standard 135°F–155°F response.
- Control valves must utilize tamper switches wired directly to the central fire alarm panel for status monitoring.
- The backflow preventer and main drain assembly are the primary locations for mechanical failure and pressure drop issues.
- System repairs and structural modifications mandate certified fire protection professional licensing rather than DIY work.
Navigating an industrial or commercial fire protection schematic requires an exact understanding of hydraulic symbols, valve configurations, and piping networks. A fire sprinkler system parts diagram serves as the foundational engineering reference for facility managers, MEP engineers, and fire protection technicians tasked with inspecting, maintaining, or troubleshooting automatic suppression systems. Adhering strictly to NFPA 13 (Standard for the Installation of Sprinkler Systems) and NFPA 25 (Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems), this technical guide breaks down each core component, operational layout, schematic legend, and diagnostic procedure across standard wet and dry fire suppression configurations.
Fire Sprinkler System Parts Diagram: Key Components Explained
Every commercial fire suppression installation relies on a specialized riser manifold assembly that interfaces the municipal water main or fire pump output with the overhead distribution piping grid. Interpreting a fire sprinkler system parts diagram begins at the riser assembly, where fluid dynamics control devices, pressure sensors, and electrical supervisory hardware are grouped.
The primary control valve acts as the main shutoff for the entire system configuration. Modern installations utilize either an Outside Screw and Yoke (OS&Y) gate valve or a butterfly valve equipped with a built-in position indicator. Positioned directly above or integrated into the main control valve is the alarm check valve (in wet systems) or dry pipe valve (in dry systems). The alarm check valve incorporates a spring-loaded clapper equipped with a rubber facing, designed to open fully under waterflow conditions while preventing backflow and pressure surges from tripping false alarms.
| System Component | Technical Specification Standard | Operational Function |
|---|---|---|
| OS&Y Control Valve | 175–300 PSI Rated, Flanged/Grooved | Main system water isolation with visual stem position indicator. |
| Alarm Check Valve | 4″–8″ ANSI Flange, Ductile Iron | Prevents reverse flow and channels water to alarm trim upon activation. |
| Vane-Type Waterflow Switch | 24VDC / 120VAC, SPDT/DPDT, 10–15 GPM activation | Detects continuous water movement; signals Fire Alarm Control Panel (FACP). |
| Valve Supervisory Switch | Potter PTS-C / NEMA 4 rated, 24VDC SLC loop | Monitors control valve status; triggers supervisory signal if partially closed. |
| Retard Chamber | 1-Gallon Capacity, Cast Iron / Stainless Trim | Absorbs line pressure surges to prevent false hydraulic motor gong alarms. |
| Sprinkler Head Assembly | 1/2″ or 3/4″ NPT, K-Factor 5.6 to 16.8 | Thermal activation discharge device distributing water per hazard classification. |
Parallel to the main riser, the alarm trim package houses essential monitoring devices. This includes the mechanical water motor gong line, the pressure-actuated electrical alarm switch (such as a Potter PS10 series switch), the main drain valve (typically 1.25″ to 2″ NPT), and pressure gauges displaying supply pressure versus system pressure. Downstream from the riser assembly, horizontal cross mains branch out into smaller branch lines that support individual automatic sprinkler heads fitted with frangible glass bulbs or fusible alloy links.
How to Interpret a Fire Sprinkler System Blueprint and Layout Schematic
Deciphering a technical fire sprinkler system parts diagram requires systematic evaluation of line weights, standard architectural symbols, hydraulic calculation nodes, and riser trim elevations. Mechanics and site engineers must cross-reference mechanical drawings with structural blueprints to identify supply points, branch line pitch, support hangers, and terminal connection points.
Reading Fire Sprinkler Piping Layout Symbols and Pipe Sizing
Standard engineering drawings utilize specific mechanical line types and pipe schedules. Main lines and cross mains are depicted with heavy solid lines, whereas branch lines are represented by thinner solid lines. Diameter annotations appear directly alongside the line runs (e.g., 4″ Schedule 10 steel pipe for cross mains down to 1″ Schedule 40 or CPVC for terminal branch lines). Piping symbols indicate directional changes, tees, elbows, and grooved mechanical couplings (e.g., Victaulic Style 77).
Sprinkler heads on a blueprint are denoted by small circles containing specific symbols indicating orientation: upright (U), pendent (P), sidewall (SW), or concealed (C). K-factor ratings (hydraulic discharge coefficient)—ranging from standard K-5.6 for light hazard occupancies up to K-16.8 or larger for Early Suppression Fast Response (ESFR) storage applications—are cross-referenced in the drawing legend or hydraulic data block located on the engineering schematic.
According to NFPA 13 design standards, standard branch piping must withstand a minimum static pressure of 175 PSI. Threaded pipe fittings up to 2 inches must meet ANSI B16.3 standards, while grooved mechanical fittings must conform to ASTM A536 Grade 65-45-12 ductile iron specifications. Always check hydraulic design node plates on the riser for required baseline residual pressure and flow rate (e.g., 450 GPM at 52 PSI at the base of the riser).
Tracing Water Flow Configuration from City Main to Sprinkler Head
To analyze water movement through the schematic, trace fluid flow starting from the municipal underground line or fire pump discharge. The fluid passes first through an approved double-check valve assembly or reduced pressure zone (RPZ) backflow preventer. To review detailed mechanical piping layouts for backflow assemblies, refer to our specialized guide on backflow preventer assembly line layout standards.
From the backflow unit, water enters the system riser past the OS&Y main control valve. Under non-alarm conditions, static water pressure fills the system up to the thermal element seal of each closed sprinkler head. When ambient heat reaches a head’s activation rating, the frangible bulb bursts, releasing the valve cap. Hydraulic equilibrium breaks, causing water to flow through the branch line. The dropping pressure above the alarm valve clapper causes the clapper to lift off its seat, forcing pressurized water into the alarm port, through the retard chamber, and into the pressure switch and water motor gong to initiate local and remote alarms.
Troubleshooting System Faults via the Fire Sprinkler Diagram
System faults present as electrical supervisory signals on the FACP, unexpected mechanical pressure drops, or continuous water discharge through secondary trim drains. Technicians must trace hydraulic and electrical paths on the fire sprinkler system parts diagram to isolate component failures efficiently.
Diagnosing False Waterflow Alarms and Low Pressure Conditions
False waterflow alarms typically originate within the alarm valve trim or vane switch delay settings. When municipal water pressure surges (water hammer occur), temporary pressure differentials lift the check valve clapper. If the retard chamber drain orifice is clogged with rust scale or debris, excess water cannot drain off, filling the chamber and tripping the electrical pressure switch prematurely.
Never close a main control valve to suppress a false alarm without establishing an active fire watch and notifying local authorities. Inspect the retard chamber drain screen line first. Ensure the vane-type waterflow switch mechanical pneumatic retard delay is adjusted between 30 and 45 seconds to filter out transient line surges per NFPA 72 requirements.
When diagnosing unexplained pressure drops on system gauges, conduct a main drain test. Record the static pressure reading on the supply gauge, fully open the 2-inch main drain valve, record the residual pressure reading, and then close the valve. A drastic drop in residual pressure or a slow recovery back to static pressure indicates an upstream restriction, such as a partially closed control valve, a clogged municipal supply, or a fouled strainer line.
Resolving Valve Tamper Switch Faults and Trim Leaks
Supervisory trouble signals indicate that a system control valve has been moved from its fully open position. Valve tamper switches utilize Single Pole Double Throw (SPDT) internal microswitches wired into a 24VDC Initiating Device Circuit (IDC) or Signaling Line Circuit (SLC). If a valve tamper trouble signal triggers:
- Inspect the mechanical plunger on the supervisory switch body; verify it is fully seated inside the valve stem groove (on OS&Y valves) or cam recess (on butterfly valves).
- Check terminal wiring continuity using a digital multimeter set to Ohms. Terminals 1 and 2 should read near 0 Ohms when open/seated, and infinite resistance when the valve handwheel is turned two full revolutions.
- Inspect dry pipe risers for air-to-water seal leaks. If analyzing a cold-storage installation, consult our dedicated dry pipe sprinkler riser diagram technical manual for accelerator switch settings and low air pressure switch adjustments.
- To review motor drive circuits that feed booster systems, consult our fire pump controller schematic breakdown.
When installing replacement sprinkler heads on branch lines, always match the original orifice size, K-factor, thread diameter, and thermal response temperature rating. Apply a maximum of 1.5 to 2 turns of PTFE thread tape to male NPT threads; never apply pipe joint compound (pipe dope) to sprinkler head threads as volatile organic compounds can degrade frangible glass bulbs or internal seals.
Fire Sprinkler System Parts Diagram Frequently Asked Questions
What do the color codes on fire sprinkler glass bulbs indicate?
The fluid color inside a glass bulb sprinkler head denotes its specific temperature rating per NFPA 13 standards. Orange indicates 135°F (57°C), Red indicates 155°F (68°C), Yellow indicates 175°F (79°C), Green indicates 200°F (93°C), Blue indicates 286°F (141°C), Purple indicates 360°F (182°C), and Black indicates 500°F (260°C). Selecting the correct thermal threshold prevents premature activation near high-heat HVAC equipment or industrial machinery.
How does a dry pipe sprinkler system layout differ from a wet pipe schematic?
A dry pipe system layout incorporates pressurized air or nitrogen inside overhead distribution lines instead of water, protecting unheated areas from freezing. The dry pipe riser diagram substitutes the alarm check valve with a specialized differential dry pipe valve (typically maintaining a 1:5 or 1:6 air-to-water pressure differential ratio). Additional equipment depicted includes an automated air compressor, an air maintenance device (AMD), quick-opening devices (accelerators or exhausters), and low air pressure supervisory switches.
What is the purpose of the retard chamber on an alarm valve riser?
The retard chamber is a surge-mitigation vessel installed between the alarm check valve and the mechanical/electrical alarm devices. Municipal water pressure fluctuations can momentarily unseat the main clapper without an actual fire event. Water diverted into the 1-gallon retard chamber drains out harmlessly through a calibrated bottom orifice. Only under sustained flow (such as an open sprinkler head) does the chamber fill completely, forcing water into the pressure switch and water motor gong line to trigger valid alarms.
How do you read pipe schedule sizing symbols on fire protection blueprints?
Pipe schedule symbols on engineering blueprints list nominal diameter alongside piping run tags. On mechanical line drawings, text formatted like “4”-S10-ST” indicates a 4-inch nominal diameter, Schedule 10 steel pipe. A slash notation or small numerical callout next to a branch line intersection indicates a reducer fitting (e.g., 2″ x 1″ NPT reducer socket). Pipe sizing strictly adheres to hydraulic calculations based on the Hazen-Williams formula to guarantee required pressure and flow at the hydraulically most demanding area.
What torque specs and thread sealants apply to installing sprinkler heads?
Automatic sprinkler heads featuring 1/2-inch or 3/4-inch NPT connections require precise torque limits during installation to prevent casting distortion or frame damage. Using a manufacturer-specified sprinkler wrench (such as an OEM recessed or socket wrench), tighten standard heads to 7 to 14 ft-lbs (9.5 to 19 N·m). Use only PTFE thread sealant tape wrapped 2 to 3 times clockwise around male threads. Never use liquid anaerobic pipe sealants or excessive force, as frame distortion can cause seal rupture or delayed thermal response.
Step-by-Step Guide to Understanding the Fire Sprinkler System Parts Diagram
Identify – Locate the main water supply entry line, control valve assembly, and riser tag on the physical installation.
Locate – Cross-reference the pressure gauge locations on the riser diagram with the physical upper and lower manifold gauges.
Reference – Trace the distribution network layout from the main riser through cross-mains to individual branch lines on the schematic.
Connect/Route – Verify that tamper switch wiring connects from the OS&Y control valve directly to the fire alarm control panel terminal block.
Verify – Perform a main drain test while reading static and residual pressure levels against standard design specs.
Troubleshoot – Match system pressure drops or supervisory alarm codes to specific riser components listed on the diagram key.
