A 4-pin fuel pump relay uses two pins (85, 86) for control and two (30, 87) for power. Pin 30 supplies constant battery power, Pin 87 powers the fuel pump, Pin 85 connects to ground, and Pin 86 receives the ECU or ignition signal. This setup allows the ECU to safely activate the fuel pump.
📌 Key Takeaways
- A typical 4-pin fuel pump relay activates the fuel pump via the ECU, supplying 12V from Pin 30 to Pin 87.
- Crucial to identify Pins 85, 86 (control) and 30, 87 (power) for correct diagnosis and wiring, affecting components like the high pressure fuel pump (HPFP).
- Always disconnect the battery before testing or replacing the relay to prevent electrical shorts and ensure safety during work on the fuel system, including areas near the fuel return line.
- The most common failure point for fuel pump relays is internal corrosion or worn contacts, leading to intermittent fuel pump operation or no start conditions; this often impacts overall fuel bowl pressure.
- Seek professional help if complex fuel system diagnostics involving the injection pressure regulator or deep electrical tracing are needed, beyond simple relay testing.
Understanding the intricate electrical control of a modern fuel delivery system is paramount for effective diagnosis and repair. This article provides a comprehensive overview of the 4-pin fuel pump relay diagram, focusing on its integration within a typical heavy-duty diesel fuel system, such as found in a Cummins ISX engine. You will gain insight into component identification, circuit pathways, practical application for troubleshooting, and common failure modes that can disrupt critical fuel flow, ultimately affecting engine performance and reliability.
While this guide illustrates a generic 4-pin fuel pump relay diagram, specific wire colors, fuse locations, and relay functions may vary significantly between manufacturers and model years. Always consult the OEM service manual and wiring diagrams pertinent to the specific vehicle or equipment you are servicing for accurate information.
FUEL SYSTEM COMPONENTS BREAKDOWN
The 4-pin fuel pump relay is a critical electro-mechanical switch, using a low-amperage control signal from the Powertrain Control Module (PCM) to activate a high-amperage circuit for the fuel pump. A detailed 4-pin fuel pump relay diagram shows its connections to these essential components in a modern diesel fuel system:
- 4-Pin Fuel Pump Relay:
- Terminal 30 (Power Input): Constant fused battery voltage (e.g., 12V, 30A circuit).
- Terminal 87 (Switched Power Output): Delivers high-current power to the fuel pump when coil is energized.
- Terminal 85 (Coil Ground): Ground signal provided by PCM or control module.
- Terminal 86 (Coil Power): Switched 12V from ignition or PCM, energizing the coil when grounded at 85.
This relay protects control modules from the fuel pump’s high current draw.
- Lift Pump/Low-Pressure Fuel Pump: Directly controlled by the 4-pin fuel pump relay. Draws fuel from the tank, delivering it at moderate pressure (e.g., 50-90 PSI) to the fuel bowl and the rest of the low-pressure system.
- High-Pressure Fuel Pump (HPFP): Engine-driven, pressurizes fuel for direct injection. The HPFP relies entirely on the lift pump, activated by the relay, for its supply. Inadequate low-side pressure due to relay failure will starve the HPFP. For HPFP diagnostic insights, refer to our comprehensive guide on HPFP failures.
- Fuel Bowl (Diesel Systems): Houses primary/secondary fuel filters, often including a water-in-fuel (WIF) sensor and fuel heater. Receives pre-filtered fuel from the lift pump.
- Primer Pump: Manual pump for purging air and priming the fuel system after maintenance; works in conjunction with the electric lift pump.
- Fuel Heater: Prevents fuel gelling in cold conditions. While having its own circuit, its function is interdependent with the fuel flow initiated by the relay.
- Fuel Cooler: Dissipates excess heat from high-pressure fuel before it returns to the tank via the fuel return line, maintaining system efficiency.
- Injection Pressure Regulator (IPR): Manages common rail pressure by directing excess fuel back to the fuel return line. Its function relies on sufficient fuel supply from the lift pump.
- Fuel Return Line: Carries unused or excess fuel back to the fuel tank, critical for pressure regulation and cooling within the system.
COMMON FAILURE POINTS & SYMPTOMS
Diagnosing fuel delivery issues often begins by verifying the 4-pin fuel pump relay circuit. Failures can stem from the relay itself, its control circuit, or the power supply, as illuminated by the 4-pin fuel pump relay diagram:
- Failed Fuel Pump Relay (Internal):
- Symptom: Engine cranks but no start; intermittent engine stalls. No audible fuel pump priming sound.
- Diagnosis:
- No click when ignition is ON: Check power at terminal 86 and ground at 85. If present, coil is open.
- Click, but no power at pump (Terminal 87): Verify 12V at terminal 30. If present, internal contacts are faulty.
🔧 SpecificationRelay coil resistance typically ranges 60-120 Ohms. Consult OEM specifications for the specific 4-pin fuel pump relay.
- Loss of Constant Power (Terminal 30):
- Symptom: No fuel pump operation, no start. Relay may click, but pump receives no power.
- Diagnosis: Inspect and test the main fuse (e.g., 20A-40A) supplying terminal 30. Verify 12V at terminal 30 with a multimeter.
- Faulty Control Circuit (Terminals 85 & 86):
- Symptom: Engine cranks, no start. Relay does not energize or click. Possible DTCs (e.g., P0230).
- Diagnosis:
- No switched power at 86: Verify 12V when ignition is ON/cranking.
- No ground at 85: Confirm PCM provides momentary ground on key-on, then continuous during cranking/running. PCM may inhibit ground for safety or other faults.
- Wiring Harness Damage/Corrosion:
- Symptom: Intermittent fuel pump operation, engine stalling, or complete failure. Visible signs of arcing, melting, or corrosion at the relay socket or along the wiring.
- Diagnosis: Visually inspect the relay socket and harness. Perform voltage drop tests across power and ground circuits to identify high resistance, which causes system inefficiency.
- Fuel Pump Overload/Failure:
- Symptom: Relay may hum loudly, overheat, or repeatedly blow fuses. Fuel pump could be noisy, produce low pressure, or fail, directly impacting HPFP supply.
- Diagnosis: Test the fuel pump’s current draw. Excessive amperage indicates pump failure or restriction (e.g., clogged filter), leading to premature relay failure. For related diagnostics, consult our guide on diagnosing low fuel pressure.
REPAIR & REPLACEMENT STEPS
Replacing a faulty 4-pin fuel pump relay is generally straightforward, but proper diagnosis and strict adherence to safety protocols are critical. This guide assumes the relay has been confirmed as the point of failure.
Always disconnect the vehicle’s battery negative terminal before electrical repairs. Fuel systems operate under pressure; exercise caution to prevent fuel spray and fire hazards.
- Safety and Depressurization:
- Disconnect the battery’s negative terminal.
- Relieve fuel system pressure. This may involve using a scan tool to command the pump off and cranking, or carefully bleeding pressure from a low-pressure fuel line (e.g., near the fuel bowl) with absorbent rags.
- Locate the Relay:
- Consult the OEM service manual or fuse box lid diagram for the exact location of the 4-pin fuel pump relay, often in the under-hood Power Distribution Center.
- Accurately identify the correct relay by its position or specific part number.
- Optional: Verify Relay Fault:
- Confirm the relay’s fault by temporarily swapping it with a known-good, identical relay from a non-critical circuit (e.g., horn) or by performing multimeter tests as outlined in the diagnosis section.
- Remove the Old Relay:
- Grasp the relay firmly and pull straight up, possibly using a relay puller tool. Avoid excessive wiggling to prevent socket damage.
- Inspect the relay socket for corrosion, melted plastic, or bent terminals, which may indicate a need for harness repair.
- Install the New Relay:
- Ensure the replacement 4-pin fuel pump relay matches the correct OEM part number and specifications (e.g., current rating, coil resistance). Example: Bosch 0 332 209 150.
- Align the keyed pins of the new relay with the socket and press firmly until fully seated.
- Reconnect and Test:
- Reconnect the battery negative terminal.
- Turn ignition to the ON position (without starting) and listen for the fuel pump priming hum.
- Start the engine. Verify smooth operation and absence of diagnostic fault codes.
- Thoroughly inspect for any fuel leaks around disturbed components.
FAQ
What are the functions of the four pins on a fuel pump relay?
On a standard 4-pin fuel pump relay, Pin 30 delivers constant fused battery power, Pin 87 is the switched power output to the fuel pump, Pin 85 receives the ground signal for the relay coil (often from the PCM), and Pin 86 receives switched 12V power for the coil from the ignition or PCM. This setup enables a low-current control signal to safely activate a high-current fuel pump circuit.
How do I test a 4-pin fuel pump relay using a multimeter?
To test, measure coil resistance between Pins 85 and 86 (typically 60-120 Ohms). Apply 12V to Pin 86 and ground to Pin 85; you should hear an audible click. While energized, check continuity between Pins 30 and 87; it should show near-zero resistance. Without coil power, there should be no continuity. For more detailed diagnostics, consult our article on electrical relay testing procedures.
Can a faulty 4-pin fuel pump relay cause issues with my high-pressure fuel pump (HPFP)?
Yes, absolutely. A faulty 4-pin fuel pump relay will disable or compromise the low-pressure lift pump, which is crucial for supplying fuel to the HPFP. Without sufficient and consistent fuel supply, the HPFP cannot generate the required high-side pressure for direct injection, leading to no-start conditions, severe misfires, or significant power loss, and often triggers low fuel rail pressure DTCs.
What are the common causes of a 4-pin fuel pump relay failure?
Common causes include internal wear from repeated switching cycles, leading to pitted or stuck contacts within the relay. Excessive current draw from a failing or restricted fuel pump can also overheat and damage the relay’s internal components. Additionally, exposure to moisture, corrosion in the relay socket, or a voltage spike can result in erratic operation or complete failure. Manufacturing defects are less common but possible.
Are there year-specific considerations for 4-pin fuel pump relay diagrams or locations?
Yes, significant variations exist. Manufacturers frequently revise wiring, control logic, and component locations between model years. For instance, an older truck might have its relay in the under-hood power distribution box, while a newer model could integrate fuel pump control into a chassis control module or locate in a rear fuse box with different designations. Always cross-reference the exact year, make, model, and engine code with the OEM service manual’s electrical diagrams. This is particularly vital for integrated systems like the control of modern fuel heater systems.

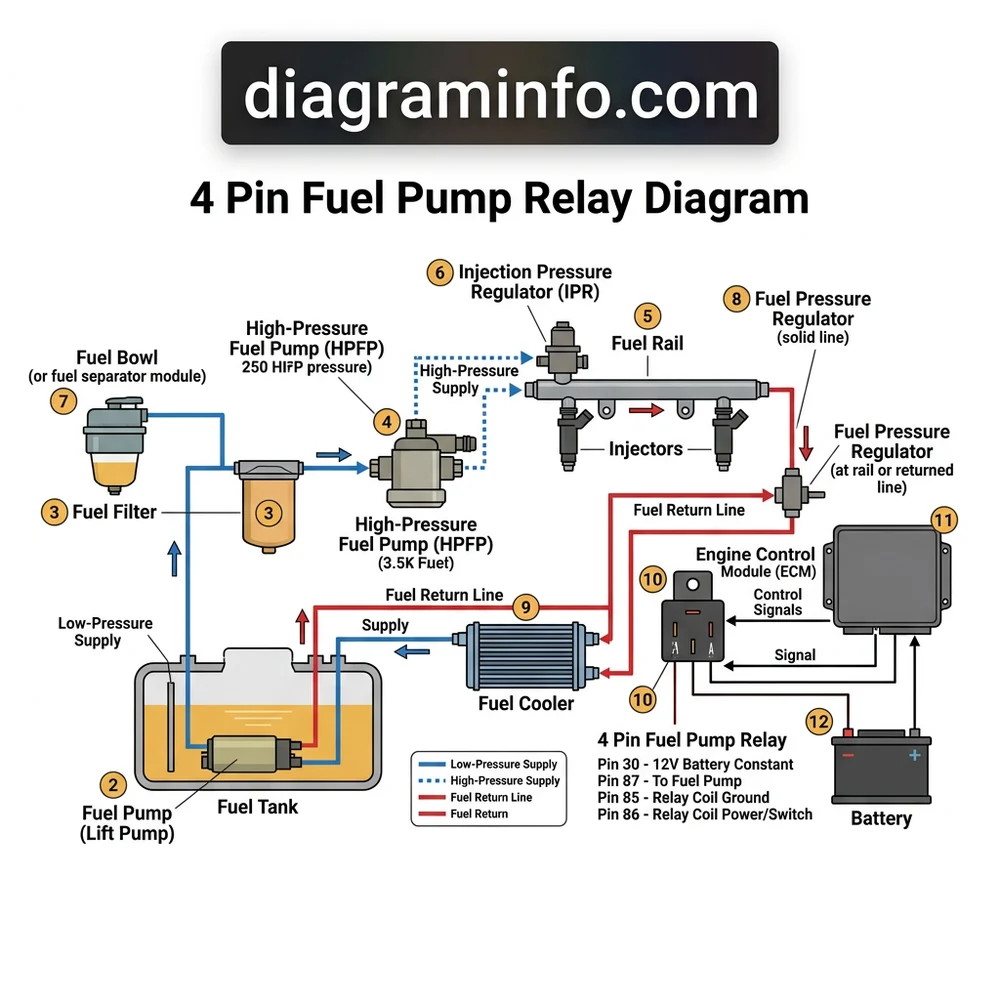

Step-by-Step Guide to Understanding the 4 Pin Fuel Pump Relay Diagram: Troubleshooting & Repair Guide 2026
Identify – Locate the fuel pump relay in your vehicle’s fuse box, typically labeled ‘FUEL PUMP’ or ‘F.P.’.
Locate – Reference your vehicle’s service manual or fuse box diagram for the exact position of the 4 pin fuel pump relay.
Reference – Use the 4 pin fuel pump relay diagram to understand pin functions (85/86 control, 30/87 power circuit).
Test – With a multimeter, check for power at Pin 30 and a control signal at Pin 86 when the ignition is on, ensuring the high pressure fuel pump (HPFP) can receive power.
Verify – Check for continuity across Pin 30 and 87 when the relay is energized, ensuring power can flow to the fuel pump and checking fuel return line integrity.
Troubleshoot – If no power or signal, trace wiring back to the ECU or check associated fuses, consulting the injection pressure regulator readings for abnormal values.
