15A Switch to Outlet Wiring Diagram: 2026 Setup Guide
For a switch-controlled outlet, feed the 120V line hot wire (black) into the switch. Connect a black switch-leg wire from the switch output terminal to the outlet brass terminal. Connect incoming white neutral wire directly to the outlet silver terminal, and tie all bare copper ground wires to green grounding screws.
📌 Key Takeaways
- Standard 15A circuits require 14 AWG wire, while 20A circuits require 12 AWG copper wire.
- Break the brass connector tab on duplex receptacles for split half-hot outlet control.
- Always ground both the switch and receptacle using green grounding screws or ground pigtails.
- Never attach neutral wires to switch terminals; single-pole switches only interrupt hot wires.
- Consult a licensed electrician if breaker panel integration or multi-wire branch circuits are involved.
Connecting standard switch-controlled receptacles in service vehicles, industrial equipment enclosures, commercial panels, or mobile power systems requires strict adherence to phase polarity and conductor routing. A proper switch to outlet wiring diagram dictates how current flows from the primary line voltage feed, through the controlling single-pole switch, to either an entire duplex receptacle or a split half-switched outlet configuration. Misunderstanding terminal assignments, conductor sizing, or switch loop pathways leads to dangerous hot-neutral reversals, floating ground conditions, or unexpected thermal overloads. This technical guide breaks down wire color coding, terminal pinouts, wire gauge selection, and step-by-step connection procedures for reliable equipment installations.
Recommended Best Deal Products

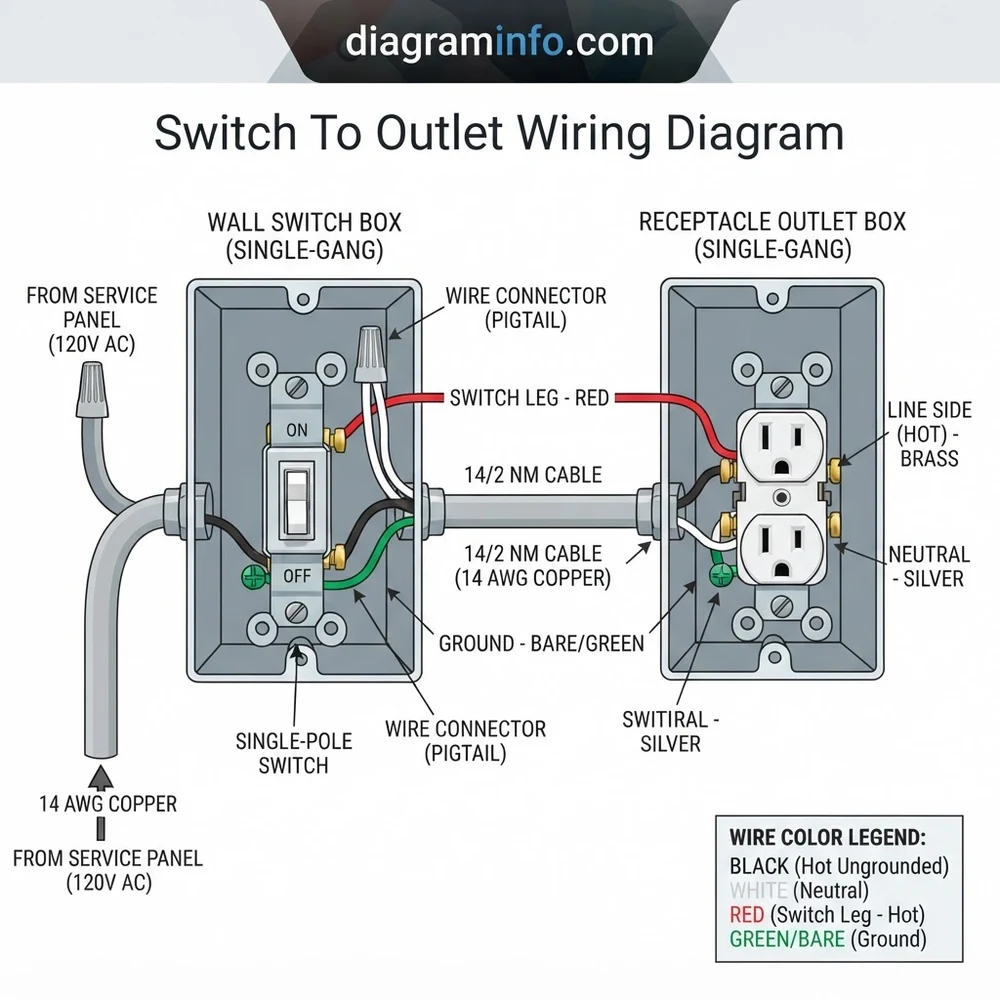

Schematic: Switch to Outlet Wiring Diagram illustrating line input, single-pole switch terminal routing, split-tab receptacle options, and equipment ground paths.
Understanding Switch To Outlet Wiring Diagram Configurations and Power Feeds
When engineering or servicing a switch-controlled outlet circuit, the physical point where line voltage enters the system determines the required conductor count and terminal connection sequence. As illustrated in standard electrical schematics, two primary architecture layouts dictate circuit performance: Power Feed to Switch First and Power Feed to Receptacle First (commonly designated as a switch loop).
In a Power Feed to Switch layout, the incoming 120V AC line source enters the switch junction box directly. The ungrounded hot wire connects to the line side of the switch terminal block or screw. A separate load cable then runs from the switch box to the receptacle box, carrying a switched hot wire, a continuous neutral wire, and an equipment ground wire. This layout is standard in modern equipment installations because it keeps a neutral wire available inside the switch enclosure for smart switches, timers, or digital monitoring modules.
Conversely, in a Power Feed to Receptacle layout (switch loop), line power arrives at the outlet box first. To route control back through the switch, a two-conductor cable carries constant line voltage to the switch over one conductor, returning switched hot power to the outlet terminal on the second conductor. According to updated NEC standards and standard equipment specs, white conductors re-purposed as hot legs in switch loops must be permanently re-identified using black or red electrical tape at both terminal blocks to prevent lethal line-to-neutral short circuits during maintenance.
For auxiliary power units (APUs), inverter enclosures, and mobile equipment service beds, always ensure the supply feeding the switch panel originates from a dedicated circuit breaker with appropriate overcurrent protection matching the lowest-rated wire gauge in the loop.
Recommended Best Deal Products
Switch To Outlet Wiring Diagram Color Codes and Terminal Assignments
Accurate conductor identification is vital when analyzing a switch to outlet wiring diagram. standard wire color codes ensure seamless troubleshooting and prevent cross-phasing during installation or component replacement.
| Wire Color Code | Circuit Function | Terminal / Pin Assignment | Electrical Notes |
|---|---|---|---|
| Black | Constant Hot (Line) | Switch Line Terminal / Brass Screw | Carries 120V AC nominal supply voltage from power source breaker. |
| Red (or Marked Black) | Switched Hot (Load) | Switch Load Terminal to Outlet Brass Screw | Energized only when the switch contact points are in the CLOSED position. |
| White | Neutral Wire (Return) | Receptacle Silver Screw / Neutral Block | Completes the current return path; must maintain continuous 0V reference. |
| Green / Bare Copper | Equipment Ground Wire | Green Ground Screw / Enclosure Earth Lug | Provides low-impedance fault current path to trip upstream protection. |
When working with industrial control panels or DIN-rail terminal block assemblies, wire colors may conform to IEC standards (Brown for Hot, Blue for Neutral, Yellow/Green for Earth Ground). Always cross-reference the device terminal marking stamped directly onto the housing, as pin assignments supersede wire jacket coloration.
Terminal Identification, Gauge Specifications, and Operating Voltage
Proper mechanical termination depends on recognizing hardware terminal markings on switches and outlets. A standard NEMA 5-15R or 5-20R duplex outlet features two distinct side terminal pairs, a ground screw, and a removable connecting bridge tab.
Receptacle & Switch Terminal Pin Identification
- Brass Screw Terminals: Designated exclusively for ungrounded hot wires (constant hot or switched hot).
- Silver Screw Terminals: Designated exclusively for grounded neutral wires. These terminals lead internally to the wider neutral blade slot of the receptacle interface.
- Green Hex Screw Terminal: Electrically bonded to the outlet mounting yoke and grounding strap for low-impedance ground wire termination.
- Break-Away Connecting Tabs (Fins): Metal bridge tabs located between the upper and lower terminal screws. Leaving the tab intact feeds both outlets simultaneously. Removing the brass side break-away tab isolates the upper receptacle from the lower receptacle, enabling a “split-outlet” design where one half is controlled by the switch and the second half remains energized 24/7.
Conductor Sizing & Torque Requirements:
• 15-Amp Circuits: Minimum 14 AWG solid or stranded copper wire; 15A circuit breaker.
• 20-Amp Circuits: Minimum 12 AWG solid or stranded copper wire; 20A circuit breaker.
• Terminal Screw Torque: 12 to 15 in-lbs (1.4 to 1.7 Nm) for side screw terminals.
• Nominal AC Voltage Range: 110V AC to 125V AC, 60Hz single-phase.
Using undersized conductor wire gauge creates significant voltage drop across extended wiring runs, leading to equipment malfunction and dangerous insulation heat degradation. According to OEM specifications, stranded conductors terminated under screw heads must be properly fitted with crimped spade or ring terminals, or clamped under pressure plates designed specifically for stranded equipment wiring.
Step-By-Step Wiring Sequence for Switch Controlled Receptacles
Follow this standardized connection sequence to wire a single-pole switch controlling a downstream duplex outlet powered from the switch box. Ensure all lockouts and zero-energy checks are complete before stripping wire insulation.
Step 1: Circuit De-Energization and Isolation Verification
Open the primary circuit breaker feeding the circuit. Verify zero voltage potential across line-to-neutral, line-to-ground, and neutral-to-ground using a calibrated digital multimeter set to AC voltage mode. Do not rely solely on non-contact voltage detectors.
Step 2: Preparing Switch Box Connections
Strip approximately 3/4 inch (19 mm) of outer insulation sheath from the incoming line power cable and the outgoing load cable feeding the receptacle box. Strip 5/8 inch (16 mm) of conductor insulation from individual wires.
- Join the incoming white neutral wire directly to the outgoing white neutral wire using a UL-listed terminal wire nut or terminal block. The neutral wire bypasses the single-pole switch contact points entirely.
- Connect the incoming bare green ground wire to the outgoing ground wire, providing a pigtail lead to the green grounding terminal on the metal switch frame or box.
- Attach the incoming black constant hot wire to the LINE terminal (bottom screw) of the single-pole switch.
- Attach the outgoing black (or red) wire to the LOAD terminal (top screw) of the single-pole switch. This wire serves as the switched hot conductor feeding the receptacle.
Step 3: Terminating the Receptacle Box Connections
At the outlet location, prepare the conductors entering the enclosure for terminal landing.
- Form a clockwise loop in the stripped end of the white neutral wire and seat it firmly under the silver terminal screw. Tighten the terminal to 14 in-lbs of torque.
- Form a clockwise loop in the stripped end of the black/red switched hot wire and secure it under the brass terminal screw.
- Connect the green or bare copper ground wire to the green hex grounding screw located at the base of the receptacle bracket.
Step 4: Split-Receptacle Conversion (Optional Half-Hot Setup)
If wiring the outlet so one receptacle is constantly energized while the other is switch-controlled, run a 3-conductor cable (14/3 or 12/3) between the switch and receptacle boxes. Connect the constant hot (black) wire to the lower brass terminal and the switched hot (red) wire to the upper brass terminal. Take needle-nose pliers and flex the brass break-away tab on the hot side back and forth until it snaps off. Do not remove the break-away tab on the silver neutral side.
Step 5: Enclosure Closure and Functional Testing
Fold conductors neatly into the junction boxes to prevent pinch points against cover plates or enclosure walls. Secure mounting screws, restore breaker power, and test system voltage across terminals.
Never remove the white neutral break-away tab on an outlet unless you are feeding the upper and lower receptacles from two separate multi-wire branch circuits on different panel phases. Removing the neutral tab on a single-phase circuit causes an open return path for the second plug interface.
Common Miswirings and Switch To Outlet Wiring Diagram Troubleshooting
Correcting fault conditions requires a systematic approach using accurate terminal diagnostics. Below are common switch-to-outlet failure modes encountered in service shops and mobile equipment setups.
1. Reversed Polarity (Hot-Neutral Swap)
Symptom: Equipment operates, but standard socket testers indicate “Hot/Neutral Reverse.” Shock hazards exist on metal chassis components of connected tools.
Cause: The switched hot wire from the switch was accidentally terminated onto the silver screw of the outlet, while the neutral wire was landed on the brass screw.
Correction: De-energize power and swap the terminal landings at the outlet: move the hot wire to the brass terminal and the neutral wire to the silver terminal.
2. Open Neutral Condition
Symptom: A multimeter registers 120V AC between the hot terminal and ground terminal, but 0V AC between hot and neutral. Connected equipment fails to operate.
Cause: Broken neutral wire pigtail inside the switch box enclosure or loose wire nut connection where neutrals bypass the switch.
Correction: Inspect neutral terminal blocks and wire wire nuts inside the upstream switch box. Re-strip and torque all neutral connections.
3. GFCI Tripping Upon Switch Activation
Symptom: Activating the switch immediately trips an upstream GFCI outlet or breaker.
Cause: Ground wire and neutral wire are touching inside the downstream switch or outlet enclosure, or neutral current from the switched outlet is returning through an unmonitored neutral block outside the GFCI balance coil.
Correction: Ensure the switched outlet neutral grounds back exclusively to the LOAD neutral terminal of the supplying GFCI unit.
4. Excessive Voltage Drop Under Equipment Load
Symptom: Switched outlet shows 120V AC under open-circuit conditions but drops below 105V AC when high-draw equipment (pumps, compressors) starts up.
Cause: Incorrect wire gauge selection over a long wiring run (e.g., using 14 AWG copper wire over a 100-foot run for a 15A motor load).
Correction: Upsize conductor wire gauge to 12 AWG or 10 AWG to maintain stable line voltage within nominal equipment tolerances.
Switch To Outlet Wiring Diagram Technical FAQ
How do I wire a switch to control only half of an outlet receptacle?
To control half an outlet with a switch while keeping the second half live, feed the outlet enclosure with a constant hot wire, a switched hot wire, a neutral wire, and a ground wire. Remove the metal break-away tab joining the two brass hot terminals on the receptacle. Connect the constant hot wire to one brass terminal screw and the switched hot wire to the second brass screw. Keep the silver neutral tab intact and connect the shared neutral wire to either silver screw terminal.
Can I wire a switch to an outlet using a 14/2 cable on a 20-amp circuit breaker?
No. Standard electrical safety codes prohibit using 14 AWG conductors on a 20-amp overcurrent protection device. A 20-amp circuit breaker requires a minimum conductor size of 12 AWG copper wire throughout the entire switch and outlet circuit loop to prevent severe overheating and fire risks under heavy electrical loads.
What is the correct terminal voltage reading on a switch-controlled outlet when turned off?
When the single-pole switch is in the OPEN (OFF) position, a multimeter connected between the switched brass terminal and the neutral silver terminal should read 0V AC. Between the constant hot line feeding the switch and the ground bar, you should read approximately 115V AC to 120V AC nominal line voltage.
Why does my switch to outlet wiring diagram show the neutral bypassing the switch?
Single-pole switches are designed strictly to open or close the ungrounded hot conductor. Switched circuits must never interrupt the grounded neutral wire, as opening the neutral leaves the outlet terminals and connected equipment fully energized at 120V relative to earth ground, creating an extreme electrical shock hazard.
How do I wire a switched outlet from an equipment inverter or generator panel terminal block?
When wiring from an inverter or terminal block, connect the Phase/Line output terminal block wire to the switch input screw. Wire the switch load output to the outlet brass screw. Route the inverter neutral terminal directly to the outlet silver terminal screw, and establish earth ground continuity by landing ground conductors on the central bonding busbar.
Step-by-Step Guide to Understanding the Switch To Outlet Wiring Diagram
Identify – Shut off power at the main circuit breaker and verify zero voltage using a non-contact tester.
Locate – Locate incoming power feed cable, switch junction box, and destination outlet box locations.
Reference – Reference the switch to outlet wiring diagram to trace line hot wire, neutral wire, and ground paths.
Connect – Wire line hot to switch input terminal, connect switch leg to outlet brass terminal, and white neutral to silver terminal.
Verify – Verify terminal screw torques, ensure bare ground wires touch grounding screws, and restore main breaker power.
Troubleshoot – Test outlet operation using a receptacle tester; if power fails or trips, recheck switch leg polarity and hot tab status.
