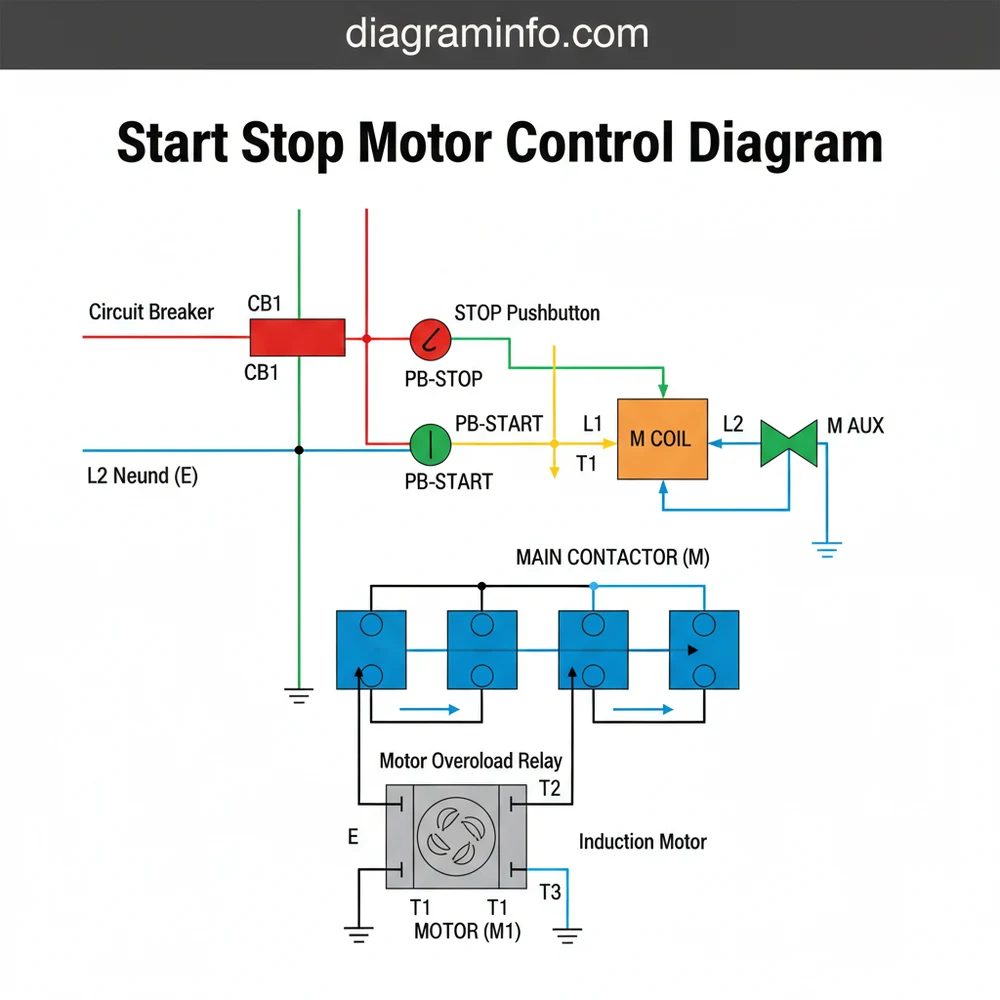

NEMA 3-Wire Start Stop Motor Control Diagram: 2026 Guide
A start stop motor control diagram illustrates a standard 3-wire latching circuit configuration. Line power flows from L1 through a normally closed Stop switch to a normally open Start switch. Parallel auxiliary contacts 13-14 retain coil voltage across A1-A2 after switch release, sustaining motor contactor energization until circuit power breaks.
📌 Key Takeaways
- The holding circuit relies on auxiliary contacts 13 and 14 wired in parallel across the momentary Start button.
- Normally closed (NC) Stop pushbuttons must be wired in series prior to the Start button and coil terminal A1.
- Always verify control circuit voltage specifications (typically 24VDC, 120VAC, or 240VAC) before testing coil resistance.
- Burnt contactor coils or degraded auxiliary switch contacts are the most frequent causes of circuit latch failure.
- Perform basic continuity checks DIY, but consult a certified electrician for 480V 3-phase power system connections.
Electric motor control systems rely on standardized ladder logic and schematic drawings to direct high-voltage power safely while using low-voltage control circuits. A standard start stop motor control diagram illustrates the electrical relationships between momentary push buttons, magnetic contactor coils, auxiliary holding contacts, and thermal overload relays. Understanding this layout is essential for industrial electricians, maintenance technicians, and equipment operators maintaining single-phase and three-phase AC equipment. According to NEMA and IEC standards, correctly interpreting these blueprints prevents thermal damage, ensures operator safety, and minimizes unscheduled downtime during system commissioning and diagnostic work.
Start Stop Motor Control Diagram: Component Structure and Breakdown
Every magnetic starter installation utilizes a split control architecture composed of two distinct circuits: the high-voltage power circuit and the low-voltage control circuit. Interpreting a start stop motor control diagram requires identifying how control signals govern heavy current paths through electromagnetic mechanical linkages. Manufacturer specifications from Siemens, Allen-Bradley, and Schneider Electric standardize component labeling across NEMA and IEC blueprints to streamline equipment cross-referencing.
Recommended Best Deal Products
| Component Name | Terminal Markings (IEC/NEMA) | Standard Wire Spec / Voltage | Functional Role |
|---|---|---|---|
| Stop Push Button | NC Terminals 1 & 2 | 14 AWG Red / 120 VAC (or 24 VDC) | Breaks control loop to de-energize main contactor coil |
| Start Push Button | NO Terminals 3 & 4 | 14 AWG Red / 120 VAC (or 24 VDC) | Momentary closure energizes contactor coil |
| Auxiliary Contact (Seal-in) | NO Terminals 13 & 14 (or 23 & 24) | 14 AWG Red / Control Line Voltage | Maintains coil circuit after Start button release |
| Contactor Coil | A1 & A2 Terminals | 120 VAC, 240 VAC, or 24 VDC | Creates electromagnetic field to pull power contacts closed |
| Overload Relay Contacts | NC Terminals 95 & 96 | 14 AWG Red / Control Line Voltage | Opens control loop automatically on thermal overcurrent |
| Power Contacts (Main) | L1-T1, L2-T2, L3-T3 | 10–2 AWG Black/Brown / 208-480 VAC 3Ø | Carries motor running current directly to stator windings |
The primary power line feeds three-phase AC (L1, L2, L3) through main line fuses or a molded-case circuit breaker directly to the upper line terminals of the magnetic contactor. Below the contactor, the bimetallic or solid-state thermal overload relay interfaces with terminals T1, T2, and T3, sending regulated current to the motor leads. Integrating proper component layouts ensures that control switches do not directly interrupt the higher FLA (Full Load Amps) running current of the motor, extending switch life and preventing severe arc flash hazards.
Per NFPA 79 standards, ungrounded AC control circuit conductors must be color-coded Red, while grounded AC neutral control wires must be White. DC control circuits must utilize Blue insulation for ungrounded conductors and White with a Blue stripe for grounded DC common lines. Terminal screw connections for 14 AWG control wiring require torque verification between 12 to 16 in-lbs (1.4 to 1.8 Nm).
How to Read a Start Stop Motor Control Diagram Schematic
Reading a 3-wire ladder control circuit schematic requires tracing current flow logically from top-to-bottom and left-to-right. A classic start stop motor control diagram structure places the control voltage supply rails (hot line X1 and grounded neutral X2 from a step-down control transformer) on opposing vertical sides of the drawing page.
To follow the electrical path during operation, analyze the sequential flow through each control branch:
- Phase 1 (Standby State): Control voltage leaves transformer terminal X1 and passes through the control fuse. Current flows through the normally closed (NC) Stop button (terminals 1 to 2) and reaches both the open Start button (terminal 3) and the open auxiliary contact 13 on the contactor. The contactor coil (A1) remains de-energized.
- Phase 2 (Start Depressed): Pressing the momentary Start push button closes terminals 3 and 4. Control current instantly flows through the NC overload relay contact (terminals 95 and 96) to energize contactor coil A1-A2.
- Phase 3 (Seal-in Circuit Activation): Energizing coil A1 pulls down the internal armature, closing the heavy line contacts (L1-T1, L2-T2, L3-T3) and simultaneously closing the parallel auxiliary contact 13-14. Reviewing a detailed magnetic motor starter configuration illustrates how auxiliary contacts lock the system in an active state.
- Phase 4 (Start Released / Latching): Releasing the Start button opens terminals 3 and 4, but current continues flowing through closed auxiliary contact 13-14 to coil A1. This “holding” or “seal-in” circuit maintains motor operation until power is explicitly interrupted.
- Phase 5 (Stop or Fault Condition): Pressing the NC Stop button or triggering the bimetallic thermal overload relay opens the circuit path. This breaks the seal-in current to coil A1, causing spring tension to instantly open the main line contacts and stop the motor.
Three-wire control systems offer low-voltage protection (LVP). If line voltage drops or fails during operation, the magnetic contactor de-energizes and drops out. Unlike two-wire maintained control systems, the motor will NOT restart unexpectedly when line power is restored until an operator manually depresses the Start button again.
Troubleshooting Motor Control System Wiring Configurations
When systematic faults develop within a motor control panel, technicians must isolate issues by testing specific nodes marked on the control circuit blueprint using a digital multimeter set to AC/DC voltage mode. Always cross-reference control schematics with actual terminal block numbers inside the cabinet enclosure during diagnostic testing.
Lockout/Tagout (LOTO) protocols must be enforced before opening high-voltage enclosures or adjusting mechanical terminal torque. Live testing should only be conducted using NFPA 70E-compliant PPE, Category III rated test meters, and insulated probes calibrated for the target panel voltage.
Diagnose common start-stop circuit operational failures using the following systematic steps:
- Symptom: Contactor chatter or humming noise.
Root Cause: Low control voltage drop or excessive resistance in control push buttons. Measure voltage across coil terminals A1 and A2 during energization. If voltage drops below 85% of rated coil voltage (e.g., less than 102 VAC on a 120 VAC coil), check for loose field wire terminations or corroded push-button contact blocks. Tighten line terminal screws to OEM torque specs (20-35 in-lbs). - Symptom: Motor runs while holding Start button, but stops immediately upon release.
Root Cause: Defective, miswired, or missing seal-in auxiliary circuit. Verify continuity across auxiliary contacts 13 and 14 with power off. Ensure control wires are connected in parallel with the momentary Start button contacts (terminals 3 and 4), rather than in series. - Symptom: Contactor fails to pull in when Start button is pressed.
Root Cause: Open overload relay trip contact (95-96) or blown secondary control fuse. Perform a voltage test from control neutral (X2) sequentially to terminals 1, 2, 3, 4, A1, and 95. The precise location where voltage disappears identifies the open component. If thermal tripping occurs repeatedly, consult the factory guidelines for overload relay adjustment and current heater sizing calculations.
Start Stop Motor Control Diagram Blueprint Questions
Why does the motor instantly drop out when I release the Start button?
This condition indicates a broken or improperly connected seal-in (holding) circuit. The auxiliary contact (normally NO 13-14) on the contactor must be wired in parallel with the momentary Start button. If this auxiliary contact fails to close mechanically, or if the wiring between terminal 4 of the Start switch and terminal 14 of the contactor is loose or missing, the coil loses voltage the moment the Start button opens.
What is the functional difference between 2-wire and 3-wire motor control diagrams?
A 2-wire control diagram utilizes maintained switches (like float switches, thermostats, or pressure switches) directly in series with the contactor coil. When power is restored after an outage, a 2-wire system automatically restarts the motor (low-voltage release). A 3-wire control diagram uses momentary push buttons with an auxiliary seal-in contact. It requires human intervention to restart the equipment following power interruptions (low-voltage protection).
Where should the overload relay auxiliary contacts be located on the schematic diagram?
In standard NEMA and IEC schematics, the normally closed (NC) overload relay contacts (terminals 95 and 96) are placed directly between the contactor coil terminal A2 and the grounded control line (X2/Neutral). This position guarantees that regardless of manual push-button activity, an overcurrent thermal trip immediately disrupts the ground return path of coil A1-A2, de-energizing the starter safely.
How do you select the correct control transformer sizing for starter control panels?
Control transformers must be sized based on total sealed (continuous) VA and magnetizing inrush VA requirements of all contactor coils and pilot lights connected to the circuit. Calculate maximum total VA draw, then reference OEM transformer selection tables. Reviewing requirements for control circuit transformer sizing ensures line voltage stability during high current motor starting events.
Step-by-Step Guide to Understanding the Start Stop Motor Control Diagram
Identify – Identify primary control voltage sources (L1/L2 or 24V supply) and power phase line terminals.
Locate – Locate magnetic contactor coil A1-A2, auxiliary seal-in contacts 13-14, and pushbutton terminals.
Reference – Reference the schematic layout to trace control wire routing from L1 through NC Stop and NO Start buttons.
Connect/Route – Route control wiring, connecting auxiliary NO contacts in parallel with the Start pushbutton.
Verify – Verify circuit continuity across terminals 95-96 on the thermal overload relay assembly.
Troubleshoot – Troubleshoot unlatched coil conditions using a multimeter to measure control voltage drop across active nodes.
Start Stop Motor Control Diagram: Frequently Asked Questions
What does the start stop motor control diagram show?
The diagram details the control and power circuit layout for operating a 3-phase motor. It shows line connections, overload relay contacts, magnetic contactor coils (A1-A2), start-stop momentary pushbuttons, and seal-in auxiliary contacts (13-14), defining how electrical current safely latches and unlatches the motor starter structure.
How do I read the start stop motor control diagram?
Read the diagram from top to bottom and left to right, following ladder logic principles. Control power starts from L1, passing through protective fuses, a normally closed stop button, a normally open start button, coil terminals A1 and A2, and returning through thermal overload contact 95-96 to L2.
What are the main components in start stop motor control diagram?
Essential system components include control circuit fuses, a normally closed (NC) stop pushbutton, a normally open (NO) start pushbutton, a magnetic contactor with coil terminals A1-A2, NO auxiliary seal-in contacts (13-14), thermal overload relay heater elements, and NC overload contacts (95-96).
What are common problems with start stop motor control diagram?
Common issues include motor failure to latch caused by damaged auxiliary contacts 13-14, broken wiring, tripped thermal overload contacts (95-96), burnt contactor coils (A1-A2), or loose screw terminals on the pushbutton stations, which prevent maintaining uninterrupted control voltage to the main magnetic relay contactor.
Can I use start stop motor control diagram for DIY repair?
You can safely use the diagram for low-voltage signal tracing, continuity checks, and component identification when power is isolated. However, working directly with line voltages like 208V, 230V, or 480VAC requires certified electrical training and calibrated personal protective equipment to prevent serious electrical hazard.
What tools do I need for start stop motor control diagram?
To trace and troubleshoot the physical circuit system configuration, you need a True-RMS digital multimeter rated CAT III or CAT IV, insulated wire strippers, terminal block screwdrivers, a non-contact voltage tester, safety glasses, and lockout/tagout (LOTO) isolation padlocks to safely verify zero-voltage state.
