iSpring 5 Stage Reverse Osmosis System Diagram: 2026 Setup
A 5 stage reverse osmosis system diagram illustrates water flow through sediment pre-filters, GAC, carbon block, RO membrane, and post-carbon filter. It details color-coded 1/4-inch tubing connections between the feed valve, auto shut-off valve (ASOV), storage tank, drain saddle, and dedicated faucet, operating at 40–80 PSI inlet pressure.
📌 Key Takeaways
- Inlet water pressure must maintain 40 to 80 PSI; levels below 40 PSI require a 24V booster pump installation.
- System configuration routes through 5-micron sediment, GAC carbon, carbon block, RO membrane, and post-inline carbon filter.
- Standard layout uses 1/4-inch tubing: yellow to tank, red to drain saddle, blue to faucet, and white to supply.
- Improper auto shut-off valve (ASOV) tubing orientation is the primary cause of continuous drain water discharge.
- Pre-filters require maintenance every 6 to 12 months, whereas the primary RO membrane typically lasts 24 to 36 months.
Understanding the fluid path and pressure differential requirements of a high-efficiency water purification assembly requires a detailed schematic analysis. This technical guide examines the functional architecture, component routing, and hydraulic performance parameters depicted in a standard 5 stage reverse osmosis system diagram. Whether servicing commercial light-duty equipment, industrial point-of-use systems, or residential filtration setups, mastering this layout enables precise diagnostic troubleshooting, accurate flow routing, and optimal membrane longevity under variable municipal feed water conditions.

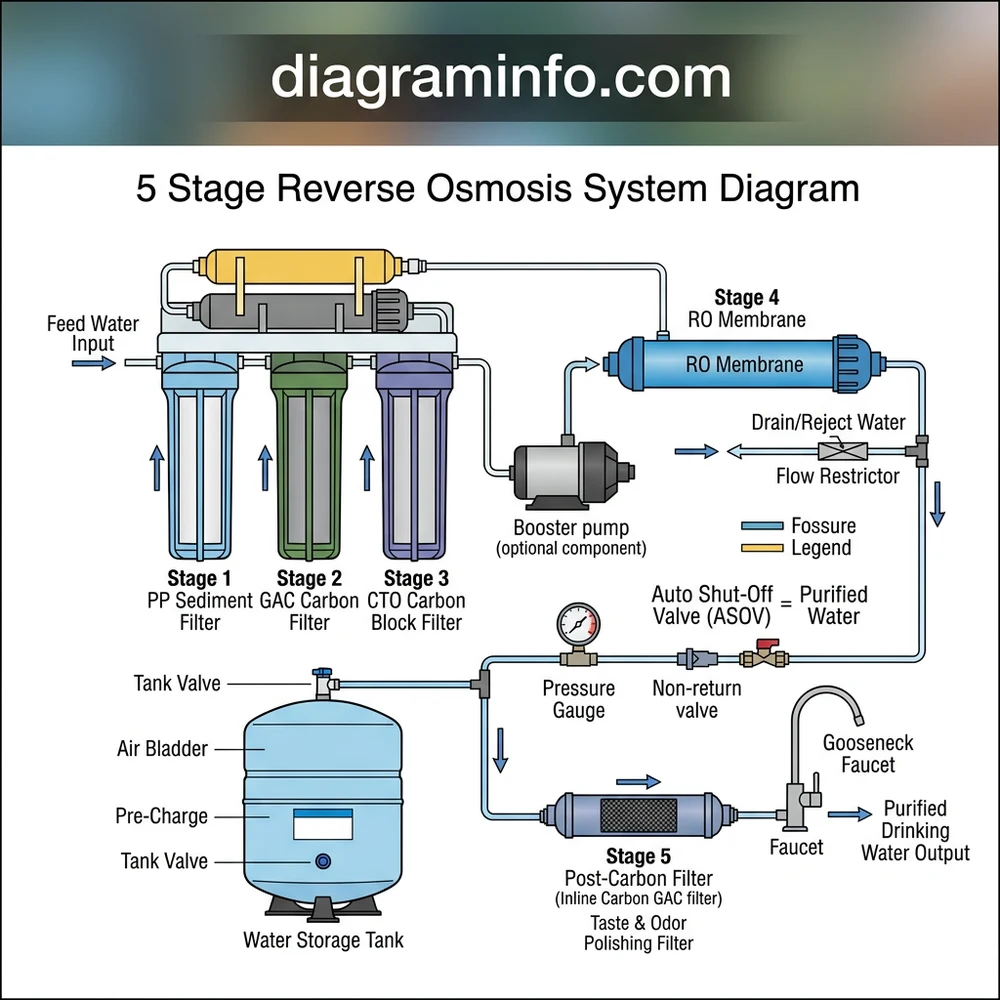

Anatomy of a 5 Stage Reverse Osmosis System Schematic
A comprehensive 5 stage reverse osmosis system diagram outlines a sequential filtration process designed to systematically remove suspended solids, chemical oxidants, dissolved inorganic ions, and organic compounds. The system architecture is divided into three primary functional zones: pre-filtration stages, membrane separation, and post-filtration delivery.
Recommended Best Deal Products
The pre-filtration assembly protects the sensitive polyamide membrane from mechanical fouling and chemical degradation. Stage 1 utilizes a melt-blown polypropylene sediment filter rated at 5 microns to capture sand, rust, and suspended particulate matter. Stage 2 consists of a Granular Activated Carbon (GAC) cartridge designed to adsorb volatile organic compounds (VOCs) and free chlorine through fluid bed contact. Stage 3 employs a dense Carbon Block (CTO) filter, typically rated between 1 and 5 microns, providing secondary mechanical polishing while eliminating residual chloramines and organic solvents.
Stage 1: 5-Micron Melt-Blown Polypropylene Sediment | Stage 2: 20×40 Mesh Coconut Shell GAC | Stage 3: 1-Micron CTO Extruded Carbon Block | Stage 4: 0.0001-Micron Thin-Film Composite (TFC) Polyamide Membrane | Stage 5: In-Line Coconut Shell GAC Post-Polishing Filter (10-Inch x 2-Inch NPT/Push-Fit).
The heart of the configuration is Stage 4, housing the semi-permeable Thin-Film Composite (TFC) reverse osmosis membrane. Operating under cross-flow filtration mechanics, this stage divides incoming pressurized fluid into two distinct streams: purified permeate (product water) and concentrated brine (reject water). Finally, Stage 5 features an in-line coconut-shell post-carbon filter designed to polish taste and neutralize trace dissolved gases as water travels from the hydro-pneumatic storage tank to the point-of-use fixture.
| Stage / Component | Filtration / Micron Rating | Operating Function | Primary Failure Mode |
|---|---|---|---|
| Stage 1: Sediment Filter | 5.0 Micron | Particulate removal (rust, silt) | High pressure drop / surface cake buildup |
| Stage 2: GAC Filter | 10 – 20 Micron Equivalent | Chlorine & VOC chemical adsorption | Carbon channeling / media exhaustion |
| Stage 3: CTO Carbon Block | 1.0 – 5.0 Micron | Chloramine reduction & fine particulate trap | Premature blinding from fine particulates |
| Stage 4: TFC RO Membrane | 0.0001 Micron | Ionic separation / TDS reduction (95-99%) | Chlorine oxidation oxidation / mineral scaling |
| Stage 5: Post-Carbon Filter | 5.0 Micron Nominal | Organoleptic polishing / vapor scrubbing | Bacterial biofilm / flow restriction |
How to Trace Water Flow on a 5 Stage Reverse Osmosis System Diagram
Tracing the fluid dynamic path on a 5 stage reverse osmosis system diagram requires tracking hydraulic line pressure from the cold water supply connection through hydraulic control valves to the ultimate discharge points. Follow this operational path step-by-step:
1. Feed Water Inlet: Cold feed water enters the system via an angle stop adapter valve at line pressures between 40 and 80 PSI. The fluid passes immediately into the Stage 1 sediment filter housing.
Recommended Best Deal Products
2. Pre-Filtration Sequence: Water flows sequentially out of Stage 1 into Stage 2 (GAC) and through Stage 3 (CTO block). These three filter housings are connected in series via internal manifold channels or 1/4-inch poly tubing connections.
3. Auto Shut-Off Valve (Inlet Control): Upon exiting Stage 3, the pressurized pre-filtered water enters the high-pressure inlet port (marked “IN”) of the 4-way Automatic Shut-Off Valve (ASOV). It exits the high-pressure outlet port (“OUT”) directly heading to the membrane housing inlet.
4. Membrane Separation & Stream Splitting: Fluid enters the Stage 4 membrane vessel cap. Inside, cross-flow filtration forces purified water through the semi-permeable spiral-wound layers into the central core tube, generating two distinct streams:
- Brine Line (Concentrate): Waste water containing concentrated dissolved solids exits the offset drain port of the membrane housing, passes through a inline flow restrictor (calibrated between 300 mL/min to 800 mL/min depending on membrane GPD rating), and routes through the drain saddle valve into the wastewater piping.
- Permeate Line (Product): Purified water exits the center product port of the membrane housing, passing immediately through a dynamic one-way check valve installed directly into the housing fitting.
Permeate production efficiency relies entirely on Net Driving Pressure (NDP), calculated as: NDP = Feed Pressure – Osmotic Pressure – Permeate Backpressure. If feed pressure drops below 40 PSI, osmotic pressure dominates, causing the permeate production rate to plummet and increasing TDS passage through the membrane layer.
5. ASOV Control Loop & Storage Circuit: The permeate line feeds into the low-pressure control side of the 4-way ASOV. When the pressostat sensing side detects backpressure reaching roughly 60-65% of feed line pressure, an internal diaphragm shifts, shutting off the high-pressure inlet feed line completely to cease production.
6. Storage and Final Stage Delivery: Downstream of the ASOV low-pressure circuit, a T-fitting splits the path: one leg connects to the hydro-pneumatic storage tank (pre-charged to 5–7 PSI air pressure when empty), while the other connects to the inlet of the Stage 5 post-carbon filter. When the point-of-use faucet opens, air pressure within the storage tank forces stored product water through the Stage 5 filter matrix and out to the dedicated dispensing tap.

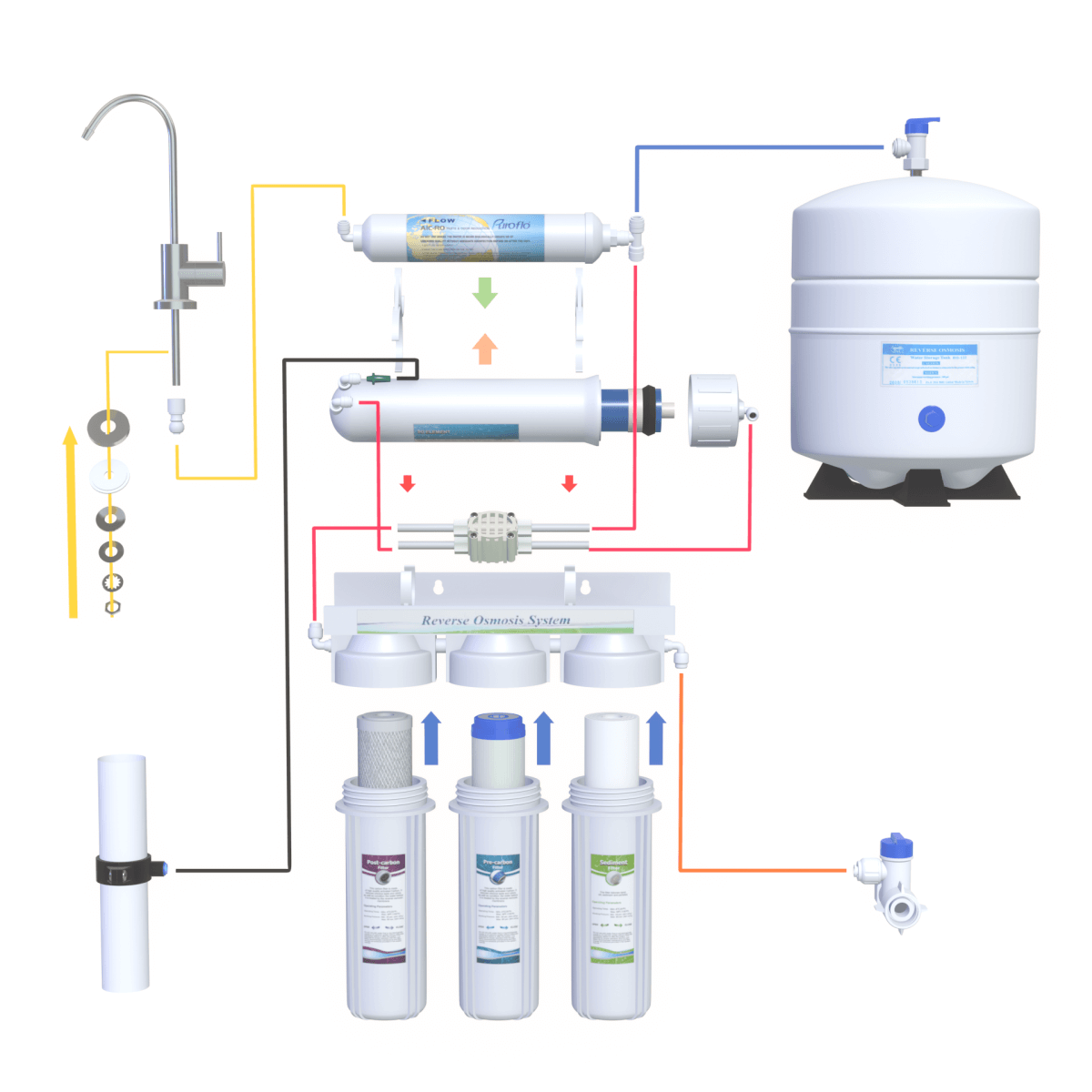

Technical Plumbing Layout and System Configuration Parameters
Maintaining proper tube routing, line sizing, and fitting torque is critical when building or maintaining a system according to its technical blueprint. Modern configurations use Color-Coded Linear Low-Density Polyethylene (LLDPE) tubing conforming to NSF/ANSI Standard 61, paired with push-to-connect quick fittings (John Guest type retaining collet mechanism).
Installing the membrane permeate check valve in reverse will completely block purified water output and rupture the membrane casing under full feed pressure. Additionally, using an uncalibrated flow restrictor (e.g., placing a 300 mL/min restrictor on a 100 GPD membrane requiring 800 mL/min) will accelerate membrane mineral scaling within 30 to 90 days of operation.
Standard industry line color assignments in a 5 stage reverse osmosis system diagram follow specific fluid conventions to simplify installation and field diagnostic procedures:
| Line Circuit | Standard Tube Color | Tubing Outer Diameter (OD) | Connection Routing |
|---|---|---|---|
| Feed Water Line | Red / Orange | 1/4″ (or 3/8″ for high flow) | Supply Adapter → Stage 1 Sediment Inlet |
| Concentrate / Drain Line | Black / Brown | 1/4″ LLDPE | Flow Restrictor → Waste Drain Saddle |
| Permeate Storage Line | Yellow / Green | 1/4″ LLDPE | ASOV Low-Pressure Port → Pressure Tank Tank-Ball Valve |
| Dispensing Faucet Line | Blue / White | 1/4″ or 3/8″ LLDPE | Stage 5 Post-Carbon Outlet → RO Faucet Base |
When assembling threaded plastic connections (such as 1/4″ NPT threads on filter caps or ASOV housings), technicians should apply 2 to 3 wraps of PTFE thread sealing tape. Over-tightening plastic fittings into female housings can cause stress fractures in polypropylene components. When inserting LLDPE tubing into push-fit connectors, ensure the tube end is cut perfectly square using a specialized tube cutter, and verify depth insertion reaches the internal O-ring seal stop (~16mm insertion depth) before securing with locking collet clips.
Troubleshooting Failures Using the 5 Stage Reverse Osmosis System Diagram
Systematic troubleshooting of hydraulic performance issues relies directly on schematic tracing to isolate component faults. Technicians should utilize pressure gauges and handheld Total Dissolved Solids (TDS) meters to perform diagnostic routines across specific zones of the layout.
Refer to the diagnostic decision tree below when evaluating system malfunctions:
Fault 1: System Runs Continuously to Waste Drain Without Shutting Off
Continuous discharge through the drain line indicates that the Auto Shut-Off Valve is failing to actuate, or that hydraulic pressure cannot accumulate downstream. Execute this test sequence:
1. Turn off the valve on top of the storage tank and open the dispensing faucet until flow stops. Close the faucet.
2. Observe the wastewater stream at the drain saddle connection. The flow should cease completely within 1 to 5 minutes.
3. If flow continues uninterrupted, measure permeate line pressure upstream of the ASOV. If pressure is below 60% of feed line pressure, the primary check valve installed at the membrane product outlet is leaking backpressure, preventing the ASOV diaphragm from signaling a complete shut-off.
4. If check valve seal integrity is confirmed, replace the 4-way ASOV, as its internal rubber diaphragm has ruptured, allowing feed water to bypass internal mechanical shut-off channels.
Fault 2: High Total Dissolved Solids (TDS) in Product Water
High permeate TDS reading indicates membrane failure or fluid bypass around critical internal seals. Review system performance against standard TDS rejection guidelines:
1. Measure incoming municipal tap water TDS ($TDS_{feed}$) and product water TDS ($TDS_{permeate}$).
2. Calculate Rejection Percentage using the formula: $Rejection = [(TDS_{feed} – TDS_{permeate}) / TDS_{feed}] \times 100$.
3. If rejection falls below 90%, inspect the RO membrane housing cap internal O-ring. A damaged, twisted, or ungreased O-ring allows raw pre-filtered feed water to short-circuit directly into the center permeate collector tube.
4. If O-rings are structurally sound, chemical oxidation from chlorine breakthrough is likely present. Test Stage 2 and 3 carbon effluent for free chlorine; levels exceeding 0.1 ppm cause irreversible degradation of TFC polyamide membranes, necessitating carbon pre-filter and membrane replacement.
Fault 3: Slow Flow Rate or Zero Water Production
Insufficient product water production points toward hydraulic supply restrictions or physical blockages along the primary feed line:
1. Check line pressure upstream of Stage 1. If line pressure is below 40 PSI, install an auxiliary booster pump assembly.
2. Measure differential pressure ($\Delta P$) across the Stage 1 to 3 pre-filters. A drop exceeding 15 PSI across pre-filtration stages indicates severe filter blinding, requiring immediate replacement of sediment and carbon cartridges.
3. Check the internal air pressure of the storage tank when fully drained of water. If pre-charge pressure has dropped below 5 PSI, recharge the internal butyl bladder using a standard bicycle pump to 7 PSI.
5 Stage Reverse Osmosis System Blueprint Frequently Asked Questions
What Pressure Differential Should Be Maintained Across the RO Membrane?
A functional system operating under standard municipal feed parameters requires a minimum net feed pressure of 40 PSI, with an optimal operating window between 60 PSI and 80 PSI. The pressure drop ($\Delta P$) across the pre-filter array (Stages 1 through 3) should not exceed 5 to 10 PSI under normal operating conditions. If incoming feed pressure drops below 40 PSI, the system requires a 24V DC booster pump installed immediately after Stage 3 to ensure adequate net driving pressure across the Stage 4 TFC membrane layer.
How Does the Auto Shut-Off Valve (ASOV) Function in the System Schematic?
The 4-way Auto Shut-Off Valve operates mechanically using internal differential pressure diaphragms. High-pressure pre-filtered water flows through one side of the valve en route to the membrane inlet. The opposite side of the valve is connected inline with the low-pressure permeate line downstream of the membrane check valve. When the storage tank fills and downstream permeate line pressure rises to approximately 60–65% of incoming line pressure, the pressure against the larger internal diaphragm overcomes incoming feed pressure, mechanically closing the inlet port and cutting off all feed flow to prevent continuous water consumption.
Why Is a Flow Restrictor Required on the Membrane Drain Line?
The flow restrictor creates essential backpressure inside the Stage 4 membrane housing. Without a flow restrictor on the waste drain line, water would follow the path of least resistance and dump entirely down the drain without generating sufficient hydraulic cross-flow pressure to force water molecules through the 0.0001-micron pores of the semi-permeable membrane. Proper flow restrictor selection maintains a precise recovery ratio—typically 3:1 to 4:1 drain-to-permeate ratio—preventing rapid mineral scaling on the active membrane surface while ensuring reliable permeate production rates.
What Are the Standard Color Codes for Tubing Lines in the Diagram?
While minor manufacturer variations exist, standard industry practice assigns red or orange LLDPE tubing to the pressurized cold water feed line (feed adapter to Stage 1). Yellow or green tubing designates the permeate transfer line routed between the membrane output, ASOV, and storage tank connection. Black or brown tubing signifies concentrated brine waste flowing from the flow restrictor to the drain saddle clamp. Blue or white tubing connects the Stage 5 post-carbon filter output directly to the dedicated countertop drinking water dispensing faucet.
How Do You Calculate and Validate System TDS Rejection Percentage?
To accurately calculate Total Dissolved Solids (TDS) rejection, use a calibrated electronic TDS meter to measure raw feed water ($TDS_{feed}$) and product water directly from the membrane permeate line ($TDS_{permeate}$) before it passes through Stage 5 remineralization or post-carbon media. Calculate performance using: $Rejection = [(TDS_{feed} – TDS_{permeate}) / TDS_{feed}] \times 100$. A new thin-film composite (TFC) membrane should demonstrate a rejection efficiency between 95% and 99%. Any rejection value calculated below 90% indicates membrane foulant buildup, physical pore degradation, chlorine oxidation, or internal O-ring seal bypass.
Step-by-Step Guide to Understanding the 5 Stage Reverse Osmosis System Diagram
Identify – Locate the cold water feed angle stop valve, drain saddle, storage tank, and faucet mount points.
Locate – Position the three vertical pre-filter housings and upper bracket assembly mounting the RO membrane.
Reference – Check the schematic layout to confirm port designations marked ‘IN’, ‘OUT’, and ‘TANK’ on the manifold.
Connect/Route – Push 1/4-inch color-coded poly tubing firmly into quick-connect fittings until fully seated past the internal O-ring.
Verify – Pressurize the water line slowly, check for leaks across all stage fittings, and verify ASOV shut-off capability.
Troubleshoot – Inspect the inline check valve and drain flow restrictor if continuous wastewater flow persists when the tank is full.
