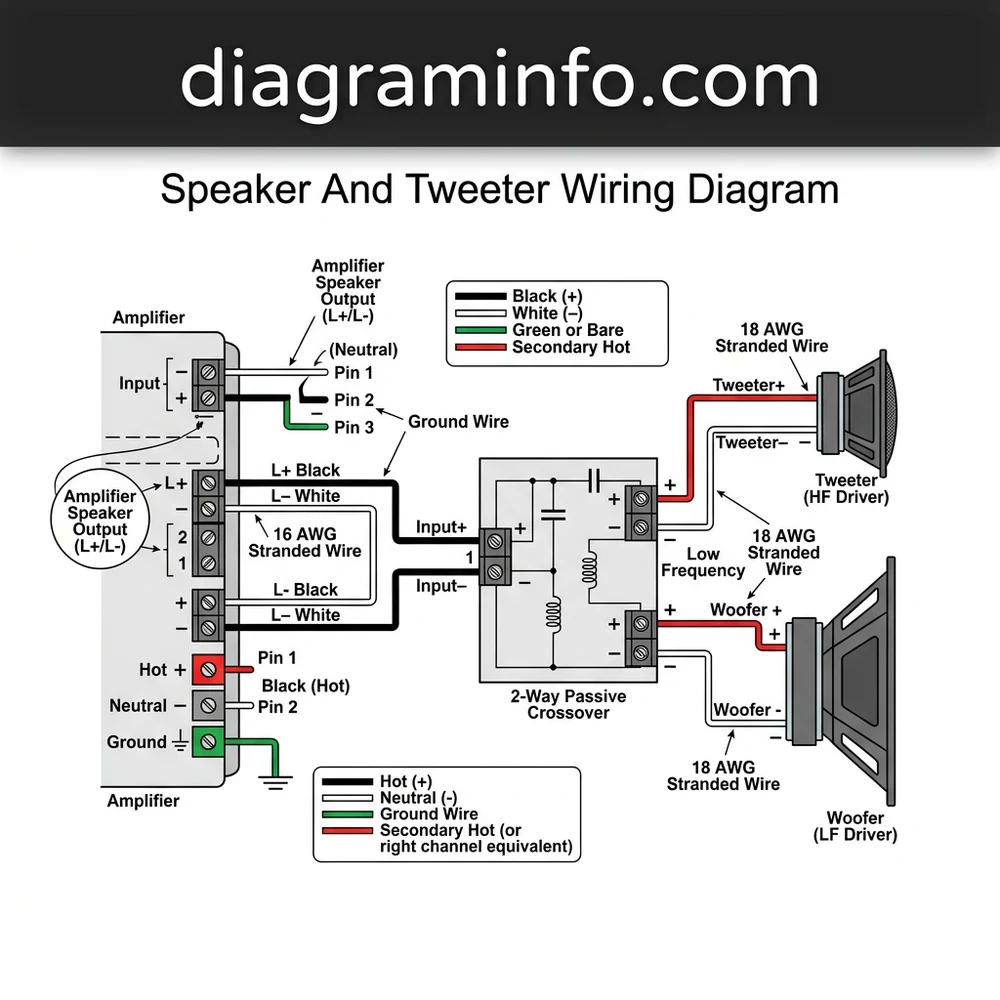

Speaker And Tweeter Wiring Diagram 2026: Complete Connection Guide
The speaker and tweeter wiring diagram shows component layout, connection points, and routing paths. Use it to identify parts, diagnose issues, and follow correct installation or repair procedures.
📌 Key Takeaways
- Understanding the speaker and tweeter wiring diagram is essential for proper implementation
- Each component has a specific role and connection point
- Following safety guidelines prevents common mistakes
- This diagram serves as a reference for practical applications
- Regular review helps maintain accurate understanding
Installing high-frequency transducers and mid-bass drivers requires precise impedance matching, frequency division, and phase alignment. A comprehensive speaker and tweeter wiring diagram provides the technical roadmap necessary to execute clean audio installations in automotive, marine, and commercial sound applications. Correctly mapping signal polarity, selecting appropriate wire gauges, and understanding crossover network terminal block assignments prevent signal degradation, thermal failure, and driver damage. OEM and aftermarket audio configurations rely on structured signal paths where high-pass filtered audio routes to high-frequency tweeters, while full-range or low-pass filtered audio feeds the main woofer driver.
Component Architecture in a Speaker and Tweeter Wiring Diagram
According to OEM audio specifications and component manufacturer standards, a component speaker system divides the audible frequency spectrum across dedicated drivers. A complete wiring layout integrates an amplification source, an electronic or passive crossover network, a mid-bass woofer, and a high-frequency tweeter. Understanding signal routing requires identifying how alternating current (AC) audio voltage flows from the source outputs through frequency-limiting passive components before reaching driver voice coils.
Recommended Best Deal Products
In a passive component setup, the full-range AC audio signal travels from the head unit or outboard amplifier directly into the input terminals of a passive crossover. The crossover uses internal inductors and capacitors to filter frequencies. The high-pass filter (HPF) circuit blocks low frequencies and passes frequencies typically above 3.5 kHz to the tweeter. Conversely, the low-pass filter (LPF) circuit limits high frequencies to allow smooth mid-bass response through the main cone driver. For active installations, signal division occurs prior to amplification via a digital signal processor (DSP), requiring dedicated amplifier channels wired directly to each individual driver terminal without an inline passive network.
Audio signals operate on alternating current (AC) voltage generated by the amplifier. While automotive systems use direct current (DC) for main power, speaker leads do not feature a standard DC hot wire and neutral wire relative to vehicle ground. Signal wires use positive (+) and negative (-) terminal designations to define magnetic phase polarization, preventing phase cancellation between drivers.
Wire Color Code and Pin Assignment Reference
Standardized pin assignments and wire color standards ensure consistent channel identification across source units, amplifiers, and passive crossover networks. Standard aftermarket wiring protocols follow Electronic Industries Alliance (EIA) color coding. When interfacing with OEM factory harnesses, technicians must cross-reference factory schematics to verify pin locations, as factory color codes vary significantly between model years and equipment trim packages. Consult our detailed guide on aftermarket head unit harness pinouts to verify source-side signal leads before splicing into factory looms.
| Channel / Driver | Standard Wire Color Code | Pin Assignment / Terminal Block ID | Polarity / Signal Function |
|---|---|---|---|
| Amp Input (Front Left +) | White | IN / AMP (+) [Pin 1] | Positive AC Audio Signal Phase |
| Amp Input (Front Left -) | White with Black Stripe | IN / AMP (-) [Pin 2] | Negative AC Audio Signal Phase |
| Amp Input (Front Right +) | Gray | IN / AMP (+) [Pin 3] | Positive AC Audio Signal Phase |
| Amp Input (Front Right -) | Gray with Black Stripe | IN / AMP (-) [Pin 4] | Negative AC Audio Signal Phase |
| Woofer Output (+) | Solid Color (System Specific) | WF / WOOFER (+) [Pin 5] | Low-Pass Filtered Positive Output |
| Woofer Output (-) | Stripe Color (System Specific) | WF / WOOFER (-) [Pin 6] | Low-Pass Filtered Negative Return |
| Tweeter Output (+) | Solid Light Gauge Lead | TW / TWEETER 0dB / -3dB (+) [Pin 7] | High-Pass Filtered Positive Output |
| Tweeter Output (-) | Black or Striped Light Gauge Lead | TW / TWEETER (-) [Pin 8] | High-Pass Filtered Negative Return |
| Amplifier B+ Main Power | Red or Yellow | +12V / BATT Terminal Block | Fused Direct Battery Hot Wire (+12V DC) |
| Amplifier Ground Lead | Black | GND / GROUND Terminal Block | Chassis Ground Return Wire (0V DC) |
When measuring voltage across active speaker wires, a multimeter set to AC voltage will display low dynamic values ranging from 0.1V AC up to 30V AC or higher depending on amplifier RMS output ratings. Never allow dynamic audio signal leads to short against the vehicle chassis ground wire, as this damages internal amplifier output transistors.
Step-by-Step Speaker and Tweeter Wiring Diagram Installation
Follow this exact wiring sequence when integrating component woofers, passive crossover networks, and high-frequency tweeters into your audio infrastructure.
Recommended Best Deal Products
Step 1: Signal Source Isolation and Output Terminal Mapping
Disconnect the negative lead from the primary battery terminal prior to handling system wiring. Route primary audio channels from the amplifier or head unit output harness to the designated installation area. Identify the positive and negative leads for each channel using the EIA wire color code matrix. Ensure signal leads are isolated from primary high-current 12V DC power cables by at least 12 inches to prevent induced electromagnetic hum and alternator noise.
Step 2: Passive Crossover Input Terminal Block Integration
Strip 3/8 inch of insulation from the main amplifier output speaker leads. Insert the positive amplifier lead (e.g., solid white for front left) into the terminal block labeled IN + or AMP +. Tighten the terminal block screw to 8 to 10 in-lbs of torque. Insert the corresponding negative lead (e.g., white with black stripe) into the terminal block labeled IN - or AMP -. Verify that no stray wire strands extend past the terminal insulator block to prevent short circuits.
Step 3: Mid-Bass Woofer Low-Pass Wiring Connection
Run a dedicated pair of speaker conductors from the crossover output housing to the door or kick-panel woofer enclosure. Connect the positive output terminal marked WF + or WOOFER + to the larger positive terminal blade on the woofer frame. Connect the negative terminal marked WF - or WOOFER - to the smaller negative blade terminal. Crimp insulated female spade connectors onto the wire ends to establish a secure, vibration-resistant electrical joint.
Step 4: Tweeter Terminal Assignment and Attenuation Tuning
Route light-gauge leads from the crossover high-pass output pin set to the tweeter location. Connect the negative tweeter wire to the TW - terminal pin. Most passive crossover terminal blocks feature multiple positive tweeter pins labeled 0dB, -3dB, or -6dB. Connect the positive tweeter lead to the 0dB terminal block pin for flat frequency response. If the tweeter is mounted high on an A-pillar directly facing the listener, select the -3dB tap pin to reduce output sensitivity and attenuate high-frequency harshness.
Step 5: Circuit Continuity and Impedance Polarity Check
Before restoring power, connect a Digital Multimeter (DMM) set to Resistance ($\Omega$) across the positive and negative input leads at the crossover network. A standard 4-ohm nominal component speaker system should read between 3.2 ohms and 3.8 ohms DC resistance ($R_e$). An open circuit reading (OL) indicates a broken wire or disconnected terminal block, while a reading near 0 ohms indicates a short circuit in the wiring loom.
Wire Gauge, Voltage Output, and Terminal Block Technical Specs
Selecting the correct wire gauge prevents excessive dynamic voltage drop, signal compression, and unwanted heat accumulation along conductor runs. High-current woofer frequencies require lower gauge conductors, whereas tweeter runs draw significantly lower current due to high frequency impedance characteristics.
Calculate dynamic AC speaker voltage using Ohm’s Law: $V = \sqrt{P \times R}$. For an amplifier outputting 100 Watts RMS into a 4-ohm component system: $V = \sqrt{100 \times 4} = 20\text{V AC RMS}$. Ensure wire insulation ratings exceed 100V dielectric breakdown thresholds.
Use the following technical conductor and terminal specifications when assembling audio wiring harnesses:
- Amplifier Output to Crossover (Up to 100W RMS): Minimum 16 AWG oxygen-free copper (OFC). Maximum wire length: 15 feet.
- Amplifier Output to Crossover (100W to 250W RMS): Minimum 14 AWG OFC. Maximum wire length: 20 feet.
- Crossover Terminal to Mid-Bass Woofer: 16 AWG stranded copper wire. Operating dynamic AC voltage: 5V to 30V RMS.
- Crossover Terminal to Tweeter Transducer: 18 AWG stranded copper wire. Operating dynamic AC voltage: 1V to 12V RMS (Current draw typically under 1.5 Amperes).
- Terminal Block Screw Torque Spec: 8.8 in-lbs (1.0 N·m) for barrier strip terminals. Over-tightening strips internal terminal threads; under-tightening causes high-resistance arc faults.
When running long speaker harness paths, avoid copper-clad aluminum (CCA) wire due to its higher electrical resistance per foot. OFC conductors preserve system damping factor and ensure maximum energy transfer to the voice coils. Review our technical guide on vehicle chassis grounding procedures to minimize system noise floors prior to calibrating final amplifier gains.
Troubleshooting Speaker and Tweeter Wiring Diagram Faults
Signal corruption, lack of mid-bass, and blown tweeter voice coils stem directly from incorrect wiring physical topologies or improper terminal block connections. Systematic troubleshooting isolates these mechanical and electrical failures.
Connecting a delicate tweeter directly to an amplifier output terminal without an inline high-pass capacitor or crossover network will instantly destroy the tweeter voice coil. Low-frequency signals carry high continuous power that rapidly overheats thin tweeter wire windings within seconds.
Phase Inversion (Out-of-Phase Acoustic Cancellation)
Symptom: Thin sound profile, total lack of mid-bass punch, and an unstable center soundstage standard.
Cause: The positive and negative leads on one speaker channel are reversed at either the crossover terminal block or driver terminals.
Fix: Verify channel wire color continuity from source to crossover. Conduct a phase test using a 9V battery test pulse (on woofers only) or a polarity pulse analyzer app. Ensure the woofer cone moves outward when positive voltage hits the positive terminal. Align wire color pins accordingly.
High-Frequency Tweeter Distortion or Thermal Burnout
Symptom: Tweeter produces scratchy audio, harsh clipping, or no sound output.
Cause: Tweeter leads connected to the low-pass WF terminal block pin instead of the high-pass TW pin, or passive crossover network bypassed entirely.
Fix: Trace tweeter wiring back to the terminal block. Ensure the positive lead lands precisely on the designated TW + pin. Check continuity across the tweeter voice coil using a DMM set to ohms. A reading of infinity ($\infty$) confirms a blown, open-circuit voice coil requiring tweeter replacement.
Intermittent Audio Output and High Resistance Faults
Symptom: Sound cuts out over bumps or cuts off completely at higher output volumes.
Cause: Loose screw terminals on the crossover block, poor crimp terminal installation, or bare ground wire shorting against door metal structures.
Fix: Inspect all terminal block screw clamping plates. Strip damaged copper strands, apply heat-shrink insulation over spade terminals, and secure all harness runs with automotive-grade wire ties. For multi-amplifier setups exhibiting system power cuts, consult our multi-channel amplifier installation guide to verify total system current draw and remote turn-on voltage stability.
Frequently Asked Questions About Tweeter Terminal Connections
How does the wire color code differ between OEM factory harnesses and aftermarket component systems?
Aftermarket audio systems adhere to standardized EIA color schemes (e.g., solid white for left positive, white/black for left negative). OEM vehicle manufacturers use propriety, model-specific color codes that vary between left and right channels and door harness junctions. Technicians must use model-specific wiring diagrams or test leads with a tone generator to identify positive and negative factory speaker pairs before connecting aftermarket crossovers.
Can you wire a tweeter in parallel with a door speaker without a crossover network?
Wiring a tweeter in direct parallel with a door woofer without a high-pass crossover network lowers total system impedance below amplifier stability limits and feeds low frequencies directly into the tweeter. This causes immediate thermal destruction of the tweeter voice coil. If a full passive crossover housing is not used, a inline capacitor (typically 4.7$\mu$F to 10$\mu$F non-polarized electrolytic or film capacitor) must be wired in series with the positive tweeter lead to act as a 6dB/octave high-pass filter.
What wire gauge is required for high-frequency tweeter signal runs?
Because tweeters handle high frequencies (>3,000 Hz) and draw minimal current (typically under 1.5 Amperes), 18 AWG or 20 AWG oxygen-free copper wire is fully sufficient for runs up to 15 feet. Using excessively thick wire (such as 12 AWG) offers no electrical advantage for tweeters and places mechanical stress on tiny solder pads attached to delicate tweeter terminal leads.
Why does an audio output pin assignment show positive (+) and negative (-) instead of hot wire and neutral wire?
Audio systems transmit dynamic alternating current (AC) power rather than constant direct current (DC). The positive (+) and negative (-) labels do not represent a DC hot wire and grounded neutral wire; instead, they define relative acoustic phase polarity. When positive AC voltage is applied to the positive terminal, the speaker diaphragm moves outward. Reversing the positive and negative leads causes the cone to move inward, resulting in phase cancellation when paired with adjacent speakers.
How do you test audio output voltage and phase polarity using a digital multimeter?
To test voltage output, set your DMM to AC Volts ($V\sim$), play a 1 kHz test tone through the source unit, and place the meter probes across the amplifier speaker output terminals. To verify phase continuity without power, set the meter to Ohms ($\Omega$) and measure resistance from the amp output harness to the crossover terminal block. A reading near 0.2 ohms indicates continuous wire integrity without short circuits.
