Champion Air Compressor Parts Diagram: 2026 Guide

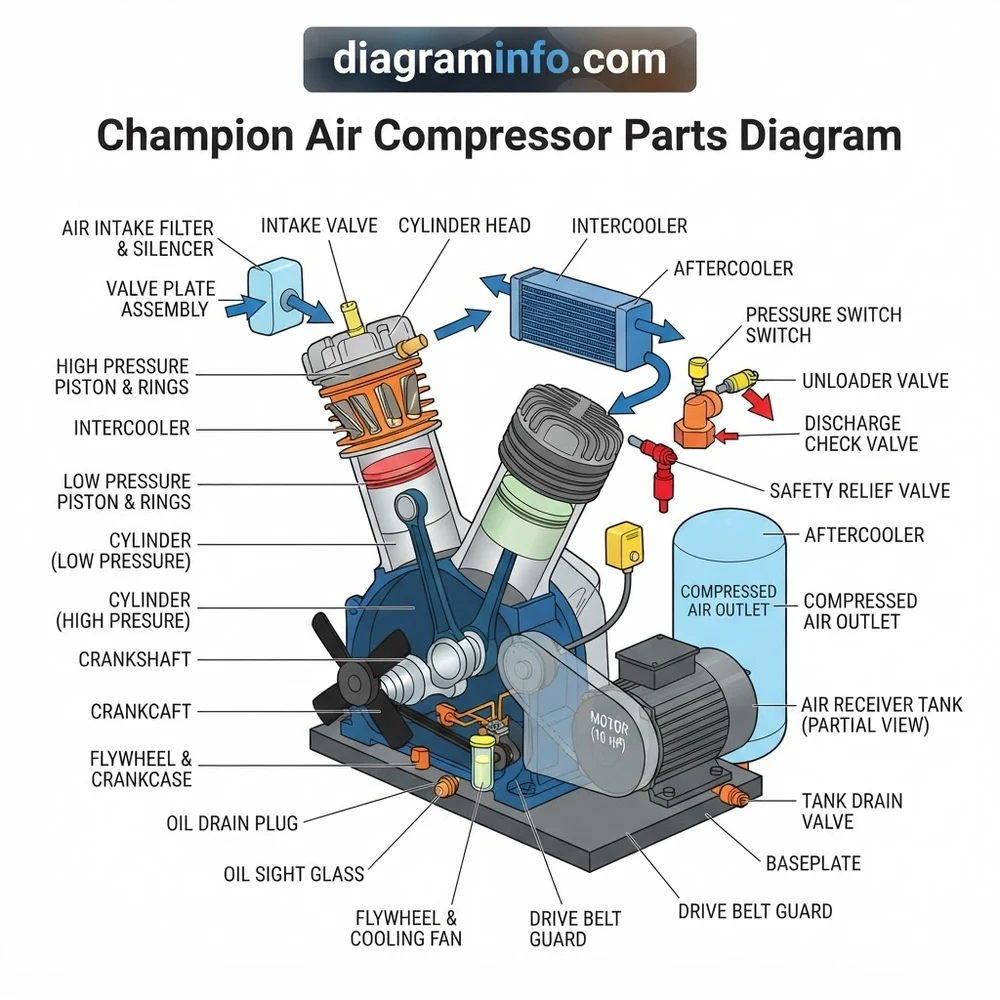

A Champion air compressor parts diagram details the mechanical configuration of the pump system, including the crankshaft, connecting rods, pistons, flywheel, and valve plate assembly. It outlines the structural layout of air intake filters, pressure switches, check valves, and safety relief valves set to standard 175 PSI operating limits.
📌 Key Takeaways
- Pump torque specifications require head bolts tightened to 24-30 ft-lbs in a cross pattern
- Model and serial number plate is located on the drive side of the crankcase housing
- Recommended crankcase lubricant requires non-detergent ISO 100 / SAE 30 compressor oil
- Leaking unloader valves usually indicate a worn check valve seal rather than a switch failure
- Cylinder reboring and internal crank journal machining require professional shop service
Champion reciprocating and rotary screw air compressors—such as the heavy-duty R-Series (R15B, R30D, R70A) and Advantage Series—depend on engineered mechanical assemblies to deliver continuous CFM output at working pressures up to 175 PSI. Navigating routine overhaul procedures, valve plate replacements, or complete pump rebuilds requires an exact mechanical schematic. The following Champion air compressor parts diagram details the mechanical and pneumatic spatial relationships between the crankcase assembly, cylinder head, intercooler network, pressure control package, and drive system across single and two-stage configurations.
Champion Air Compressor Parts Diagram: System Component Anatomy
Understanding the internal component structure of a Champion compressor pump is critical for performing precise overhauls and preventative maintenance. The exploded structural overview isolates the primary mechanical sub-assemblies that form the heavy-duty compression cycle:
- Crankcase and Crankshaft Configuration: Heavy-duty cast-iron crankcases provide housing for precision-ground crankshafts and tapered roller bearings. Oil dipsticks or sight glasses mount low on the crankcase body, while splash pins on the connecting rod caps distribute non-detergent ISO 100 compressor lubricant across key friction surfaces.
- Cylinder and Piston Assemblies: Two-stage models feature asymmetric cylinder bore sizes. The larger low-pressure (LP) piston compresses ambient air to approximately 40 PSI before routing it through the intercooler. The smaller high-pressure (HP) piston compresses air to the final cut-out threshold (up to 175 PSI). Each piston features dual compression rings and a bottom oil-control ring.
- Valve Plate Assembly: Situated between the cylinder top deck and head manifold, valve plates use stainless steel reed or disc valves. Intake valves open during the downstroke vacuum, and discharge valves open under upstroke pressure.
- Intercooler and Aftercooler Assemblies: Finned copper or aluminum tubes run between LP discharge and HP intake ports. Heat dissipation during this transition increases volumetric efficiency and prevents thermal breakdown of lubricants.
- Control and Unloader System: Centrifugal head unloaders bleed trapped head pressure upon shutdown, allowing the 230V/460V NEMA motor to restart under zero load conditions.
OEM torque specs for Champion R-Series cylinder head bolts: Grade 5 fasteners must be torqued in a cross-pattern sequence to 22–25 ft-lbs for R10/R15 models and 42–45 ft-lbs for R30/R70 models. Crankcase end-cover bolts require 18–20 ft-lbs.
| Component Name | Diagram Key / Function | Standard Operating Spec / Torque |
|---|---|---|
| LP/HP Valve Plate Assembly | Controls directional airflow across cylinder stages | Inspect every 500 hrs; Replace worn disc valves |
| Crankcase Tapered Bearings | Supports crankshaft radial and axial loading | Endplay: 0.0015″ – 0.003″ clearance |
| Centrifugal Unloader Assembly | Bleeds head pressure during motor shutdown | Actuator release at < 400 RPM |
| Pressure Switch Assembly | Regulates motor contactor actuation | Cut-in: 145 PSI / Cut-out: 175 PSI |
How to Read the Champion Air Compressor Blueprint and Assembly Layout
Deciphering a technical schematic requires a systematic approach to trace fluid dynamics, air compression pathways, and electrical logic circuits across the entire air system configuration.
1. Tracing Pneumatic Air Flow from Intake to Receiver Tank
Begin reading the pneumatic layout at the suction air filter assembly. The blueprint illustrates ambient air entering the LP cylinder bore, passing through the LP valve plate, and traveling along the finned intercooler tube. Follow the high-pressure path as air enters the HP cylinder, passes the HP discharge reed valve, and flows through the check valve into the receiver tank. When sourcing replacement gaskets, refer to our detailed reciprocating pump rebuild kit guide to ensure exact tolerance alignment across cylinder decks.
2. Interpreting Electrical Control Logic and Power Connections
Electric-driven Champion models use line-voltage pressure switches mated to magnetic starters or variable frequency drives. In three-phase 230V/460V configurations, L1, L2, and L3 supply power through the starter contactor. Control wiring links terminal 1 on the pressure switch to the coil circuit (A1/A2), incorporating thermal overload relays in series to break control voltage during overcurrent events.
3. Identifying Mechanical Unloader and Safety Sub-Assemblies
Unloader mechanisms appear in two distinct drawing configurations: pilot-valve continuous run systems or pressure-switch operated start/stop systems. Locate the small 1/4-inch copper unloader line extending from the check valve or pump head to the pressure switch unloader port. This line dumps head pressure when the motor stops.
When installing replacement valve disc plates, verify that the raised lip faces away from the valve seat face. Reverse installation restricts airflow, resulting in head pressure spikes and premature gasket failure.
Diagnosing System Faults Using the Champion Air Compressor Structural Overview
Matching physical symptoms to specific component locations on the schematic shortens diagnostic time and prevents unnecessary parts replacement.
Low Air Delivery or Inability to Reach Cut-Out Pressure
If the compressor runs continuously without building receiver pressure past 90–100 PSI, locate the high-pressure valve plate on the schematic. Carbon buildup, fractured reed valves, or blown valve gaskets allow compressed air to back-feed into the LP cylinder or intake filter. Inspect finned intercoolers; elevated intercooler pressure indicates an HP intake valve failure, while low intercooler pressure points to LP valve exhaustion.
Oil Carryover into Compressed Air Lines
Excessive oil downstream indicates compromised piston ring clearance or clogged crankcase breathers. Check the cylinder cross-section on the parts blueprint to identify the staggered ring gap configuration (120-degree separation). If oil aerosol persists after ring replacement, cross-reference with an industrial air dryer schematic if downstream moisture contamination is causing condensation mix in receiver tanks.
Air Leakage at the Pressure Switch After Shutdown
Continuous air escaping from the unloader valve port while the motor is off indicates a failed tank check valve, not a faulty pressure switch. The check valve plunger (located where the main discharge line meets the receiver tank) has failed to seat, allowing tank pressure to back-feed through the unloader line.
Always isolate power at the main breaker disconnect and fully drain tank pressure to 0 PSI before removing pump heads, unloader valves, or check valve assemblies. Failure to bleed trapped line pressure can cause high-velocity component ejection.
Champion Air Compressor Parts Diagram Technical Questions
How do I differentiate between Champion R-Series and Centurion pump configurations?
R-Series pumps feature domed cylinder head covers, dual-ring LP/HP pistons, and splash lubrication with pin-style dippers. Centurion models utilize flat cylinder head plates with integrated concentric ring valves and pressure-lubricated oil pumps. Check your model tag serial prefix to confirm whether the blueprint specifies R-15/30 or Centurion series parts.
What torque sequence should be followed for pump head rebuilds?
Always use a crisscross torque pattern starting from the center bolts outward. Torque in three incremental stages: 30%, 60%, and 100% of final torque spec. For standard R-Series cast iron pumps, final torque on 3/8-16 grade 5 head bolts is 24 ft-lbs using clean motor oil on threads.
Why does the safety valve vent air during the compression cycle?
If the safety relief valve on the intercooler vents air, the high-pressure (HP) intake valve on the pump head is stuck closed or broken. Air compressed by the low-pressure cylinder cannot enter the HP cylinder, causing intercooler pressure to spike above the 60 PSI safety valve setting.
How do I properly adjust the pressure switch cut-in and cut-out settings?
Turn the main range nut clockwise on Square D or Hubbell switches to raise both cut-in and cut-out points proportionally. To adjust differential pressure independently, turn the smaller differential screw. For detailed step-by-step wiring and pressure calibration, consult our pressure switch calibration manual.
Step-by-Step Guide to Understanding the Champion Air Compressor Parts Diagram
Identify – Locate the model and serial number plate on your Champion compressor crankcase
Locate – Find the matching component section on the structural parts diagram
Reference – Match exploded view callout numbers to the part list breakdown table
Connect/Route – Disassemble or install replacement components following the exact exploded layout sequence
Verify – Torque fasteners to manufacturer specifications and inspect gasket sealing alignment
Troubleshoot – Test system pressure build-up and check unloader valve operation for air leaks
Champion Air Compressor Parts Diagram: Frequently Asked Questions
What does the champion air compressor parts diagram show?
A Champion air compressor parts diagram displays the complete mechanical structure and component breakdown of the compressor unit. It details assembly relationships for the pump head, valve plates, pistons, crankshaft, drive pulleys, belt guards, pressure switch, unloader valves, check valve assembly, and tank mounting hardware for exact replacement ordering.
How do I read the champion air compressor parts diagram?
To read a Champion air compressor parts diagram, identify the main assemblies first: pump, motor, tank, and control group. Use the numbered callouts to match physical components to part numbers in the legend. Follow structural explosion lines to observe exact assembly order, washer orientations, and bolt sequence configurations.
What are the main components in champion air compressor parts diagram?
Main components detailed in the diagram include the cast-iron pump cylinder block, piston assembly, reed/disc valve plates, crankshaft, flywheel, centrifugal unloader, pressure switch, check valve, pressure relief valve, and intake filter assembly. Each component is mapped within the overall air system configuration for precise identification.
What are common problems with champion air compressor parts diagram?
Common issues revealed during diagram inspection include cracked reed valves, worn piston rings causing oil blow-by, failed check valves causing air leakage through the unloader, blown head gaskets, and loose drive belts. The schematic layout helps isolate air leaks, pressure loss, and mechanical knocking down to specific parts.
Can I use champion air compressor parts diagram for DIY repair?
Yes, you can use the Champion air compressor parts diagram for DIY maintenance like replacing air filters, head gaskets, check valves, and belt adjustments. However, major internal overhauls like crankshaft alignment or motor rewinding may require specialized shop tools and professional technician expertise for proper safety calibration.
What tools do I need for champion air compressor parts diagram?
Servicing parts identified on the diagram typically requires a socket and wrench set (7/16″ to 3/4″), torque wrench (ft-lbs), gasket scrapers, ring compressors, thread sealant, feeler gauges, and safety gear. Proper tools ensure fast casing teardowns, accurate bolt tensioning, and secure valve replacement during overhaul.
