HVAC Air Conditioning Basics with Diagram: Installation Setup 2026
An air conditioning diagram illustrates a closed-loop refrigeration system consisting of four primary components: the compressor, condenser coil, expansion valve, and evaporator. Low-pressure superheated gas enters the compressor at 65-150 PSI, discharges as high-pressure vapor to the condenser, expands into subcooled liquid, and absorbs heat inside the evaporator coil to cool ambient air.
📌 Key Takeaways
- Refrigerant pressure transitions from low-pressure gas (60–150 PSI) to high-pressure liquid (200–450 PSI) across the metering device.
- The compressor serves as the central pump, circulating refrigerant and driving thermodynamic heat exchange through the system structure.
- Capacitor ratings typically range from 35/5 MFD at 370V/440V; always discharge safely before handling terminal wiring.
- Clogged expansion valves or restricted airflow over evaporator coils are the most common causes of system freezing and compressor damage.
- Electrical component replacement can be DIY, but handling pressurized refrigerant loops requires EPA Section 608 certification.
Automotive and heavy-equipment HVAC systems rely on a closed-loop vapor-compression refrigeration cycle to manage cabin microclimates. Understanding air conditioning basics with diagram interpretation is critical for service technicians diagnosing thermal inefficiencies, mechanical failures, and electrical control faults. The system operates by continually transitioning refrigerant between high-pressure liquid and low-pressure gas states, leveraging thermodynamic phase changes to extract sensible and latent heat from cabin air. Whether servicing legacy R-134a platforms or modern R-1234yf architectures, mastering the system layout and component schematic ensures precise manifold gauge analysis and rapid isolation of mechanical restrictions.

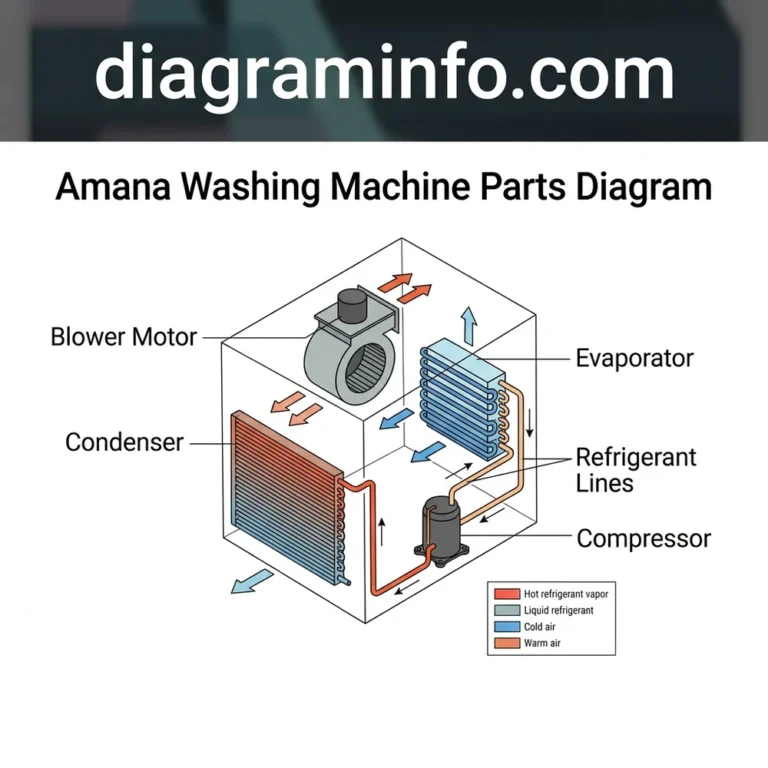

Air Conditioning Basics With Diagram: Core Component Breakdown
Every mobile vapor-compression loop consists of five fundamental mechanical units divided strictly into a high-pressure side and a low-pressure side. Interpreting an air conditioning system layout requires mapping how these mechanical assemblies interface through rigid aluminum lines and flexible barrier hoses under varying thermal loads.
The compressor acts as the central pump. Driven by an engine accessory belt via a 12V electromagnetic clutch or controlled by a variable-displacement pulse-width modulated (PWM) solenoid valve, it draws low-pressure refrigerant vapor from the suction line and compresses it into a high-temperature, high-pressure gas. Modern variable-displacement swash-plate compressors adjust stroke length automatically based on crankcase pressure differential, maintaining target evaporator temperatures without cycling the clutch.
The condenser, mounted upstream of the engine radiator, receives superheated discharge gas. As ram air or forced fan airflow passes through its parallel-flow microchannel tubes, the refrigerant sheds latent heat, condensing from a high-pressure vapor into a high-pressure subcooled liquid.
The expansion device—either a Thermal Expansion Valve (TXV) or a Fixed Orifice Tube—serves as the pressure boundary separating the high and low sides. By forcing high-pressure liquid through a calibrated metering orifice, the device creates a sudden pressure drop, causing the refrigerant to atomize into a low-pressure, low-temperature mist.
The evaporator core, housed inside the cabin HVAC plenum, absorbs heat from interior air passing over its aluminum fins. The low-pressure liquid refrigerant inside the core boils at low temperature, shifting fully to vapor before returning to the compressor. Moisture in cabin air condenses on the cold outer fins and drains via the evaporator case tube.
The receiver-drier (TXV systems) or accumulator (orifice tube systems) removes moisture and contaminants using a desiccant pack (typically XH-7 or XH-9 molecular sieve) while storing excess liquid refrigerant to protect the compressor from liquid slugging.
| Component Name | Pressure State | Refrigerant Physical Phase | Typical Operating Range (R-134a @ 85°F Ambient) |
|---|---|---|---|
| Compressor Outlet (Discharge) | High Pressure | Superheated Gas | 175 – 225 PSI (150°F – 190°F) |
| Condenser Outlet (Liquid Line) | High Pressure | Subcooled Liquid | 150 – 200 PSI (110°F – 130°F) |
| TXV / Orifice Tube Outlet | Low Pressure | Liquid / Vapor Atomized Mist | 25 – 40 PSI (28°F – 42°F) |
| Evaporator Outlet (Suction Line) | Low Pressure | Superheated Vapor | 30 – 45 PSI (35°F – 48°F) |
According to OEM service specifications, standard PAG 46 oil is used in most belt-driven R-134a swash-plate compressors, whereas electric hybrid/EV compressors require POE (polyolester) oil due to its high dielectric properties. Interchanging oil types causes stator insulation degradation, leading to high-voltage isolation faults.
Tracing System Layout and Refrigerant Flow on a Schematic Blueprint

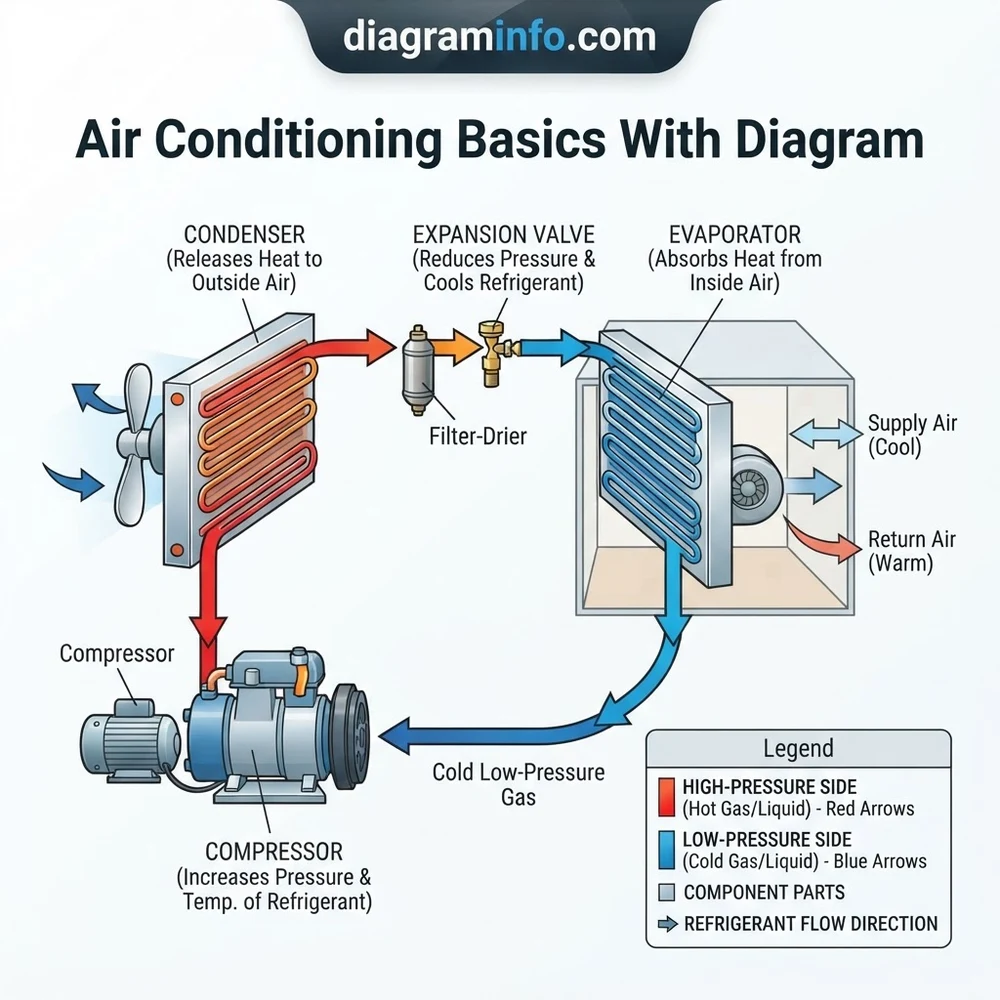

To accurately read an air conditioning schematic blueprint, follow the thermodynamic sequence step-by-step starting at the mechanical kinetic input. Referencing our technical overview, trace the flow along these four discrete operational phases:
Phase 1: High-Pressure Vapor Compression
The cycle begins when the HVAC control module commands the compressor clutch relay closed or increases PWM duty cycle on a variable displacement solenoid. Low-pressure superheated refrigerant gas (25–45 PSI) enters the compressor suction port. Piston or scroll compression elevates the fluid pressure to 150–250 PSI and temperature to 160°F+. The gas exits via the discharge service port equipped with a high-side Schrader valve assembly.
Phase 2: Heat Rejection and Condensing
The high-temperature gas enters the top inlet header of the parallel-flow condenser. As forced air transfers heat out of the refrigerant, sensible heat drops to the condensation saturation point. Latent heat release converts the gas into a fully liquid state. Liquid leaves the bottom condenser outlet header and passes into the receiver-drier where internal desiccant adsorbs entrained moisture and a 10-micron filter traps metallic debris.
Phase 3: Pressure Drop and Expansion Metering
Liquid refrigerant travels through the high-pressure liquid line to the block TXV input port. A internal diaphragm sensing thermal bulb pressure at the evaporator outlet modulates the internal needle valve. As liquid flows through this restriction into the low-pressure realm, pressure drops instantly from ~175 PSI down to ~30 PSI. This pressure drop causes partial flash-evaporation, lowering fluid temperature to approximately 30°F–35°F.
Phase 4: Latent Heat Absorption
The cold, atomized mixture enters the evaporator core. Cabin air driven by the blower motor passes across external core fins. The refrigerant absorbs thermal energy, boiling off into a pure gas state. Target evaporator superheat (typically 8°F–12°F above saturation temperature) prevents unvaporized liquid from exiting the evaporator line. The vapor returns to the compressor suction line port, completing the cycle. For further electrical routing details, review our guide on automotive electrical schematic analysis.
Calculate superheat by subtracting the saturated temperature (derived from low-side pressure on a pressure-temperature chart) from the actual physical temperature measured at the evaporator outlet pipe using a calibrated thermocouple pipe clamp. High superheat indicates low refrigerant charge or TXV restriction; low superheat indicates liquid floodback potential.
Diagnosing Faults Using Air Conditioning Basics With Diagram Pressure Profiles
Technicians isolate system failures by attaching a digital manifold gauge set to high-side and low-side service ports and evaluating gauge behavior against ambient temperature curves. Matching measured values to known standard diagnostic profiles pinpoints hydraulic, mechanical, or airflow malfunctions rapidly.
| Low-Side Gauge Reading | High-Side Gauge Reading | Probable Fault Cause | Recommended Technical Action |
|---|---|---|---|
| Extremely Low (<10 PSI / Vacuum) | Low (<100 PSI) | Major System Undercharge / Refrigerant Leak | Perform nitrogen decay leak test at 150 PSI; repair leak and evacuate system. |
| High (>55 PSI) | Low (<110 PSI) | Compressor Internal Failure (Bypassing Reed Valves) | Perform compressor replacement, flush lines, replace receiver-drier, and verify oil balance. |
| High (>50 PSI) | Extremely High (>300 PSI) | Inadequate Condenser Airflow / Fan Failure | Inspect condenser fan relay, fan motor resistance, and clear debris from condenser fins. |
| Low / Near Vacuum | Normal to Slightly Low | TXV Needle Stuck Closed / Debris Blockage | Recover system charge, replace TXV, inspect liquid line for desiccant breakdown. Refer to TXV valve overhaul procedures. |
Always use EPA Section 609 certified recovery equipment when opening sealed refrigeration loops. Venting R-134a or R-1234yf directly to the atmosphere violates federal regulations. Never combine R-134a and R-1234yf in the same recovery cylinder to prevent cross-contamination and catastrophic equipment seal damage. For proper recovery workflows, consult our refrigerant recovery and evacuation guidelines.
Air Conditioning System Configuration FAQs
What is the typical operating pressure differential between high and low sides?
Under normal operating conditions with an ambient temperature of 80°F to 90°F, a stable R-134a system maintains a low-side pressure between 30 PSI and 40 PSI, while high-side pressure ranges from 170 PSI to 225 PSI. This equates to an approximate 5:1 to 6:1 pressure ratio across the expansion boundary.
How do you identify a block-style thermal expansion valve (TXV) on a schematic diagram?
On a system schematic blueprint, a block TXV is depicted at the junction connecting the high-pressure liquid line and low-pressure suction line directly adjacent to the evaporator core inlet/outlet symbols. It is represented by an internal variable orifice symbol controlled via a mechanical diaphragm connected internally to liquid sensing chambers.
Why does frost form along the suction line leading back to the compressor?
Suction line frosting indicates that liquid refrigerant is failing to boil off completely inside the evaporator core. This is typically caused by severely restricted cabin airflow (clogged cabin air filter, failed blower motor) or a metering device stuck open, causing unevaporated fluid at temperatures below 32°F to enter the suction line.
What torque specification should be applied to R-134a aluminum manifold block fittings?
Manufacturer specifications for spring-lock or nut-and-stud aluminum block fittings typically call for 11 to 15 lb-ft (15 to 20 Nm) of torque. Always coat new HNBR (hydrogenated nitrile butadiene rubber) green O-rings with clean, specified compressor oil prior to assembly to prevent pinch shearing and premature leaks.
Step-by-Step Guide to Understanding the Air Conditioning Basics With Diagram
Identify – Locate the high-pressure liquid line and low-pressure suction line on the schematic.
Locate – Position the indoor evaporator unit, outdoor condenser, and compressor control box.
Reference – Use the color-coded electrical lines on the diagram to map contactor and capacitor connections.
Connect/Route – Route low-voltage thermostat control wiring to terminal block connections safely.
Verify – Measure line voltage and operating pressure across high and low service ports using manifold gauges.
Troubleshoot – Check thermal overload switches, pressure cutouts, and capacitor microfarad ratings if system fails to start.
