3 Phase Contactor Wiring Diagram: Easy Setup Guide
A 3 phase contactor wiring diagram illustrates how to connect high-voltage power lines (L1, L2, L3) to a load via a coil-actuated switch. It shows the connection of the hot wire to the contactor terminals, the ground wire for safety, and how the control circuit manages the common terminal for operation.
📌 Key Takeaways
- Main purpose of this diagram is to visualize high-voltage switching for industrial loads
- Most important component to identify is the magnetic coil terminals (A1 and A2)
- Always verify that the control circuit voltage matches the contactor coil rating
- Use proper wire labeling to prevent phase reversal and ensure correct motor rotation
- Use this diagram when installing HVAC compressors, industrial pumps, or heavy machinery
Establishing a safe and functional industrial electrical system often begins with understanding a 3 phase contactor wiring diagram. Whether you are installing a high-horsepower motor, a commercial heating element, or a large-scale pump, the contactor serves as the heavy-duty switch that bridges the gap between low-power control signals and high-power execution. Having the correct diagram is more than just a convenience; it is a critical safety requirement that prevents phase imbalance, equipment damage, and electrical fires. In this comprehensive guide, you will learn the precise terminal identifications, color-coding standards, and the sequential logic required to wire a contactor with confidence and accuracy.
A 3 phase contactor consists of two distinct circuits: the Power Circuit, which handles the high-voltage load, and the Control Circuit, which operates the electromagnetic coil to open or close the contacts.
Understanding the 3 Phase Contactor Wiring Diagram Components

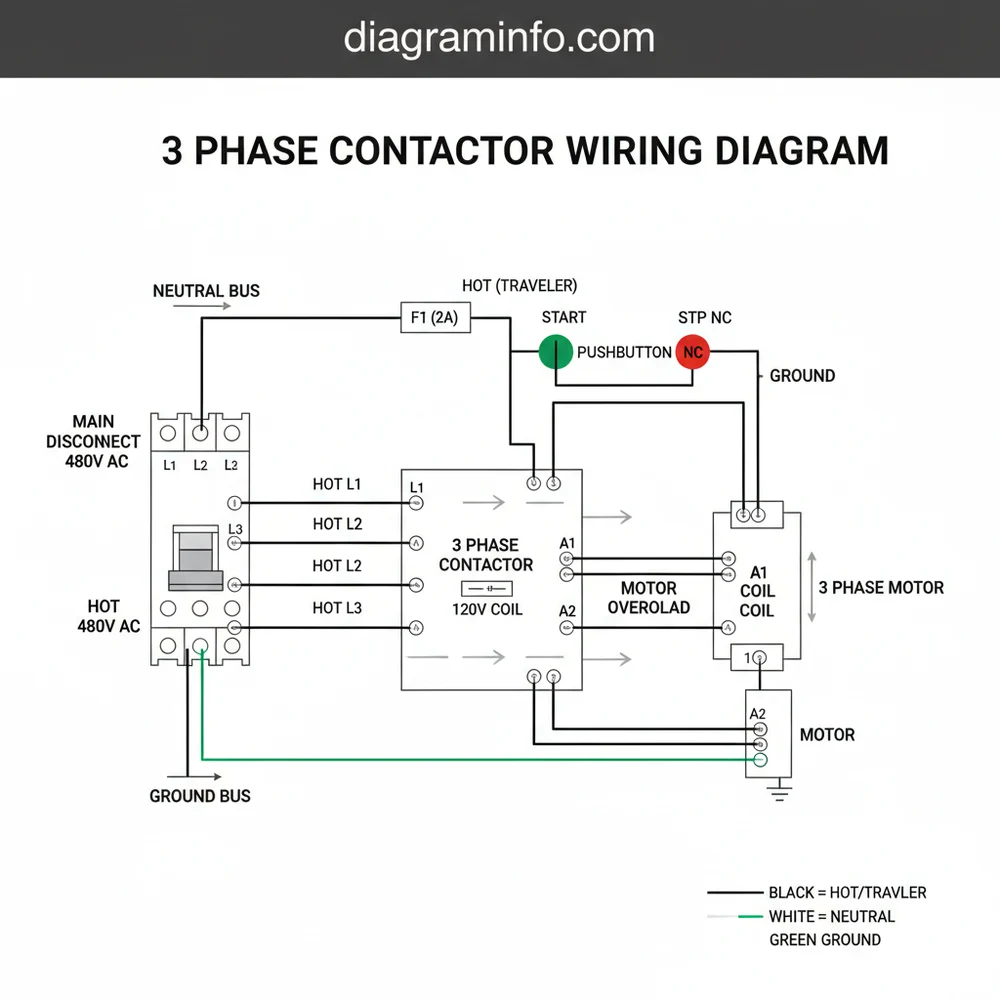

A professional 3 phase contactor wiring diagram provides a visual map of how electricity flows through the device. The diagram is typically divided into the primary power terminals and the auxiliary control terminals. At the top of the contactor, you will find terminals labeled L1, L2, and L3. These are your “Line” inputs, where the incoming hot wire leads from your main breaker panel are connected. Directly opposite these, at the bottom, are the terminals labeled T1, T2, and T3. These are the “Load” or “Track” terminals that lead out to the motor or machinery.
The heart of the diagram is the electromagnetic coil, usually designated by terminals A1 and A2. This is where your control voltage—often a lower voltage like 24V or 120V—is applied. When power reaches A1 and A2, it creates a magnetic field that pulls the internal contacts shut, allowing electricity to jump from the L-terminals to the T-terminals.
Visual breakdowns also include auxiliary contacts, which are often labeled with double digits like 13/14 (Normally Open) or 21/22 (Normally Closed). These are used for signaling, such as turning on an indicator light or providing a traveler wire signal to another part of the automation system. Understanding these labels is vital because miswiring a high-voltage hot wire into a low-voltage coil terminal will result in an immediate and dangerous component failure.
Standardized Color Coding and Terminal Identification
When interpreting your wiring diagram, color coding serves as an essential guide for safety and troubleshooting. While standards can vary slightly by region, industrial 3-phase systems typically follow a strict protocol. For a 208/240V system, the phases are often Black (L1), Red (L2), and Blue (L3). In a 480V system, you will frequently see Brown (L1), Orange (L2), and Yellow (L3). The neutral wire is almost always white or gray, while the ground wire must be green or bare copper.
Each terminal is designed for a specific purpose. The common terminal in the auxiliary block is used to distribute control power to multiple logic paths. When tightening these connections, ensure you are using a screwdriver that fits the brass screw perfectly to prevent stripping. The brass screw terminals are specifically engineered to handle the thermal expansion that occurs under high-load conditions.
Step-by-Step Installation Guide
Properly executing a 3 phase contactor wiring diagram requires a methodical approach. Before beginning, ensure you have a multimeter, wire strippers, a torque-rated screwdriver, and the appropriate gauge of wire for your load’s amperage.
Never attempt to wire a contactor while the power source is live. Use a Lockout/Tagout (LOTO) procedure to ensure the circuit breaker remains off during the entire installation process.
Step 1: Preparation and Safety Check
Verify that the voltage rating of the contactor coil (A1/A2) matches your control circuit voltage. It is a common mistake to apply 240V to a 24V coil, which will instantly destroy the unit. Ensure the wire gauge you have selected is rated for the maximum current of the motor or load.
Step 2: Connect the Main Power Supply (Line Side)
Bring your three incoming hot wire leads to the top of the contactor. Strip approximately half an inch of insulation from each wire. Insert the Black (L1), Red (L2), and Blue (L3) wires into their respective terminals. Tighten the screws to the manufacturer’s specified torque setting to avoid high-resistance connections that cause heat buildup.
Step 3: Connect the Load (Motor Side)
On the bottom of the contactor, connect the wires leading to your motor to the T1, T2, and T3 terminals. Ensure the sequence matches the line side (L1 to T1, L2 to T2, L3 to T3). If the motor spins in the wrong direction once powered, you can later swap any two of these wires to reverse the rotation.
Step 4: Establish the System Ground
The ground wire is the most critical safety component. Connect the green ground wire from the source to the grounding lug on the contactor’s mounting plate or the enclosure’s ground bus bar. Ensure there is a continuous ground path to the motor frame as well.
Step 5: Wire the Control Circuit (Coil)
Connect your control power (such as from a transformer or a start/stop switch) to terminal A1. Connect the return or neutral wire to terminal A2. If you are using a remote start station, you will likely use a traveler wire to jump the signal from the start button to the contactor’s auxiliary contact to create a “holding circuit,” which keeps the contactor engaged after you release the start button.
Step 6: Integrate Auxiliary Signals
If your system requires an “In Operation” light, wire the light through the Normally Open (NO) auxiliary terminals. Use the common terminal on the auxiliary block to simplify the routing of your control power to these signaling devices.
Step 7: Final Inspection and Testing
Double-check every brass screw for tightness. Use your multimeter to check for continuity across the poles while the contactor is manually depressed (only with power off). Once confirmed, clear the area, restore power, and test the operation of the control circuit.
- ✓ Verify coil voltage compatibility
- ✓ Match wire gauge to load amperage
- ✓ Secure all ground wire connections
- ✓ Check for firm seating in every brass screw terminal
Common Issues and Troubleshooting
Even with a perfect 3 phase contactor wiring diagram, issues can arise during or after installation. One of the most frequent problems is “chattering,” where the contactor rapidly opens and closes. This is usually caused by a voltage drop in the control circuit or a loose neutral wire at terminal A2. If the contactor hums loudly, there may be dust or debris between the magnetic laminations or the coil may be under-voltage.
Another common issue is single-phasing, which occurs when one of the three main contacts fails to close properly or a wire is loose on an L or T terminal. This can lead to rapid motor burnout. Use your multimeter to verify that the voltage is equal across all three phases (L1-L2, L2-L3, and L1-L3). If you notice a burnt smell or visible discoloration around a brass screw, it indicates a loose connection that has caused overheating. In such cases, the contactor should be replaced immediately.
Use wire ferrules on stranded wire before inserting them into the contactor terminals. This prevents individual strands from splaying out and ensures a 100% solid connection with the terminal plate.
Tips and Best Practices for Long-Term Maintenance
To ensure your wiring remains reliable, always mount the contactor on a standard DIN rail within a NEMA-rated enclosure. This protects the internal components from dust, moisture, and vibration. Label every wire, especially the traveler wire and control lines, using heat-shrink labels or numbered tags. This makes future troubleshooting significantly faster.
Regular maintenance should include an annual “tug test” on all wires. Thermal cycling can cause screws to loosen over time. Additionally, check the contacts for pitting or carbon buildup. While many modern contactors are “sealed,” larger industrial units allow you to replace the contact kits, saving you the cost of a full unit replacement. Always invest in high-quality components from reputable manufacturers; while “budget” contactors may look the same on a diagram, their coil life and contact material quality are often significantly lower.
By strictly following a verified 3 phase contactor wiring diagram and adhering to proper torque specifications and color codes, you ensure a safe, efficient, and durable electrical installation. Whether you are managing a single motor or a complex automated factory floor, the principles of terminal identification and circuit separation remain the bedrock of professional electrical work. Always prioritize safety, use the correct gauge of wire, and never bypass the ground wire or safety interlocks. Regardless of the complexity of your project, a clear understanding of your 3 phase contactor wiring diagram is the first step toward a successful and professional electrical installation.
Frequently Asked Questions
Where is the contactor located?
Contactors are typically found inside a control panel or electrical enclosure near the motor or machinery they control. They are usually mounted on a DIN rail or bolted to the backplate. Ensure the location is dry, accessible, and provides enough space for heat dissipation and safe wiring maintenance.
What does this wiring diagram show?
The 3 phase contactor wiring diagram details the electrical path between the power supply and the load. It displays how the hot wire connects to input terminals L1, L2, and L3, while the control circuit utilizes a common terminal and neutral wire to activate the magnetic coil.
How many connections does a 3 phase contactor have?
A standard 3 phase contactor has three main power input terminals, three power output terminals, and two coil terminals. Additionally, it may feature auxiliary contacts for signaling and a dedicated ground wire terminal to ensure system safety and prevent electrical shock during operation or maintenance.
What are the symptoms of a bad contactor?
Signs of a failing contactor include a loud humming sound, burnt contact points, or the motor failing to start despite power. If you notice a traveler wire has come loose or the coil doesn’t engage when energized, the contactor likely requires immediate inspection or replacement to prevent damage.
Can I install this myself?
While experienced DIYers can follow a 3 phase contactor wiring diagram, working with high-voltage electricity is dangerous. If you are unfamiliar with safety protocols or local codes regarding the ground wire and phase rotation, it is highly recommended to hire a licensed electrician to perform the installation.
What tools do I need for this task?
To wire a contactor, you will need a multimeter for testing voltage, a set of insulated screwdrivers, wire strippers, and crimping tools. Ensure you have the correct gauge of hot wire and neutral wire for your specific load requirements to prevent overheating and potential fire hazards.
