1-Phase Circuit Breaker Symbol Single Line Diagram: 2026 Setup
In a single line diagram (SLD), a circuit breaker symbol is represented as a square icon or switch graphic with interrupting ratings. Standard AC wiring maps the hot wire (black/red) to line terminals, neutral wire (white) to the neutral bus, and ground wire (green/bare) to the grounding bus for safe system distribution.
📌 Key Takeaways
- Single line diagrams use standardized ANSI/IEC symbols to represent multi-conductor circuit breaker connections simply.
- Standard 120/240V wire color code assigns black/red to hot wire, white to neutral wire, and green/bare to ground wire.
- Terminal screws must be torqued to manufacturer specs (typically 20-35 in-lbs) to prevent overheating and arcing.
- Reverse feeding or misidentifying line vs. load terminals is a leading cause of breaker trips and component failure.
- Consult a licensed electrician for main service panel tie-ins or high-amperage sub-panel routing.

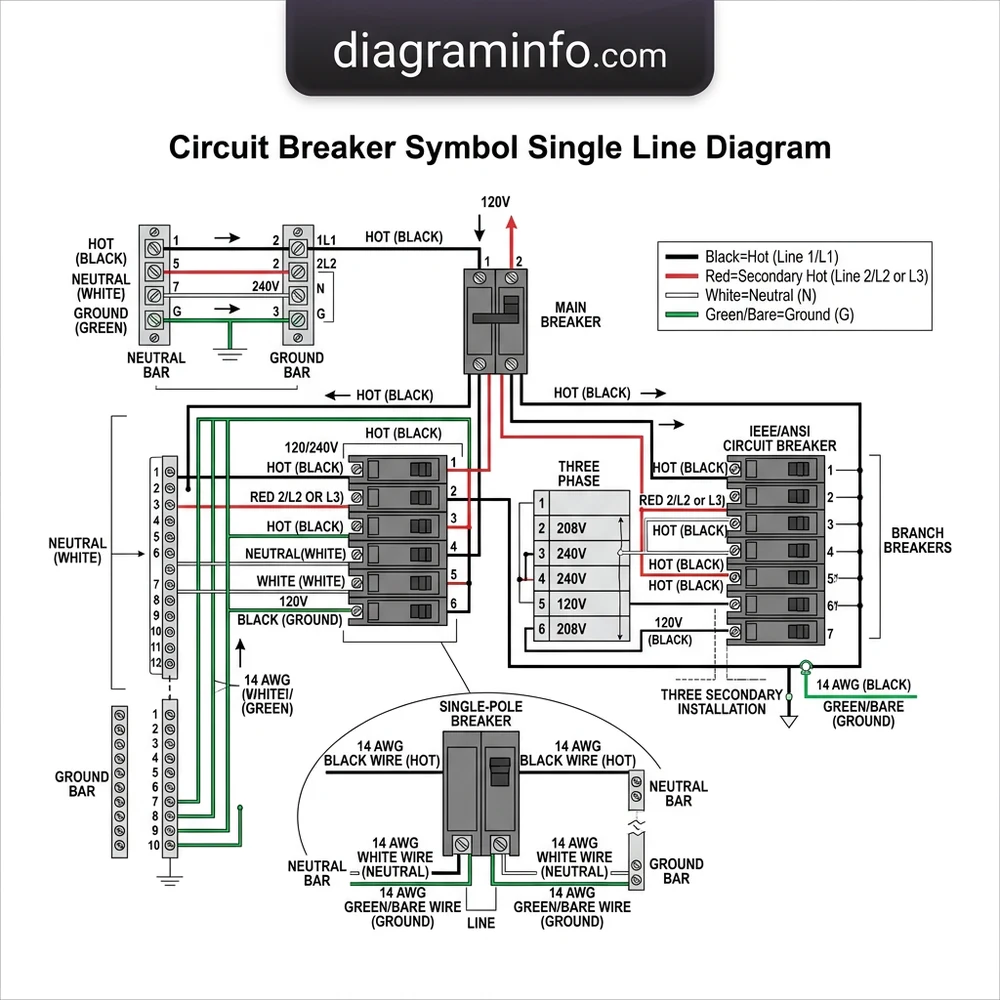

Reading a circuit breaker symbol single line diagram is a critical skill for power distribution technicians, heavy equipment electricians, and automotive system builders. A single line diagram (SLD)—also known as a one-line diagram—simplifies complex polyphase AC or high-current DC power networks into a single-line schematic representation. Rather than detailing every individual conductor, these schematics use standardized electrical symbols to denote circuit breakers, terminal blocks, power busses, and load distribution points. Understanding how to translate these abstract breaker symbols into physical terminal assignments, proper wire gauge selections, and correct conductor routing prevents nuisance tripping, severe voltage drops, and destructive thermal faults during system installation.
Decoding Wire Color Codes and Terminal Block Assignments
When transitioning from a single line diagram to physical panel construction or equipment wiring, schematics rely on standard wire color code conventions and terminal block labeling to define conductor duties. In a single line diagram, a single solid line represents all primary power conductors (such as line, neutral, and ground wires in AC, or positive feed and ground return in DC systems). The table below outlines standard conductor specifications, voltage levels, and terminal pin assignments corresponding to single-line breaker installations.
| Wire Color Code | System Function | Terminal Block / Pin Assignment | Technical Specifications & Notes |
|---|---|---|---|
| Black / Red | Hot Wire (Line Feed) | Breaker Input Terminal L1 / L2 (Pin 1, 3) | Primary energized conductor; sized 10 AWG to 4/0 AWG depending on amperage and operating voltage. |
| White / Grey | Neutral Wire | Terminal Block Neutral Bus (TB-N) | Returns AC current to source; isolated from chassis ground except at main service entrance. |
| Green / Bare Copper | Ground Wire (PE) | Chassis Ground Lug / Terminal Block (TB-G) | Equipment protection ground; must maintain zero resistance to the main distribution frame ground bus. |
| Blue / Yellow | Load Feed (Protected Hot Wire) | Breaker Load Terminal T1 / T2 (Pin 2, 4) | Downstream power line supplying field loads, relays, or subordinate sub-panels. |
| Orange / Purple | Auxiliary Status Contact | Auxiliary Terminal Block Pins 11, 12, 14 | Low-current signaling loop (12V-24V DC) reporting breaker OPEN/CLOSED trip status to PLC/ECU. |
According to OEM installation standards, 15A to 20A branch circuit breakers require a minimum wire gauge of 12 AWG copper, whereas 30A to 50A circuits mandate 10 AWG to 6 AWG conductors rated for 75°C insulation. Line and load side mechanical screw terminals must be torqued precisely to 35-45 in-lbs (4.0-5.1 Nm) for medium frame breakers to prevent high-resistance thermal junctions.
Identifying Electrical Symbols in a Circuit Breaker Single Line Diagram
Single line schematics utilize distinct graphical notation to identify different circuit breaker frame types, trip mechanism characteristics, and physical pole configurations. Recognizing these specific symbols ensures accurate hardware selection and correct wiring layout.
Thermal-Magnetic vs. Electronic Trip Breaker Notation
In standard ANSI/IEEE and IEC single line diagrams, a basic thermal-magnetic circuit breaker symbol is drawn as a square or semicircle overlaying a line break, often paired with a thermal curve icon (a curved bi-metallic element line) and an instantaneous magnetic trip coil loop. If the breaker is equipped with an advanced electronic trip unit (ETU), the single line diagram will feature a solid box labeled “ETU” or “LSIG” adjacent to the breaker switch symbol. “LSIG” indicates adjustable Long-time, Short-time, Instantaneous, and Ground-fault protection settings, defining how the breaker responds to various fault currents.
Multi-Pole Breakers and Disconnect Switches
When representing 2-pole or 3-pole circuit breakers on a single line diagram, the drawing uses small slash marks (ganged indicators) across the line feed or an explicit numeric callout (e.g., “3P” or “3x100A”). A drawout-style circuit breaker symbol—frequently used in medium-voltage equipment—adds upper and lower chevron arrows pointing away from the breaker mechanism, representing the physical racking disconnect pins.
Referencing related control schematics alongside your power distribution single line diagram is recommended when tracing auxiliary switches or remote shunt-trip coils. While the single line diagram highlights primary current flow, three-line schematics and terminal point-to-point drawings detail individual pin assignments for remote monitoring and automated trip controls.
Step-by-Step Electrical Wiring Using a Single Line Schematic
Executing a clean, code-compliant physical wiring installation from a circuit breaker symbol single line diagram requires methodical execution across all line, load, ground, and control connections.
1. De-Energize and Prepare the Main Terminal Block
Verify that primary power feeds are isolated using a calibrated digital multimeter across incoming line terminals. Mount the DIN-rail or panel-mount terminal block array adjacent to the breaker housing. Ensure the ground wire terminal block (TB-G) makes direct metallic contact with the enclosure chassis or grounding electrode conductor.
2. Connect Incoming Hot Wire Line Feeds
Identify the upstream power source from the top section of the single line diagram. Strip a appropriate wire gauge conductor (e.g., 8 AWG black hot wire for a 40A feed) to the manufacturer’s specified strip length (typically 0.5 inches / 12mm). Insert the hot wire into line terminal L1 (Pin 1) on the supply side of the circuit breaker and torque the terminal lug to specification.
3. Terminate Load-Side Branch Circuits
Locate the load side downstream arrow on the single line diagram. Route the output hot wire (blue or red) from circuit breaker load terminal T1 (Pin 2) directly to the designated equipment input or field terminal block. Ensure wire bend radii strictly comply with NEC regulations—never exceed minimum bend limits to prevent insulation shear.
4. Route Neutral Wire and Ground Conductor Continuity
Connect the incoming white neutral wire directly to the main neutral terminal block bus bar (TB-N). Connect downstream load neutral wires to the corresponding output terminals on this same bus. Connect the green or bare copper ground wire directly from the enclosure chassis ground lug to the main grounding terminal block (TB-G) to ensure low-impedance fault clearance pathways.
5. Wire Auxiliary Status Contacts and Shunt-Trip Circuitry
If the circuit breaker single line diagram indicates auxiliary feedback (Aux 11/12/14) or a shunt-trip coil (S1/S2 terminals), route 18 AWG control wires from the auxiliary terminal block to the system control panel or PLC input module. This enables real-time status reporting whenever the breaker trips manually or under fault conditions.
Never reverse line feed and load connections on molded case circuit breakers unless specifically rated for top-or-bottom feed by the manufacturer. Reversing line and load sides on electronic or arc-fault protective devices can cause arc chutes to fail, destroying the breaker during short-circuit events and posing severe flash hazards.
Circuit Breaker Single Line Diagram Wiring Mistakes and Diagnostics
Incorrectly interpreting single line schematics or executing poor terminal block terminations leads to predictable failure modes. The following diagnostics address common installation mistakes encountered in technical field environments.
1. Reversed Line and Load Terminal Routing
Symptom: The circuit breaker trips immediately upon applying load or fails to trip during a controlled overcurrent test. Auxiliary contacts report erratic state changes.
Cause: Power feed hot wire connected to terminal T1/T2 instead of L1/L2.
Fix: Consult the single line diagram to confirm feed direction. Move supply line conductors to the top terminals (L1/L2) and output load conductors to the bottom terminals (T1/T2).
2. Undersized Wire Gauge Causing Thermal Nuisance Trips
Symptom: The circuit breaker trips on thermal overload well below its rated continuous operating amperage.
Cause: Conductor gauge selected is too small for the load current, generating resistive heat at the breaker lug that conducts directly into the internal bi-metallic strip.
Fix: Measure terminal lug operating temperature using an infrared thermometer. Upgrade the hot wire and load conductor to a larger gauge (e.g., replacing 12 AWG with 10 AWG or 8 AWG) compliant with system voltage and amperage ratings.
3. Ground Loop and Floating Neutral Wire Terminations
Symptom: Intermittent ground fault trips, control board voltage fluctuations, or floating line-to-neutral AC voltage readings.
Cause: The neutral wire was accidentally bonded to the ground wire at a downstream terminal block instead of remaining isolated past the main distribution panel.
Fix: Disconnect the downstream neutral wire from the chassis ground terminal block. Verify with an ohmmeter that the load neutral bus maintains infinite resistance to chassis ground in secondary distribution panels.
4. Incorrect Auxiliary Contact Pin Assignment
Symptom: PLC or monitoring controller displays breaker status as “CLOSED” when physically switched “TRIPPED”.
Cause: Wiring attached to the Normally Closed (NC Pin 12) terminal instead of the Normally Open (NO Pin 14) terminal block connection.
Fix: Verify auxiliary terminal pin numbers against the single line symbol legend. Swap the signal wire from Pin 12 to Pin 14 for standard status indication loops.
Frequently Asked Circuit Breaker Single Line Diagram Questions
What is the primary difference between a single line diagram and a three-line schematic?
A single line diagram simplifies a multi-conductor or multi-phase power distribution system into a single line to clearly illustrate overall power flow, protective breaker ratings, and main system architecture. A three-line schematic shows every individual phase line, neutral wire, and ground wire conductor with precise point-to-point physical pin assignments.
How is a fused disconnect switch symbol distinguished from a circuit breaker symbol on a single line diagram?
A circuit breaker symbol typically features a toggle/switch graphic combined with a curved thermal trip element or rectangular trip block icon. A fused disconnect switch combines a knife-switch symbol connected in series with a rectangle or squiggly line indicating a replaceable current-limiting fuse element.
Why do some single line diagrams show a circuit breaker surrounded by a dotted line box?
A dotted or dashed box surrounding a breaker symbol on a single line diagram indicates a complete sub-assembly, a factory-enclosed combination starter, or a field-installed module mounted away from the main distribution terminal block assembly.
What wire color code standards apply to DC circuit breaker single line diagrams in equipment applications?
In DC power systems (e.g., 12V, 24V, or 48V DC equipment panels), the positive hot wire is typically colored red or brown, while the negative return wire is black or dark blue. The chassis ground wire remains green or green-with-yellow-stripes. Always verify against specific OEM wire color code legends before making terminal connections.
How do you determine the correct terminal torque when connecting heavy-gauge conductors to circuit breakers?
Always refer to the technical label affixed directly to the circuit breaker body or the manufacturer datasheet. Terminal torque specifications depend on terminal screw sizing and conductor wire gauge—typically ranging from 25 in-lbs for small branch breakers up to 275+ in-lbs for high-amperage molded case units.
