A Pentair pool pump parts diagram details the wet end and motor assembly structure. Key components include the strainer basket, housing O-ring, diffuser, impeller, shaft seal, and drive motor. Understanding this layout ensures proper mechanical seal orientation and correct torque application during impeller replacement or leak repairs.
📌 Key Takeaways
- Mechanical shaft seal assembly requires standard carbon/ceramic seats installed clean without petroleum lubricants.
- Diffuser O-rings and lid seals require silicone-based lubricant to maintain vacuum configuration and prevent air leaks.
- Disconnect main dual-voltage power supply before servicing the electrical terminal box or motor housing.
- Improper impeller removal without securing the rear motor shaft leads to stripped threads and pump failure.
- DIY replacement is ideal for wet-end gaskets and impellers, while internal motor winding repairs need professional service.
Understanding the mechanical and hydraulic configuration of high-performance residential and commercial pool pumps requires a clear schematic overview. The pentair pool pump parts diagram serves as the definitive reference blueprint for servicing popular models such as the IntelliFlo, WhisperFlo, and SuperFlo series. Whether performing routine seal replacement, clearing impeller obstructions, or executing a complete wet-end overhaul, referencing the official exploded view ensures proper spatial alignment and correct torque application. By analyzing the structural breakdown from the strainer pot to the drive motor, technicians can efficiently diagnose system pressure drops, fluid leaks, and electrical overloads. For related equipment layouts, consult our pool filter schematics overview, explore our variable speed motor wiring guide, or review our pvc plumbing layout blueprint.

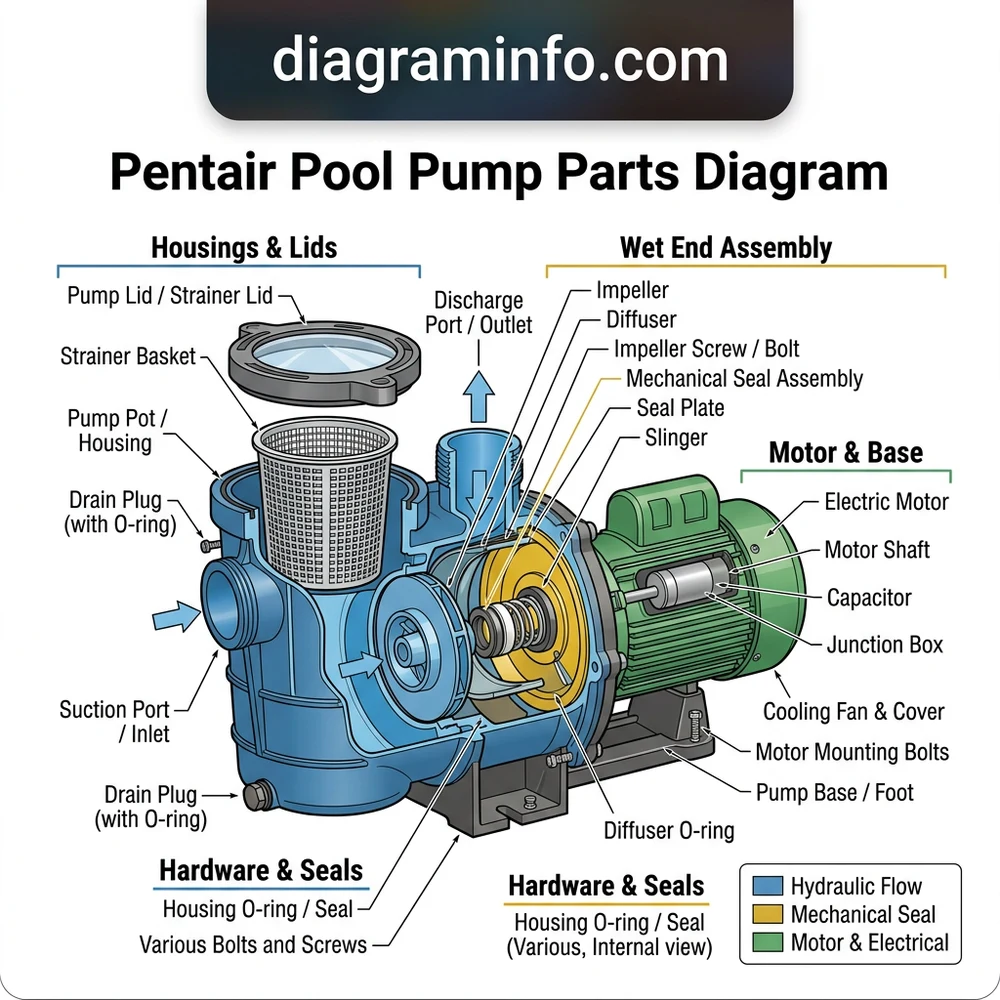

Pentair Pool Pump Parts Diagram: Major System Components Labeled
A standard Pentair pump architecture is divided into two primary sub-assemblies: the wet end (fluid handling) and the dry end (power drive). Understanding how these components integrate according to the pentair pool pump parts diagram prevents incorrect sequence reassembly and internal bypass leaks.
Recommended Best Deal Products
Strainer Pot and Housing Volute
The forward wet-end structure consists of the thermoplastic strainer pot, cam-and-ramp lid, and inner strainer basket. According to OEM specifications, the volute housing isolates fluid pressure and directs incoming pool water into the rotating impeller eye. Dual drain plugs with rubber O-rings located at the base facilitate winterization and total fluid drainage.
Impeller, Diffuser, and Hydraulic Stack
The impeller is threaded directly onto the motor shaft (typically utilizing 7/16-20 UNF left-hand thread or standard right-hand internal threads depending on motor frame type). Surrounding the impeller is the stationary diffuser, which converts high-velocity kinetic energy into static pressure. An O-ring or square seal isolates the high-pressure discharge zone from the low-pressure suction zone to maintain rated hydraulic efficiency.
Mechanical Shaft Seal and Seal Plate
Positioned between the wet end volute and the electric motor, the seal plate acts as the structural mounting bracket. It houses the two-piece mechanical shaft seal (carbon ring and ceramic seat encased in an elastomer boot). This component prevents high-pressure pool water from migrating along the motor shaft into the front motor bearing assembly.
| Diagram Key # | Component Name | Material & Specification |
|---|---|---|
| 1 | Cam and Ramp Lid Assembly | Clear Polycarbonate w/ EPDM O-ring |
| 2 | Strainer Basket | Heavy-duty Polypropylene |
| 3 | Volute / Strainer Pot Body | Glass-filled Noryl® Thermoplastic |
| 4 | Diffuser Assembly | Reinforced Noryl w/ Brass Ring Insert |
| 5 | Closed-Vane Impeller | PPO/PPE blend, matched to motor HP |
| 6 | Mechanical Shaft Seal Set | Carbon-Ceramic / Viton (PS-200 / PS-1000) |
| 7 | Seal Plate Bracket | Reinforced Thermoplastic 56Y / 48Y Frame |
How to Read and Apply the Pentair Pool Pump Schematic
Interpreting a pentair pool pump parts diagram requires understanding exploded-view conventions. Dotted projection lines indicate spatial assembly sequences, fastener locations, and seal orientations. Proper application of these schematics ensures leak-free reassembly and prevents premature mechanical failure.
Tracing Fluid Paths and Mechanical Alignment
Fluid enters through the suction port into the hair and lint strainer, passes through the diffuser cone, and exits through the high-pressure volute outlet. When evaluating the structural layout, always note the orientation of alignment pins on the diffuser relative to the seal plate recess. Misaligning these indexing tabs during reassembly causes structural binding and crushes the impeller wear ring upon bolt torquing.
Disassembly and Seal Replacement Procedure
To service the shaft seal using the structural layout as a guide:
- Disconnect main AC power at the breaker panel and release system residual pressure.
- Remove the four or six housing bolts connecting the seal plate to the volute using a 9/16-inch socket.
- Slide the rear motor assembly away from the strainer pot housing.
- Hold the motor armature shaft flat at the rear end bell with a 7/16-inch wrench while unthreading the impeller counter-clockwise.
- Press the polished ceramic seal ring out of the seal plate pocket and replace both mating halves without touching the optical-flat surfaces with bare skin.
Fastener Torque Specs: Volute Housing Bolts = 110 in-lbs (12.4 Nm); Diffuser Screws = 25 in-lbs (2.8 Nm); Motor Frame Studs = 70 in-lbs (7.9 Nm). Always apply criss-cross torquing patterns to prevent warping thermoplastic flanges.
Never apply petroleum-based greases (such as Vaseline) to EPDM elastomeric gaskets or mechanical seal boots. Petroleum causes synthetic elastomers to swell, distort, and fail under operating system pressure. Use silicone or PTFE lubricants exclusively.
Troubleshooting System Failures Using the Pentair Pump Diagram
System failures usually manifest as air entrainment, reduced total dynamic head (TDH), water leaks at the motor interface, or excessive acoustic noise. Utilizing the pentair pool pump parts diagram simplifies component-level fault isolation.
Suction-Side Air Leaks and Pressure Drop
If air bubbles accumulate inside the transparent lid, cross-reference the suction inlet configuration on your blueprint. Common failure points include flattened pump lid O-rings, unseated drain plug gaskets, or hairline fractures along the strainer pot threads. Inspect items labeled 1 and 3 on the schematic for pitting or debris intrusion.
Drive Shaft Leaks and Bearing Degradation
Water dripping from the weep slot at the base of the seal plate indicates mechanical shaft seal failure. Left uncorrected, moisture enters the front motor bearing, causing race pitting, high-pitched whining, and thermal overload tripping. Replacing the carbon-ceramic seal assembly immediately upon identifying moisture egress prevents permanent motor winding destruction.
When replacing impellers on variable-speed platforms (such as IntelliFlo VSF), verify that the part number matches the dynamic horsepower rating. Installing an over-indexed impeller on a lower-rated motor driver will trigger drive over-current faults (Error Code 0F).
Pentair Pool Pump Parts Diagram and Maintenance FAQ
How do I identify the exact shaft seal part number from my Pentair schematic?
Pentair uses standard PS-200 shaft seals for standard chlorine SuperFlo and WhisperFlo models, while ozone or salt-water sanitized systems require corrosion-resistant Viton or silicon carbide variants (such as PS-1000 or PS-3867). Check your model number suffix on the blueprint legend to verify compatibility.
What causes impeller rubbing inside the volute layout?
Impeller rubbing occurs when the diffuser alignment tabs snap, the shaft seal plate warps due to severe run-dry heat accumulation, or the front motor bearing develops excessive axial end-play. Consult the exploded configuration to ensure the diffuser lock ring and wear ring are properly seated.
Are Pentair SuperFlo and WhisperFlo parts interchangeable?
No. While both follow a similar hydraulic overview, SuperFlo and WhisperFlo utilize completely distinct wet-end footprint dimensions, seal plate bolt circle patterns, and diffuser lock-in configurations. Always reference model-specific parts schematics prior to ordering replacement components.
What torque spec should be used for seal plate bolts?
Manufacturer specifications indicate that wet-end volute bolts should be torqued evenly in a star pattern to 110 inch-pounds. Over-tightening crushes the brass threaded inserts molded directly into the composite pump housing structure.
Can I upgrade a single-speed Pentair pump motor to variable speed without changing the wet end?
Yes. You can retain the volute, strainer basket, and seal plate while mounting a replacement variable-speed motor (such as NEMA 56Y square flange frame). However, always replace the shaft seal and verify that the impeller part number matches the new motor curve capabilities.
Step-by-Step Guide to Understanding the Pentair Pool Pump Parts Diagram
Identify – Match your specific model (e.g., SuperFlo or WhisperFlo) to the correct diagram layout.
Locate – Isolate the failed component or leak point using the exploded system view.
Reference – Note the numbered sequence for seal plate, mechanical seal, and impeller placement.
Connect/Route – Reassemble wet end components in exact diagram order using silicone lube on seals.
Verify – Hand-rotate the rear motor shaft to confirm free impeller spinning without housing contact.
Troubleshoot – Prime the basket with water, start the motor, and inspect seal points for leaks.
