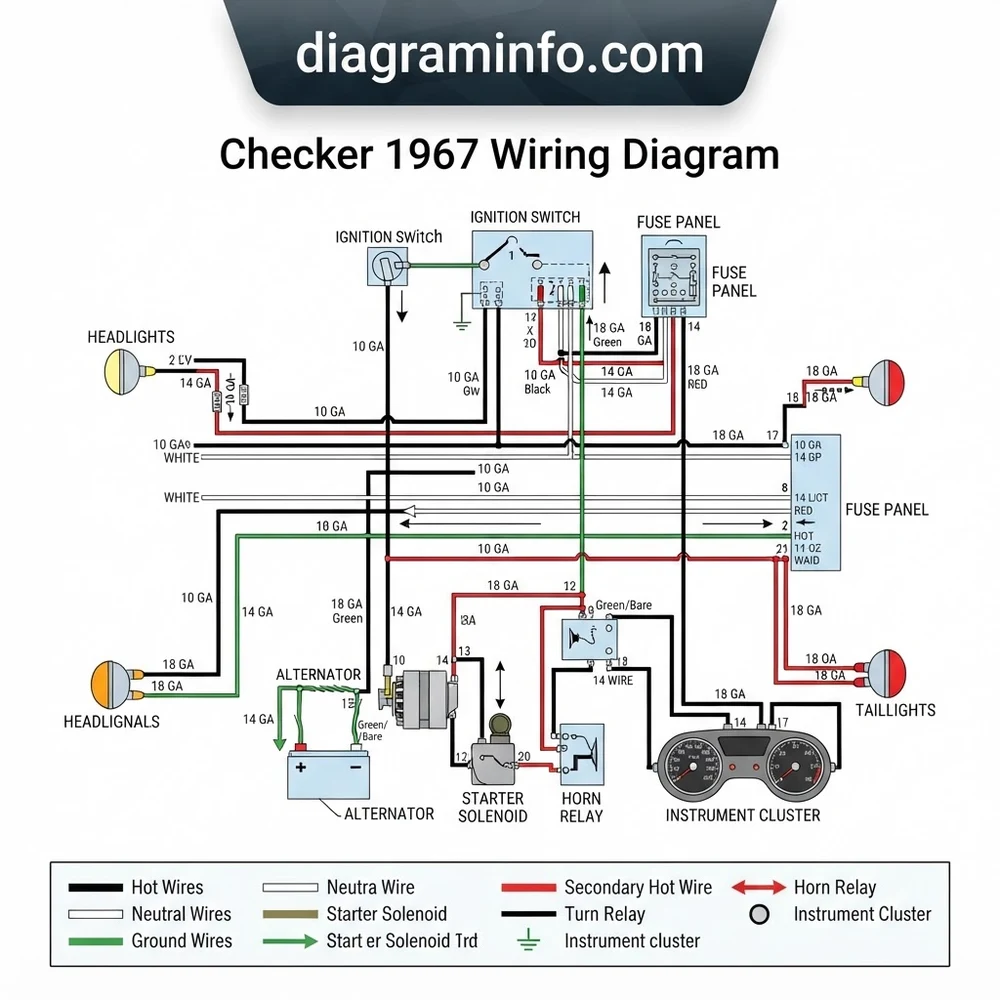

Checker 1967 Wiring Diagram: Wiring & Maintenance 2026
The 1967 Checker wiring diagram features a GM-style harness. The main hot wire is a 10-gauge red wire running from the starter solenoid to the fuse block. Ground wire points attach directly to the chassis frame and body dash panel, while pink wires feed ignition switched power and purple handles starter engagement.
📌 Key Takeaways
- Main constant hot wire uses 10 AWG red wiring directly from the starter solenoid.
- Primary chassis ground wire points must be cleaned down to bare metal on the frame and firewall.
- Ignition feed circuits use pink insulation, while starter signal activation requires a purple wire.
- The firewall bulkhead connector uses specific pin assignment layout to isolate engine and body harnesses.
- Always install properly rated inline fuses when updating classic high-draw electrical accessories.
Executing a complete electrical restoration or diagnosing complex circuit failures on a classic 1967 Checker vehicle—such as the Marathon, Aerobus, or Taxicab series—requires a precise understanding of the original equipment manufacturer (OEM) electrical schematics. During the 1967 model year, Checker Motors Corporation integrated heavy-duty fleet components alongside standard General Motors powertrain harnesses, creating a hybrid electrical system. Utilizing a accurate checker 1967 wiring diagram is essential to correctly route high-current feeds, avoid catastrophic voltage drop across aging bulkhead connectors, establish reliable ground points, and map out critical ignition, charging, and chassis lighting circuits safely.
Checker 1967 Wiring Diagram Terminal Assignments and Color Codes
The standard factory electrical layout on 1967 Checker models relies on standard color-coded primary wire to identify circuit functions across the firewall bulkhead connector and under-dash terminal blocks. Unlike modern multiplexed architectures, the 1967 system uses direct 12-volt DC analog circuits where conductor cross-sectional area (American Wire Gauge) directly corresponds to current demand. When tracing feeds through the main distribution block, matching the OEM wire color code ensures proper fuse protection and terminal pin identification.
Below is the complete wire mapping and terminal specification table for the 1967 Checker chassis and powertrain integration. Circuit voltage across all standard operational branches should measure 12.6V DC nominal at rest and 13.8–14.2V DC under charging conditions.
| Wire Color | Circuit Function | Pin / Terminal ID | Gauge (AWG) & Voltage | Technical Notes |
|---|---|---|---|---|
| Red (Solid) | Unfused Battery Main Hot Wire | Solenoid BAT Terminal / Junction Block | 10 AWG (12V Constant) | Feeds ignition switch, headlight switch, and main fuse panel. |
| Pink (Solid) | Ignition Key ON Supply | Ignition Switch ‘IGN’ / Ballast Resistor | 14 AWG (12V Switched) | Powers coil resistance wire and instrument panel gauges. |
| Purple (Solid) | Starter Solenoid Energize Circuit | Ignition Switch ‘SOL’ to Neutral Switch Pin 1 | 12 AWG (12V Crank Only) | Passes through the neutral safety switch before starter solenoid connection. |
| Black (Solid) | Main Chassis Ground Wire | Engine Block / Firewall Terminal Block | 10–14 AWG (0V Return) | Must maintain zero resistance (<0.2 Ohms) to battery negative terminal. |
| Brown (Solid) | Voltage Regulator Field / Charge Lamp | Regulator Terminal ‘4’ / Generator Lamp | 16 AWG (12V Indicator) | Provides initial field excitation voltage for Delco 10DN alternator. |
| Blue (Dark) | Front Right Turn Signal & Park | Steering Column Connector Pin H | 16 AWG (12V Pulsed) | Routes through hazard flasher module on main fuse block. |
| Yellow (Solid) | Left Rear Stop / Turn Signal Wire | Turn Signal Switch to Tail Lamp Junction | 16 AWG (12V Switched) | Shares filament circuit with brake light switch output. |
| Green (Dark) | Right Rear Stop / Turn Signal Wire | Turn Signal Switch to Tail Lamp Junction | 16 AWG (12V Switched) | Splices directly into rear commercial lighting terminal block. |
| Light Green | Headlight High Beam Output | Foot Switch Terminal 3 to Headlamp Pin | 14 AWG (12V Switched) | Powers high beam dash indicator light in parallel. |
| Tan (Solid) | Fuel Level Sender Signal Wire | Fuel Tank Unit to Instrument Cluster Pin B | 18 AWG (0–90 Ohm Signal) | Standard GM 0–90 ohm sender range (0 ohms empty, 90 ohms full). |
All primary charging connections (alternator BATT post to horn relay junction) must utilize 10 AWG high-temperature cross-linked polyethylene (XLPE/SXL) insulation rated for 125°C. Never substitute primary distribution lines with standard 16 AWG automotive wire, as current draw from early commercial heater blowers and double-beam quad headlights routinely exceeds 28 Amps continuous load.
Executing Electrical Connections Using the Checker 1967 Wiring Diagram
Completing a harness install or rewiring a sub-system on a 1967 Checker requires adhering to the specific circuit flow dictated by the OEM layout. Because these vehicles utilize a unibody front subframe isolated from the main cab on rubber bushings, ground wire paths are just as critical as primary hot wire feeds.
Follow this standardized, step-by-step connection sequence when referencing your wiring schematic:
- Establish Primary Battery and Junction Block Feeds: Connect the main 2 AWG positive battery cable to the top high-current terminal of the starter solenoid. Attach the secondary 10 AWG red hot wire from the starter terminal to the primary firewall terminal block. This point provides un-fused 12V DC power to the ignition switch supply feed and the main headlight switch circuit.
- Wire the Starter Solenoid and Ignition Switch: Connect the 12 AWG purple wire from the ignition switch ‘SOL’ pin assignment to Pin 1 of the neutral safety switch mounted on the steering column base. From Pin 2 of the neutral safety switch, run the remaining leg of the 12 AWG purple wire directly to the ‘S’ terminal on the starter solenoid.
- Integrate the Ignition Primary Circuit and Ballast Resistor: Connect the 14 AWG pink hot wire from the ignition switch ‘IGN’ terminal to the input side of the ceramic ballast resistor (or resistance wire loop). Connect the output side of the ballast resistor to the coil positive (+) terminal using 14 AWG brown/yellow wire. Connect a secondary 14 AWG wire from the ‘R’ terminal on the starter solenoid directly to the coil positive terminal to supply full 12V during cranking operations.
- Wire the External Voltage Regulator and Charging System: If maintaining the factory 10DN Delco charging system, assign terminal connections at the fender-mounted regulator as follows: Terminal 1 to Alternator Terminal 1 (16 AWG White); Terminal 2 to Alternator Terminal 2 (16 AWG Blue); Terminal 3 to the Main Junction Block (12 AWG Red); Terminal 4 to the Dash Gen Light (16 AWG Brown). Ensure the regulator housing maintains clean metal-to-metal contact with the inner fender panel to complete its return ground wire path.
- Complete Chassis and Subframe Grounding Straps: Install a heavy 4 AWG braided copper ground wire strap between the engine cylinder head and the firewall grounding stud. Run a secondary 10 AWG black ground wire from the firewall grounding block to the main dashboard frame. Never rely on sheet metal spot welds for current return loops. Refer to our companion guide on 12V automotive circuit voltage drop testing to verify ground connection integrity.
On 1967 Checker models equipped with Chevrolet inline-6 or V8 engines, the horn relay acts as the main busbar/junction block for the entire vehicle cab. Disconnecting the red wire at this terminal de-energizes the whole dash, but leaves the starter cable energized directly from the battery. Always disconnect the battery negative terminal before servicing any terminal block connections.
Troubleshooting Common Checker 1967 Wiring Diagram Faults
Restoring vintage fleet wiring often involves tracking down intermittent failures caused by thermal degradation, non-factory modifications, or elevated electrical resistance. When diagnosing electrical faults against the 1967 schematic, focus troubleshooting efforts on these frequently encountered system failures:
1. Steering Column Switch Neutral Safety Switch Failure
Symptom: Vehicle fails to crank when turning the ignition key to the START position, despite a fully charged battery and healthy starter solenoid.
Diagnosis: Locate the 12 AWG purple hot wire leading from the ignition switch to the neutral safety switch mounted near the base of the column. Measure voltage across the switch terminals in Park and Neutral. If 12V DC is present at the input pin but zero volts is detected on the output pin, the switch alignment tab is broken or internal contact oxidation has occurred. Adjust the mechanical slider housing or replace the switch assembly.
2. Rear Lighting Ground Loop Failures
Symptom: Tail lamps dim significantly when the brake lights or turn signals are activated, or turn signal indicators on the dash illuminate solid.
Diagnosis: The 1967 rear lamp housings rely on a shared ground wire loop routed along the left frame rail to a junction block behind the rear bumper. Corroded mounting hardware causes high resistance on the neutral ground wire loop. Connect a jumper wire from the rear lighting socket body directly to clean chassis steel. If light output normalizes, inspect and replace the rear chassis ground wire connection.
3. Delco 10DN Regulator Voltage Spike / Battery Overcharging
Symptom: Battery spews electrolyte, headlamps flicker bright to dim with engine RPM changes, and system voltage exceeds 15.2V DC.
Diagnosis: Probe Terminal 3 on the voltage regulator harness plug. If the sensing wire exhibits a voltage drop greater than 0.5V compared to battery terminal voltage, the regulator over-energizes the alternator field circuit to compensate. Clean the inline terminal block connectors between the firewall and the regulator sensing lead to restore precise voltage sensing accuracy. For internal regulator modernizations, consult our step-by-step GM Delco 10DN to 10SI alternator conversion diagram.
The glass-fuse block in 1967 Checker cabs is exposed to ambient moisture under the driver side kick panel. Copper fuse spring clips frequently build up green copper oxide layer, acting as an insulator. Always clean terminal clips with electrical contact cleaner and a small brass wire brush, then apply dielectric grease during rebuilds to prevent high-resistance thermal buildup.
Checker 1967 Wiring Diagram Frequently Asked Technical Questions
What wire gauge is required for the main charge wire from the alternator on a 1967 Checker?
The stock 37-amp Delco 10DN charging system utilizes a 12 AWG red main charge wire running from the alternator ‘BAT’ output post to the horn relay junction block. If upgrading to a modern 63-amp or 100-amp 10SI/12SI alternator setup, you must increase this charging wire gauge to a 10 AWG or 8 AWG conductor protected by a 14 AWG fusible link to prevent harness meltdown during heavy electrical loading.
How does the ignition switch hot wire supply power to the coil circuit?
On the 1967 OEM harness, power originates from the ignition switch ‘IGN’ terminal via a 14 AWG pink hot wire. To protect the ignition breaker points from burning out during continuous operation, this feed drops voltage from 12V down to approximately 7.5 to 9.0V DC through a factory-calibrated 1.8-ohm special resistance wire (or firewall ceramic resistor). During engine cranking, a secondary 14 AWG bypass wire from the starter solenoid ‘R’ terminal applies full 12V battery voltage directly to the coil positive terminal for quick engine starting.
Where is the main dashboard instrument cluster terminal block located?
The main dash instrument cluster feed links to the chassis harness via a multi-pin mechanical connector located directly behind the speedometer housing. Individual pin assignments route the 18 AWG tan fuel signal wire, 18 AWG dark blue oil pressure sending wire, 18 AWG dark green water temperature sender, and 16 AWG pink ignition hot wire to individual gauge studs. Additional installation detail can be verified through our master classic fleet relay harness specifications database.
Does the 1967 Checker electrical harness use fused neutral wire return legs?
No, like most American vehicles of the era, the 1967 Checker wiring scheme switches the positive hot wire side of almost all individual circuits while relying on chassis metal for ground returns. The neutral ground wire paths are unfused. The single notable exception is the instrument illumination dimmer circuit, which is protected on the positive side by a dedicated 4-amp shorty glass fuse integrated right into the lower body of the rotary headlight switch assembly.
Why do the headlights flick on and off intermittently when driving at night?
This condition is caused by an internal thermal circuit breaker inside the main headlight switch unit tripping and resetting automatically. When headlights flick continuously, it indicates current draw across the light green (high beam) or tan (low beam) hot wire paths exceeds 15 Amps. This is usually due to age-related elevated wire resistance, degraded ground points at the front core support, or retrofitting high-wattage modern halogen sealed-beam headlamps onto the stock harness without installing auxiliary headlight relays.
Step-by-Step Guide to Understanding the Checker 1967 Wiring Diagram
Identify – Disconnect the battery battery ground cable and review the complete schematic diagram.
Locate – Find the main firewall bulkhead connector and verify all terminal corrosion is cleaned.
Reference – Match each wire color code to its corresponding pin assignment on the fuse block chart.
Connect/Route – Route the main 10 AWG hot wire from the starter solenoid directly to the dashboard harness.
Verify – Connect a test light or multimeter to check ground wire conductivity and switch voltage.
Troubleshoot – Test individual lighting, wiper, and ignition circuits one at a time before reinstalling body panels.
