30 Amp Breaker Wiring Diagram: Easy Setup Guide
A 30 amp breaker wiring diagram illustrates connecting a double-pole breaker to a panel. The hot wire attaches to the breaker terminal, while the neutral wire and ground wire connect to their respective bus bars. In specialized high-amperage control circuits, you may also identify a traveler wire and common terminal.
📌 Key Takeaways
- Visualizes correct wire placement for high-amperage 240V or 120V circuits
- Identifying the correct 10 AWG wire gauge for safety
- Always turn off the main power before opening the service panel
- Critical for high-power appliances like water heaters and dryers
- Shows the essential separation of neutral and ground connections
When you are upgrading a home workshop, installing a high-power appliance, or setting up an RV hookup, understanding a 30 amp breaker wiring diagram is the most critical step in the process. A 30-amp circuit is a significant step up from standard 15-amp or 20-amp household circuits, and it requires specific components to handle the increased electrical load safely. This article provides a detailed breakdown of how these circuits are structured, focusing on terminal identification, wire color coding, and the physical installation process. By the end of this guide, you will understand how to interpret a wiring diagram to ensure your high-voltage equipment operates reliably without posing a fire hazard.
A 30-amp circuit almost always requires 10-gauge copper wire. Using a thinner wire, such as 12-gauge or 14-gauge, can lead to overheating and potential electrical fires because the wire cannot safely carry the 30-amp current.
Understanding the 30 Amp Breaker Wiring Diagram Components
A 30 amp breaker wiring diagram serves as a blueprint for the flow of electricity from your main service panel to a specific load. Most 30-amp circuits are designed for 240-volt applications, such as electric clothes dryers, central air conditioning units, or electric water heaters. However, some 30-amp circuits are 120-volt, commonly used for RV power pedestals.
The primary components of the diagram include the circuit breaker itself, the conductor wires, and the receptacle or appliance terminal. In a 240-volt 30-amp setup, you will typically see a “Double-Pole” breaker. This breaker occupies two slots in your electrical panel and connects to two separate 120-volt bus bars to provide a total of 240 volts. The wiring for this setup involves two “hot” wires (usually black and red), one neutral wire (white), and one ground wire (green or bare copper).
In contrast, a 120-volt 30-amp diagram utilizes a “Single-Pole” breaker. This setup only uses one hot wire, one neutral wire, and one ground wire. Regardless of the voltage, the identification of terminals is crucial. On the receptacle end, you will often find a brass screw for the hot wire, a silver screw for the neutral wire, and a green screw for the ground wire. If you are working with a 240V 4-prong outlet (NEMA 14-30R), the diagram will show two brass terminals to accommodate both hot wires.

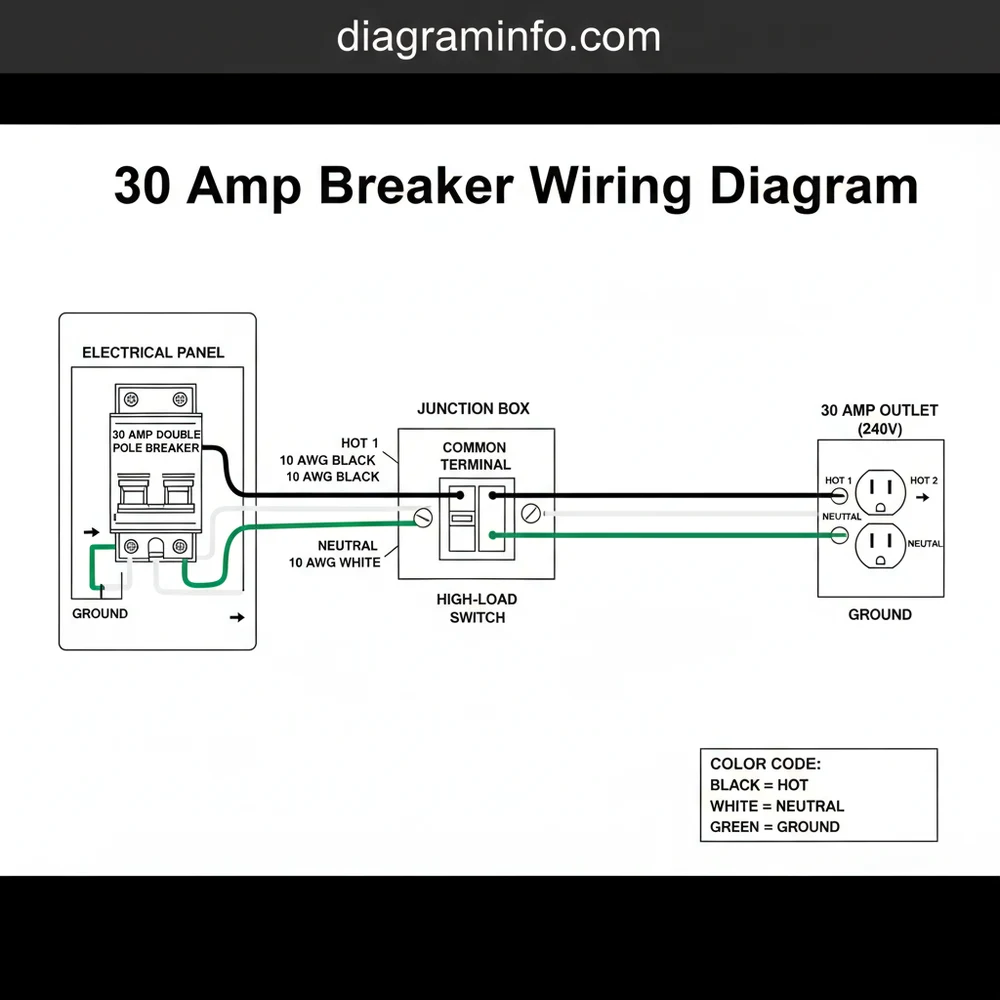

– Visual Representation: A double-pole 30-amp breaker connected to a NEMA 14-30R outlet using 10/3 non-metallic (NM) cable. The black and red hot wires attach to the breaker lugs, the white neutral wire connects to the silver neutral bus bar, and the bare copper ground wire connects to the ground bus bar.
Never install a 30-amp breaker on a circuit that uses 12-gauge or 14-gauge wire. The breaker is designed to protect the wire; if the wire is too thin, it will melt before the breaker trips.
Step-by-Step Guide to Installation and Interpretation
Following a 30 amp breaker wiring diagram requires a methodical approach to ensure every connection is secure and follows the National Electrical Code (NEC). Below are the steps to interpret the diagram and complete the installation.
1. Preparation and Safety Protocol
Before touching any wires, turn off the main breaker in your service panel. Even with the main breaker off, the lugs where the main power enters the panel remain live, so proceed with extreme caution. Use a non-contact voltage tester to verify that the bus bars you are working near are not energized.
2. Selecting the Correct Gauge and Materials
Consult your diagram to confirm the wire gauge. For a 30-amp circuit, you must use 10 AWG (American Wire Gauge). If the run is exceptionally long (over 100 feet), you may need to increase the gauge to 8 AWG to account for voltage drop. For a standard 240V dryer outlet, you will need 10/3 cable, which contains a black hot wire, a red hot wire, a white neutral wire, and a ground wire.
3. Routing the Cable to the Panel
Run the cable from the appliance location or receptacle box to the electrical panel. Strip approximately 6 to 8 inches of the outer jacket off the cable once it is inside the panel. Use a proper cable connector to secure the wire to the panel box, preventing the sharp edges of the knockout hole from cutting into the insulation.
4. Connecting the Ground and Neutral Wires
Locate the ground bus bar and the neutral bus bar in your panel. In many main panels, these are bonded together, but in sub-panels, they must remain separate.
- ✓ Connect the green or bare copper ground wire to the ground bus bar and tighten the screw firmly.
- ✓ Connect the white neutral wire to the neutral bus bar. Ensure the connection is tight to avoid “floating neutral” issues.
5. Wiring the 30-Amp Breaker Terminals
Strip about 1/2 inch of insulation from the ends of the black and red hot wires. Insert the black wire into one terminal lug on the 30-amp double-pole breaker and the red wire into the other. There is no specific order for black or red on the breaker; both provide 120V to ground. Tighten the lugs according to the torque specifications printed on the breaker.
6. Seating the Breaker
Align the breaker with the chosen slots on the bus bar. Hook the mounting end of the breaker onto the plastic rail and press the terminal end firmly onto the metal bus bar tabs until it clicks into place. Ensure it sits flush with the existing breakers.
7. Wiring the Receptacle End
At the outlet, follow the diagram’s terminal identification. The common terminal is not usually a term used for 30A outlets, but rather you will look for specific labels. On a NEMA 14-30R:
- ✓ The hot wires (black and red) connect to the brass screws.
- ✓ The neutral wire (white) connects to the silver screw.
- ✓ The ground wire connects to the green hexagonal screw.
When connecting wires to screw terminals, always wrap the wire clockwise around the screw. This way, as you tighten the screw, it pulls the wire tighter into the connection rather than pushing it out.
Common Issues & Troubleshooting
/double-pole-circuit-breaker-59b9782822fa3a0011a34fde.jpg)
Even with a perfect 30 amp breaker wiring diagram, issues can arise during or after installation. One frequent problem is a “tripping” breaker immediately upon restoration of power. This usually indicates a short circuit, where a hot wire is touching the neutral or ground wire.
Another common issue is a “humming” sound or excessive heat coming from the breaker. This is often caused by a loose connection at the breaker lug or a breaker that is not fully seated on the bus bar. If you notice a drop in voltage at the appliance, it may be due to poor contact at the neutral wire or a loose connection on one of the hot wires.
- ✓ Warning Sign: Discoloration or melting on the wire insulation.
- ✓ Warning Sign: A “burning” smell near the panel.
- ✓ Warning Sign: The appliance works intermittently or loses power under load.
If you encounter these issues and cannot find a visible loose screw or crossed wire, it is time to seek professional help. Electrical panels can be dangerous, and a professional electrician has the tools to test for resistance and load balance that a DIYer might lack.
Tips & Best Practices for 30 Amp Circuits
To ensure the longevity of your installation, always match the breaker brand to your panel brand. While some breakers are listed as “compatible,” using a Square D breaker in an Eaton panel (or vice versa) can lead to poor bus bar contact, which generates heat over time.
Maintenance is also key. Every few years, it is a good practice to (with the power off) check the tightness of the lugs on high-draw breakers like your 30-amp units. Thermal expansion and contraction can cause these connections to loosen slightly over years of use.
When purchasing components, opt for “Industrial Grade” or “Spec Grade” receptacles, especially for RV hookups or shop tools. These outlets feature higher-quality internal contacts and stronger brass screw terminals that hold the 10-gauge wire more securely than standard residential-grade outlets.
Finally, always leave a “drip loop” or a bit of extra slack in the wire before it enters the breaker. This prevents any moisture that might enter the conduit from running directly into the breaker terminals and makes it much easier to move or replace the breaker in the future. By following these best practices and adhering strictly to your 30 amp breaker wiring diagram, you can build a safe, efficient, and code-compliant electrical system.
Frequently Asked Questions
Where is the 30 amp breaker located?
The 30 amp breaker is located inside your home’s main service panel or a subpanel. It is typically a double-pole breaker taking up two slots for 240V applications, or a single-pole breaker for 120V, and is clearly marked with the number ’30’ on the toggle switch handle.
What does a 30 amp breaker wiring diagram show?
This diagram shows the specific path of electrical current from the bus bar through the breaker to the load. It highlights the connections for the hot wire, neutral wire, and ground wire, ensuring the circuit is balanced and safely grounded to prevent electrical fires or dangerous short circuits.
How many wires does a 30 amp breaker have?
A standard 240V 30 amp circuit uses four wires: two hot wires, one neutral wire, and one ground wire. In specific switching applications involving a traveler wire and common terminal, the diagram ensures multi-point control or specialized appliance requirements are met using the correct 10-gauge electrical wiring.
What are the symptoms of a bad 30 amp breaker?
Symptoms include the breaker frequently tripping under normal loads, a burning smell coming from the panel, or the breaker feeling hot to the touch. If the breaker won’t reset or shows visible signs of scorching near the hot wire terminal, it must be replaced immediately to ensure safety.
Can I install a 30 amp breaker myself?
While a DIYer can follow a wiring diagram, working inside a live service panel is dangerous. You must turn off the main breaker and use insulated tools. If you are unsure about handling the hot wire or grounding system, it is highly recommended to hire a licensed electrician.
What tools do I need for 30 amp breaker wiring?
You will need a screwdriver set, wire strippers rated for 10-gauge wire, and a voltage tester to ensure the power is off. A torque wrench is also recommended to tighten terminals to the manufacturer’s specified inch-pounds for a secure connection on the hot wire and common terminal.
