To ensure the safe and efficient operation of any technical equipment, precise electrical connections are paramount. For evaporative coolers, commonly known as swamp coolers, correctly wiring the power plug is a critical task that directly impacts performance, longevity, and safety. This detailed guide and accompanying “swamp cooler plug wiring diagram” provides automotive technicians, equipment maintainers, and experienced DIYers with the authoritative instructions necessary to execute this procedure with precision, adhering to established electrical safety standards and manufacturer specifications. Proper pin assignment and wire color code identification are foundational to preventing operational hazards and ensuring reliable functionality.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

STEP-BY-STEP CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

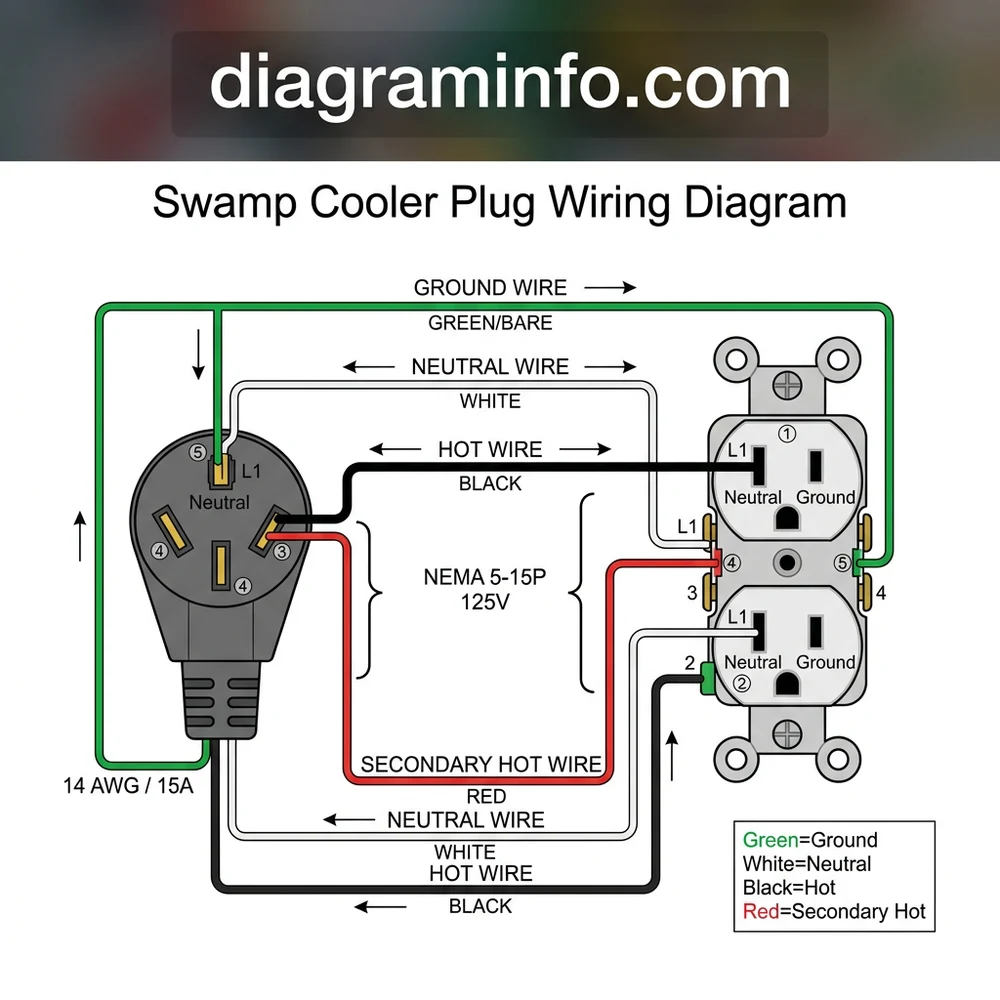

Successfully wiring a power plug for a swamp cooler requires meticulous attention to detail, adherence to the specific wire color code, and proper terminal identification. This guide outlines the precise sequence for connecting a standard NEMA 5-15P or NEMA 5-20P plug for a 120V AC swamp cooler application, referencing the “swamp cooler plug wiring diagram” above (Fig 1) for visual confirmation.

1. Isolate Power and Prepare Cable: Confirm the power supply to the swamp cooler unit is completely disconnected and secured against accidental re-energization. Strip the outer jacket of the power cable back approximately 2 to 2.5 inches (50-65mm) from the end. This will expose the internal insulated conductors: black (hot), white (neutral), and green or bare copper (ground).
2. Strip Individual Conductors: Carefully strip approximately 1/2 to 3/4 inch (12-19mm) of insulation from the end of each individual conductor. Ensure that no stray wire strands remain exposed beyond the stripped portion, which could lead to short circuits or arc faults. For optimal connection and to prevent fraying, twist the exposed copper strands clockwise into a tight bundle.
3. Identify Plug Terminals: Open the power plug housing, typically by removing a central screw or via a snap-fit mechanism. Inside, locate the three main screw terminals. As indicated in the “swamp cooler plug wiring diagram” (Fig 1) and confirmed by the wire color reference table, the brass-colored screw terminal is for the hot wire, the silver-colored screw terminal is for the neutral wire, and the green-colored screw terminal is for the ground wire.
4. Connect the Ground Wire: Loosen the green screw terminal. Form a clockwise hook with the stripped green or bare copper ground wire. Insert the hooked wire around the green screw terminal, ensuring it is fully captured. Tighten the green screw securely. The clockwise bend ensures that tightening the screw pulls the wire further into the terminal, enhancing the connection. This is a critical safety connection; ensure it is robust.
5. Connect the Neutral Wire: Loosen the silver screw terminal. Form a clockwise hook with the stripped white neutral wire. Insert the hooked wire around the silver screw terminal. Tighten the silver screw firmly. Ensure no insulation is caught under the terminal and no bare copper strands are exposed beyond the screw head.
6. Connect the Hot Wire: Loosen the brass screw terminal. Form a clockwise hook with the stripped black hot wire. Insert the hooked wire around the brass screw terminal. Tighten the brass screw with sufficient torque to ensure a solid electrical connection. According to manufacturer specifications for most NEMA-rated plugs, a torque of 12-14 in-lbs (1.3-1.6 Nm) is recommended. Verify no exposed copper strands are visible, particularly between the hot and neutral terminals.
7. Secure Strain Relief: Before reassembling the plug housing, ensure the cable’s outer jacket is properly clamped by the plug’s internal strain relief mechanism. This prevents tension on the individual conductor connections, protecting against wire pull-out and short circuits. Adjust the clamp as necessary to grip the cable firmly without crushing it.
8. Reassemble and Verify: Carefully reassemble the plug housing, ensuring all internal wires are neatly tucked away and not pinched. Secure the housing screws. Perform a visual inspection for any exposed conductors or potential issues. For advanced diagnostics, use a continuity tester or multimeter to verify correct pin assignment (e.g., hot to shorter blade, neutral to taller blade, ground to ground pin) and confirm no short circuits exist between terminals before applying power.

COMMON WIRING MISTAKES & TROUBLESHOOTING

Incorrect wiring of a swamp cooler power plug can lead to a range of issues from minor operational inefficiencies to significant safety hazards. Recognizing and rectifying these common mistakes is crucial for any technician.

1. Reversed Polarity (Hot and Neutral Swapped):
   • Mistake: Connecting the black (hot) wire to the silver (neutral) terminal and the white (neutral) wire to the brass (hot) terminal.
   • Consequence: While the swamp cooler might still operate, components like switches, fan motors, and pumps remain energized even when the unit is “off” via its internal controls. This creates a shock hazard, as the outer casing or internal components could become live, and increases the risk of electrical fire.
   • Fix: Immediately de-energize the circuit. Re-open the plug and correctly assign the black wire to the brass terminal and the white wire to the silver terminal, following the “swamp cooler plug wiring diagram.” Always use a plug tester to confirm correct polarity after reassembly.
2. Inadequate Ground Connection:
   • Mistake: A loose, missing, or improperly connected green or bare copper ground wire to the green screw terminal.
   • Consequence: The primary safety mechanism against electrical shock is compromised. In the event of an internal fault (e.g., a short to the appliance casing), the fault current has no safe path to ground, potentially energizing the cooler’s metal frame and presenting a severe electrocution risk.
   • Fix: Ensure the ground wire is securely fastened to the green screw terminal with a clockwise loop. The connection must be tight and free of corrosion. Verify continuity between the ground pin of the plug and the metal chassis of the swamp cooler.
3. Insufficient Strain Relief:
   • Mistake: The external cable jacket is not properly clamped by the plug’s internal strain relief mechanism.
   • Consequence: Repeated tugging or movement of the power cord places direct mechanical stress on the individual wire connections inside the plug. This can cause wires to pull loose from their terminals, leading to intermittent power, short circuits (if insulation is compromised), or complete disconnections.
   • Fix: Disassemble the plug. Adjust the strain relief clamp to firmly secure the outer jacket of the cable. The clamp should hold the cable without damaging it, preventing any movement of the individual insulated wires at their terminal points.
4. Incorrect Wire Gauge:
   • Mistake: Using a power cord with a wire gauge that is too small (higher AWG number) for the swamp cooler’s current draw. For instance, using 18 AWG for a 15-Amp cooler.
   • Consequence: Undersized wiring creates excessive resistance, leading to voltage drop and significant heat generation within the wire. This can cause reduced cooler performance, premature wire insulation degradation, and a serious fire hazard.
   • Fix: Consult the swamp cooler’s nameplate for its amperage rating. Replace the entire power cord with one that meets or exceeds the minimum gauge requirement. For typical 120V swamp coolers drawing up to 15 amps, a 14 AWG cable is generally acceptable, with 12 AWG offering a safer margin for longer runs or higher draw units. For detailed wire gauge selection, refer to our resource on Selecting the Correct Wire Gauge for Automotive & Equipment Applications.
5. Loose Terminal Connections:
   • Mistake: Screws connecting wires to terminals are not tightened adequately.
   • Consequence: A loose connection increases electrical resistance at the contact point, causing localized heat buildup. This can melt insulation, carbonize the wire and terminal, and eventually lead to arcing, intermittent power, or complete failure. It’s a common cause of electrical fires.
   • Fix: De-energize and re-tighten all terminal screws to the manufacturer’s specified torque. Visually inspect for any signs of heat damage (discoloration, melted plastic) and replace the plug if any are observed.

FAQ

What is the significance of the “wire color code” in a swamp cooler plug?

The wire color code (black for hot, white for neutral, green/bare for ground) is a standardized system, particularly in North America, designed for safety and consistency. It ensures that technicians and users can easily identify the function of each conductor. Adhering to this code, as shown in the “swamp cooler plug wiring diagram,” prevents dangerous misconnections such as reversed polarity, which can create shock hazards and component damage. Deviating from the standard color code can lead to confusion and increased risk during maintenance or troubleshooting.

Can I use a 240V plug for my 120V swamp cooler?

No, you absolutely cannot use a 240V plug (e.g., NEMA 6-15P or 6-20P) for a swamp cooler designed for 120V operation. Connecting a 120V appliance to a 240V source will severely overvoltage the internal components, leading to immediate and catastrophic failure of the motor, pump, and control board, potentially causing fire or electrocution. Always match the plug and receptacle type to the equipment’s specified operating voltage. Refer to the cooler’s nameplate for its voltage requirements.

Why is the “ground wire” connection so critical for swamp coolers?

The ground wire (green or bare copper) provides an essential safety path for fault currents. In the event of an electrical malfunction, such as a hot wire accidentally touching the metal casing of the swamp cooler, the ground wire rapidly directs this dangerous current away from the equipment and back to the electrical panel, tripping a circuit breaker or blowing a fuse. This prevents the cooler’s metal frame from becoming energized, thereby protecting users from severe electrical shock. Without a proper ground, a fault condition makes the equipment a significant electrocution hazard.

What “voltage” should I expect at the terminals of a properly wired 120V swamp cooler plug?

When measured with a multimeter, you should expect approximately 120 Volts AC (VAC) between the hot (black wire, brass terminal, shorter blade) and neutral (white wire, silver terminal, taller blade) connections. You should also measure approximately 120 VAC between the hot (black) and ground (green wire, green terminal, round/D-shaped pin). The neutral and ground connections should show near zero voltage relative to each other. These voltage readings confirm correct wiring and proper power delivery to the plug, assuming the source circuit is also correct.

What is the recommended “gauge” for a swamp cooler power cord?

The appropriate wire gauge depends directly on the swamp cooler’s amperage draw and the length of the power cord. For most residential or light commercial 120V swamp coolers, which typically draw between 5 and 15 amps, a 14 American Wire Gauge (AWG) cord is commonly sufficient. However, for units drawing closer to 20 amps, or if the cord length exceeds 50 feet, a heavier 12 AWG cable is strongly recommended to prevent excessive voltage drop and overheating. Always consult the cooler’s manufacturer specifications and local electrical codes (e.g., NEC Article 210) to determine the precise requirements for your specific application. For more information on electrical load calculations and wire sizing, consult resources on Electrical Load Calculations and Wire Sizing for HVAC Systems.
