7-Way Single Axle Trailer Brake Wiring Diagram Guide (2026)
A single axle trailer brake wiring diagram using a standard 7-way RV blade connector routes the blue 10-AWG wire (pin 2) to electric brake magnets, white (pin 1) to battery ground, black (pin 4) to 12V auxiliary power, green (pin 3) to running lights, yellow (pin 5) to left turn signal, and brown (pin 6) to right turn signal.
📌 Key Takeaways
- Electric brakes demand a dedicated 10-AWG blue wire delivering 12V direct output from an in-cab brake controller to the brake magnets.
- Standard 7-way RV blade connections use Pin 1 (white wire) exclusively for chassis ground to prevent voltage drop and signal flickering.
- Electrical brake actuators require continuous 12V auxiliary power (black wire) via a minimum 30-amp inline circuit breaker for safety.
- Poor frame grounds and corroded wire connectors account for over 80% of trailer electric brake and lighting circuit failures.
- DIY wiring is suitable for standard harness installation, but professional service is recommended if brake magnets draw over 3.0 amps each.
Modern single axle trailers equipped with electric drum brakes—such as utility trailers, car haulers, and compact travel trailers under 3,500 lbs GVWR—rely on a standardized electrical interface to manage lighting and braking dynamics safely. Wiring a single axle electric brake assembly requires migrating from a standard 4-pin flat connector to a 7-way RV blade plug (SAE J2863) or a dedicated 5-pin/6-pin harness. Electric brakes function through electro-magnetic actuators located inside 10-inch or 12-inch brake drum backplates. These actuators require direct current from an in-cab proportional or time-delayed brake controller. Understanding the exact terminal mapping, color-coding conventions, wire gauge selection, and grounding path is essential to ensure responsive braking performance, avoid dangerous signal feedback, and prevent voltage drops across the harness.

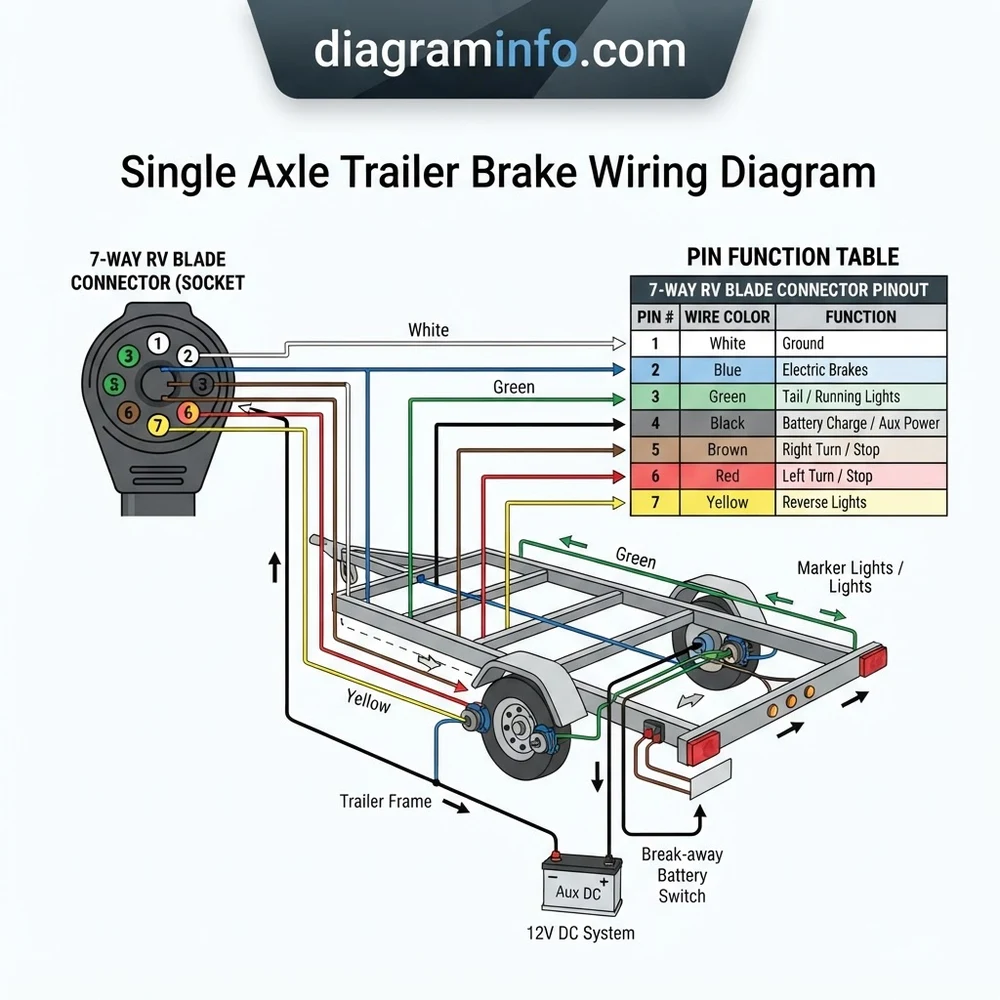

Single Axle Trailer Brake Wiring Diagram Pinout Specifications
According to SAE J2863 standards and trailer industry practices, the primary interface for an electric brake system is the standard 7-way RV blade connector. Older trailers or custom builds may utilize round 6-pin connectors, but the 7-way RV blade plug remains the standard for medium-to-heavy single axle units due to its dedicated lines for auxiliary power and electric brake activation. Below is the standardized terminal identification, wire color scheme, terminal function, and wiring notes for wiring a single axle trailer brake system.
Recommended Best Deal Products
| Pin # | Standard Wire Color | Function | Circuit Identification & Technical Notes |
|---|---|---|---|
| 1 (1 o’clock) | White | Ground Pin (GND) | Primary negative return to tow vehicle chassis. Requires 10 AWG minimum wire. |
| 2 (5 o’clock) | Blue | Electric Brake Control | Carries 0–12V DC power from in-cab brake controller directly to magnet parallel loops. |
| 3 (7 o’clock) | Green | Tail / Running Lights | Powers side clearance markers, identification lights, and taillight filaments (14 AWG). |
| 4 (9 o’clock) | Black (or Red) | Auxiliary Power (+12V DC) | Supplies battery charge current to onboard breakaway box or RV house battery (10-12 AWG). |
| 5 (11 o’clock) | Red (or Yellow) | Left Turn / Stop Light | Pulsed signal for left turn indicator and steady high-brightness brake filament (14 AWG). |
| 6 (3 o’clock) | Brown | Right Turn / Stop Light | Pulsed signal for right turn indicator and steady high-brightness brake filament (14 AWG). |
| 7 (Center) | Purple / Yellow | Auxiliary / Reverse Lights | Optional reverse light signal or lock-out solenoid feed for surge brake configurations (14 AWG). |
While standard 7-way RV blade harnesses follow the color-function matrix listed above, pre-2000 light-duty trailer manufacturers occasionally used traditional 6-wire configurations where Yellow was mapped to Left Turn and Green to Right Turn. Always verify continuity using a Digital Multimeter (DMM) set to resistance/continuity before terminating wires to permanent junction box posts.
Recommended Wire Gauges and Circuit Protection Specs
Selecting correct wire gauges is critical when laying out a single axle electric brake circuit. Voltage drop directly diminishes magnet pull strength, leading to extended stopping distances or uneven braking response across the axle. Because standard 10-inch electric brake magnets draw approximately 3.0 to 3.2 Amps per magnet at 12V DC, a single axle configuration will consume 6.0 to 6.4 Amps during maximum brake application.
If wire gauge sizes are undersized over extended lengths (greater than 20 feet from tow vehicle battery to trailer axle), resistance increases drastically. Refer to the manufacturer circuit specifications outlined below when purchasing marine-grade stranded copper wire (SAE J1128 Type GPT or SXL):
• Ground Wire (Pin 1): 10 AWG (Up to 30 ft harness length)
• Electric Brake Output (Pin 2): 12 AWG (10 AWG recommended for runs over 25 ft)
• Auxiliary Power Line (Pin 4): 10 AWG (Protected by a 30A inline auto-reset circuit breaker)
• Lighting Circuits (Pins 3, 5, 6, 7): 14 AWG (16 AWG minimum for low-draw LED retrofits)
• Magnet Loop Conductors: 14 AWG dual-conductor jacketed brake wire along axle beam
• Brake Magnet Resistance Range: 3.8 to 4.0 Ohms per individual magnet coil at 68°F (20°C)
Step-by-Step Single Axle Trailer Brake Wiring Diagram Installation
Execution of a clean, weather-resistant harness installation requires systematically following schematic guidelines. Refer to the schematic layout and follow these precise steps to construct or overhaul your single axle trailer harness.
Step 1: Mount the Weatherproof Junction Box and Route the Main Harness
Mount a weather-sealed 7-terminal trailer junction box on the interior side of the trailer tongue structure, protected from direct road debris. Strip 2 inches of outer casing off the main 7-conductor molded trailer cable. Insert the main cable through a strain-relief liquid-tight cord grip into the junction box. Strip 3/8 inch of insulation off each wire lead, crimp heat-shrinkable ring terminals onto each conductor, and secure them to their corresponding junction posts using standard nut torque values (15 to 20 in-lbs).
Step 2: Establishing a High-Conductivity Ground Pin Assembly
Never rely on a trailer ball hitch as an electrical ground. Connect the 10 AWG White Ground Wire from Pin 1 of the junction box directly to a bare metal section of the main trailer frame using a star lock washer and a 5/16-inch self-tapping grounding bolt. Torque the bolt to 120 in-lbs to bite into metal and establish a low-resistance path (under 0.2 Ohms). Run a dedicated 10 AWG ground wire from this central grounding lug along the frame back to the brake magnet ground connections and rear light assemblies to establish a ground loop system.
Step 3: Wiring Signal Circuits for Running Lights and Turn Signals
Route individual 14 AWG conductors from the junction box through protective plastic wire loom clamped inside the frame rails:
- Attach the Green Wire (Pin 3) to the side clearance marker lights and brown tail light leads (or green light harness leads, depending on LED lamp brand).
- Attach the Red/Yellow Wire (Pin 5) to the left stop/turn lamp high-intensity terminal.
- Attach the Brown Wire (Pin 6) to the right stop/turn lamp high-intensity terminal.
For detailed procedures on matching vehicle side connectors and adapters, consult our comprehensive 7-way blade harness conversion guides.
Step 4: Connecting the Electric Brake Magnet Loop and Breakaway Switch
Electric brake magnets are non-polarized components; either wire on an individual magnet can serve as positive feed or negative ground. Connect the 12 AWG Blue Brake Feed Wire coming from Pin 2 of the junction box to the primary lead of the breakaway switch safety module.
From the breakaway switch output, tie directly into one lead of the left-hand brake magnet and run a parallel feed wire along the rear axle beam inside a protective outer sleeve to one lead of the right-hand brake magnet. Join the remaining wire from both brake magnets together and splice them directly back to the main 10 AWG White Ground bus wire. Use dual-wall adhesive-lined heat shrink butt connectors on all frame-underneath solderless joints to seal against moisture intrusion and road salt corrosion.
Do not run bare brake magnet wire over sharp edges of the axle beam flange without rubber grommets or split loom protection. Friction caused by axle flex will wear through PVC wire insulation, leading to direct frame shorts that instantly trip the brake controller circuit inside the tow vehicle.
Integrating RV Blade Plugs, Brake Controllers, and Auxiliary Power
Integrating a single axle brake system seamlessly into tow vehicle electronics requires proper alignment between the vehicle-side in-cab brake controller and the trailer’s auxiliary charging circuits.
Calibrating Proportional Brake Controller Signal Output
Modern electronic brake controllers—whether proportional (inertia sensor-based) or time-delayed—modulate 12V DC power output along the blue wire (Pin 2) based on deceleration levels. To properly calibrate the brake controller once wiring is complete, perform the following setup procedure:
- Drive the vehicle and single axle trailer combination onto a flat, paved surface at 25 mph.
- Manually actuate the override lever on the in-cab controller without depressing the tow vehicle foot brake pedal.
- Adjust the controller gain output thumbwheel until the trailer brakes approach lockup, then back the gain down by 0.5 units so the trailer decelerates firmly without skidding the tires.
If you are installing or retrofitting a vehicle-side control module, check out our full walk-through on trailer brake controller installation.
Configuring the 12V Auxiliary Power and Battery Trickle Charge Line
The Black Wire (Pin 4) supplies +12V DC power from the tow vehicle alternator to charge the emergency breakaway battery system while driving. A 12-volt breakaway kit contains a small gel-cell or AGM lead-acid battery (typically 4.5Ah to 5Ah) along with a built-in trickle charging circuit board. Ensure the auxiliary power line is routed through a 10 AWG wire protected by a 20A or 30A auto-reset thermal circuit breaker near the tow vehicle battery. This prevents the breakaway charger from draining the tow vehicle battery when the ignition is switched off.
Common Single Axle Trailer Brake Wiring Diagram Diagnostics
When trailer lights malfunction or electric brakes behave erratically, systematic electrical testing yields fast results. Electrical issues in single axle trailer configurations fall into three main categories: high resistance/bad ground, incorrect cross-wiring inside the junction box, or shorted magnet coils.
1. Excessive Ground Resistance and Voltage Drop
High electrical resistance on the ground pin (Pin 1) forces current to seek alternative return paths through light bulb filaments or metallic trailer hitch components. Symptoms include dim running lights that flash out of phase when turn signals are active, or a brake controller displaying a “Disconnected” error code despite the plug being seated. Measure ground resistance between the trailer metal frame and the connector plug ground pin; readings must stay below 0.5 Ohms.
2. Magnet Resistance and Short Circuit Testing
If the trailer brake fuse or controller repeatedly trips upon applying the brakes, isolate the brake magnet loops at the junction box. Disconnect the Blue Wire (Pin 2) wire nut and measure resistance between the trailer-side blue wire feed and the main frame ground using a calibrated multimeter:
- Single Axle Normal Reading: 1.9 to 2.1 Ohms total system resistance (two 4.0 Ohm magnets connected in parallel balance out to ~2.0 Ohms).
- Shorted Coil/Wire: Below 1.2 Ohms (indicates insulation breakdown or direct short to frame).
- Open Circuit/Broken Wire: Infinity/OL (indicates a broken wire, blown breakaway switch, or detached magnet lead).
If you encounter unusual resistance figures during testing, consult our specialized guide covering electric brake magnet resistance testing for advanced troubleshooting techniques.
Single Axle Trailer Brake Wiring Diagram Frequently Asked Questions
Can You Wire Electric Brakes Using a 4-Pin Flat Connector?
No. Standard 4-pin flat connectors only contain leads for Ground (White), Running Lights (Brown), Left Turn/Stop (Yellow), and Right Turn/Stop (Green). They lack the dedicated blue wire required to supply high-current power from the brake controller to the electric brake magnets. To operate electric brakes, you must upgrade to a minimum 5-pin flat (surge brakes with reverse lockout), 6-pin round, or standard 7-way RV blade connector.
What Size Wire Is Required for Single Axle Electric Brakes?
The main power feed line (Blue Wire from Pin 2) and main return ground (White Wire from Pin 1) must be a minimum of 12 AWG standard copper wire for short trailer tongues, and 10 AWG wire for runs over 20 feet. Using undersized 16 AWG or 18 AWG wire causes severe voltage drops under full braking application, reducing stopping power by up to 40% and generating excess heat inside the wire sheath.
Why Do Electric Brakes Lock Up When the Running Lights Are On?
This failure occurs when the Green Wire (Running Lights, Pin 3) and Blue Wire (Brake Signal, Pin 2) are crossed or shorted together inside the trailer plug or junction box. When night lights are switched on, 12V power intended for clearance lamps continuously feeds directly into the electric brake magnets, forcing them to lock up solid. Inspect connector wiring pins and ensure no stray wire strands bridge adjacent screw terminals.
How Do You Wire a Breakaway Battery Box to the RV Blade Plug?
To wire a breakaway box, connect the positive charging wire from the box to the Black Wire (Pin 4, +12V Auxiliary Power) on the junction box. The primary terminal wire from the breakaway switch connects directly to the Blue Wire (Pin 2) on the trailer side (after the junction box). The negative battery terminal connects directly to the central chassis frame ground point. This permits the tow vehicle to trickle charge the small battery during travel while allowing the switch pin pull-cable to activate the brakes in an emergency uncoupling event.
What Voltage Should Be Present at the Electric Brake Magnets?
When the brake controller manual override is fully engaged with the vehicle at a standstill, you should measure between 11.5V and 12.8V DC directly at the magnet wire connections underneath the axle. If voltage reads below 10.5V DC, inspect the system for loose crimp fittings, corroded ground pins, undersized wiring, or poor pin tension at the 7-way plug receptacle.
