Eukaryotic a Diagram of an Animal Cell: 2026 Guide
A diagram of an animal cell highlights key eukaryotic organelles enclosed within a flexible lipid cell membrane. It displays the central double-membraned nucleus containing genetic material, surrounded by cytoplasm rich in mitochondria for cellular ATP production. Crucially, animal cells lack rigid cell walls and photosynthetic chloroplasts found in plant structures.
📌 Key Takeaways
- Animal cells feature a semi-permeable phospholipid bilayer cell membrane ranging from 7 to 10 nanometers thick.
- The double-membraned nucleus houses 46 chromosomes (23 pairs) in human somatic animal cell models.
- Mitochondria supply roughly 90% of required cellular energy through metabolic ATP synthesis.
- A primary diagnostic error is misidentifying chloroplasts or rigid cell walls, which exist only in plant cells.
- Consult cellular biology reference standards when differentiating specialized structures like centrioles during mitosis.
Analyzing a diagram of an animal cell requires a precise understanding of eukaryotic ultrastructure, membrane dynamics, and spatial organelle distribution. Unlike plant systems, eukaryotic animal cells lack rigid cellulose outer walls and energy-capturing chloroplasts, relying instead on a fluid plasma membrane to maintain structural integrity and internal electrochemical gradients. Whether performing cytological diagnostic evaluations, configuring tissue engineering models, or reviewing transmission electron microscopy (TEM) calibration standards, accurately identifying organelle boundaries, nuclear architecture, and metabolic centers is critical. This technical guide systematically details every structural component, anatomical dimension, and functional specification illustrated in eukaryotic animal cell schematics.

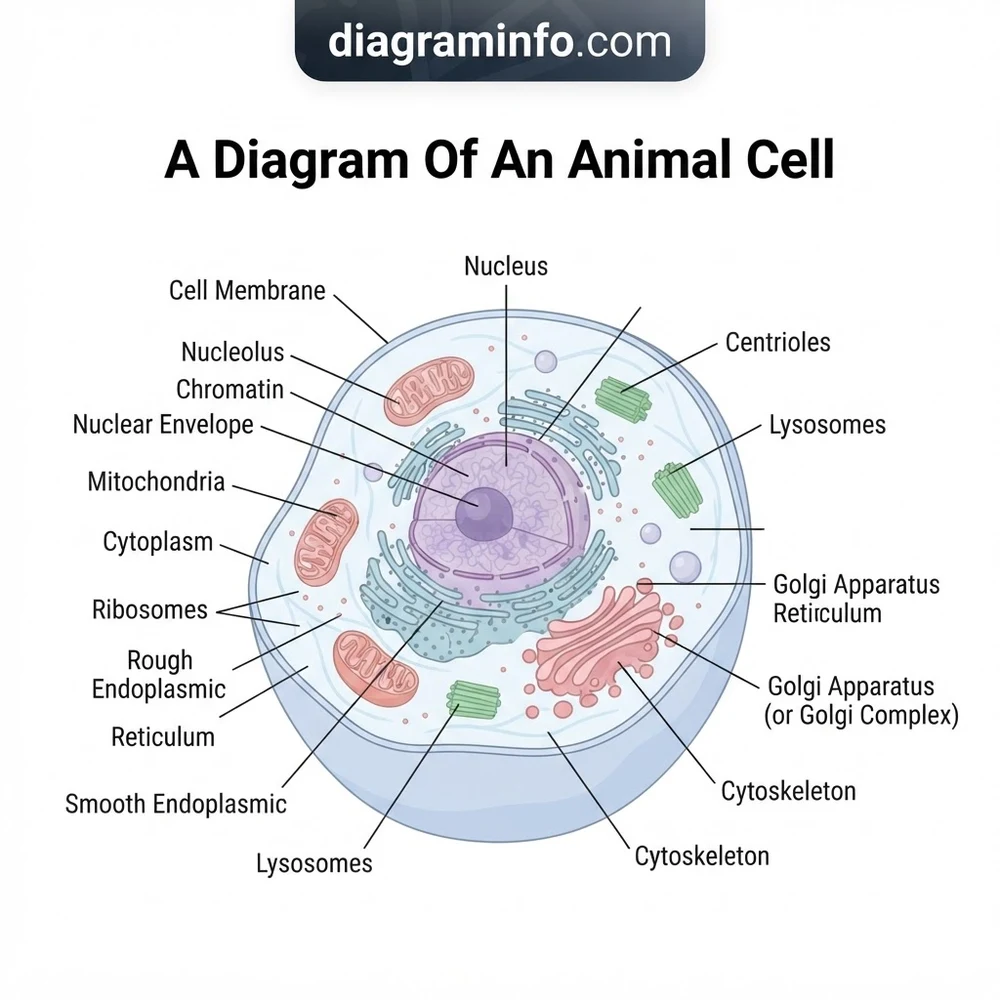

A Diagram of an Animal Cell: Structural Component Breakdown
When reviewing a diagram of an animal cell, each organelle represents a discrete functional unit operating within controlled physical dimensions and electrochemical parameters. Standard cytological specifications dictate specific structural markers for each sub-cellular component:
- Cell Membrane: A flexible phospholipid bilayer measuring 7.5 to 10 nanometers in thickness. It contains embedded integral transport proteins, cholesterol stabilizing molecules, and carbohydrate chains that establish a resting membrane potential between -40 mV and -80 mV.
- Nucleus: The double-membrane control center, typically 5 to 10 micrometers in diameter. It features nuclear pores (approximately 120 nm in diameter) that regulate macromolecular transport, enclosing the dense nucleolus and chromatin matrix.
- Mitochondria: Double-membraned metabolic generators ranging from 0.5 to 1 micrometer in width and up to 7 micrometers in length. The folded inner membrane (cristae) houses electron transport chain complexes to convert pyruvate into ATP.
- Cytoplasm (Cytosol): The aqueous, gel-like matrix (pH ~7.2) composed of water, dissolved ions, microfilaments, and microtubules that supports organelle suspension and facilitates intracellular transport.
- Ribosomes: Non-membrane-bound 80S eukaryotic complexes (comprising 60S and 40S subunits) measuring roughly 25 to 30 nanometers. They exist free within the cytoplasm or bound to the rough endoplasmic reticulum.
- Endoplasmic Reticulum (ER) & Golgi Apparatus: Interconnected membrane networks where the rough ER synthesizes polypeptides, the smooth ER processes lipids and sequesters calcium ions, and the Golgi apparatus modifies and packages molecules into target-specific vesicles.
- Vacuole / Vesicles: Small, transient membrane-bound sacs (typically 100 to 500 nanometers) responsible for pinocytosis, endocytosis, and localized waste isolation.
According to standard cell biology specifications, animal cells average 10 to 30 micrometers in diameter. Membrane thickness remains constrained to 7.5–10 nm, while internal cytosolic pH is tightly regulated at 7.0–7.4 under nominal physiological operation.
| Organelle / Structure | Dimensional Spec | Primary Functional Rating |
|---|---|---|
| Cell Membrane | 7.5 – 10 nm lipid bilayer | Selective permeability & membrane potential regulation |
| Nucleus | 5 – 10 µm diameter | Genomic storage, RNA transcription, ribosome assembly |
| Mitochondria | 0.5 – 1.0 µm width, 1 – 7 µm length | ATP generation via oxidative phosphorylation |
| Ribosomes (Eukaryotic) | 25 – 30 nm (80S unit) | mRNA translation into protein chains |
| Vacuole (Animal Variant) | 100 – 500 nm (small, multiple) | Temporary storage and waste sequestration |
How to Step-by-Step Read a Diagram of an Animal Cell
Interpreting a diagram of an animal cell requires a systematic approach to trace structural hierarchies and functional pathways. Follow this standard diagnostic sequence when evaluating cytological schematics or comparing samples against histological staining protocols:
Step 1: Outer Boundary Identification
Locate the exterior boundary line. Confirm the presence of a single, fluid cell membrane without an outer cell wall. Verify that no rigid cell wall or chloroplast structures are depicted, confirming the specimen is strictly animal (metazoan) rather than plant or algal in origin.
Step 2: Nuclear Architecture Evaluation
Identify the central, spherical nucleus bounded by a double-layer nuclear envelope. Check for the nucleolus—a dense region within the nucleus dedicated to ribosomal RNA synthesis—and verify the depiction of nuclear pores that manage transport between the nucleoplasm and cytoplasm.
Step 3: Endomembrane System Trace
Trace the continuous membrane network extending directly from the outer nuclear membrane. Differentiate between the rough endoplasmic reticulum (studded with small spherical ribosomes) and the smooth endoplasmic reticulum (tubular, lacking ribosomes). Next, locate the adjacent Golgi apparatus, represented as flattened, un-connected membrane cisternae surrounded by budding transport vesicles.
Step 4: Metabolic and Structural Mapping
Identify the oval mitochondria, looking for distinct inner folds (cristae) and internal matrix space. Map the cytoplasm surrounding these structures, observing distributed microfilaments, microtubules, and small animal vacuoles involved in endocytic and exocytic transport routes.
When reviewing high-resolution schematics, note that the spatial distribution of mitochondria and endoplasmic reticulum is correlated with localized metabolic demands. High-energy cell types (e.g., muscle or secretory cells) display increased mitochondrial density adjacent to membrane transport systems.
Diagnosing Misidentifications in Cell Membrane, Nucleus, and Cytoplasm Layouts
Errors in cytological rendering or misinterpretation of electron micrographs often stem from confusing plant, fungal, and animal cell features. Utilizing cross-reference data from established plant cell structural diagrams helps prevent structural misidentifications during diagnostic analysis:
- Accidental Inclusion of Chloroplasts: A primary drafting error involves showing a chloroplast inside an animal cell framework. Chloroplasts contain triple-membrane systems with stacked thylakoid discs (grana) exclusive to autotrophic plant/algal systems. If a photosynthetic organelle is present, the schematic is incorrect or represents a plant cell.
- Vacuole Scale Discrepancies: In animal cells, vacuoles are small, numerous, and temporary vesicles (100–500 nm). Depicting a single, central vacuole taking up 30% to 80% of internal cell volume indicates a plant cell model rather than an animal cell structure.
- Ribosome Sizing Errors: Eukaryotic cytoplasm houses 80S ribosomes (approximately 25–30 nm). Confusing cytosolic glycogen granules or protein aggregates with ribosomes leads to incorrect ribosome density mapping. Ribosomes must maintain a distinct, consistent spherical diameter and association with the rough ER.
- Cell Membrane vs. Cell Wall Boundaries: Drawing a rigid, double-line outer border implies a cellulose cell wall. Animal cell membranes must be depicted as dynamic, flexible, single-bilayer structures with variable surface topography (e.g., microvilli or pseudopodia).
Do not confuse peroxisomes or lysosomes with mitochondria in dense cell schematics. Mitochondria always exhibit a double-membrane layout with internal cristae folds, whereas lysosomes present as single-membrane spheres containing digestive hydrolytic enzymes.
Answering Technical Questions on Mitochondria, Ribosomes, and Vacuole Mapping
Why is a chloroplast omitted from an animal cell diagram?
A chloroplast is an organelle responsible for oxygenic photosynthesis, containing thylakoids and light-harvesting complexes found exclusively in plants and algae. Animal cells are heterotrophic systems that generate energy through cellular respiration inside mitochondria rather than photosynthetic carbon fixation, making chloroplasts structurally and functionally absent.
How are 80S eukaryotic ribosomes distinguished from cytosol matrix granules?
In electron microscopy and high-definition schematics, 80S ribosomes exhibit a uniform two-subunit architecture (60S large subunit and 40S small subunit) measuring 25 to 30 nm. Cytosolic granules (such as glycogen or lipid droplets) lack a two-subunit structure, present variable diameters, and do not dock onto the rough endoplasmic reticulum membrane surface.
What is the dimensional thickness specification of the animal cell membrane?
The plasma cell membrane in eukaryotic animal cells maintains a standard thickness range of 7.5 to 10 nanometers. This dimension accommodates the fluid hydrophilic heads, hydrophobic fatty acid tails, and transmembrane integral proteins necessary for active ion transport and cellular signaling.
How does vacuole morphology differ between plant and animal schematics?
In animal cells, vacuoles are small, transient vesicles (100–500 nm) designed for localized transport, pinocytosis, and waste handling. Plant cells feature a large, permanent central vacuole occupied by cell sap that generates turgor pressure and consumes up to 90% of total intracellular volume.
What role does the cytoplasm play in organelle spatial maintenance?
The cytoplasm consists of the fluid cytosol and an organized cytoskeletal network (microtubules, intermediate filaments, and actin microfilaments). This mechanical scaffolding anchors organelles like the nucleus and mitochondria in place, prevents cellular collapse, and serves as the physical pathway for vesicular transport driven by motor proteins.
A Diagram of an Animal Cell: Frequently Asked Questions
What does the a diagram of an animal cell show?
A diagram of an animal cell shows the complex interior structural arrangement of a eukaryotic cell. It maps out membrane-bound organelles such as the nucleus, mitochondria, endoplasmic reticulum, Golgi apparatus, and lysosomes, suspended within the fluid cytoplasm and bounded by a flexible plasma membrane.
How do I read the a diagram of an animal cell?
Begin reading the diagram at the outer boundary, the cell membrane, and move inward toward the cytoplasm. Locate the dominant central nucleus containing chromatin. Then, trace energy-generating mitochondria, protein-synthesizing ribosomes, and transport networks like the endoplasmic reticulum and Golgi complex.
What are the main components in a diagram of an animal cell?
The primary components include the protective cell membrane, gel-like cytoplasm, genetic command center nucleus, energy-producing mitochondria, protein-building ribosomes, rough and smooth endoplasmic reticulum, Golgi apparatus, and waste-processing lysosomes. Notably, animal cell diagrams omit chloroplasts and thick cell walls present in plant models.
What are common problems with a diagram of an animal cell?
Common diagram errors include mislabeling plant features—such as inserting a chloroplast or rigid cell wall into an animal system—and confusing smooth versus rough endoplasmic reticulum based on ribosome presence. Scale inaccuracies regarding nuclear diameter relative to overall cytoplasmic volume also regularly occur.
Can I use a diagram of an animal cell for DIY repair?
While you cannot physically repair biological cells directly, an animal cell diagram serves as an essential tool for troubleshooting academic assignments, lab model construction, and microscopic specimen analysis by confirming correct organelle anatomical placement and functional pathways.
