2015 Freightliner Cascadia Fuse Box Diagram: 2026 Guide
The 2015 Freightliner Cascadia fuse box (SAM Cabin) is located behind the glove box dash panel on the passenger side. The SAM Chassis module sits on the engine side firewall. Key circuits include the ECU main power (Fuse F14, 15A) and OBD-II port (Fuse F20, 10A). Always replace blown mini-fuses with exact amperage ratings.
📌 Key Takeaways
- The main SAM Cabin power distribution module is secured behind the passenger-side dashboard cover panel.
- Fuse F14 (15A) supplies direct power to the engine ECU; a blown F14 causes immediate engine stalling.
- Always match exact amperage ratings and apply 12-15 in-lbs torque spec to main terminal studs during service.
- Water intrusion into the chassis SAM module on the firewall is the top cause of phantom diagnostic code triggers.
- Basic fuse and relay swaps suit DIY work, but multiplex line failures require shop tools.
The 2015 Freightliner Cascadia utilizes an advanced multiplexed electrical architecture centered around the Signal Detect and Actuation Module (SAM) system. Understanding the 2015 Freightliner Cascadia fuse box diagram is essential for heavy-duty technicians, fleet maintenance personnel, and owner-operators conducting precise electrical troubleshooting. Power distribution on this platform is split primarily between the SAM Cab module, located inside the passenger-side dashboard, and the SAM Chassis module, positioned on the driver-side forward firewall. This guide provides detailed circuit identification, OEM specification tables, step-by-step diagnostic workflows, and repair procedures to address unexpected power loss, blown fuses, and communication faults across major engine and vehicle sub-systems.

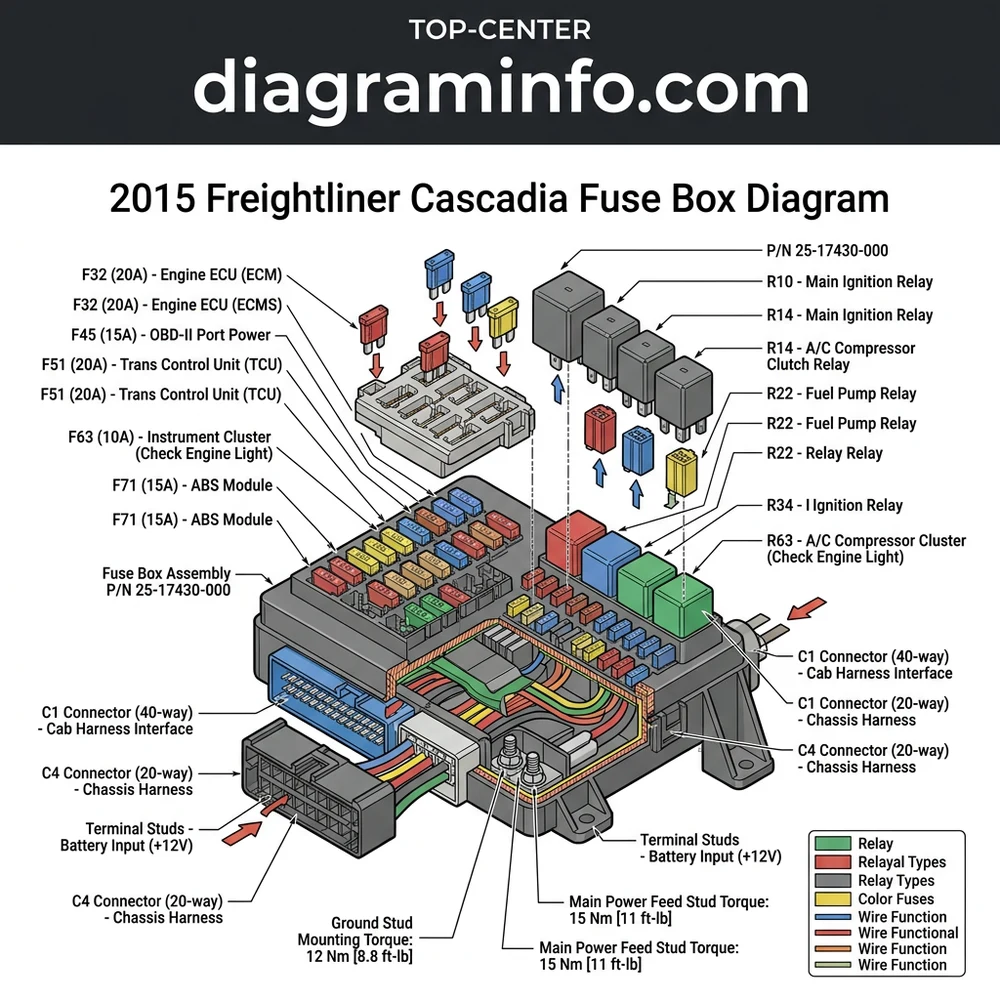

2015 Freightliner Cascadia Fuse Box Diagram Component Identification and Location
According to OEM manufacturer specifications, the 2015 Freightliner Cascadia separates high-current distribution and low-current signal processing across two primary control units: the SAM Cab (Signal Detect and Actuation Module – Cabin) and the SAM Chassis (Signal Detect and Actuation Module – Chassis). The SAM Cab is situated behind the removable glove box access panel on the right side of the dash. The SAM Chassis module is mounted in the engine compartment on the left-hand cowl area to minimize wire harness length to front-end components and frame rail actuators.
Power feeds originating from the main battery box route directly to high-amp mega fuses on the main Power Distribution Module (PDM) before supplying the SAM units. From these primary busses, circuit protection is assigned via mini-blade fuses (ATC/ATO type) and solid-state or mechanical relays embedded into the printed circuit board (PCB) assembly. Key engine management systems—including the main engine ECU, transmission control module, J1939 datalink connectors, and auxiliary sensors monitoring coolant flow switch inputs and engine oil pressure—rely directly on designated terminal outputs from these two modules. When performing maintenance on engine management harnesses, such as around the timing chain or gear train position sensors on Detroit DD15 or Cummins ISX15 engines, tracing terminal pins directly to the SAM Cab fuse block ensures correct feed isolate status.
Operating Voltage: 11.5 VDC – 14.4 VDC nominal. SAM Cab Main Power Stud Torque Spec: 10–12 lb-ft (13.5–16.3 Nm). SAM Chassis Feed Stud Torque Spec: 12–15 lb-ft (16.2–20.3 Nm). Recommended Fuse Type: ATO/ATC Fast-Acting Blade Fuses; JCASE Cartridge Fuses for high-amp circuits (30A–60A).
| Fuse ID | Rating (Amps) | Circuit / Component Description | Location Module |
|---|---|---|---|
| F1 | 15A | Engine ECU Main Unswitched Battery Power Feed | SAM Cab (Dash Panel) |
| F2 | 10A | OBD-II Diagnostic Port / J1939 Datalink Connector Power | SAM Cab (Dash Panel) |
| F5 | 20A | Ignition Switch Circuit / Cab Controller Ignition Feed | SAM Cab (Dash Panel) |
| F12 | 15A | Coolant Flow Sensor & Radiator Shutter Actuator Power | SAM Chassis (Engine Compartment) |
| F18 | 10A | Oil Pressure Sensor & Engine Auxiliary Instrument Feeds | SAM Chassis (Engine Compartment) |
| F22 | 30A | ABS / Electronic Stability Control (ESC) Controller | SAM Chassis (Engine Compartment) |
| F26 | 15A | Transmission Control Module (TCM) Switched Power | SAM Cab (Dash Panel) |
Common Electrical Failures, OBD-II Diagnostic Codes, and Fuse Symptoms
When an electrical fault occurs on a 2015 Freightliner Cascadia, the internal diagnostic logic of the SAM Cab or SAM Chassis records active fault codes while simultaneously triggering warnings on the driver display panel. A open circuit or blown fuse feeding the main engine controller will immediately illuminate the check engine light and prevent communication with diagnostic scan tools connected to the cabin OBD-II or 9-pin deutsch datalink port.
Corrosion caused by road salt and moisture ingress is a frequent cause of SAM Chassis harness failures. When corrosion accumulates inside the pin connectors under the engine cowl, resistance spikes occur. This elevated resistance often manifests as a blown fuse for low-amp sensor reference circuits—such as the coolant flow switch or engine oil pressure transducer circuits. In severe cases, high resistance overheats the underlying terminal pins, leading to intermittent signal dropouts and active fault codes such as SPN 100 / FMI 4 (Engine Oil Pressure Circuit Low Voltage) or SPN 111 / FMI 1 (Engine Coolant Level Low). For further information on tracing sensor harnesses, refer to our comprehensive Detroit DD15 sensor wiring diagram article.
Do not jump power directly to SAM module output pins without verifying terminal assignments in the OEM wiring manual. The SAM modules use solid-state drivers; bridging an output pin directly to ground or an improper load will destroy internal FET switches, requiring full module replacement and parameter flashing using Detroit Diagnostic Link (DDL) software.
Furthermore, mechanical wear or physical movement near the front timing chain or timing gear cover can cause the engine wire harness to chafe against metal bracket edges. If the insulation deteriorates on the sensor supply lines, a direct short to ground occurs, repeatedly blowing fuse F1 or F18 in the fuse box and setting continuous diagnostic codes across the J1939 network.
How to Diagnose Circuits Using the 2015 Freightliner Cascadia Fuse Box Diagram
Troubleshooting electrical faults on the Cascadia platform requires a methodical testing sequence using a calibrated Digital Multimeter (DMM) rather than simple visual inspection alone. Modern mini-blade fuses can break internally without showing clear signs of melted plastic filaments.
Follow this technical diagnostic sequence to isolate open circuits, voltage drops, and failed SAM feeds:
- Initial Visual and Physical Inspection: Remove the passenger-side dash dash panel to access the SAM Cab or unlatch the engine compartment cover for the SAM Chassis. Inspect the primary power feed studs for signs of overheating, discoloration, or loose nuts. Ensure the power stud torque spec meets OEM standards (10–12 lb-ft on SAM Cab studs).
- Voltage Test Across Fuse Test Points: Set your DMM to DC Volts. Connect the black probe to a known good chassis ground point. Touch the red probe to both exposed metal test points on the top of each individual blade fuse while the ignition switch is turned ON. Both test points must register battery voltage (12.4V to 12.8V resting). Voltage on only one side indicates an open (blown) fuse.
- System Voltage Drop Diagnostics: If a circuit underperforms but the fuse remains intact (e.g., erratic sensor readings from the coolant flow switch or low signal from the oil pressure sensor), perform a voltage drop test. Place one probe on the positive battery terminal and the other probe on the input terminal of the fuse slot under load. A reading greater than 0.2V indicates excessive resistance in the supply cable or main PDM feed line.
- Connector Drag and Pin Tension Test: Disconnect the multi-pin harness plug beneath the affected fuse slot. Inspect for bent, pushed-out, or corroded pins. Perform a terminal drag test using a matching male pin to verify proper spring retention force within the female socket. Loose pin tension causes high resistance, intermittent check engine light codes, and premature thermal degradation of the fuse block.
If a physical inspection reveals that a SAM Cab or SAM Chassis module must be replaced due to internal board burning, installing a new or used module from another vehicle without programming will result in system mismatches. SAM modules require vehicle-specific parameter loading via Detroit Diagnostic Link (DDL) software to map output pins to installed options.
For additional details on diagnostic equipment hookups and reading proprietary fault codes, consult our guide on SAM Cab pinout configurations and signal tracing.
2015 Freightliner Cascadia Fuse Box Diagram Technical FAQ
Where is the SAM Cab Fuse Box Located on a 2015 Freightliner Cascadia?
The SAM Cab fuse box is located inside the truck cabin on the right-hand (passenger) side of the dashboard. Access it by loosening the quarter-turn fasteners or releasing the retaining clips on the lower passenger dash panel directly in front of the seat. The fuse matrix label is affixed to the inside surface of the removable access cover.
Which Fuse Controls the Engine ECU and OBD-II Diagnostic Port?
On standard 2015 Cascadia builds, Fuse F1 (15A) in the SAM Cab module provides unswitched constant battery power to the main engine ECU. Fuse F2 (10A) in the SAM Cab controls power feed to the 9-pin J1939 diagnostic port and OBD-II connector located under the driver-side dash panel. If your diagnostic tool fails to power up when plugged in, check fuse F2 first.
How Does a Blown Fuse Affect Coolant Flow and Oil Pressure Monitoring?
A blown fuse in the SAM Chassis module (specifically Fuse F12 for coolant monitoring or Fuse F18 for engine sensor feeds) cuts baseline reference voltage to the coolant flow switch and oil pressure sender unit. Loss of circuit integrity forces the ECU to default to safety parameters, setting active SPN fault codes, flashing the shutdown warning on the dash dashboard, and potentially triggering automatic engine shutdown protocols within 30 to 60 seconds.
What Are the Main Power Stud Torque Specs on the Cascadia SAM Modules?
The primary B+ supply studs on the SAM Cab module require a precise torque spec of 10–12 lb-ft (13.5–16.3 Nm). The main power terminals on the SAM Chassis box in the engine bay require 12–15 lb-ft (16.2–20.3 Nm). Over-torquing these brass studs will fracture the internal plastic housing and damage the internal copper bussing, while under-torquing leads to high resistance, electrical arcing, and intermittent power loss.
Why Does the Check Engine Light Illuminate After Servicing the SAM Chassis Box?
If the check engine light illuminates immediately after servicing fuses or relays in the SAM Chassis box, a harness connector may not be fully seated or locked into position. Disconnecting power to the SAM Chassis while the ignition switch is key-on can also log phantom low-voltage fault codes for engine sensors, including the timing chain position sensor and oil pressure sender. Clear active diagnostic codes using diagnostic software after verifying all physical connector locks are engaged.
Step-by-Step Guide to Understanding the 2015 Freightliner Cascadia Fuse Box Diagram
Identify – Identify the symptoms, active check engine light, or fault codes triggered via the OBD-II port.
Locate – Locate the passenger-side dash panel or driver-side firewall to access the SAM Cabin or Chassis fuse box.
Reference – Reference the 2015 Freightliner Cascadia fuse box diagram cover chart to identify the target circuit fuse or relay.
Connect/Route – Route test light probes or multimeter leads across the fuse test points to check for 12V battery voltage.
Verify – Verify continuity across suspect fuses and replace damaged units with matching amperage mini-blade fuses.
Troubleshoot – Troubleshoot persistent open circuits, clear stored ECU diagnostic code records, and confirm proper operational voltage.
