7-Way RV Blade 50 Amp RV Breaker Box Wiring Diagram Guide (2026)
A 50 amp RV breaker box wiring diagram routes 120V/240V AC power (L1 red 6 AWG, L2 black 6 AWG, neutral white 6 AWG, ground green 8 AWG) to dual hot bus bars. On 7-way RV blade connectors, 12V auxiliary power feeds the converter/charger to charge batteries powering 12V sub-panels alongside brake controller and running lights circuits.
📌 Key Takeaways
- Requires 6/3 AWG copper wire with an 8 AWG equipment grounding conductor for 50-amp 120V/240V service.
- AC neutral white bus bar must remain unbonded (isolated) from the metal chassis ground bar in sub-panels.
- Torque main lug set screws to manufacturer specs (typically 45–50 in-lbs) to prevent terminal overheating.
- 7-way RV blade auxiliary power (black 10 AWG wire) feeds 12V house batteries, separate from 120V AC breaker circuits.
- Incorrectly jumpering L1 and L2 hot bus bars on a 30A-to-50A dogbone adapter limits total available trailer wattage to 3,600W.
Wiring a 50 amp RV breaker box requires a precise understanding of dual-phase 120V/240V AC electrical distribution alongside integrated 12V DC chassis systems. A modern 50-amp recreational vehicle load center delivers up to 12,000 watts of total capacity divided across two separate 120-volt supply legs. This architecture supports high-draw inductive and resistive loads such as dual air conditioners, residential refrigerators, and electric water heaters. Correctly connecting conductors from the NEMA 14-50 shore power inlet to the main panel, while properly integrating the 7-way RV blade auxiliary power and trailer braking circuits, prevents severe hardware failure and guarantees electrical code compliance.

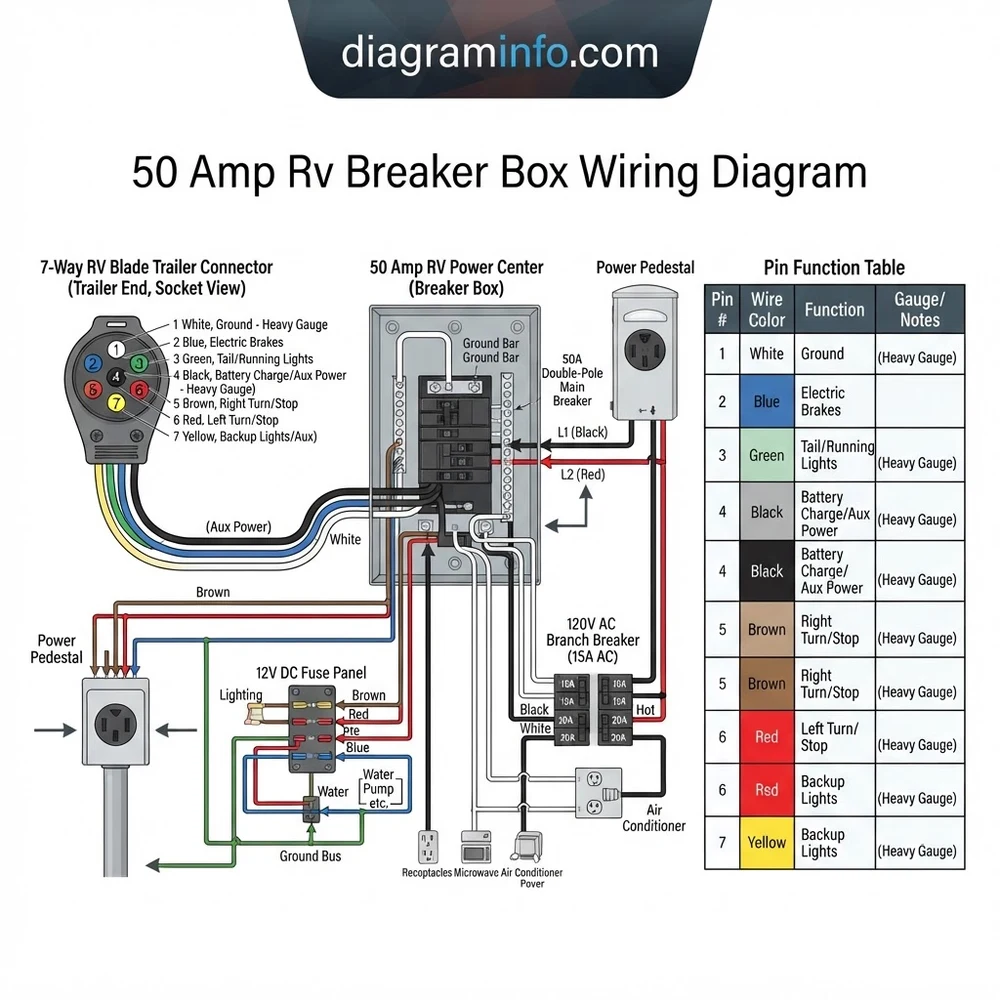

Pin Terminal Layout for 50 Amp RV Breaker Box Wiring Diagram Systems
According to OEM specifications and NEC Article 551 mandates, a 50-amp RV power distribution center utilizes a four-wire feed system for 120V/240V AC power, alongside a standard 7-way connector interface for 12V DC towing operations. The double-pole main breaker accepts two independent 120V hot lines (Line 1 and Line 2), a shared neutral line, and a dedicated equipment ground. Below is the complete pinout, wire color code, and terminal identification matrix for both the primary AC load center feeds and the vehicle trailer plug interface.
Recommended Best Deal Products
| Terminal / Pin ID | Wire Color | Electrical Function | Technical Specs & Torque |
|---|---|---|---|
| L1 (Hot Line 1) | Black | 120V AC Phase A Feeder | 6 AWG Copper, 45-50 in-lbs lug torque |
| L2 (Hot Line 2) | Red | 120V AC Phase B Feeder | 6 AWG Copper, 45-50 in-lbs lug torque |
| N (Neutral) | White | 120V AC Common Neutral Return | 6 AWG Copper, Isolated Bus, 45 in-lbs |
| G (Ground) | Bare / Green | Equipment Safety Earth Ground | 8 AWG Copper, Bonded Bus to Chassis |
| Pin 1 (RV Blade) | White | 12V DC Ground Pin | 10 AWG Copper, Frame Ground Return |
| Pin 2 (RV Blade) | Blue | Electric Brake Actuation Line | 12 AWG Copper, From Brake Controller |
| Pin 3 (RV Blade) | Green | Running Lights & Tail Circuit | 14 AWG Copper, 12V DC Fused Circuit |
| Pin 4 (RV Blade) | Black / Red | 12V DC Auxiliary Power Charge Feed | 10 AWG Copper, 30A In-Line Fuse |
| Pin 5 (RV Blade) | Yellow | Left Turn Signal & Stop Lamp | 14 AWG Copper, 12V DC Pulsed |
| Pin 6 (RV Blade) | Brown | Right Turn Signal & Stop Lamp | 14 AWG Copper, 12V DC Pulsed |
| Pin 7 (RV Blade) | Purple | Reverse Lights / Auxiliary Line | 14 AWG Copper, Optional 12V DC |
For comprehensive details on towing interface wiring, refer to our complete guide on 7-way RV blade pinout diagrams to ensure correct tow-vehicle vehicle-side harness alignment before powering the main distribution panel.
Load Distribution in 50 Amp RV Breaker Box Wiring Diagram Systems
A standard 50-amp RV electrical system is fed by two 120-volt hot legs, providing up to 50 amps per leg (100 amps total split capacity at 120V). Unlike residential 240V split-phase panels that power heavy double-pole loads like central dryers or ovens, most RV load centers use the two lines to distribute 120V AC branch circuits evenly across the bus bars.
Line 1 (L1) typically powers primary continuous appliances, such as the front Air Conditioning unit (15A single-pole breaker), the converter/charger unit (15A single-pole breaker), and general-purpose wall outlets (15A/20A GFCI breakers). Line 2 (L2) is isolated to power secondary high-amp loads, such as the rear Air Conditioning unit (15A single-pole breaker), the electric water heater element (15A single-pole breaker), and microwave/refrigeration circuits.
Maintaining balanced amperage between L1 and L2 minimizes heat buildup on the shared neutral line. Because the two hot lines are 180 degrees out of phase in standard utility feeds, current returning through the neutral conductor is the difference between L1 and L2 draw ($I_{Neutral} = |I_{L1} – I_{L2}|$). However, when operating on generator power or adapted single-phase sources, both legs may be in phase, causing the neutral wire to carry the combined sum of both legs ($I_{Neutral} = I_{L1} + I_{L2}$). This makes sizing the neutral feeder at a full 6 AWG copper conductor essential.
Feeder Conductor Sizing: Require 6 AWG stranded copper for L1, L2, and Neutral conductors rated for 75°C (167°F) insulation minimum (THHN/THWN or 6/3 SOOW cable). The equipment grounding conductor must be a minimum of 8 AWG solid or stranded copper bonded to the chassis.

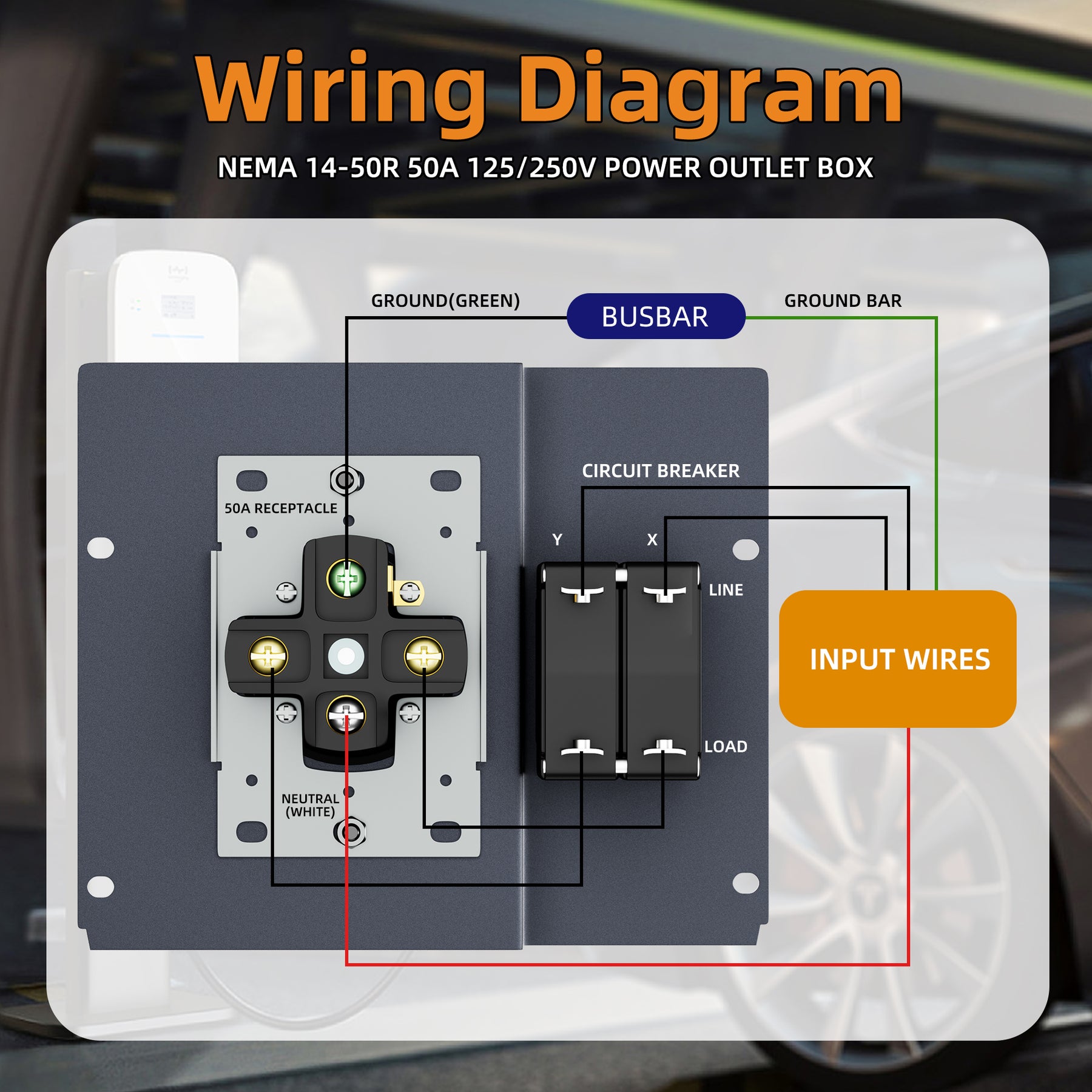

Step-by-Step 50 Amp RV Breaker Box Wiring Diagram Installation Guide
Follow these precise step-by-step procedures to install and wire a 50-amp main breaker load center and integrate downstream 12V DC circuits.
- De-energize Power and Prepare Feeder Cable: Ensure shore power cords are completely disconnected and any onboard inverter/generator sources are switched off. Strip back 8 inches of the outer protective jacket on your 6/3 AWG feeder cable. Strip 3/4-inch of THHN insulation off the Black (L1), Red (L2), White (Neutral), and Green (Ground) conductors using precision wire strippers.
- Route and Terminate Ground Conductor: Insert the 8 AWG bare or Green ground wire into the equipment ground bus bar mounted directly to the steel backpan of the breaker box. Secure the set screw to 20-25 in-lbs of torque. Verify that a heavy-gauge bonding jumper runs directly from this ground bus bar to the metallic RV structural chassis.
- Connect Neutral Conductor to Isolated Bus: Insert the 6 AWG White neutral wire into the primary terminal lug of the floating, isolated neutral bus bar. Torque the terminal set screw to 45 in-lbs. Confirm that NO bonding screw or strap connects this neutral bar to the breaker enclosure box.
- Install Main 50A Double-Pole Breaker and Terminate Hot Feeder Lugs: Mount the 50-amp main double-pole circuit breaker onto the central bus stabs. Insert the Black (L1) conductor into the left main breaker lug and the Red (L2) conductor into the right main breaker lug. Tighten both Allen-head lug screws to 45-50 in-lbs using a calibrated torque screwdriver.
- Install Branch Circuit Breakers and Feeders: Snap single-pole 15A and 20A branch breakers onto the alternating bus tabs below the main breaker. Strip 1/2-inch of insulation from your 14/2 AWG or 12/2 AWG branch circuit hot wires (Black) and insert them into the appropriate branch circuit breaker screw terminals (torque to 20 in-lbs). Route branch neutral wires (White) to the isolated neutral bus and branch ground wires (Bare) to the grounded bus bar.
- Integrate Converter and 12V DC Section: Wire a dedicated 15A AC breaker to supply the 120V AC input of your power converter. For detailed load center integration, review our RV converter/charger wiring guide. Connect the converter’s 12V DC positive output to the integrated DC fuse block bus, and connect the 12V DC negative lead to the negative DC bus bar.
Loose lug connections on 50A high-amperage lines create high thermal resistance, leading to melted wire insulation, intermittent voltage drop, and electrical fires. Always verify terminal screw torque values using an inch-pound torque wrench prior to energizing the panel.
Auxiliary Power and Electric Brake Connections in RV Blade Plug Assemblies
While the 50-amp AC breaker box manages 120V shore and generator power, the tow vehicle connects to the trailer’s 12V DC distribution panel through an RV blade 7-way connector. This low-voltage interface handles vital towing signals, auxiliary battery charging, and braking systems.
The auxiliary power line (Pin 4, Black or Red 10 AWG wire) carries 12V DC current directly from the tow vehicle’s alternator to the RV house battery bank. This line must pass through a 30-amp self-resetting thermal circuit breaker installed within 18 inches of the trailer battery bank. This circuit maintains continuous charge levels to power 12V DC appliances, water pumps, and control boards while driving.
The electric brake feed (Pin 2, Blue 12 AWG wire) originates at the vehicle-side brake controller and connects directly to the trailer’s electric brake magnet coils. When modifying legacy tow rigs equipped with a standard 4-pin flat connector, an adapter harness must be installed to supply the additional auxiliary power and electric brake lines required by standard 7-pin RV blade configurations. Ensure that the 12V DC return ground pin (Pin 1, White 10 AWG wire) is securely attached to both the trailer chassis frame and the negative bus of the 12V fuse panel to prevent signal feedback and erratic brake operation.
Grounding and Neutral Isolation Specs in 50 Amp RV Breaker Boxes
The strict separation of equipment grounding conductors and neutral conductors is a critical safety standard mandated by National Electrical Code (NEC) Article 551. In residential main utility service panels, neutral and ground wires are bonded together at the main service entrance. In an RV, however, the breaker panel functions as a subpanel downstream from the pedestal grid or generator.
Because the panel is a subpanel, the neutral bus bar in the 50-amp RV breaker box must remain fully isolated (floating) from the metal enclosure. If the neutral bar is accidentally bonded to the RV chassis panel ground, neutral return currents will flow across the metal frame of the vehicle. This creates a dangerous condition known as “hot skin,” where touching the exterior sheet metal of the RV while standing on damp ground can result in severe electric shock.
The equipment grounding bus bar, conversely, MUST be solidly bonded directly to the steel enclosure box and linked to the structural RV chassis frame using a copper conductor sized no smaller than 8 AWG. This guarantees that any short circuit occurring inside an AC appliance immediately trips the corresponding branch circuit breaker, safely clearing the fault to earth ground through the shore cord ground conductor.
Common 50 Amp RV Breaker Box Wiring Diagram Errors and Troubleshooting
Electrical issues in 50-amp RV distribution centers typically stem from improper neutral bonding, loose terminal torque, or poor ground paths. Review the troubleshooting steps below to identify and correct common installation errors:
- Accidental Neutral-to-Ground Bonding: Inspect the neutral bus bar to confirm the factory-supplied bonding screw or strap has been removed. Use a digital multimeter set to continuity (ohms) with all shore power disconnected and input cables unhooked; there should be infinite resistance (open circuit) between the neutral bus and the ground bus.
- Intermittent 12V DC Auxiliary Charging: High resistance at Pin 1 (ground pin) or Pin 4 (auxiliary power pin) on the RV blade plug often prevents house batteries from charging during transit. Clean corroded terminals with electrical contact cleaner and apply dielectric grease to prevent oxidation. Consult our electric brake controller installation guide if voltage drop affects brake response.
- Thermal Breaker Tripping Due to Unbalanced AC Legs: If L1 carries 45 amps while L2 carries 5 amps, the main breaker handles localized thermal buildup unevenly. Rebalance heavy 120V loads across alternating breaker slots to equalize current distribution across both line legs.
- Corroded Frame Ground Terminations: Rust or paint on the steel frame connection point impairs ground efficiency, resulting in flickering running lights or unreliable trailer electric brake application. Scrape frame mounting surfaces to bright bare metal and apply anti-corrosion compound before bolting ground ring terminals.
Frequently Asked Questions About 50 Amp RV Breaker Box Wiring Diagrams
How Do You Wire a 50 Amp Double-Pole Breaker in an RV Load Center?
To wire a 50-amp double-pole main breaker in an RV load center, connect the incoming Black feeder wire (Line 1) to the top main lug of the breaker and the incoming Red feeder wire (Line 2) to the adjacent main lug. Torque both lugs to 45-50 in-lbs. The White neutral wire connects directly to the floating neutral bus bar, while the bare/green wire attaches to the bonded ground bus bar. Never bridge L1 and L2 together at the main breaker on a true 50A 120/240V installation.
Why Is Neutral and Ground Separation Critical in an RV Electrical Panel?
Neutral and ground separation is critical because an RV breaker panel is a subpanel derived from an external power source (the park pedestal or generator). Primary neutral-to-ground bonding occurs exclusively at the main power source utility entrance. Bonding neutral and ground inside the RV panel causes hazardous return current to travel along the RV’s metal chassis frame, creating a severe shock hazard known as hot skin condition.
What Cable Gauge Is Required for 50 Amp 120V/240V RV Service Feeders?
A 50-amp RV service feeder requires 6 AWG stranded copper conductors for Line 1 (Black), Line 2 (Red), and Neutral (White). The equipment grounding conductor must be at least 8 AWG copper. If using aluminum conductors (rare in RV internal distribution due to vibration-induced loosening), the minimum wire gauge increases to 4 AWG for current carrying conductors and requires anti-oxidant joint compound applied to all lug connections.
How Does the 7-Way RV Blade Connector Integrate With Auxiliary Power and Electric Brakes?
The 7-way RV blade connector interfaces the tow vehicle’s low-voltage DC power grid directly with the RV’s 12V distribution system. Pin 4 (Auxiliary Power) routes 12V DC power through a 30A auto-reset breaker to charge the house batteries. Pin 2 (Electric Brake) carries a variable voltage signal from the vehicle brake controller directly to the trailer brake magnets. Pin 1 (Ground Pin) acts as the shared negative DC return path for all trailer lights, signals, and braking components.
Can You Adapt a 50 Amp RV Breaker Box to Work On 30 Amp Shore Power?
Yes, you can operate a 50-amp RV breaker box on a 30-amp shore power pedestal using a standard dogbone adapter (NEMA TT-30P to NEMA 14-50R). Inside the adapter, the single 120V hot leg from the 30A plug is jumpered internally to connect to both Line 1 and Line 2 receptacles simultaneously. This powers all 120V branch circuits in the panel, but caps total power consumption to 3,600 watts (30A x 120V), preventing you from running multiple high-draw AC units concurrently.
