6.4 Powerstroke Vacuum Line Diagram: Routing & Repair Guide 2026
The 6.4 Powerstroke vacuum system primarily supports the brake booster, PCV, and EGR valve. Key lines often originate from the vacuum pump located on the passenger side front of the engine, routing to the brake booster and various solenoids controlling emissions components. Verify all connections for airtight seals.
📌 Key Takeaways
- The 6.4 Powerstroke vacuum system is critical for brake assist and emissions control (EGR vacuum, PCV valve, purge valve).
- Common vacuum line colors often include black, green, and red, though variations exist based on year and factory updates for the 6.4 Powerstroke.
- Always use reinforced, OEM-grade vacuum hose (typically 3.5mm-6mm ID) for replacements to withstand engine bay temperatures and pressures.
- The most common failure points are brittle lines near heat sources, cracked plastic connectors, and faulty vacuum pump or solenoids.
- While line replacement is DIY, complex vacuum pump or brake booster vacuum issues often require professional diagnostic tools and expertise.
The Ford 6.4L Power Stroke diesel engine, utilized in Super Duty trucks from 2008 to 2010, relies on a sophisticated vacuum system for critical operational functions. Understanding the 6.4 Powerstroke vacuum line diagram is essential for accurate diagnosis and maintenance of systems such as the brake booster, emissions controls, and certain engine management components. Unlike older diesel engines, the 6.4L uses vacuum primarily for auxiliary systems, as its turbocharger control is electronically actuated, but the vacuum network remains vital for overall vehicle performance and regulatory compliance.
While the 6.4L Power Stroke primarily utilizes engine oil pressure for turbocharger VGT actuation and high-pressure fuel pump control, the vacuum system remains integral for ancillary functions. The engine does not produce vacuum naturally; therefore, a dedicated vacuum pump is employed to generate the necessary negative pressure.
6.4 Powerstroke Vacuum Line Diagram
(Insert a detailed diagram of the 6.4L Power Stroke vacuum system here, ideally showing the vacuum pump, reservoir, check valves, and all connected components like the brake booster, EGR valve (if vacuum-actuated for specific models/years, though primarily electronically controlled on 6.4L), PCV system, and any evaporative emission components.)

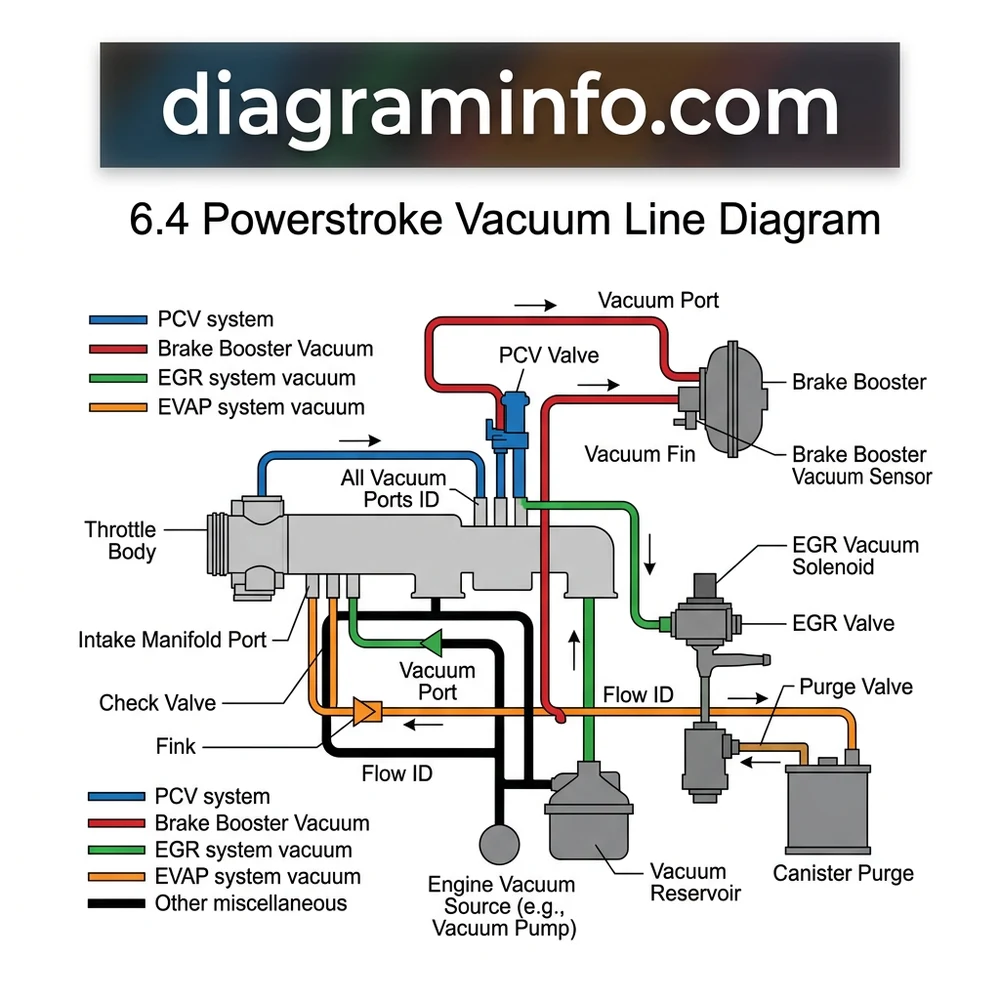

The diagram above illustrates the typical vacuum routing for the 6.4L Power Stroke engine. Observe the central role of the vacuum pump, which is typically belt-driven or integrated, generating vacuum for distribution throughout the system. Key components to identify include the vacuum reservoir (often a spherical or cylindrical canister) which stores vacuum for consistent supply, and the primary manifold vacuum port connections. Note the routing to the brake booster for power assist and any connections to emissions control solenoids or valves, even if their actuation is minimal compared to gasoline engines.
Vacuum Line Color & Routing Table
This table details the common vacuum line routings and their functions within the 6.4L Power Stroke engine’s system. While specific line colors can vary by year or component manufacturer, the primary function and destination remain consistent. Always reference the OEM service manual for the most accurate, year-specific information.
| Line Identification/Color (Typical) | Routing From → To | Function |
|---|---|---|
| Main Line (Black, Large Diameter) | Vacuum Pump → Vacuum Reservoir → Brake Booster | Primary vacuum supply for power braking assistance. Includes check valves to maintain vacuum during engine off or low vacuum conditions. |
| Reservoir Output (Black) | Vacuum Reservoir → Various Control Solenoids/Valves | Distributes stored vacuum to other auxiliary systems, ensuring consistent pressure. |
| PCV Valve Line (Black, Medium Diameter) | Crankcase/Valve Cover → PCV Valve → Intake Manifold Vacuum Source | Provides controlled vacuum for crankcase ventilation, removing blow-by gases and preventing pressure buildup. Connects to the intake manifold vacuum port after the PCV valve. |
| EGR Cooler Bypass/Valve (Small Diameter, sometimes with colored stripe) | Vacuum Source (often via solenoid) → EGR Cooler Bypass Valve Actuator | Controls the EGR cooler bypass valve, allowing exhaust gases to bypass the cooler for faster warm-up or during specific operating conditions. (Note: 6.4L EGR is predominantly electronically controlled, vacuum use here is specific and limited). |
| Evaporative Emission System (EVAP) (Black/Green, Medium Diameter) | Intake Manifold Vacuum Port → Purge Valve → EVAP Canister | Draws fuel vapor from the EVAP canister into the engine for combustion, reducing atmospheric pollution. This typically involves the canister purge solenoid. |
| Vacuum Regulator Valve (Small Diameter) | Vacuum Source → VRV → Actuator (if present) | Regulates vacuum pressure to specific actuators that may require a reduced or modulated vacuum signal. (Rare on 6.4L, primarily on older diesel models). |
Common Vacuum Leak Symptoms
Vacuum leaks on a 6.4 Powerstroke can manifest in various ways, impacting performance, emissions, and safety. Due to the reliance on a vacuum pump, leaks can lead to a significant loss of vacuum pressure in the entire system. Key indicators technicians should investigate include:
- Reduced Brake Assist: A primary symptom, as the brake booster relies directly on vacuum. You will experience a “hard pedal” requiring excessive force to stop the vehicle. This is particularly noticeable after multiple brake applications or during engine idling.
- Erratic Engine Idling or Stalling: Although less common on a diesel compared to gasoline engines, an unmetered air leak, particularly from the PCV system connected to the intake manifold vacuum, can upset engine stability, leading to rough idle, surging, or even stalling.
- Check Engine Light (CEL) Illumination: The PCM may detect vacuum-related issues, especially those affecting emissions control components like the purge valve or EGR system, triggering diagnostic trouble codes (DTCs). Common codes include P0441 (EVAP System Purge Flow Incorrect) or codes related to insufficient EGR flow if vacuum is used in its control.
- Hissing or Sucking Noises: Audible cues near the engine bay can indicate a significant vacuum leak. Listen carefully with the engine running, particularly around the intake manifold vacuum ports, vacuum pump, and associated lines.
- Poor Fuel Economy: While not always a direct symptom, a vacuum leak affecting the PCV or EVAP system can indirectly contribute to reduced efficiency if the engine management system struggles to maintain optimal parameters.
- Lack of Actuator Response: If a vacuum-actuated component, such as an older model EGR valve or a specific sensor, is failing to respond, a vacuum leak upstream could be the cause.
To locate a leak, perform a thorough visual inspection of all rubber and plastic lines, especially at connection points and where lines might rub against sharp edges. A smoke machine test is highly effective for identifying even minute leaks that are difficult to see or hear. Pressurize the vacuum system with smoke and observe where it escapes.
Diagnosis & Repair Steps
Diagnosing and repairing vacuum system issues on a 6.4 Powerstroke requires a methodical approach. Follow these steps for effective troubleshooting:
- Initial Visual Inspection:
- Inspect all visible vacuum lines, hoses, and connections. Look for cracks, kinks, chafing, or disconnected lines. Pay close attention to brittle plastic lines, especially near high-heat areas or vibration points.
- Examine the integrity of the vacuum pump and its connections, including the drive belt if applicable.
- Check the vacuum reservoir and its lines for any damage or disconnections.
- Vacuum Gauge Test:
- Connect a vacuum gauge to a main vacuum port, preferably near the vacuum pump output or the vacuum reservoir.
- Start the engine and observe the gauge reading. A healthy diesel vacuum system should maintain a consistent reading, typically between 20-25 inches Hg at idle, though OEM specifications can vary.
- Pump the brake pedal several times while observing the gauge. A significant drop that does not quickly recover indicates a weak pump, a large leak, or a faulty brake booster.
- Check the vacuum at individual components (e.g., brake booster input, PCV valve connection) to isolate the leak area.
- Smoke Test:
- Introduce smoke from a diagnostic smoke machine into the vacuum system, typically via a main vacuum line or an isolated intake manifold vacuum port.
- Observe for any smoke escaping from lines, fittings, or component housings (e.g., purge valve, check valve, PCV valve). This method is highly effective for pinpointing small, elusive leaks.
- Component Testing:
- Brake Booster: With the engine off, pump the brake pedal until it’s firm. Start the engine; the pedal should drop slightly if the booster is functioning. If not, check vacuum supply to the booster and the booster itself.
- Check Valves: Test each check valve by applying vacuum from one side and verifying it holds, and allows flow from the other. A faulty check valve can bleed off vacuum.
- PCV Valve: Remove the PCV valve and shake it; a working valve should rattle. Also, inspect for sludge buildup that can impede flow.
- Purge Valve/Solenoids: If equipped with vacuum-actuated solenoids (e.g., canister purge valve), test their electrical operation and vacuum holding ability.
- Repair and Verification:
- Replace any identified faulty or compromised vacuum lines with appropriate OEM-spec vacuum hose (e.g., SAE J1403 for general vacuum or specific braided hose for high-temp/high-flex areas). Ensure all connections are secure.
- Replace defective components such as the vacuum pump, check valves, PCV valve, or brake booster as needed. When replacing the vacuum pump, ensure proper belt tension according to manufacturer specs if it’s belt-driven.
- After repairs, re-run the vacuum gauge test to confirm proper system vacuum levels and integrity. Clear any stored DTCs and perform a test drive to ensure the issue is resolved and related systems (like braking) function correctly.
Always ensure the engine is off and cool before handling vacuum lines, especially those near hot components like exhaust manifolds. Exercise caution when performing vacuum tests with the engine running, particularly around moving belts and fans. Disconnect the battery before working on electrical components of the vacuum system.
FAQ
What is the typical vacuum pressure for a 6.4 Powerstroke engine?
A properly functioning vacuum system on a 6.4 Powerstroke should
Can a vacuum leak affect my 6.4 Powerstroke’s turbocharger performance?
The 6.4L Power Stroke engine’s Variable Geometry Turbocharger (VGT) is primarily controlled electronically via the VGT actuator, which is typically oil-pressure actuated, not vacuum. Therefore, a vacuum leak will generally not directly impact turbocharger performance or boost pressure in the way it might on older, vacuum-actuated turbo systems. However, an extreme vacuum leak could indirectly affect engine performance if it leads to other issues, such as poor braking or CEL illumination, causing the PCM to de-rate power. For issues related to turbocharger performance, refer to detailed guides on 6.4 Powerstroke turbocharger control systems.
Where is the PCV valve located on a 6.4 Powerstroke, and how does vacuum play a role?
The Positive Crankcase Ventilation (PCV) system on the 6.4L Power Stroke directs crankcase gases into the intake manifold to be re-combusted, preventing harmful emissions and pressure buildup. While the PCV valve itself regulates flow, it relies on the engine’s intake manifold vacuum (or a dedicated vacuum port) to draw these gases. A vacuum leak in the PCV line or a faulty PCV valve can lead to oil leaks, increased crankcase pressure, and potentially rough idle. Regular inspection of the PCV valve and associated vacuum lines is recommended as part of routine diesel engine maintenance schedules.
How do I test the brake booster vacuum line and check valve?
To test the brake booster vacuum line and check valve, first, ensure the engine is off. Disconnect the vacuum line from the brake booster. Using a hand-held vacuum pump with a gauge, apply vacuum to the check valve (the part connected to the booster). It should hold vacuum without immediately bleeding down. If it doesn’t, the check valve is faulty. Next, apply vacuum to the disconnected hose itself; it should also hold vacuum. If it doesn’t, there’s a leak in the line. A properly functioning check valve is crucial to maintain brake assist even if the engine momentarily loses vacuum.
Are there any specific year-to-year variations in the 6.4 Powerstroke vacuum system?
While the core vacuum system components (vacuum pump, reservoir, brake booster, and PCV) remained largely consistent across the 2008-2010 6.4L Power Stroke production, minor variations could exist in the routing or specific types of small-bore vacuum lines for ancillary systems, particularly concerning evaporative emissions (if applicable in certain truck configurations/markets) or specialized emissions control devices. Always consult the specific factory service manual or component diagrams for the exact year and model of the vehicle you are working on to account for any subtle differences in diesel emissions systems diagnosis.
Step-by-Step Guide to Understanding the 6.4 Powerstroke Vacuum Line Diagram: Routing & Repair Guide 2026
Identify – Recognize common vacuum leak symptoms like a hard brake pedal or rough idle on your 6.4 Powerstroke.
Locate – Pinpoint the main vacuum pump, brake booster vacuum line, EGR vacuum solenoid, and purge valve under the hood.
Reference – Consult the provided 6.4 Powerstroke vacuum line diagram to understand the original routing and connections.
Connect/Route – Carefully replace brittle or damaged vacuum lines, ensuring proper routing and secure, airtight connections, especially at the PCV valve.
Verify – Start the engine and listen for hissing sounds; use a vacuum gauge to confirm adequate vacuum pressure throughout the system.
Troubleshoot – If symptoms persist, re-check all connections, and consider using a smoke machine for hidden leaks or testing individual components like solenoids.
Frequently Asked Questions
What are the symptoms of a vacuum leak in 6.4 powerstroke vacuum line diagram?
Symptoms of a 6.4 Powerstroke vacuum leak include a hard brake pedal (due to brake booster vacuum loss), rough idle, engine misfires, decreased fuel economy, and an illuminated check engine light with lean codes (P0171/P0174). You might also hear a distinct hissing sound from the engine bay, indicating air infiltration.
How do I find a vacuum leak in 6.4 powerstroke vacuum line diagram?
To locate a 6.4 Powerstroke vacuum leak, visually inspect all lines, especially around the PCV valve and EGR vacuum lines, for cracks or disconnections. Use a smoke machine to introduce smoke into the system and observe where it exits. Alternatively, carefully spray carb cleaner on suspect areas; engine RPM will temporarily increase if it enters a leak.
What color are the vacuum lines on 6.4 powerstroke vacuum line diagram?
On the 6.4 Powerstroke, primary vacuum lines are typically black, often reinforced. Smaller lines connecting to specific solenoids for EGR vacuum or the purge valve may use color-coded segments like green or red, especially near their connection points to aid identification. Always refer to a factory service manual for precise routing and color codes.
What does the 6.4 powerstroke vacuum line diagram EVAP system do?
The 6.4 Powerstroke EVAP (Evaporative Emission Control) system, managed by the purge valve and canister purge, prevents fuel vapors from escaping into the atmosphere. It stores fuel tank vapors in a charcoal canister and then purges them into the engine’s intake manifold to be burned during specific operating conditions. This significantly reduces emissions.
How do I replace vacuum lines on 6.4 powerstroke vacuum line diagram?
To replace 6.4 Powerstroke vacuum lines, first identify the correct line size and type (reinforced). Cut new lines to the exact length of the old ones, ensuring clean, square ends. Disconnect one end at a time to prevent misrouting, carefully removing brittle sections. Apply a light lubricant if needed for easier installation, securing with proper clamps where specified.
What tools do I need to diagnose 6.4 powerstroke vacuum line diagram vacuum issues?
Diagnosing 6.4 Powerstroke vacuum issues requires a vacuum gauge to test pump output and system integrity, a smoke machine for leak detection, and an OBD-II scanner to read trouble codes (e.g., P0171, P0174) and monitor live data like fuel trims. Basic hand tools like pliers and cutters are essential for line replacement.
