Pfister Kitchen Faucet Parts Diagram: 2026 Repair

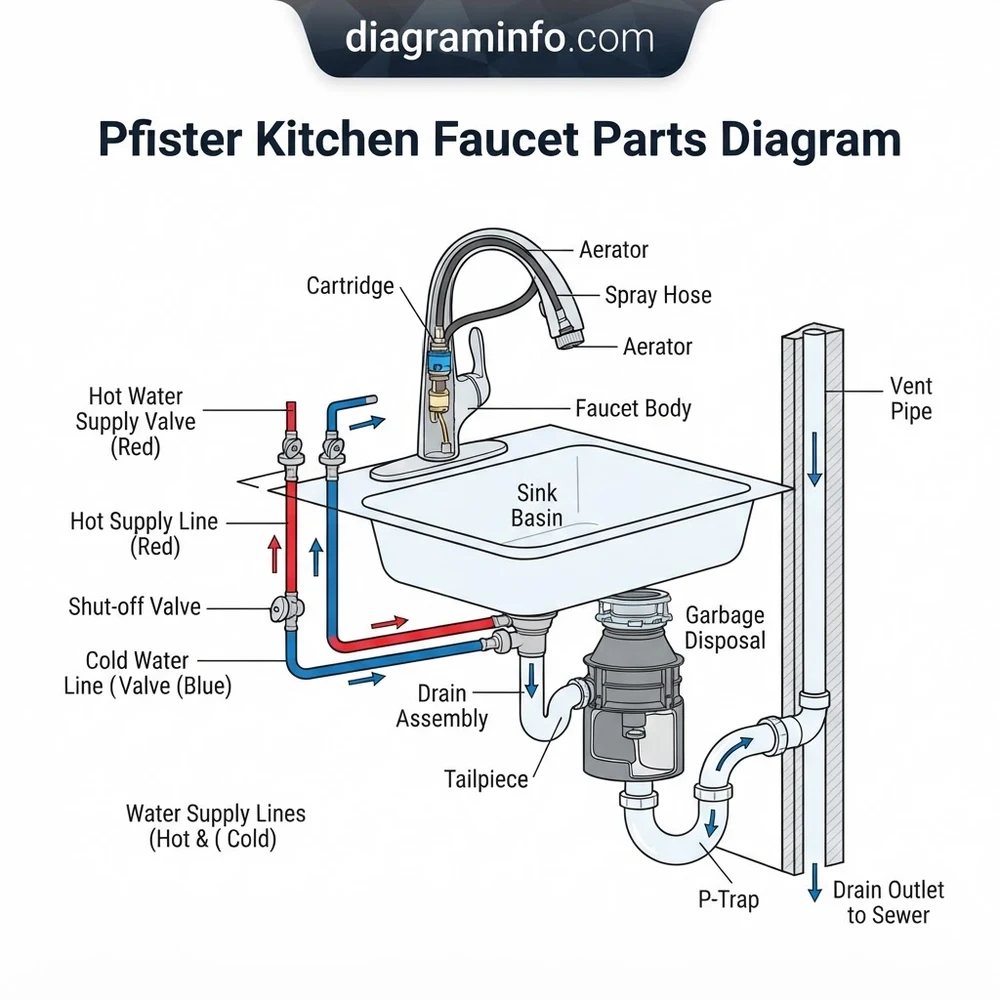

A Pfister kitchen faucet parts diagram illustrates the internal stack: handle kit, ceramic disc cartridge (e.g., model #910-030), spout body, quick-connect spray hose, and mounting hardware beneath the sink deck. It connects down to the sink tailpiece, drain assembly, and P-trap leading toward the waste vent pipe and garbage disposal.
📌 Key Takeaways
- Pfister ceramic cartridges feature standard 3/32-inch hex set screws and fit standard 1/2-inch IPS supply line connections.
- Model identification tags are located on the cold water supply line or laser-etched onto the back of the spout base.
- Torque retaining nuts hand-tight plus a 1/4 turn; exceeding 15 ft-lbs will crack the internal cartridge housing.
- Worn stem O-rings and mineral-clogged ceramic discs account for over 80 percent of kitchen sink spout leaks.
- Replacing cartridges and spray hoses is suitable for DIY, but severe line corrosion or valve replacement requires a professional plumber.
Understanding a Pfister kitchen faucet parts diagram requires analyzing the hydraulic path from supply lines to drainage integration. Whether installing a single-handle pull-down unit or servicing a dual-handle commercial brass model, accurate identification of cartridges, O-rings, spray hoses, and under-sink assemblies is critical. A standard installation bridges the above-counter fixture with sub-basin plumbing, connecting directly to the tailpiece, garbage disposal inlet, P-trap, and secondary venting components. Servicing these systems according to manufacturer specifications ensures correct operating pressure, prevents leaks across PVC slip joint connections, and maintains optimal flow rates across all sub-assemblies.
Pfister Kitchen Faucet Parts Diagram: An Architectural Component Breakdown
A comprehensive understanding of the Pfister schematic requires breaking down the fixture into two distinct technical operational zones: above-deck fluid delivery hardware and below-deck waste management infrastructure. Hydraulic delivery relies on high-grade brass shanks, ceramic disc metering, and pressure-rated flex hoses, while waste fluid removal depends on gravity-drained PVC or brass drain assembly stacks.
| Component Identification | OEM Part / Spec Number | System Function & Engineering Role |
|---|---|---|
| Ceramic Disc Cartridge | Pfister #910-030 / #910-900 | Controls mixed water metering and thermal blending up to 60 PSI operating pressure. |
| Spray Hose Quick-Connect | Pfister #951-258 | Locks pull-down spray head supply line to main discharge shank using dual O-ring seal. |
| Flanged Drain Tailpiece | 1-1/2 in. PVC / Schedule 40 | Directs effluent from the basin strainer down to waste processing or discharge lines. |
| P-Trap Seal Assembly | 1-1/2 in. PVC Slip Joint | Maintains a 2 to 4-inch liquid barrier preventing hazardous sewer gas back-siphonage. |
| Air Admittance Valve (AAV) | 1-1/2 in. NPT / DFU Class 1 | Provides localized atmospheric pressure equalisation in non-vented island applications. |
As indicated in technical schematics, the above-sink deck assembly houses the spout receiver, brass body housing, ceramic control stem, and aerator assembly (rated to 1.8 GPM at 60 PSI). Below the deck surface, a threaded brass mounting shank uses a steel washer, friction ring, and mounting nut to clamp the fixture against the basin deck. Water enters via 3/8-inch female compression flex lines.
The waste discharge line transitions seamlessly into the building drain assembly. Effluent flows through a 1-1/2 inch flanged tailpiece, which directly interfaces with either a dual-basin continuous waste line or a garbage disposal bypass connection. From the garbage disposal arm, flow proceeds through a series of PVC slip joint fittings into the primary P-trap U-bend. Air balance within unvented branch drains is controlled via an integrated inline AAV valve or a main vertical stack vent pipe.
How to Read a Pfister Kitchen Faucet Parts Diagram for Rapid Assembly
Systematic interpretation of exploded schematics eliminates trial-and-error assembly. Technical schematics utilize indexed line art, balloon callouts, and dashed lead lines to depict precise mechanical stack ordering, fastener locations, and sealing interfaces.
1. Deconstruct the Hydro-Mechanical Stack
Locate the primary valve body at the center of the diagram. The exploded view details how handle set screws (typically 3/32-inch hex) secure the external lever to the splined stem of the ceramic disc cartridge (OEM #910-030). Below the cartridge, locate the internal stem housing, quad-rings, and brass retaining nut. When reading the diagram, verify that elastomer seals are oriented flat against the machined brass seat to establish a zero-tolerance seal against pressurized cold and hot water inlets.
2. Trace the Under-Sink Waste and Venting Network
Follow the flow path down through the sink basin waste outlet. The diagram shows the basket strainer threading into the top of the 1-1/2 inch flanged tailpiece. For installations incorporating a garbage disposal unit, the waste stream routes through a lateral direction tube connected to the disposal’s inlet port. From the disposal outlet elbow, follow the pipe down to the P-trap U-bend. Take careful note of the slip joint nuts: the schematic indicates that tapered bevel washers must always face toward the threaded male fitting end to ensure correct compression sealing inside Schedule 40 PVC or ABS junctions.
3. Validate Torque Specs and Joint Sealing Protocols
Proper diagram execution requires matching component references with strict installation torque values to avoid premature component cracking or seal compression failure.
Standard Pfister deck shanks require a 1-3/8 inch mounting hole. Torque supply line compression connections to 10-12 ft-lbs (hand-tight plus 1/4 turn). PVC slip joint nuts must be torqued hand-tight plus 1/2 turn using smooth-jaw pliers. Sanitary waste lines must maintain a minimum 1/4-inch slope per linear foot.
Do not use pipe dope or PTFE tape on quick-connect spray hose couplings or slip joint bevel washers. Chemical solvents will degrade synthetic rubber seals, causing pressurized line blowouts and flooding.
For more detailed step-by-step instructions on servicing interior valves, consult our specialized guide on faucet ceramic cartridge replacement.
Diagnosing Hydraulic Leaks and Flow Faults in Pfister Drain Assemblies
System faults within a Pfister kitchen faucet or its downstream drain assembly manifest as operational pressure loss, external fluid weeping, or localized vacuum locking. Using the exploded schematic as a diagnostic map allows technicians to trace root causes efficiently.
Identifying Cartridge and Spout Seals Failures
When fluid leaks continuously from the spout aerator, internal ceramic discs inside the #910-030 or #910-900 cartridge have suffered severe scoring from particulate matter, or the lower silicone seats have degraded. If water accumulates around the base of the faucet body above the counter surface, inspect the internal body O-rings (OEM Kit #950-014). Remove the spout housing according to the diagram, clean mineral scaling from the brass core, replace both O-rings, and coat liberally with NSF-61 certified food-grade silicone grease.
Pfister dual-handle models utilize directional stem cartridges. Hot side cartridges open in a counter-clockwise (CCW) rotation, while cold side cartridges open in a clockwise (CW) rotation. Reversing these during maintenance causes backward handle movement.
Resolving Under-Sink Drainage and Vacuum Lock Issues
Persistent moisture inside the vanity cabinet typically originates from the waste plumbing stack rather than the pressurized faucet line. Inspect every slip joint connection along the tailpiece, garbage disposal discharge arm, and P-trap. Ensure the internal bevel washer is not pinched or hardened. If you are fitting non-standard cabinet layouts, review optimal pipe configuration standards in our reference on under-sink drain pipe sizing.
If the sink drains slowly despite a clear P-trap, the issue lies in atmospheric venting. Without proper venting, discharging water creates negative pressure, breaking the water seal in the trap. Inspect the mechanical AAV valve installed downstream of the P-trap arm. If the internal silicone diaphragm inside the AAV sticks shut due to airborne grease particulate, the waste line will vacuum lock. Replace the valve with a 1-1/2 inch DFU-rated unit positioned at least 4 inches above the horizontal trap arm weir.
Pfister Kitchen Faucet Parts Diagram Frequently Asked Questions
What is the standard cartridge part number in a single-handle Pfister kitchen faucet?
Most modern single-handle Pfister pull-down kitchen faucets utilize the OEM #910-030 ceramic disc cartridge. Commercial-style or high-pressure units may utilize the #910-900 pressure-balancing cartridge. Always confirm your model series on the OEM schematic before ordering replacement components.
How does an AAV valve integrate into an under-sink Pfister drain assembly?
An Air Admittance Valve (AAV valve) threads onto a vertical sanitary tee located downstream of the P-trap trap arm. It acts as a one-way air inlet valve that opens under negative pressure (-0.01 PSI) created by draining water, introducing air to break the vacuum while sealing tight against positive sewer gas pressures. For island sink installations without a traditional roof vent, read our complete analysis on kitchen island plumbing venting.
Why is water leaking from the slip joint on my garbage disposal discharge pipe?
Leaks at disposal slip joint connections occur when the internal rubber or PVC bevel washer breaks down, misaligns, or suffers over-tightening damage. Disassemble the slip nut, inspect the tailpiece connection flange, position a new bevel washer with the tapered edge pointing into the receiving pipe, and hand-tighten plus 1/2 turn.
What tools are required to overhaul a Pfister faucet using the parts diagram?
A standard overhaul requires a 3/32-inch hex wrench (for handle removal), an adjustable smooth-jaw wrench, a deep socket basin wrench (for under-deck shanks), smooth-jaw tongue-and-groove pliers for PVC slip joints, strap pliers for decorative finish protection, and NSF-61 silicone grease.
How do I prevent the pull-down spray hose from catching on under-sink drain pipes?
Ensure the heavy lead/lead-free split counterweight is installed on the spray hose precisely 2 inches above the lowest point of the hose loop on the non-pull side. This positioning prevents the hose from entangling with the P-trap, tailpiece, or garbage disposal wiring harness during extension.
Step-by-Step Guide to Understanding the Pfister Kitchen Faucet Parts Diagram
Identify – Locate your specific faucet model number from the tag under the deck or the original manual.
Locate – Find the specific component section on the diagram, such as the handle cap, cartridge unit, or quick-connect hose assembly.
Reference – Note the exact part callout number and corresponding OEM replacement code from the diagram’s parts legend.
Connect/Route – Follow the diagram path to route supply lines correctly, avoiding interference with the garbage disposal or P-trap.
Verify – Reassemble the parts in the exact reverse sequence shown, making sure all O-rings are lubricated and seated properly.
Troubleshoot – Turn on water supplies slowly and check connections above and below the sink tailpiece for pressure leaks or slow drips.
