The Honda 6HP 4-stroke outboard engine (BF6 series) utilizes a compact 127 cc overhead valve (OHV) single-cylinder architecture engineered for high thermal efficiency and steady power delivery. Understanding the mechanical layout, electrical schematic, and fluid routing of this engine requires a precise technical reference. Whether you are performing routine maintenance, rebuilding the fuel system, or diagnosing an electrical fault, referencing an OEM-standard diagram ensures correct torque values, exact wire routing, and proper reassembly sequence. This technical article breaks down the complete engine layout, electrical schematic, and lower unit structure for mechanics and marine technicians.

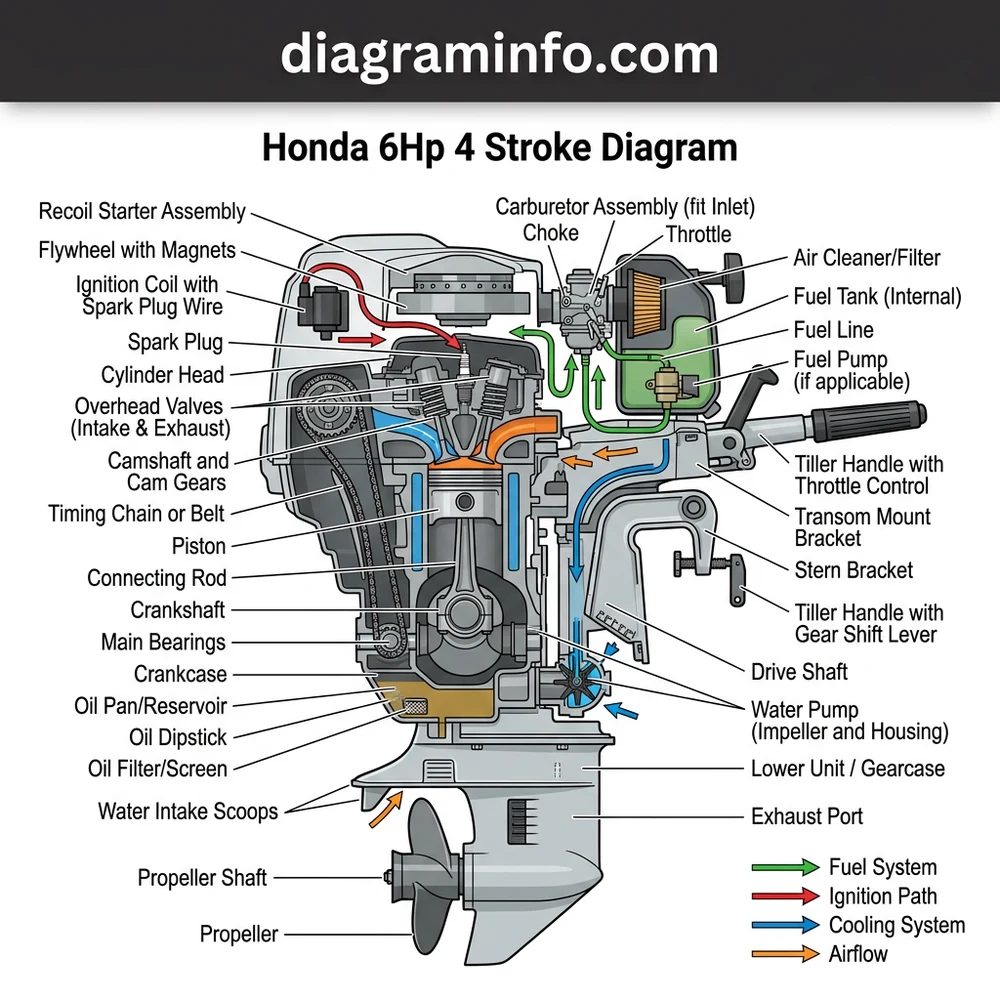

Honda 6Hp 4 Stroke Diagram: An Engine System Overview
The internal arrangement of the Honda BF6 single-cylinder powerhead is organized into four distinct subsystems: fuel delivery, electrical ignition, cooling fluid flow, and the mechanical valve train. According to OEM specifications, proper system integration depends on maintaining clean fluid passageways and precise electrical grounding across the chassis.
Displacement: 127 cc | Spark Plug: NGK BPR6ES (Gap: 0.7–0.8 mm) | Oil Capacity: 0.52 L (10W-30 API SJ+) | Valve Clearance (Cold): Intake 0.10 ± 0.02 mm, Exhaust 0.15 ± 0.02 mm | Flywheel Nut Torque: 65 N·m (48 lbf·ft)
Fuel Delivery System Layout
The fuel system layout incorporates a dual-source fuel feed configuration. Fuel travels from either the internal 1.5-liter integral tank or an external supply line through a three-way manual fuel valve. The mechanical diaphragm fuel pump, driven by an eccentric lobe on the camshaft, pulls fuel through an inline 10-micron fuel filter before delivering it to the float chamber of the single-venturi side-draft carburetor. Excess vapor pressure is relieved via an integrated crankcase breather circuit.
Ignition and Electrical Schematic Architecture
The digital Capacitor Discharge Ignition (CDI) system operates independently of battery power. The system uses a flywheel-mounted permanent magnet generator to induce primary voltage into the exciter coil. As the flywheel rotates past the pulse generator (pickup coil), a timing signal triggers the CDI unit to discharge accumulated energy into the ignition coil, generating high voltage to the spark plug.
| Wire / Circuit Lead | Color Code | Functional Path & Terminal Connection |
|---|---|---|
| Ignition Kill Switch | Black / Yellow | Connects CDI primary circuit to emergency stop switch ground |
| System Ground | Black | Attaches directly to crankcase ground stud |
| Pulse Generator Signal | Blue / White | Feeds timing trigger signal from pickup coil to CDI module |
| Optional Charging Coil | White / Yellow | Supplies AC voltage to optional 6A/12V rectifier/regulator assembly |
Cooling System and Water Passage Route
The open-loop liquid cooling system utilizes a flexible neoprene impeller located in the lower unit gearcase. Water enters via screen-protected side intake ports, ascends through the vertical copper water pipe inside the driveshaft housing, and surrounds the cylinder jacket and cylinder head. A wax-pellet thermostat opens at 60°C (140°F) to regulate operating temperature, while a small portion of pressurized water exits through the tell-tale bypass port to confirm circulation.
How to Read the Honda 6Hp 4 Stroke Schematic and Wiring Layout
Interpreting a technical engine blueprint requires a structured approach. When executing service procedures like carburetor cleaning schematics, lower unit seal replacement, or impeller rebuild kits, technicians must trace mechanical and electrical pathways from source to ground.
Always use a dedicated flywheel puller when disassembling the magneto section. Striking the flywheel directly with a hammer can demagnetize the rotor magnets or crack the cast aluminum structure, resulting in complete ignition system failure.
Tracing the Electrical Ignition Circuit
To verify ignition integrity using the schematic, start at the flywheel exciter coil. The primary output feeds directly into the CDI module. Locate the Black/Yellow ground wire running from the CDI harness to the tiller handle emergency kill switch and low oil pressure shutdown switch. A short to ground along this wire prevents the CDI from firing. Use a digital multimeter set to resistance (ohms) to verify continuity and rule out broken harness leads.
Mapping the Oil Pressure and Lubrication Route
Manufacturer specs indicate that the Honda BF6 employs a forced-feed trochoid oil pump driven directly by the bottom of the camshaft. The oil suction strainer draws oil from the 0.52-liter sump, pumping it through internal drilled galleries to the main crankshaft journals, connecting rod big-end bearing, and overhead rocker assembly. The low-oil warning system senses pressure via an inline pressure switch, triggering the LED indicator on the front cowl when oil pressure drops below safe operational limits.
Navigating the Lower Unit Drive and Gearcase Assembly
The lower unit blueprint illustrates the mechanical energy transfer path from the vertical driveshaft to the horizontal propeller shaft. A bevel gear set provides Forward-Neutral-Reverse (F-N-R) shifting via a sliding dog clutch operated by a vertical shift rod. When reassembling, ensure the shift rod connector pin aligns precisely with the upper shift linkage notch to maintain proper gear engagement tolerances.
Diagnosing Issues Using the Honda 6Hp Outboard Blueprint
Technical troubleshooting requires systematic elimination of variables by following the functional connections mapped in the engine schematic.
When testing CDI pickup coil output, set your multimeter to Peak Voltage (DVA). Standard AC voltage settings will read incorrectly low due to the rapid pulse width of the signal.
No Spark or Intermittent Ignition Diagnostics
If the engine fails to ignite, isolate the ignition circuit by disconnecting the Black/Yellow stop-switch lead at the CDI bullet connector. If spark returns, the fault lies in a shorted tiller stop switch or a defective low-oil pressure switch. If spark remains absent, measure the exciter coil primary resistance (typically 150–250 ohms) and pulse generator resistance (100–180 ohms across the signal leads). Replace components falling outside OEM resistance thresholds.
Cooling Overheat and Low Water Pressure Troubleshooting
If water does not discharge from the tell-tale port, consult the cooling path diagram. First, clear the exit nozzle with a mechanical wire pick to clear salt or debris blockages. If the condition persists, remove the lower unit gear housing to inspect the rubber water pump impeller. Check for sheared keyways, missing housing gaskets, or melted rubber blades caused by dry operation. Inspect the thermostat housing located on top of the cylinder head for corrosion build-up preventing the valve from opening at 60°C.
Carburetor Overflow and Lean Running Conditions
A engine running lean or leaking fuel from the intake bell points to float circuit malfunction. Consult the carburetor breakdown diagram to locate the float pin, float needle valve, and main jet assembly. Inspect the viton tip of the float needle for grooving or swelling. Set the float height to precisely 9.5 mm measured from the carburetor body mating surface when inverted. Clean the brass main jet (#62 to #68 depending on altitude model) using ultrasonic solvent baths rather than steel wire to avoid altering jet orifice geometry.
Honda 6Hp 4 Stroke Engine Configuration FAQs
What is the valve clearance specification for a Honda 6hp 4-stroke engine?
According to factory specifications, cold valve clearance for the Honda BF6 4-stroke engine must be set to 0.10 ± 0.02 mm (0.004 in) for the intake valve and 0.15 ± 0.02 mm (0.006 in) for the exhaust valve. Perform adjustments at Top Dead Center (TDC) on the compression stroke using a feeler gauge and jam-nut wrench.
How do I interpret the wire colors on the Honda BF6 electrical schematic?
On Honda marine electrical schematics, solid Black indicates system chassis ground. Black/Yellow is the dedicated ignition kill/stop circuit lead, Blue/White carries the timing signal from the pulse generator coil to the CDI, and White/Yellow provides raw AC power output from the optional lighting coil to an external rectifier.
Where is the thermostat located on the Honda 6hp 4-stroke powerhead layout?
The thermostat is located in a dedicated housing at the top rear section of the cylinder head assembly, secured by two 6 mm bolts. Accessing the thermostat requires removing the upper plastic engine cover. Always replace the housing profile O-ring gasket when reassembling the cooling cover.
What is the factory torque spec for the flywheel nut on the Honda 6hp engine?
The flywheel retention nut requires a tightening torque of 65 N·m (48 lbf·ft). Use a strap wrench or dedicated flywheel holder to lock the flywheel in place while applying torque with a calibrated torque wrench. Do not use an impact wrench for final torque verification.
Step-by-Step Guide to Understanding the Honda 6Hp 4 Stroke Diagram
Identify – Identify the specific engine sub-system required, such as the fuel delivery, ignition, or lower unit water pump configuration.
Locate – Locate the corresponding section on the Honda 6HP 4-stroke schematic and cross-reference key component part numbers.
Reference – Reference line pathways to trace fuel flow from the integrated tank valve through the fuel pump to the carburetor inlet.
Connect/Route – Route electrical kill-switch wiring along designated retaining clips to prevent pinching under the engine cowl structure.
Verify – Verify valve lash tolerances (0.10mm intake, 0.15mm exhaust) and torque cylinder head bolts to 12 Nm in proper cross-pattern sequence.
Troubleshoot – Troubleshoot no-start conditions by checking spark plug gap (0.6–0.7mm) and confirming fuel flow at the carburetor bowl drain screw.
