Steel 6 Foot Chain Link Fence Installation Diagram: 2026 Setup
A standard 6 foot chain link fence layout requires 8-foot terminal posts set 36 inches deep in 10-inch wide concrete footings. Line posts (7.5 feet) are set 24–30 inches deep, spaced max 10 feet apart. Tension bars attach mesh via band clamps every 12 inches vertically along terminal posts.
📌 Key Takeaways
- Dig post holes for 6-foot fences to a depth of 36 inches for corner posts and 24–30 inches for line posts (below frost line).
- Use 2-3/8 inch outer diameter (OD) steel posts for corners/terminals and 1-7/8 inch OD posts for intermediate line posts.
- Ensure maximum line post spacing does not exceed 10 feet center-to-center across the system layout.
- Proper tension wire and top rail sleeve configuration prevents mesh sagging; over-tightening can pull corner posts out of plumb.
- Seek professional help if property slope exceeds 15 degrees or if underground utility lines intersect the footing boundary.
Installing a commercial-grade or heavy-duty residential perimeter barrier requires strict adherence to structural specifications to resist wind loads, tension shear, and soil movement. A comprehensive 6 foot chain link fence installation diagram provides the precise geometric layout, depth ratios, and hardware orientation required for a long-lasting barrier system. Utilizing proper post wall schedules, tension bar arrangements, and footing diameters prevents premature structural failure and ensures code compliance. This technical guide outlines the complete schematic layout, step-by-step assembly protocol, critical specs, and alignment troubleshooting procedures for professional installers and experienced technicians.
Anatomy and Structural Components in a 6 Foot Chain Link Fence Installation Diagram

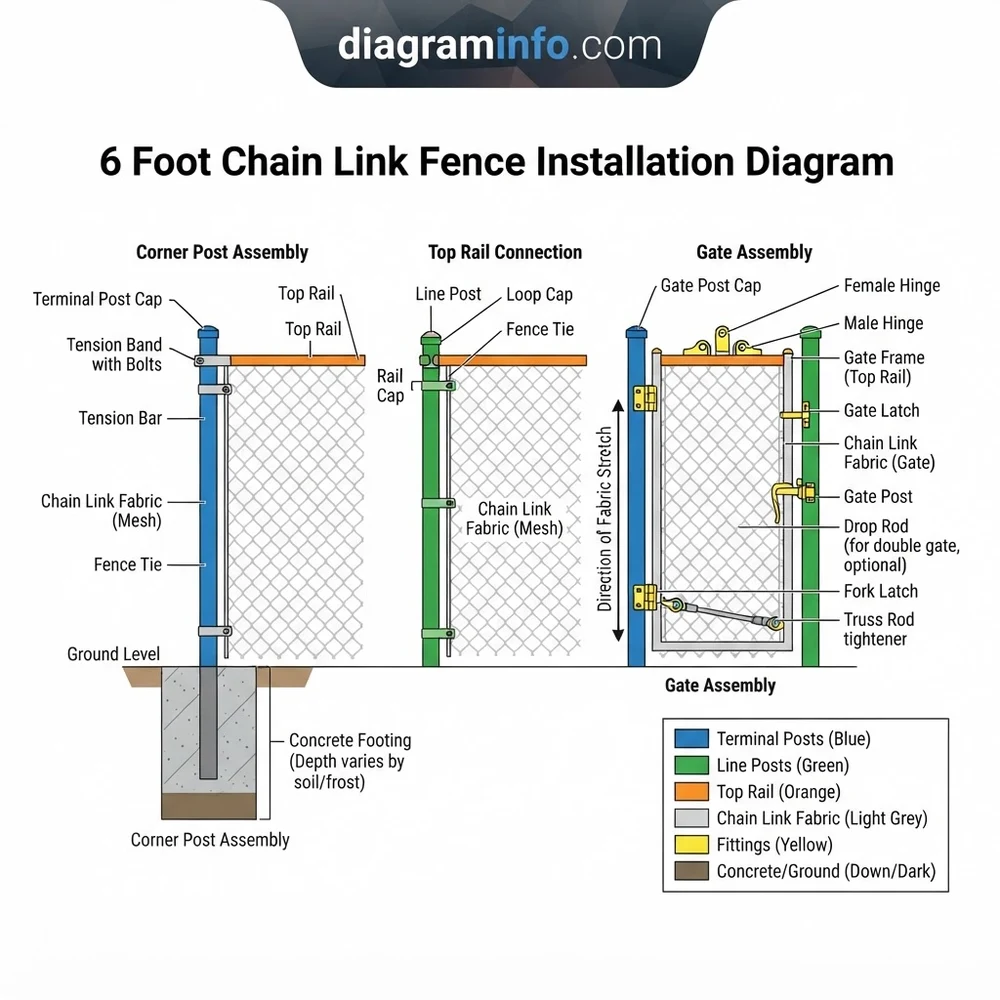

To ensure structural integrity under heavy dynamic and static loads, a 6-foot chain link barrier relies on a interconnected framework of tubular steel and high-tensile hardware fittings. The 6 foot chain link fence installation diagram illustrates the structural relationship between terminal posts, line posts, top rails, and tensioning hardware.
Recommended Best Deal Products
The primary load-bearing members are the terminal posts (corner, end, and gate posts), which must absorb the directional pull of the stretched wire fabric. Line posts provide vertical support and intermediate stabilization along the fence line. A continuous top rail runs through line post loop caps, establishing a rigid upper horizontal axis, while a 7-gauge bottom tension wire prevents fabric flare and intrusion beneath the mesh layout.
| Component | ASTM / Standard Specification | Dimensions & Specs | Function / Notes |
|---|---|---|---|
| Terminal Posts | ASTM F1083 / WT-40 | 2-3/8 in. OD (60.3 mm) Schedule 40 | Anchors corners, ends, and gates; handles axial tension. |
| Line Posts | ASTM F1083 / Schedule 40 | 1-7/8 in. OD (48.3 mm) Schedule 40 | Supports fabric weight; spaced 10 ft max on center. |
| Top Rail | ASTM F1083 | 1-5/8 in. OD Swaged Ends (21 ft lengths) | Provides lateral compression resistance between terminals. |
| Chain Link Fabric | ASTM A392 Class 2 | 2 in. Mesh, 9-Gauge or 11-Gauge Wire | Zinc-coated galvanized or vinyl-clad woven steel core. |
| Tension Bar & Bands | ASTM F626 | 3/16 in. x 3/4 in. Flat Bar / 5 Bands per Post | Distributes tension evenly down vertical post edge. |
Every terminal post utilizes tension bands (typically 5 bands for a 6-foot fabric height) paired with a full-length vertical tension bar threaded directly through the mesh diamonds. Brace bands secure the rail end caps to the terminal posts, allowing the top rail to lock into position without welding. For installations requiring higher security or heavy swing gates, refer to our guide on gate post hinge torque ratings and soil load-bearing concrete specs.
For a standard 6-foot fence elevation, terminal post footing depth must reach at least 36 inches deep by 12 inches in diameter. Footings must extend below local frost-line levels using 4,000 PSI non-shrink air-entrained concrete to withstand pull forces exceeding 1,200 lbs of linear tension force.
Step-by-Step Assembly Following the 6 Foot Chain Link Fence Installation Blueprint
Executing a structural fence assembly requires strict sequencing to avoid premature tensioning errors or post displacement. Follow this technical layout procedure using the project specifications and site schematic.
Required Tools and Equipment: Powered auger (or manual post hole digger), surveyor line and stakes, laser level, come-along winch stretcher (or block-and-tackle assembly), tension bar puller, socket set (5/16 in. carriage bolt nuts), pipe cutter, hog ring pliers, wheelbarrow, and torpedo level.
Recommended Best Deal Products
Safety Precautions: Wear heavy leather work gloves when handling cut mesh strands under tension. Use steel-toe boots and eye protection during concrete mixing and post hole augering. Always perform a utility location sweep (Call 811) prior to excavation.
Estimated Completion Time: 12 to 16 man-hours per 100 linear feet (excluding concrete cure duration).
- Site Survey and Terminal Post Hole Excavation: Establish the outer fence perimeter using string line strung 4 inches inside actual property lines. Excavate terminal post holes (corner, end, and gate) to a minimum diameter of 12 inches and depth of 36 inches. Dig line post holes at maximum 10-foot intervals on center with an 8-inch diameter and 30-inch depth.
- Post Setting and Concrete Curing: Position 2-3/8 inch OD terminal posts into corner/end holes, keeping 74 inches of post exposed above finished grade. Plumb each post using a two-axis torpedo level. Pour 4,000 PSI concrete mix around posts, mounding the top collar outward to shed rainwater. Allow concrete to cure for a minimum of 48 to 72 hours before tension loading.
- Line Post and Hardware Fitment: Set 1-7/8 inch OD line posts in remaining holes using string lines to maintain perfectly uniform height and horizontal alignment. Slide 5 tension bands and 1 brace band onto each terminal post with bevels facing outward. Install loop caps on line posts with openings aligned along the fence plane. Mount rail end caps into brace bands using 5/16 in. x 1-1/4 in. carriage bolts.
- Top Rail Installation and Sleeving: Feed 1-5/8 inch top rail sections through line post loop caps. Insert swaged ends firmly into adjoining rail pipes. Cut the final rail section to length using a pipe cutter, seating it into the end cap on the opposite terminal post. Tighten brace band carriage bolts to 18-22 ft-lbs torque.
- Fabric Unrolling, Mechanical Stretching, and Binding: Unroll 6-foot chain link fabric along the exterior side of the fence framework. Insert a vertical tension bar through the initial mesh diamonds and secure it to the starting terminal post using the pre-installed tension bands. Unroll mesh to the opposite terminal post, slide a temporary stretcher bar into the fabric 10 feet back from the terminal post, and attach a come-along winch tool. Apply tension until fabric deflects no more than 1/4 inch under firm hand pressure. Thread a permanent tension bar, hook into terminal bands, cut excess mesh diamonds, and fasten wire ties every 12 inches on top rails and 14 inches on line posts.
Over-tensioning woven 9-gauge or 11-gauge mesh using mechanical pullers can bend terminal posts or buckle line post loop caps. Maintain a maximum horizontal tension deflection of 1/4 inch per 10-foot span to protect the structural integrity of the tubular skeleton.
Resolving System Defects and Layout Misalignments in Fence Configurations
Unexpected site elevation changes, incorrect post placement, or inconsistent wire stretching can cause physical defects in a completed 6-foot chain link system. Correcting these issues requires targeted adjustment techniques during or after system assembly.
Mesh Sagging Along Top Rail: Fabric sag occurs when mechanical stretching fails to pull the top mesh pickets taut across the upper horizontal plane. Rectify this by using a chain link stretcher bar tool anchored closer to the terminal end. Pull the top edge tighter, or weave a secondary top tension wire (9-gauge spring steel) beneath the top rail ties to lift sagging sections. For severe terrain grade changes, review our recommendations on bias-cutting fabric for sloped installations.
Post Deflection Under Load: Terminal post deflection occurs when post footings fail or concrete curing time is bypassed prior to pulling tension. If a terminal post leans inwards during tensioning, completely relieve mesh tension immediately. Re-plumb the post using diagonal temporary guy wires, shore up footing concrete with non-shrink structural grout, and allow an additional 48-hour cure cycle before applying tension.
Fabric Binding at Line Post Loop Caps: If top rail sections press hard against fabric edges or jam line post caps out of level, post elevations are uneven. Adjust line post height by gently driving high posts lower using a post driver with a protective cap, or fill shallow holes beneath post bases before pouring concrete.
If terminal post lean exceeds 1/2 inch off plumb under full tension, loosen tension bar carriage bolts immediately. Check the underlying footing concrete for micro-fractures, insufficient depth, or improper aggregate blend before attempting to re-stretch fabric.
6 Foot Chain Link Fence Installation Diagram Technical FAQ
How many tension bands are required per terminal post on a 6 foot chain link fence system?
A standard 6-foot chain link elevation requires 5 tension bands per terminal post. Space bands evenly along the vertical pipe—roughly 12 to 14 inches apart—to distribute fabric tension along the full height of the terminal post without causing localized wire mesh distortion.
What is the optimal line post spacing in a 6 foot chain link fence structural layout?
Line post spacing should not exceed 10 feet on center. In high-wind areas, commercial zones, or installations featuring heavy privacy slats, decrease line post spacing to 8 feet on center to reduce lateral load stresses on post footings and prevent top rail flex.
Should top rail joints be welded or swaged during assembly?
Standard heavy residential and commercial installations use swaged top rail ends, where one tapered pipe end slides 3 inches directly into the un-swaged end of the next rail section. Welding is unnecessary unless specified for high-security prisons or crash-barrier configurations under ASTM F2611 criteria.
How is bottom tension wire installed without a bottom rail on a 6ft fence configuration?
Thread a 7-gauge coil spring tension wire through the bottom diamond mesh weave roughly 2 inches above finished grade. Anchor each wire end to the bottom brace band on terminal posts using a tight wire loop secured by wire rope clamps, then crimp 9-gauge steel hog rings to the mesh fabric every 24 inches along the run.
