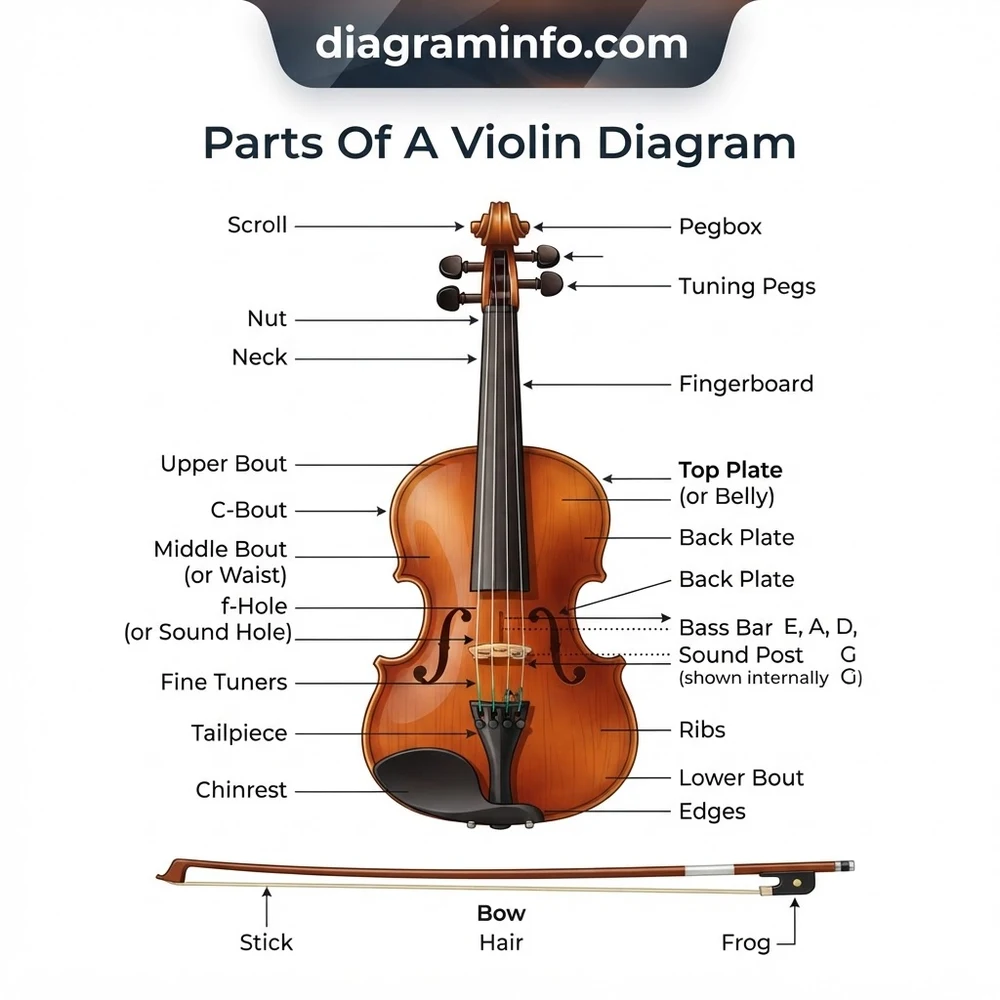

A parts of a violin diagram details the body, neck, and pegbox layout of a standard instrument. Key components include the maple bridge positioned between the f-holes, soundpost standing inside under the treble bridge foot, four tuning pegs, ebony fingerboard, tailpiece with fine tuners, and chinrest secured via dual clamp screws.
📌 Key Takeaways
- The soundpost must sit 0.5 mm to 1.5 mm behind the treble bridge foot inside the instrument body.
- The bridge is held purely by friction and string tension at a perpendicular angle to the belly surface.
- Ebony and rosewood are standard high-density hardwoods used for pegbox, fingerboard, and tailpiece hardware.
- Misaligned soundposts or slipping tuning pegs represent the most frequent acoustic maintenance issues.
- DIY setup is suitable for peg friction compound and bridge alignment; soundpost repositioning requires a luthier.
The violin operates as a complex acoustic-mechanical transducer, converting mechanical energy from string excitation into resonant acoustic radiation through a load-bearing wooden body. Understanding the system configuration and load vectors of this instrument requires an engineering-level perspective. Across the primary components, the structure must sustain over 220 Newtons (approx. 50 lbf) of static longitudinal tension from tuned strings (E5, A4, D4, G3) while transmitting downward forces through the bridge onto the carved top plate. Utilizing a comprehensive schematic approach allows technicians, luthiers, and restoration specialists to evaluate structural alignment, material mechanics, and acoustic energy transfer across all critical assemblies.
Analyzing Parts of a Violin Diagram: Core Acoustic Components
Every element illustrated in the functional layout serves a dual mechanical and acoustic role. The structural frame consists of the body assembly (corpus), neck assembly, and string-termination hardware. The carved top plate (belly) is constructed from quarter-sawn spruce (Picea abies) for its high strength-to-weight ratio and low acoustic damping, while the back plate, ribs, and neck assembly utilize quarter-sawn flamed maple (Acer pseudoplatanus) to handle structural flexure and shear stress.
Recommended Best Deal Products
| Component Reference | Material Specification | Mechanical & Acoustic Function |
|---|---|---|
| Scroll & Pegbox | Carved Maple | Houses mechanical tuning pegs; provides rigid counterweight for neck resonance. |
| Tuning Pegs | Ebony / Rosewood / Boxwood | Tapered friction-fit shafts (1:30 taper) maintaining string torque and pitch stability. |
| Nut | Dense Ebony | Establishes upper string termination height (0.5 mm clearance) and lateral string spacing. |
| Fingerboard | Grade-A Ebony | Provides cambered playing surface (42 mm cross-sectional radius) resistant to string wear. |
| Neck & Heel | Hard Maple | Supports string tension; mortised into upper block at a specific 85-degree pitch angle. |
| Body (Bouts & Ribs) | Spruce Top / Maple Back & Ribs | Encloses air chamber volume (~2.0 liters); amplifies Helmholtz resonance (A0 mode ~275 Hz). |
| F-Holes (Soundholes) | Precision carved in Top Plate | Vents internal air displacement and uncouples the central soundboard region for flexure. |
| Bridge | Untreated Despiau/Aubert Maple | Unfitted mechanical transducer; transfers string shear forces to top plate and soundpost. |
| Soundpost | Fine-grain Spruce Dowel (6.0-6.5 mm) | Transmits asymmetrical downforce to back plate; creates structural asymmetry for body modes. |
| Bass Bar | Graduated Spruce Beam | Glued under bass foot of bridge; distributes low-frequency energy and reinforces top arch. |
| Tailpiece & Fine Tuners | Ebony / Aluminum / Carbon Fiber | Anchors lower string termination; maintains afterstring length ratio (1:6 tuning). |
Internal structural stability relies on six internal hardwood blocks (upper, lower, and four corner blocks) interconnected by thin maple ribs (1.0 to 1.2 mm thickness) lined with spruce kerfing strips. This rib assembly forms a rigid outer perimeter designed to withstand both longitudinal compression and torsion. Understanding this internal anatomy is crucial when conducting detailed structural evaluations, such as those found in our technical guide on acoustic string tension calculations.
How to Read the Violin Structural Layout Schematic
Reading a parts of a violin diagram requires systematic evaluation of alignment geometry, mechanical clearances, and vector forces. When inspecting or setting up an instrument using structural layout prints, follow this step-by-step procedure:
Step 1: Evaluate Neck Projection and Fingerboard Alignment
Inspect the longitudinal axial line running from the exact center of the scroll, down the fingerboard, and bisecting the top plate. Measure the fingerboard projection height at the position of the bridge. According to standard luthier specifications, the projection line must elevate exactly 27.0 mm above the top plate surface at the bridge position. Deviations greater than ±0.5 mm alter the break angle of the strings over the bridge, drastically changing the downward force applied to the acoustic plate.
Step 2: Verify Bridge Placement and Foot Contact
Locate the bridge on the blueprint relative to the f-hole transverse notch line (the stop length, standardly set at 195 mm from the edge of the top plate next to the neck). The bridge feet must sit flush against the spruce belly, centered perfectly between the f-hole nicks. Ensure the back face of the bridge forms a strict 90-degree angle relative to the flat plane of the rib structure (or slightly angled back toward the tailpiece by 0.5 to 1.0 degrees to counteract forward string movement during tuning).
Step 3: Map Soundpost Geometry and Offsets
Refer to the cross-sectional view of the blueprint. The soundpost sits inside the sound chest, positioned directly behind the treble bridge foot. Align the post vertically, parallel to the rib height. The standard baseline clearance places the post 1.5 mm to 2.0 mm directly behind the outer edge of the treble bridge foot, offset slightly toward the soundhole to optimize high-frequency transducer coupling.
Step 4: Check Afterstring Ratio and Tailpiece Configuration
Measure the distance between the bridge heart/preshaped crest and the fret edge of the tailpiece. To eliminate unwanted sympathetic resonance, the effective afterstring length must equal exactly one-sixth (1/6) of the playing scale length (typically 55 mm for a standard 328 mm vibrating string length). This configuration tunes the afterstrings two octaves and a fifth above the open string fundamental frequency.
For more details on precise string setups, refer to our overview on violin arching profile schematics.
Troubleshooting Failures in the Parts of a Violin Blueprint
Structural failure in an acoustic stringed system usually manifests as altered tone, dead spots, fret-like buzzing, or localized structural collapse under continuous load. Use the following diagnostic protocol to resolve critical mechanical issues referenced in structural schematics.
When installing or replacing a soundpost, ensure its wood grain runs perpendicular (at 90 degrees) to the top plate grain direction. This prevents the soundpost grain from interlocking with or splitting the delicate spruce belly under downward compression loading.
1. Unexpected Acoustic Buzzing and Sympathetic Vibration
If buzzing occurs, inspect the structural interface points shown in the system configuration:
- Fingerboard Scoop: Measure longitudinal relief along the ebony surface. Insufficient concave scoop (less than 0.75 mm clearance under the G string) causes string slap during high-amplitude oscillation.
- Nut Groove Clearance: Check String-to-fingerboard clearance at the nut; string depth should leave precisely 0.5 mm under the E string and 0.75 mm under the G string.
- Loose Components: Verify that fine-turner lever pins, chinrest clamps, or unglued purfling strips are not vibrating against adjacent wood surfaces.
Never tune strings beyond designated pitch limits without inspecting the soundpost position. Tuning to tension without adequate internal vertical support from the soundpost can result in irreversible top plate arching deformation or structural longitudinal splitting along the grain lines.
2. Tuning Peg Slippage and Mechanical Bind
When tuning mechanical components show operational failure in friction fit, inspect the pegbox assembly. Pegs utilize a standardized 1:30 taper ratio. Over time, humidity changes alter hole roundness in the maple pegbox, causing the shaft to bind or slip. Re-ream the peg holes with a precision 1:30 luthier reamer and apply specialized peg compound (dry soap and chalk compound) to restore proper static friction.
Standard 4/4 Violin Bridge Profile: Crown curve radius = 42.0 mm; E-string height off fingerboard end = 3.5 mm; G-string height off fingerboard end = 5.5 mm; Lateral string-to-string notch spacing = 8.5 mm (25.5 mm total outer spread).
For additional details regarding wood moisture content and environmental tolerance, see our repair framework on lutherie humidity control standards.
Frequently Asked Questions About Violin System Configuration
What is the optimal soundpost position relative to the bridge foot?
The standard baseline positioning for the soundpost is 1.5 mm to 2.0 mm directly behind the center of the treble bridge foot. The post must stand perfectly vertical, with its top surface carved to match the exact internal arching curve of the top plate, ensuring uniform flush contact across its full 6.0–6.5 mm diameter end-grain surface.
How does string break angle over the bridge affect downward load?
The total downward vector force applied to the violin top plate is determined by the break angle of the strings crossing the bridge crest—standardly set at 158 degrees. A sharper break angle (caused by a low neck angle or excessively tall bridge) increases downward pressure beyond the typical 89 N (20 lbf) force, stifling top plate vibration and damping acoustic output.
Why does top plate arching stability degrade under humidity fluctuation?
Spruce top plates expand and contract transversely in response to ambient relative humidity changes (ideal range: 45–55% RH). High humidity causes wood expansion across the grain, altering plate arching height and reducing string clearance. Low humidity causes shrinkage, which under fixed string tension risks structural cracking along grain boundaries near the f-holes and tail block.
What mechanical specs determine correct pegbox taper and friction fit?
Standard violin tuning peg assemblies utilize a 1:30 taper ratio along both the peg shaft and matching pegbox holes. Proper mechanical hold depends on uniform surface-area contact throughout the entire thickness of both cheek walls of the pegbox, maintained with specialized peg compound for friction stability under 50+ lbs of tension.
Step-by-Step Guide to Understanding the Parts Of A Violin Diagram
Identify – Locate overall body structures, including upper bout, C-bout, lower bout, and neck frame.
Locate – Reference pegbox, nut, ebony fingerboard, and bridge alignment points on the diagram.
Reference – Inspect internal component positions, specifically the bass bar and soundpost configuration.
Connect/Route – Set bridge feet centered between the f-hole notches perpendicular to the top soundboard.
Verify – Check string height above the fingerboard, peg tension in the pegbox, and chinrest stability.
Troubleshoot – Adjust soundpost location or apply peg drops if pitch retention or acoustic projection fails.
