Oil Pressure Relief Valve Diagram: Structure and Setup
An oil pressure relief valve diagram illustrates the internal structure and configuration of the valve within the lubrication system. It highlights how the spring-loaded plunger responds to pressure spikes, diverting excess oil back to the sump. This layout is vital for preventing seal failure and ensuring consistent oil flow across engine components.
📌 Key Takeaways
- Visualizing the bypass mechanism that regulates engine oil pressure
- Identifying the spring and plunger assembly as the core regulation unit
- Understanding how excessive pressure can rupture filters or damage engine seals
- Inspecting the valve seat for debris or varnish shown in the diagram
- Using the diagram to diagnose low or dangerously high oil pressure readings
Maintaining the internal health of your engine begins with understanding its lubrication architecture, and a clear oil pressure relief valve diagram is the essential roadmap for this task. If you are experiencing fluctuating oil pressure readings or are concerned about engine longevity, visualizing how this specific component fits into your overall system layout is critical for effective troubleshooting. This article provides a comprehensive overview of the valve’s structure, illustrating the vital relationship between the spring, plunger, and bypass ports. By the end of this guide, you will have a thorough understanding of the oil pressure relief valve diagram, enabling you to identify components, perform maintenance, and ensure your engine remains properly lubricated under all operating conditions.
Understanding the Oil Pressure Relief Valve Diagram and Component Structure
A detailed oil pressure relief valve diagram illustrates the internal mechanical configuration designed to protect your engine from excessive pressure. At its core, the valve is a simple yet high-precision regulator. The diagram typically highlights four to five primary elements that work in unison within the engine’s lubrication system. The first component you will notice is the valve body or housing, which is often integrated into the oil pump assembly or located near the oil filter housing. Inside this housing, the diagram reveals a precisely calibrated compression spring and a movable piston or ball.
The layout of these parts is directional. Pressurized oil from the pump enters through the inlet port and pushes against the piston. Under normal operating circumstances, the spring holds the piston firmly against its seat, ensuring all oil flows directly to the engine bearings and critical components. However, when the pressure exceeds a specific threshold—often referred to as the “cracking pressure”—the force of the oil overcomes the spring tension. This action moves the piston, uncovering a bypass or return port. The oil pressure relief valve diagram visually represents this “spill-off” route, showing how excess oil is diverted back to the suction side of the pump or directly into the oil pan (sump).
Variations in configuration are common depending on the engine design. In some high-performance systems, the diagram might show a dual-stage relief valve or an adjustable screw that allows for fine-tuning the spring tension. Regardless of the specific model, the diagram serves as a blueprint for understanding the mechanical balance between fluid force and mechanical resistance. Identifying these elements on a schematic allows you to see how a small amount of debris or a fatigued spring can disrupt the entire system’s equilibrium.

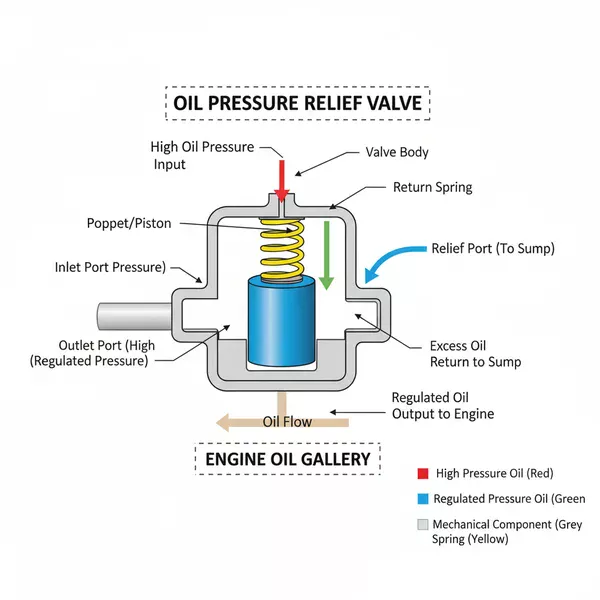

[DIAGRAM_PLACEHOLDER: A cross-sectional view of an oil pressure relief valve showing the housing, internal spring, sliding piston, oil inlet from the pump, and the bypass outlet returning to the oil sump. Arrows indicate the flow of oil and the direction of piston movement against the spring.]
The oil pressure relief valve is the primary safeguard against “filter ballooning” or gasket failure. Without this component functioning correctly, the oil pump could generate enough pressure to rupture the oil filter or damage internal seals during a cold start when oil viscosity is highest.
Step-by-Step Guide: How to Interpret and Use the Diagram
Reading an oil pressure relief valve diagram requires a systematic approach to ensure you are interpreting the mechanical interactions correctly. Whether you are performing a rebuild or diagnosing a pressure drop, follow these steps to master the system layout.
- Orient the Valve within the Lubrication System: Look at the larger system layout on your diagram. Locate the oil pump and follow the primary discharge line. The relief valve is almost always positioned immediately after the pump discharge but before the oil reaches the filter. This ensures that the entire system, including the filter, is protected from over-pressurization.
- Identify the Flow Directional Arrows: Most diagrams use arrows to indicate oil flow. Note the difference between the “Main Gallery” flow (which goes to the engine) and the “Bypass” flow. Understanding this distinction is vital for determining if a low-pressure issue is caused by the valve being stuck in the open position.
- Analyze the Spring Tension Specifications: Look for annotations or a legend on the diagram that specifies the spring’s free length and pressure rating. The spring is the “brain” of the valve; if it has lost its temper or is broken, the diagram helps you understand exactly where that failure point sits in relation to the piston.
- Locate the Retaining Mechanism: Every relief valve has a way of being held in place, such as a threaded plug, a roll pin, or a circlip. The diagram will show this component at the end of the valve bore. Identifying this early prevents damage during disassembly, as these springs are often under significant preload.
- Check for Seating Surfaces: Examine the area where the piston or ball meets the housing. The diagram will show a chamfered or flat seat. When interpreting the diagram for troubleshooting, imagine how a small piece of carbon or metal shaving could prevent a perfect seal at this specific point, leading to pressure bleed-off.
- Differentiate Between the Pump and Remote Locations: Determine if your specific configuration places the valve inside the oil pump housing or in a remote block location. A comprehensive diagram will show the surrounding castings, helping you decide which components must be removed to access the valve.
Never attempt to “shim” a relief valve spring to increase pressure without consulting a professional or a factory service manual. While a diagram may show how to access the spring, increasing pressure beyond the engine’s design limits can cause premature bearing wear or oil pump drive failure.
To work effectively with the components shown in the diagram, you will generally need the following tools:
- ✓ External mechanical oil pressure gauge for verification
- ✓ Snap ring pliers or a specific socket set for the retainer plug
- ✓ Precision calipers to measure spring length against diagram specs
- ✓ Magnet tool for extracting the piston from deep bores
Common Issues and Troubleshooting with the Relief Valve
The oil pressure relief valve diagram is your most powerful tool when diagnosing lubrication failures. Most issues with this component manifest in two ways: the valve is stuck open or it is stuck closed.
If your oil pressure is dangerously low, especially at idle, the valve may be stuck in the open position. Using your diagram, you can see how a piece of debris lodged between the piston and the seat allows oil to bypass the engine and return to the sump constantly. Conversely, if your oil pressure is excessively high—causing oil filter gaskets to blow out or the filter canister to deform—the valve is likely stuck closed. This means the spring cannot compress, or the piston is wedged in the bore, preventing the “spill-off” function shown in the diagram.
Visualizing the structure helps you understand that these are mechanical failures. Scuffing on the piston or a “stepped” wear pattern in the valve bore can cause intermittent sticking. By comparing your physical parts to the pristine layout in the diagram, you can identify where wear has occurred and determine if the housing needs to be polished or if the entire assembly requires replacement.
Best Practices for Maintaining the Oil Relief System
To ensure your oil pressure relief valve operates as shown in the standard configuration, regular maintenance and high-quality consumables are non-negotiable. The valve is sensitive to contaminants, which is why the most important tip is to adhere to strict oil change intervals.
When replacing an oil pump, always check if a new relief valve is included. If you are reusing an old housing, use a fine lint-free cloth and fresh oil to clean the valve bore. Even a microscopic burr can cause the piston to hang up, leading to erratic pressure readings.
Always use the oil viscosity recommended by the manufacturer. Using oil that is too thick can cause the relief valve to work harder than intended, as the increased resistance forces the valve into the “bypass” mode more frequently, potentially leading to spring fatigue over time. Furthermore, when consulting an oil pressure relief valve diagram during a rebuild, always prioritize replacing the spring. It is a low-cost component that ensures the “cracking pressure” remains within factory specifications.
When purchasing replacement parts, look for high-quality OEM or reputable performance brands. The metallurgy of the spring and the surface finish of the piston are critical. A poorly manufactured piston might have sharp edges that don’t match the smooth layout seen in a professional diagram, leading to internal galling. By following these best practices and keeping a detailed diagram handy, you can ensure your engine’s lifeblood—its oil—is always regulated at the perfect pressure for maximum performance and protection.
Frequently Asked Questions
What is oil pressure relief valve diagram?
An oil pressure relief valve diagram is a visual representation of the valve’s internal configuration and its placement within the lubrication system. It shows how the component interacts with the oil pump and engine galleries to maintain safe pressure levels, ensuring that the lubricant structure remains stable during high RPMs.
How do you read oil pressure relief valve diagram?
To read the diagram, start by identifying the oil inlet from the pump and the outlet to the engine. Observe the plunger and spring layout, which indicates the direction of movement when pressure exceeds the spring’s tension. The bypass route back to the oil pan is usually clearly marked.
What are the parts of oil pressure relief valve?
The primary components shown in the diagram include the valve body, a calibrated tension spring, a plunger or ball, and a retaining cap. This specific configuration allows the valve to stay closed under normal conditions but open when the system pressure overcomes the resistance provided by the spring.
Why is the spring important?
The spring is a critical component because its tension determines the exact pressure at which the valve opens. If the spring loses tension or breaks, the system pressure will drop significantly, potentially starving the engine of lubrication. The diagram shows how this structure manages the mechanical force.
What is the difference between the relief valve and a bypass valve?
While they appear similar in layout, a relief valve regulates overall system pressure by returning oil to the sump. A bypass valve, often found in filters, allows oil to skip a clogged filter element. The diagram helps distinguish these distinct paths within the overall lubrication system configuration.
How do I use oil pressure relief valve diagram?
Use the diagram to identify the physical location of the valve within your specific engine configuration. It serves as a guide for disassembly, cleaning, or replacement. By understanding the internal layout, you can better diagnose if a stuck plunger or weak spring is causing erratic pressure readings.
