Timber Frame Post and Beam Construction Diagram: 2026 Guide
A post and beam construction diagram illustrates heavy timber posts transferring vertical load down to footings, connected by horizontal beams secured with steel knee braces, hidden mechanical fasteners, or mortise-and-tenon joinery. The layout defines structural load paths, post spacing (typically 8–16 feet apart), shear wall integration, and foundation anchor bolt points.
📌 Key Takeaways
- Standard post spacing ranges from 8 to 16 feet on center, supporting beam clear spans up to 20 feet using 8×8 or larger timber.
- Structural integrity relies on mechanical steel connectors (3/8-inch minimum plate thickness) or traditional mortise-and-tenon wooden peg joinery.
- Anchor bolts securing posts to concrete piers must meet 5/8-inch minimum diameter embedded at least 7 inches into masonry.
- Most failure points stem from improper moisture sealing at post bases leading to wood rot and lateral load sway without diagonal bracing.
- DIY builders can handle non-load-bearing framing, but engineered stamp approval and heavy timber rigging require certified structural contractors.
Reading a post and beam construction diagram requires a thorough understanding of heavy timber mechanics, load distribution dynamics, and precision joinery specifications. Unlike conventional light-frame construction, post and beam systems transfer large point loads directly through heavy vertical members onto dedicated foundation piers. Engineering blueprints for these structures utilize standardized drafting symbols, elevation callouts, and connection details to ensure structural integrity under heavy dead, live, and wind loads. This guide analyzes the essential elements of a post and beam framing schematic, providing structural technicians, equipment shelter builders, and commercial fabricators with the technical clarity needed to correctly interpret structural prints and execute precise installations according to code.
Post and Beam Construction Diagram: Primary Component Identification

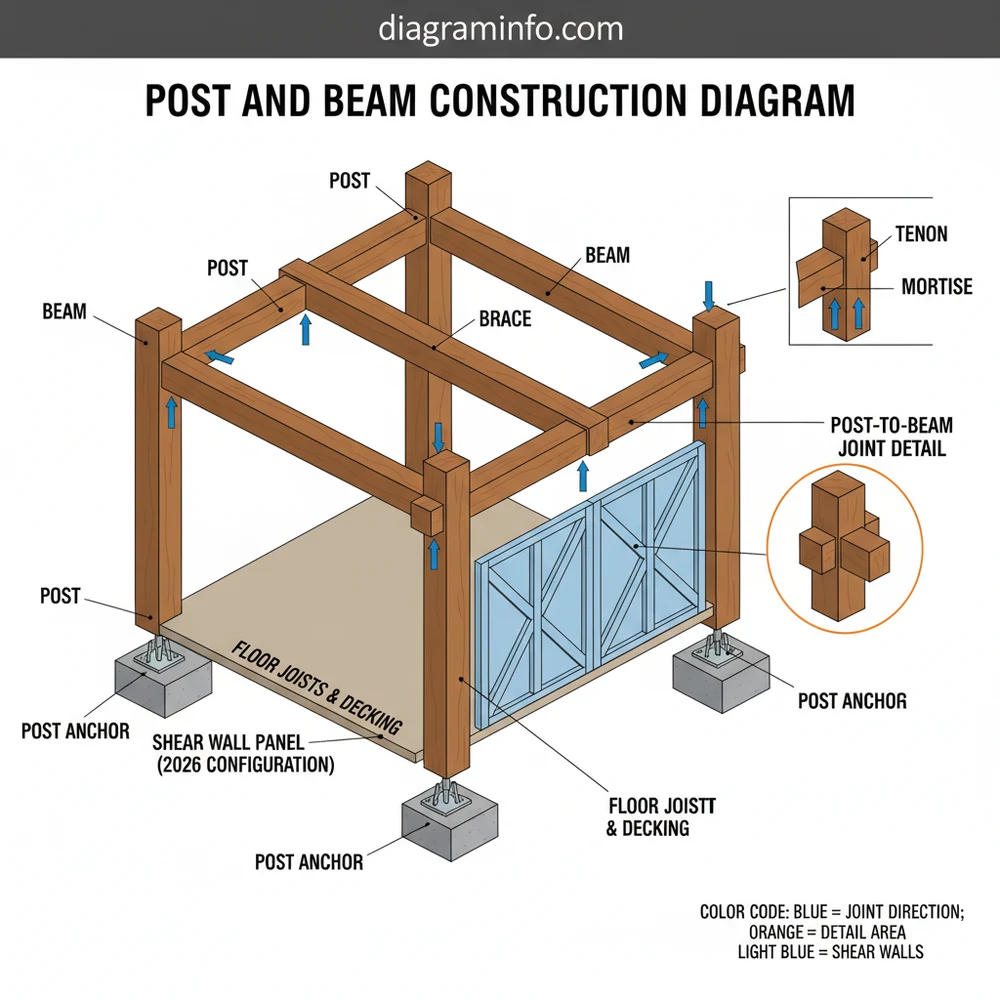

Every post and beam construction diagram establishes a clear hierarchy of load-bearing members designed to distribute vertical and lateral loads down to the subfloor and footing system. As detailed in the schematic above, the main framework relies on large-section structural timbers or structural steel columns engineered to prevent deflection under concentrated loads.
Vertical Posts and Supporting Foundation Piers
Vertical posts serve as the primary compression members within the structure. According to structural engineering standards, post dimensions typically range from 6×6 inches up to 12×12 inches depending on span length and vertical load requirements. In a standard equipment layout, posts interface directly with reinforced concrete piers via heavy-gauge steel column bases (such as Simpson Strong-Tie CB or HDG series). These connections elevate the wood above grade to prevent moisture wicking while offering high uplift resistance.
Horizontal Beams, Girders, and Ridge Purlins
Horizontal beams carry bending stresses transferred from floor joists or roof purlins. Primary girders span directly between post centers, secured using structural steel knife plates, heavy timber mortise-and-tenon joints, or surface-mounted steel hangers. Beam sizing calculations must adhere to continuous load-path mechanics, where bending moment ($M$) and shear capacity ($V$) meet or exceed local building performance requirements.
Knee Bracing and Lateral Load Transfer Systems
To resist racking forces from wind and seismic activity, the framing configuration incorporates diagonal knee braces installed at 45-degree angles between vertical posts and horizontal beams. These members convert shear forces into compressive loads, effectively shortening the clear span of the horizontal beam and lowering overall moment deflection.
• Timber Material Grade: Select Structural Douglas Fir-Larch or 24F-V4 Glue-Laminated Timber (Glulam)
• Steel Fasteners: ASTM A307 or A325 3/4-inch diameter hot-dip galvanized structural bolts
• Max allowable deflection ($L/d$): $L/360$ under total load, $L/240$ under live load
• Bolt Torque Rating: 110 lb-ft minimum for through-bolt steel connector plates
| Structural Component | Standard Material Spec | Primary Load Function | Connection Type |
|---|---|---|---|
| Main Post | 8×8 Select Structural DF | Axial Compression / Vertical Load | Standoff Pier Anchor Plate |
| Primary Girder | 6×12 Glulam / Solid Sawn | Bending Moment / Flexural Tension | Concealed Knife Plate w/ Dowels |
| Knee Brace | 4×6 Solid Timber | Lateral Shear / Racking Resistance | Mortise & Tenon / SDS Structural Screws |
| Rafter Purlin | 4×8 Solid Sawn | Transverse Roof Load Distribution | Top Saddle Hanger / Birdsmouth Notch |
How to Read a Post and Beam Framing Schematic and Structural Layout
Interpreting a complex structural blueprint demands systematic cross-referencing between architectural plan views, cross-sectional elevations, and connector schedule details. The post and beam construction diagram acts as a spatial map, defining precise centerlines, grid dimensions, and structural fastening rules.
Step 1: Locate Column Grid Lines and Elevation Benchmarks
Begin analysis by reviewing the primary grid layout. Column locations are identified on structural drawings by numerical grid lines on the horizontal axis and alphabetical lines on the vertical axis (e.g., Grid Intersection B-3). Verify the finish elevation markers (FFE) on the drawing against the actual tops of concrete foundations. Correct spacing between grid lines is critical to prevent misalignment when erecting shop-fabricated timber trusses or pre-drilled steel gusset plates.
Step 2: Trace the Gravity Load Path
Follow the downward force distribution represented in the overview drawing. Roof loads travel from purlins into primary roof bents, transition into top girders, move vertically through support posts, and dissipate into concrete footings. Ensure that continuous vertical alignment is maintained from roof framing down to ground anchor points, referencing specialized structural details like our concrete foundation anchors guide when reviewing hold-down hardware specifications.
Step 3: Analyze Structural Joinery and Fastener Callouts
Detail bubbles on the main layout direct you to enlarged elevation views (typically scaled at 1″ = 1′-0″ or 1-1/2″ = 1′-0″). Review these callouts for connector types: mortise depth, tenon thickness, steel plate thickness, and fastener schedules. Check specifications for through-bolts versus structural screws (such as Simpson SDS or FastenMaster LOK series), verifying required spacing, edge distances, and end distances.
When layout verification is conducted on heavy equipment shop facilities, maintain a tolerance limit of ±1/16 inch (1.5mm) on post centerlines up to 20 feet. For larger clear-span assemblies, cross-reference dimensional layouts with our heavy equipment shop framing layout protocol to verify overhead crane rail clearance and heavy point-load allowances.
Diagnosing Structural Deflection and Joint Separation in Blueprint Systems
Structural degradation or installation errors in post and beam configurations manifest as sagging span beams, joint separation, or post rotation. Systematic diagnosis requires comparing field measurements against original blueprint performance tolerances.
Evaluating Excess Deflection and Sagging Beams
If a main girder exhibits visible sag, calculate actual deflection using a laser level or tight string line measured from post centerlines. Compare the measured mid-span deflection ($\Delta_{actual}$) against allowable limits:
$$\Delta_{allowable} = \frac{L}{360}$$
Excessive deflection indicates calculated live loads have been exceeded, timber moisture content dropped significantly causing creep, or structural timber was under-specified during initial framing. Corrective measures require shoring the beam, installing sistered steel plates, or adding intermediate support posts.
Diagnosing Shear Connector Slippage and Gap Formation
Separation at timber-to-timber or timber-to-steel joints indicates fastener shear yield or unmanaged wood shrinkage across the grain. Inspect steel connector plates for elongated bolt holes or bent fasteners. Refer to structural steel plate specifications to confirm plate thickness and bolt slot dimensions match designed shear load requirements.
Never remove or notch diagonal knee braces, collar ties, or tension rods without installing temporary shore towers. Removing lateral bracing components alters the moment distribution throughout the post-and-beam frame, risking structural collapse under wind or overhead crane dynamic loading.
Post and Beam Construction Diagram Technical Specifications FAQ
What is the minimum timber post sizing required on structural blueprints?
According to National Design Specification (NDS) standards for wood construction, solid sawn posts in load-bearing post and beam configurations must measure at least 6×6 inches (nominal). For larger equipment bays or structures supporting heavy roof loads, engineering specs typically require 8×8 or 10×10 glue-laminated or solid timber posts to satisfy axial compression capacity and prevent buckling.
How do traditional mortise-and-tenon joints compare to exposed steel gusset plates?
Mortise-and-tenon joinery relies on wood-to-wood bearing secured by wooden pegs (trunnels), offering clean aesthetics and elevated fire endurance due to timber charring dynamics. Exposed steel gusset plates, through-bolted with ASTM A307 bolts, provide higher ultimate shear capacities, precise field adjustability, and simpler installation without the complex CNC timber machining required for traditional mortises.
Why do post and beam schematics require specific edge distances for bolt holes?
Edge distance specs—typically 1.5 to 2 times the bolt diameter from the timber edge—prevent cross-grain splitting and shear-out failure modes. Adhering to these print dimensions ensures the wood fibers retain sufficient shear area to transfer mechanical forces safely from steel connector plates into the main posts and beams.
How are live and dead loads represented on a structural framing layout?
Structural blueprints detail design loads in a dedicated engineering legend block. Dead loads (weight of structural members, roofing, and permanent equipment) are calculated alongside live loads (snow, wind, personnel, and transient dynamic forces). These parameters determine beam depth, post cross-section sizing, and anchor plate shear pins shown throughout the blueprint layout.
Step-by-Step Guide to Understanding the Post And Beam Construction Diagram
Identify – Recognize vertical post positions and footing centerlines on the foundational layout grid.
Locate – Find specified hardware connectors, including steel post bases, Simpson ties, and knee brace plates.
Reference – Review the joinery detail callouts for mortise dimensions or structural bolt spacing specs.
Connect/Route – Align heavy timber beams onto posts, securing connections with specified 5/8-inch structural lag bolts or steel pins.
Verify – Check vertical posts for plumb using a laser level and confirm all joint connections meet torque requirements.
Troubleshoot – Adjust diagonal knee bracing or shims if frame racking occurs during roof truss placement.
