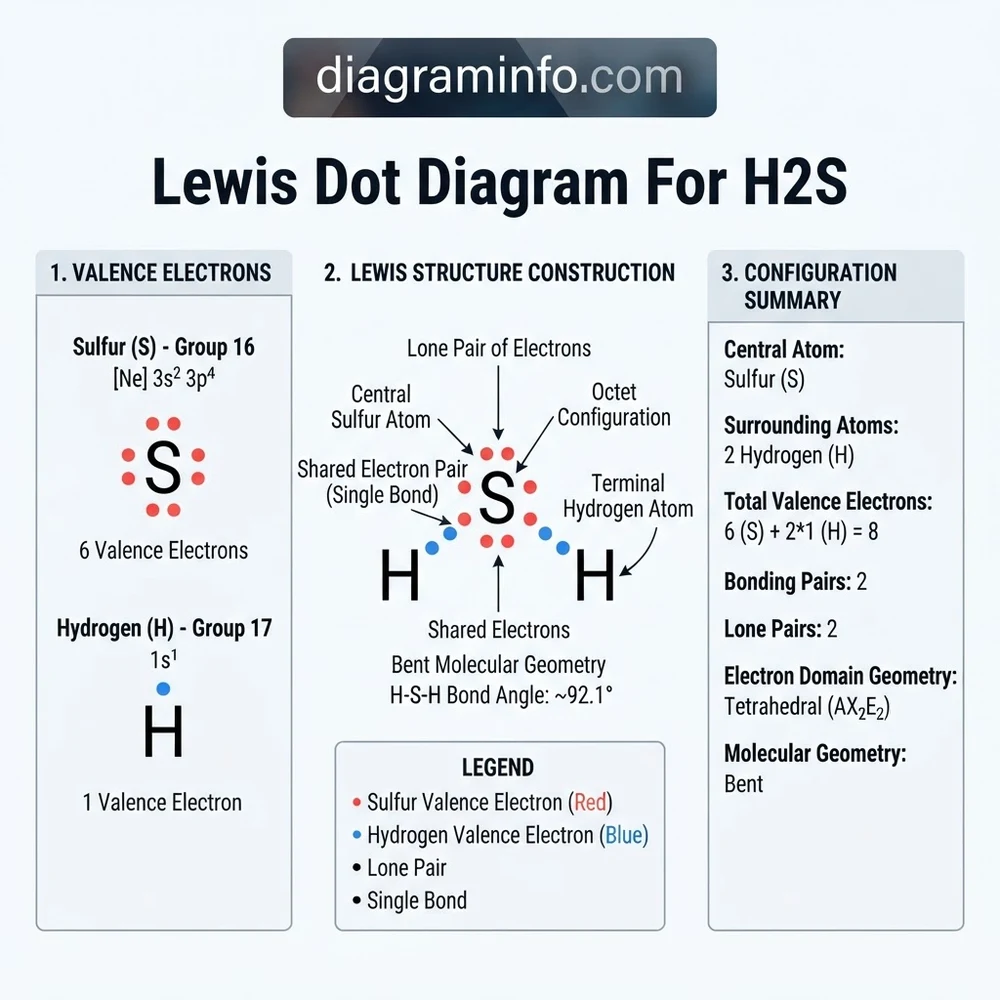

The lewis dot diagram for h2s displays a central sulfur atom bonded to two hydrogen atoms via single covalent bonds, alongside two lone electron pairs on the sulfur. With 8 total valence electrons, this configuration creates a bent molecular geometry featuring an approximate 92.1-degree bond angle, completing sulfur’s octet.
📌 Key Takeaways
- Hydrogen sulfide (H2S) contains 8 total valence electrons (6 from sulfur, 1 from each hydrogen).
- The central sulfur atom forms 2 single covalent bonds and holds 2 non-bonding lone pairs.
- The molecular layout exhibits a bent geometry with a distinct 92.1-degree bond angle.
- Sulfur achieves a complete 8-electron octet while both hydrogen atoms satisfy the duet rule.
- Incorrect electron counts or misplacing lone pairs are the most common diagramming errors.
Hydrogen sulfide (H2S) is a highly toxic, corrosive gas frequently encountered in petrochemical refining, heavy equipment biogas management, and specialized automotive emission control platforms. Mastering the representation provided by the lewis dot diagram for h2s is essential for chemical technicians, system engineers, and diagnostic mechanics analyzing sensor interactions, corrosion mechanisms, and gas scrubbers. This technical breakdown provides a complete electron-level overview, detailing the molecular structure, bonding mechanics, and non-bonding electron distributions that dictate hydrogen sulfide reactivity in industrial systems.
Lewis Dot Diagram for H2S Molecular Structure and Valence Components
To analyze the lewis dot diagram for h2s, system engineers must first evaluate the individual atomic components that comprise the molecule. Hydrogen sulfide consists of two hydrogen atoms covalently bonded to a single central sulfur atom. According to standard OEM chemical specifications, sulfur belongs to Group 16 (VIA) of the periodic table, possessing six valence electrons in its outer shell ([Ne] 3s² 3p⁴). Hydrogen belongs to Group 1, contributing one valence electron (1s¹) per atom. This yields a total system count of eight valence electrons available for molecular layout and bonding configurations.
Recommended Best Deal Products
Total Valence Electrons: 8 (Sulfur: 6, Hydrogen: 2 × 1)
Bonding Electron Pairs: 2 (4 electrons total)
Non-Bonding Pairs (Lone Pairs): 2 (4 electrons total on central S atom)
Target Octet/Duet Status: Sulfur satisfies octet (8 e-), both Hydrogens satisfy duet (2 e- each).
The electronic configuration places sulfur at the center of the chemical schematic due to its lower electronegativity relative to hydrogen in bond-sharing dynamics and its multivalent binding capacity. The blueprint assigns two single covalent bonds connecting the central sulfur atom to each terminal hydrogen atom. The remaining four electrons exist as two localized lone pairs residing on the sulfur atom, which significantly dictate the spatial and physical attributes of the molecule during thermal and chemical processing.
| Component | Valence Contribution | Schematic Role | Formal Charge |
|---|---|---|---|
| Central Sulfur (S) | 6 e- | Core atom; holds 2 lone pairs & forms 2 single bonds | 0 |
| Terminal Hydrogen 1 (H) | 1 e- | Terminal atom; shares 1 pair to form single bond | 0 |
| Terminal Hydrogen 2 (H) | 1 e- | Terminal atom; shares 1 pair to form single bond | 0 |
| Non-Bonding Pairs | 4 e- (2 pairs) | Localized unshared pairs on central S atom | N/A |
When reviewing gas monitoring systems, understanding this layout assists technicians in identifying how H2S interacts with solid-state detector elements. Related topics such as industrial gas analyzer calibration protocols rely directly on accurate structural models to predict chemical reactivity with active sensor substrates.
Constructing the H2S Schematic Layout: Step-by-Step Assembly Blueprint
Drafting or interpreting the schematic layout of the lewis dot diagram for h2s requires a systematic calculation sequence based on fundamental chemical rules. Following standard laboratory and engineering procedures, the structure is established through five core steps:
Formal Charge (FC) = Valence Electrons – Non-Bonding Electrons – ½(Bonding Electrons). For the central sulfur: FC = 6 – 4 – ½(4) = 0. For each hydrogen: FC = 1 – 0 – ½(2) = 0. A neutral formal charge distribution indicates a stable structural blueprint.
- Step 1: Calculate Total Valence Inventory. Sum the valence electrons from all participating atoms. Sulfur contributes 6 electrons, and each of the two hydrogen atoms contributes 1 electron: 6 + (2 × 1) = 8 total valence electrons.
- Step 2: Position Central and Terminal Atoms. Place the sulfur atom centrally in the layout frame, as hydrogen can only form a single bond and can never act as a central atom in a multi-atomic molecule structure. Position the two hydrogen atoms adjacent to sulfur.
- Step 3: Draw Covalent Single Bonds. Place one electron pair (represented as a single line or two dots) between the central sulfur atom and each hydrogen atom. This consumes 4 bonding electrons (2 bonds × 2 electrons/bond), leaving 4 electrons remaining in the system inventory.
- Step 4: Distribute Remaining Non-Bonding Electrons. Assign the remaining 4 valence electrons to the central sulfur atom as two distinct non-bonding lone pairs. Place one pair above and one pair to the side or top of the sulfur symbol in the schematic blueprint.
- Step 5: Verify Octet and Duet Satisfactions. Check that all atoms achieve stable outer-shell configurations. Sulfur is surrounded by 8 electrons (4 bonding + 4 non-bonding), fulfilling the octet rule. Both hydrogen atoms are surrounded by 2 bonding electrons each, satisfying the duet rule.
In advanced applications such as exhaust gas recirculation diagnostic procedures, verifying electron distribution helps engineers model sour gas condensation risks within stainless steel valve manifolds and exhaust piping systems.
Common Diagnostic Errors in the Lewis Dot Diagram for H2S Configuration
Misinterpreting the 2D layout of the lewis dot diagram for h2s can lead to incorrect assumptions regarding molecular geometry, polarity, and chemical behavior in real-world systems. A primary error occurs when technicians treat the 2D dot diagram as a physical 3D representation and assume H2S has a linear molecular geometry identical to carbon dioxide (CO2).
Do not assume a linear molecular geometry based on a straight 2D Lewis diagram layout. H2S possesses an AX2E2 steric configuration, creating a bent molecular geometry with a bond angle of approximately 92.1 degrees. Treating H2S as non-polar will invalidate electrochemical sensor diagnostic models.
The presence of two lone pairs on the central sulfur atom creates localized electron-pair repulsion. According to Valence Shell Electron Pair Repulsion (VSEPR) theory, the electron-pair geometry is tetrahedral (four total electron domains), but the molecular geometry is bent (AX2E2 notation). Because the unshared lone pairs exert strong repulsive forces against the sulfur-hydrogen bonding pairs, the H-S-H bond angle is compressed down to approximately 92.1 degrees (compared to 104.5 degrees in water due to sulfur’s larger 3p atomic orbitals).
This bent geometry causes an uneven charge distribution across the molecule. Because sulfur is more electronegative than hydrogen (2.58 vs. 2.20 on the Pauling scale) and the geometric shape is asymmetrical, H2S exhibits a net dipole moment. This molecular polarity is critical when troubleshooting catalytic converter sensor troubleshooting issues, as polar H2S molecules interact dynamically with metal oxides in temperature-dependent catalytic converters and sulfur-trap canisters.
Lewis Dot Diagram for H2S Frequently Asked Questions
What is the formal charge of each atom in the Lewis dot diagram for H2S?
In the optimal H2S Lewis structure layout, all constituent atoms carry a formal charge of zero. Sulfur has six original valence electrons, retains four non-bonding electrons, and shares four bonding electrons (6 – 4 – 2 = 0). Each hydrogen atom starts with one valence electron and shares two bonding electrons (1 – 0 – 1 = 0). This zero formal charge configuration indicates maximum thermodynamic stability.
Why does H2S have a smaller bond angle than H2O despite having similar Lewis dot structures?
While both H2S and H2O exhibit identical AX2E2 Lewis dot configurations with two bonding pairs and two lone pairs, the central sulfur atom in H2S uses larger, more diffuse 3p orbitals compared to oxygen’s 2p orbitals. This results in less sp³ hybridization character in H2S, leading to unhybridized p-orbital bonding near 90 degrees, measured experimentally at approximately 92.1 degrees.
How many bonding and non-bonding electron pairs exist in the Lewis structure of H2S?
The hydrogen sulfide molecular system contains a total of four electron pairs (eight valence electrons). Specifically, there are two bonding pairs (forming two single sulfur-hydrogen covalent bonds) and two non-bonding lone pairs located entirely on the central sulfur atom.
Is hydrogen sulfide considered a polar or non-polar molecule based on its electron layout?
Hydrogen sulfide is a polar molecule. Although the electronegativity difference between sulfur and hydrogen is relatively minor (0.38), the bent molecular geometry created by the two localized lone pairs on sulfur prevents bond dipoles from canceling out, resulting in a net molecular dipole moment.
What is the steric number and hybridization state of the central sulfur atom in H2S?
The central sulfur atom in H2S has a steric number of 4 (two single bonds plus two lone pairs). Under classic VSEPR models, this corresponds to an sp³ hybridization framework with a tetrahedral electron-domain geometry and a bent molecular shape.
