The EZGO 36V charger wiring typically connects the main DC output leads to the golf cart’s charging receptacle. The positive (+) terminal (often red wire) leads to the battery pack’s main positive, and the negative (-) (black wire) to the main negative. Some models include a sense wire for battery temperature or interlock circuits, ensuring proper charging and safety.
📌 Key Takeaways
- Always disconnect the battery bank before working on any 36V charger wiring to prevent electric shock and short circuits.
- Verify charger output voltage consistently matches the 36V battery pack to avoid under- or overcharging, which can damage batteries.
- A common failure point for EZGO 36V chargers is a blown internal fuse or a faulty diode, often preventing current flow.
- Ensure all charger and battery bank connections are clean, tight, and free of corrosion to maintain optimal current transfer and prevent overheating.
- Seek professional golf cart technician assistance if you are uncomfortable diagnosing high-voltage DC systems or cannot resolve issues using a multimeter.
This article provides a detailed analysis of the E-Z-GO 36V charger wiring diagram, essential for technicians and experienced DIYers performing diagnostics, repairs, or system upgrades. Understanding the precise wire colors, terminal identification, and connection sequences for your E-Z-GO 36V golf cart’s charging system is critical for ensuring proper battery charging, system longevity, and operational safety. We will delve into the intricacies of the battery bank, charger port, On-Board Computer (OBC), and their interconnection to maintain optimal performance of your `36 volt system`.
While specific wire colors and terminal designations are generally consistent, E-Z-GO models and production years (e.g., early 90s Marathon, Medalist, TXT pre-2010 vs. later TXT) can exhibit minor variations. Always consult the specific service manual for your vehicle’s serial number if ambiguity arises. This guide focuses on common E-Z-GO 36V configurations equipped with an On-Board Computer (OBC).
Wire Color Reference Table
This table outlines common wire colors and their functions within the E-Z-GO 36V charging system. Always verify with your specific vehicle’s wiring diagram if there are discrepancies.

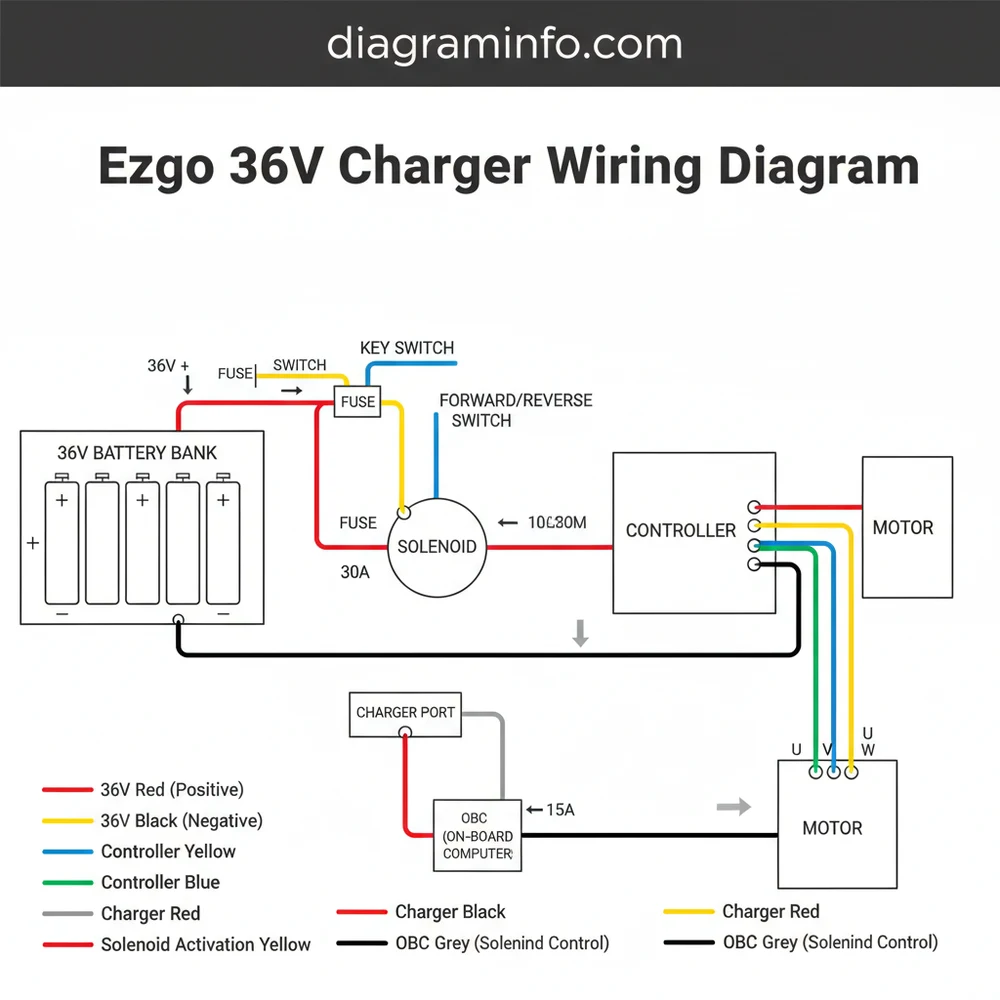

| Wire Color | Function | Connects To | Notes |
|---|---|---|---|
| Black (Thick) | Main Battery Pack Negative | OBC, Charger Receptacle (Pin 3), Controller (B-) | Primary ground for 36V system and charger. |
| Red (Thick) | Main Battery Pack Positive | Solenoid (Large Terminal), Controller (B+) | Primary positive power feed. |
| Gray/White (Thin) | OBC Interlock/Sense | Charger Receptacle (Pin 1), OBC Input | Signals charger connection to OBC. |
| Blue (Thin) | OBC Relay/Controller Interlock | OBC Output, Controller (J2 Pin 5 or similar) | Disables controller during charging cycle. |
| Yellow (Thin) | Ignition/Key Switch (often 36V supply) | Key Switch, Solenoid Activation (small terminal) | Provides voltage for control circuits. |
| Green (Thin) | OBC Control Signal (e.g., to Status Light) | OBC Output, Dash Indicator Light | Communicates charging status. |
| White (Thick) | Charger Receptacle Sense (often used for Delta-Q chargers) | Charger Receptacle (Pin 2), Charger Logic | Communicates battery pack voltage to smart chargers. |
Component Connection Guide
Accurate wiring is paramount for the safety and functionality of your E-Z-GO `36 volt system`. This guide details the critical connections for the charging circuit components, including the `battery bank`, `charger port`, On-Board Computer (OBC), and their interaction with the `solenoid wiring` and `controller wiring`.
Battery Bank Wiring (36V System)
An E-Z-GO 36V system typically utilizes six 6-volt deep-cycle batteries connected in series. Proper series connection is fundamental to achieve the required 36 volts.
- Series Connections: Connect the positive terminal of one battery to the negative terminal of the next battery using short, heavy-gauge battery cables. Repeat this for all six batteries.
- Main Negative: The negative terminal of the first battery in the series (the one without a cable going to its positive) serves as the main negative terminal for the entire `battery bank`. A thick black cable connects this terminal to the main chassis ground, the OBC, and the B- terminal on the motor controller.
- Main Positive: The positive terminal of the last battery in the series (the one without a cable coming from its negative) serves as the main positive terminal. A thick red cable connects this terminal to the large input terminal of the main `solenoid wiring` and subsequently to the B+ terminal on the motor controller.
Utilize 2-gauge or 4-gauge battery cables for all series connections and main positive/negative runs, crimped with appropriately sized copper lugs. Torque battery terminal nuts to 10-12 ft-lbs to ensure minimal resistance.
Charger Port Wiring
The `charger port` on most E-Z-GO 36V models is a three-pin Delta-Q receptacle or similar. This port is the primary interface for your external charger and communicates with the OBC.
- Pin 1 (Gray/White): This is the sense wire. It connects directly to the OBC’s input for sensing when a charger is plugged in. This signals the OBC to activate its internal charging logic and, critically, to disable the `controller wiring` to prevent the cart from moving during charging.
- Pin 2 (White/Yellow – Delta-Q specific): This pin, if present, communicates the actual `battery bank` voltage to compatible smart chargers, allowing for more precise charging cycles. It connects to the charger’s logic circuit.
- Pin 3 (Thick Black): This is the main negative input from the charger. It connects directly to the system’s main negative terminal (the negative post of the first battery in the series) and also routes through the OBC.
Note that older E-Z-GO charger ports might use a different pin configuration, potentially with a single main negative and a positive directly from the battery pack, with the OBC inline on the negative side. Always refer to your specific model’s diagram for confirmation.
On-Board Computer (OBC) Wiring
The OBC is the brains of the E-Z-GO 36V charging system, managing charge cycles, monitoring battery voltage, and acting as an interlock for the motor controller. Proper `ezgo 36v charger wiring diagram` connections to the OBC are critical.
- Main Negative Input (Thick Black): Connects from the main battery pack negative (B-) to a designated input terminal on the OBC. This is the primary negative path for the charger.
- Main Negative Output (Thick Black – through OBC): From the OBC, this output connects to the charger receptacle’s negative terminal (Pin 3). This allows the OBC to control the main negative current path during charging.
- Charger Receptacle Sense (Gray/White – Pin 1): Connects from the `charger port` (Pin 1) to the OBC’s sense input. This wire signals the OBC that a charger is plugged in.
- Controller Interlock (Blue): This wire connects from a dedicated output on the OBC to a specific pin on the motor controller (e.g., J2 Pin 5 on Curtis controllers). When the charger is active, the OBC sends a signal (often a ground or a specific voltage) through this blue wire to the controller, disabling it to prevent accidental operation.
- Battery Pack Positive (Thin Red/Orange – Sense): A smaller gauge wire typically connects directly from the main battery pack positive terminal (B+) to a sense input on the OBC. This allows the OBC to monitor the actual `battery bank` voltage during and after charging.
Solenoid and Controller Wiring Interaction
While primarily for motor control, the `solenoid wiring` and `controller wiring` are intrinsically linked to the charging system via the OBC’s interlock function. The OBC’s blue wire acts as a critical safety feature, ensuring the `solenoid wiring` cannot engage and the controller cannot deliver power to the motor while the charger is connected.
The solenoid’s large terminals typically connect the main battery pack positive to the controller’s B+ terminal when activated. The small terminals receive activation voltage from the key switch, `forward reverse switch`, and other safety interlocks, including an inhibit signal from the OBC. For comprehensive troubleshooting of E-Z-GO motor controller issues, refer to our [E-Z-GO Controller Diagnostics Guide].
Always disconnect the main battery pack negative cable before performing any wiring work to prevent accidental shorts and electrical hazards. Failure to do so can result in serious injury or damage to the vehicle’s electrical components.
Common Wiring Problems & Fixes
Diagnosing charging issues in an E-Z-GO 36V system requires a systematic approach. Many problems stem from incorrect or degraded `ezgo 36v charger wiring diagram` connections. Here are some prevalent issues and their technical resolutions.
1. Charger Not Activating or “Humming” Without Charging
- Symptoms: The charger is plugged in, makes an audible hum, but the amp meter reads zero or very low, and batteries are not charging. Alternatively, the charger doesn’t turn on at all.
- Diagnosis:
- Charger Receptacle/OBC Sense: Check the gray/white sense wire from the `charger port` (Pin 1) to the OBC. A break or corrosion here prevents the OBC from recognizing the charger. Use a multimeter to verify continuity and voltage (should be B+ when charger is plugged in, depending on OBC model).
- OBC Main Negative Path: The OBC often controls the main negative path from the charger. If the OBC is faulty internally, it may not allow current to flow. Bypass the OBC by temporarily connecting the charger’s negative output directly to the battery pack’s main negative terminal. If the charger activates, the OBC is likely at fault.
- Main Fuse/Circuit Breaker: Inspect the main fuse or circuit breaker for an open circuit. A high-resistance connection at battery terminals or the main negative cable can also prevent charging.
- Fix: Clean or replace corroded terminals and wires. If the OBC bypass test confirms a fault, replace the OBC. Ensure all battery cables in the `battery bank` are clean and tight.
2. Intermittent Charging / Charger Cycling On and Off
- Symptoms: The charger starts and stops repeatedly, or charges briefly then cuts out.
- Diagnosis:
- Loose Connections: High resistance in the `charger port` wiring, main battery terminals, or within the OBC’s harness can cause voltage drops that trigger the charger’s protection circuits.
- Battery Pack Imbalance/Failure: A single failing battery in the `36 volt system` can cause the overall pack voltage to fluctuate erratically during charging, confusing the charger or OBC.
- Faulty Charger Relay: Some older E-Z-GO chargers have an internal relay that can fail intermittently.
- Fix: Systematically inspect and tighten all connections from the `charger port` through the OBC to the `battery bank`. Load test individual batteries to identify weak cells. If a faulty charger component is suspected, consider professional charger repair or replacement.
3. No Power to Cart When Charger Disconnected (Controller Interlock Issue)
- Symptoms: The golf cart runs fine after charging, but when the charger is disconnected, the cart remains dead – no solenoid click, no power to the controller.
- Diagnosis:
- OBC Blue Wire Fault: The blue wire from the OBC to the `controller wiring` (interlock signal) is designed to disable the controller during charging. If this wire is shorted to ground or the OBC fails to release the interlock signal after charging, the controller remains disabled.
- OBC Internal Fault: A faulty OBC may incorrectly maintain the “charger connected” signal, preventing the controller from enabling.
- Fix: Disconnect the blue interlock wire from the controller (J2 Pin 5 or equivalent). If the cart powers on, the issue lies with the OBC or the blue wire’s path. Test the blue wire for continuity to ground when the charger is disconnected. If it still shows ground, the OBC is likely at fault and requires replacement.
FAQ
Can I use a 48V charger on a 36V E-Z-GO golf cart?
Absolutely not. Attempting to charge a `36 volt system` with a charger designed for a `48 volt system` will cause severe damage to your batteries, potentially leading to overheating, explosion, or permanent damage to the cart’s electrical components, including the OBC and controller. Always match the charger voltage precisely to your golf cart’s battery pack voltage. Understanding the principles of `battery bank` maintenance is crucial; consult our [Golf Cart Battery Care Article] for best practices.
How do I bypass the E-Z-GO OBC for testing purposes?
To temporarily bypass the OBC for diagnostic purposes, locate the two thick black wires connected to the OBC. These are typically the main negative from the `battery bank` and the negative lead going to the `charger port`. Disconnect both wires from the OBC. Then, connect the negative output of your charger directly to the main negative terminal of your `battery bank`. This bypasses the OBC’s control over the negative charging path. This should only be done for brief testing by experienced technicians and carries risks if not done correctly, as the OBC’s safety interlocks (like disabling the controller) will be inactive. If you’re considering upgrading to a `48 volt system`, review our [48V Conversion Guide] for compatibility and wiring considerations.
What causes my E-Z-GO 36V charger to hum but not charge?
A charger that hums but doesn’t charge often indicates a problem in the current path between the charger and the `battery bank`. Common causes include: a faulty OBC that isn’t allowing current to flow through its internal relay, high resistance or an open circuit in the main negative `ezgo 36v charger wiring diagram` between the charger port, OBC, and battery pack, or a tripped internal breaker within the charger itself. Inspect all connections, especially the thick black wires and the OBC bypass test mentioned above can help pinpoint the issue.
Is the `run tow switch` involved in charging or charger wiring?
The `run tow switch` is not directly part of the `ezgo 36v charger wiring diagram` or the charging circuit itself. Its primary function is to disconnect the main power from the motor controller, which is crucial for safety during maintenance or towing. However, it is always recommended to place the `run tow switch` in the “TOW” position before performing any electrical work, including disconnecting battery cables or diagnosing charging issues, as it isolates the controller and prevents unintended activation of the drive system.
Step-by-Step Guide to Understanding the Ezgo Charger 36V Wiring Diagram: Troubleshooting Guide 2026
Identify – the specific EZGO 36V charger model and its corresponding wiring diagram to understand component layout.
Locate – the main power input/output terminals on both the charger unit and the golf cart’s charging receptacle.
Reference – the diagram for precise wire color codes, connector types, and any integrated safety interlocks or fuses specific to your EZGO model.
Connect/Route – the charging cables, ensuring proper polarity (red to positive, black to negative) and securely fastened, corrosion-free connections.
Verify – the charger’s output voltage and current using a multimeter before connecting to a critically low battery bank to prevent potential damage.
Troubleshoot – by systematically checking fuses, circuit breakers, and the battery bank voltage if the charger fails to activate or complete a charge cycle.
Frequently Asked Questions
What voltage is ezgo 36v charger wiring diagram?
The EZGO 36V charger wiring diagram is specifically designed for a 36-volt system, which typically consists of six 6-volt batteries wired in series to create a 36V battery bank. This system voltage is distinct from a 48 volt system and requires a compatible 36V charger for safe and efficient operation.
What do the wire colors mean on ezgo 36v charger wiring diagram?
On an EZGO 36V charger wiring diagram, the main power leads are typically Red for positive (+) and Black for negative (-). However, smaller gauge wires may indicate temperature sensors, interlock signals, or remote status indicators. Always consult the specific diagram for your EZGO model year for precise color code identification.
How do I troubleshoot ezgo 36v charger wiring diagram that won’t run?
If your EZGO 36V charger isn’t running, first check the AC power source and internal fuses or breakers on both the charger and the golf cart. Inspect the charger receptacle for corrosion. Use a multimeter to verify the battery bank voltage and ensure it’s not critically low, which can prevent charger activation. Inspect all solenoid wiring connections for looseness.
What is the solenoid wiring on ezgo 36v charger wiring diagram?
While the EZGO 36V charger wiring diagram focuses on the charger itself, the golf cart’s solenoid wiring is critical for operation. The solenoid uses small wires (e.g., Red/White and Black) to activate, connecting the main battery bank power to the controller. A faulty solenoid can prevent the cart from moving even with a fully charged battery.
How many batteries does ezgo 36v charger wiring diagram have?
An EZGO golf cart using a 36V charger wiring diagram typically has six 6-volt batteries. These batteries are connected in series to achieve the necessary 36-volt battery bank for the golf cart’s propulsion and electrical systems. Maintaining all six batteries is crucial for overall system health.
What gauge wire does ezgo 36v charger wiring diagram use?
For the main power connections between the EZGO 36V charger and the golf cart’s battery bank, heavy-gauge wiring like 6 AWG or 8 AWG is commonly used to safely carry high charging currents. Smaller control or signal wires might be 16 AWG or 18 AWG. Always use appropriate or thicker gauge wire for replacements.
