Yamaha Rhino 660 Fuel Line Diagram: Component & Repair Guide 2026
The Yamaha Rhino 660 fuel system typically features a low-pressure pump in the tank, fuel lines routing to the carburetor (or EFI, depending on year), a fuel filter, and a vacuum-operated petcock. The diagram shows the path from the tank, through filtration, to the engine, essential for identifying fuel flow issues.
📌 Key Takeaways
- Always inspect fuel lines for cracks and kinks, especially near the fuel bowl and high-pressure points.
- The fuel return line is crucial for maintaining proper fuel pressure and preventing vapor lock in older carburetor models or for excess fuel in EFI systems.
- Ensure all clamps on fuel lines are secure; loose clamps are a common source of leaks and air intrusion.
- A clogged fuel filter is the most common cause of poor engine performance related to the fuel system.
- Seek professional help if diagnosing HPFP or injection pressure regulator issues, as these often require specialized tools and expertise.

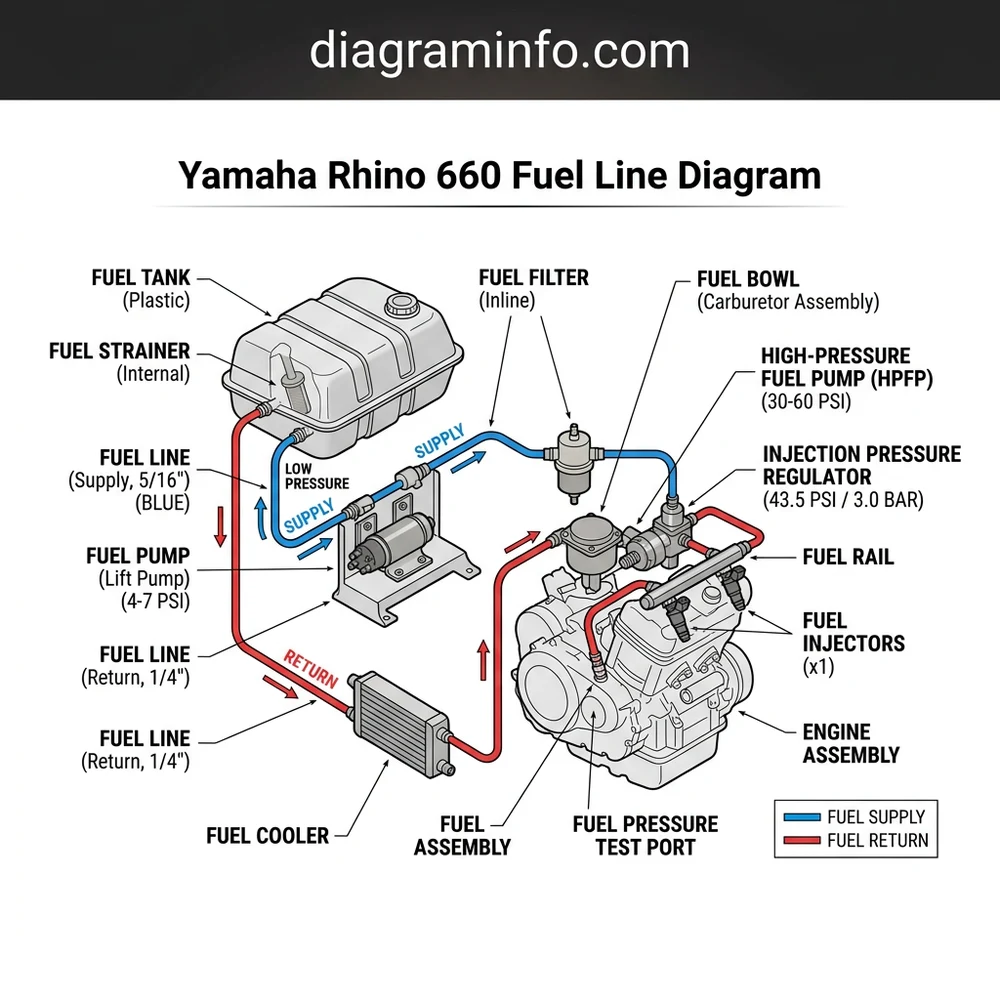

Understanding the yamaha rhino 660 fuel line diagram is critical for diagnosing and maintaining the fuel delivery system of your utility vehicle. The Yamaha Rhino 660, powered by a 660cc single-cylinder, 4-stroke engine (commonly designated as the 5UG or 5B4 engine code depending on year and region), utilizes a carbureted fuel system. This article provides a comprehensive overview of its fuel lines and associated components, detailing their functions, identifying potential failure points, and offering practical repair procedures. A thorough grasp of this diagram ensures optimal engine performance and longevity for your equipment.
While many modern off-road vehicles use Electronic Fuel Injection (EFI) with a high pressure fuel pump (HPFP) and injection pressure regulator, the Yamaha Rhino 660 employs a simpler, vacuum-operated system. Concepts like a fuel cooler or fuel heater are not present on this carbureted model, as they are typically found in advanced EFI or diesel fuel systems for temperature management and viscosity control.
FUEL SYSTEM COMPONENTS BREAKDOWN
The carbureted fuel system of the Yamaha Rhino 660 is designed for reliable fuel delivery under various off-road conditions. Each component plays a vital role in ensuring a consistent supply of clean fuel to the engine. Refer to your specific yamaha rhino 660 fuel line diagram to identify the exact routing and connections for your model year.
- Fuel Tank: The primary reservoir for gasoline. It’s typically a polyethylene or steel tank, equipped with a filler neck, fuel level sender, and an outlet port. Proper venting is crucial for consistent fuel flow and to prevent vapor lock.
- Fuel Petcock (Fuel Cock/Valve): Located at the base of the fuel tank. This manual or vacuum-operated valve controls the flow of fuel from the tank. Common settings include “ON,” “RES” (Reserve), and “OFF.” Vacuum-operated petcocks utilize engine vacuum to open the fuel path only when the engine is running or cranking.
- Fuel Filter: An inline component designed to trap contaminants (dirt, rust, debris) from the fuel before they reach the fuel pump and carburetor. Typically a disposable paper element housed in a clear plastic casing, allowing for visual inspection of fuel clarity.
- Vacuum Fuel Pump: Unlike systems with a high pressure fuel pump (HPFP), the Rhino 660 uses a diaphragm-type vacuum pump. This pump is actuated by pressure pulses (vacuum) from the engine’s intake manifold or crankcase. It draws fuel from the tank and pushes it under low pressure to the carburetor. There is no separate primer pump on stock systems, as the vacuum pump primes itself during engine cranking.
- Fuel Lines: These are rubber or plastic hoses that connect the various components. The fuel line diagram distinguishes between:
- Fuel Supply Line: Carries fuel from the tank, through the filter and pump, to the carburetor.
- Vacuum Line: Connects the engine’s vacuum source to the fuel pump, providing the pulsation necessary for its operation.
- Fuel Return Line: On some carbureted setups, this line routes excess fuel or carburetor overflow back to the fuel tank. However, on the Rhino 660, excess fuel in the carburetor fuel bowl is typically regulated by the float valve, with overflow exiting a drain tube rather than a dedicated return to the tank under normal operation. If a carburetor floods, fuel exits the overflow.
- Carburetor: The central component where fuel and air are mixed in precise ratios. Key internal parts include:
- Fuel Bowl: A reservoir at the bottom of the carburetor that holds a small supply of fuel.
- Float and Needle Valve: Regulates the fuel level within the fuel bowl. As fuel is consumed, the float drops, opening the needle valve to allow more fuel in from the supply line. Once the correct level is reached, the float rises, seating the needle valve and preventing overfilling. This mechanism effectively acts as a low-pressure injection pressure regulator for a carbureted system.
- Jets: Precisely sized orifices that meter fuel into the airflow.
| Component | Typical Function | Key Characteristic |
|---|---|---|
| Fuel Petcock | Manual/Vacuum fuel shut-off | ON/RES/OFF settings |
| Fuel Filter | Removes fuel contaminants | Inline, typically clear housing |
| Vacuum Fuel Pump | Low-pressure fuel delivery | Diaphragm-type, vacuum actuated |
| Fuel Lines | Fuel/Vacuum transport | Rubber/plastic hoses |
| Carburetor | Fuel-air mixing | Features fuel bowl, float, jets |
COMMON FAILURE POINTS & SYMPTOMS
Due to its exposure to fuel, heat, and vibration, the fuel system is prone to various issues. Regular inspection of the yamaha rhino 660 fuel line diagram can help in preemptive maintenance and accurate diagnosis.
- Clogged Fuel Filter:
- Symptoms: Engine sputtering under load, loss of power, hard starting, or stalling, especially at higher RPMs. If severe, the engine may not start at all due to fuel starvation.
- Diagnosis: Visually inspect the inline fuel filter. If it appears dark, discolored, or contains visible debris, it’s clogged. You can also temporarily bypass the filter (for diagnostic purposes only, and with extreme caution) to see if fuel flow improves.
- Faulty Vacuum Fuel Pump:
- Symptoms: Engine cranks but won’t start, engine dies after running for a short period, intermittent power loss, or inconsistent idle. If the diaphragm is torn, you may observe fuel leaking from the pump’s vent hole.
- Diagnosis: Disconnect the fuel line at the carburetor and direct it into a clear container. Crank the engine while observing fuel flow. A healthy pump should deliver a steady stream of fuel. Also, check the vacuum line for cracks or obstructions. A common test involves applying vacuum (or pressure pulses if using a hand pump) to the vacuum port of the pump and observing its output.
- Carburetor Issues (Clogged Jets, Stuck Float, Worn Needle Valve):
- Symptoms:
- Clogged Jets: Rough idle, poor acceleration, engine bogging down, backfiring, or specific RPM range issues.
- Stuck Float/Worn Needle Valve: Fuel leaking from the carburetor overflow tube, excessive fuel consumption, black smoke from exhaust (rich condition), or conversely, engine starvation if the float is stuck closed.
- Diagnosis: A carburetor rebuild or cleaning is often required. Visual inspection of the fuel bowl and jets after removal. Checking float height according to manufacturer specifications is crucial. For detailed procedures, consult your Yamaha Rhino 660 Carburetor Rebuild Guide.
- Symptoms:
- Cracked or Permeated Fuel Lines:
- Symptoms: Visible fuel leaks, strong gasoline odor, engine running lean, hard starting (due to loss of prime or vacuum), or an improperly functioning fuel pump (if the vacuum line is compromised). Fuel lines can also stiffen and crack, leading to air ingress.
- Diagnosis: Visually inspect all fuel and vacuum lines for cracks, hardening, kinking, or signs of weeping. Pay close attention to connections at components.
- Clogged Fuel Petcock:
- Symptoms: Engine runs fine for a short period then starves, or refuses to start if flow is severely restricted. Symptoms mirror a clogged fuel filter.
- Diagnosis: Disconnect the fuel line after the petcock and check flow with the petcock in the “ON” and “RES” positions. Flow should be robust. Internal sediment in the tank can obstruct the petcock’s screens.
REPAIR & REPLACEMENT STEPS: VACUUM FUEL PUMP & FUEL LINE REPLACEMENT
Replacing the vacuum fuel pump and associated fuel lines is a common maintenance task for the Yamaha Rhino 660. This procedure directly addresses issues identified in the yamaha rhino 660 fuel line diagram related to fuel delivery. Always refer to your service manual for model-specific instructions and torque values. This is an example procedure for an ’06 Yamaha Rhino 660.
Gasoline is highly flammable. Work in a well-ventilated area away from open flames or sparks. Disconnect the battery’s negative terminal before starting. Wear appropriate personal protective equipment, including safety glasses and fuel-resistant gloves. Have a fire extinguisher nearby.
Required Tools & Materials:
- New vacuum fuel pump (Yamaha P/N 5UG-13907-00-00 or equivalent aftermarket)
- New fuel filter (Yamaha P/N 5DM-13440-00-00 or equivalent)
- Fuel-grade hose (1/4″ or 6mm ID, typically SAE 30R7 or better, approx. 3-5 ft)
- Hose clamps (OEM style spring clamps or worm-drive)
- Pliers (for spring clamps)
- Screwdrivers (Phillips, flathead)
- 8mm, 10mm, 12mm wrenches/sockets
- Drain pan for fuel
- Shop rags
Procedure:
- Access the Fuel System:
Remove the driver’s and passenger’s seats and any necessary body panels to gain clear access to the fuel tank, fuel petcock, fuel filter, and vacuum fuel pump. The fuel pump is typically located on the frame near the carburetor.
- Drain Fuel & Relieve Pressure:
Turn the fuel petcock to the “OFF” position. Place a drain pan beneath the carburetor. Loosen the fuel bowl drain screw on the bottom of the carburetor to drain any residual fuel into the pan. This helps relieve pressure and minimizes spillage when disconnecting lines. Once drained, tighten the screw.
- Disconnect Old Fuel Lines:
Carefully use pliers to remove the spring clamps or loosen worm-drive clamps on the fuel lines connected to the fuel pump, fuel filter, and carburetor. Have rags ready to catch any fuel spills. Note the routing of each line (supply from tank, vacuum from engine, output to carb) as shown on your yamaha rhino 660 fuel line diagram. Disconnect the vacuum line from the engine intake manifold/carburetor vacuum port.
- Remove Old Fuel Pump and Filter:
Unbolt the old fuel pump from its mounting bracket. Keep track of any washers or spacers. Remove the old fuel filter.
- Install New Fuel Pump and Filter:
Mount the new vacuum fuel pump, ensuring correct orientation. Apply thread locker (e.g., Loctite Blue 242) to the mounting bolts if specified by the OEM. Hand-tighten the bolts initially. Install the new fuel filter in the correct direction of fuel flow (arrow usually indicates flow).
🔧 SpecificationTypical fuel pump mounting bolt torque: 7 Nm (5.2 ft-lbs). Always verify with your specific service manual.
- Install New Fuel Lines:
Cut new fuel-grade hose to the appropriate lengths, matching the original lines. Ensure cuts are clean and straight. Securely attach the new lines to the fuel tank petcock, new fuel filter, new fuel pump, and carburetor. Use new hose clamps for all connections. Pay close attention to the vacuum line routing from the engine to the fuel pump, ensuring it’s free of kinks and securely connected at both ends. Verify all connections against the yamaha rhino 660 fuel line diagram.
- Test for Leaks and Prime System:
Turn the fuel petcock to the “ON” position. Reconnect the battery. Start the engine. Allow it to idle for a few minutes while carefully inspecting all new connections for any fuel leaks. The vacuum fuel pump will automatically prime the system as the engine cranks and runs. You may need to crank the engine for slightly longer than usual on the first start after replacement. For further general engine performance optimization, refer to Optimizing Yamaha Rhino 660 Engine Performance.
- Reassemble:
Once you’ve confirmed there are no leaks and the engine runs smoothly, reinstall all removed body panels and seats.
FAQ
How does the vacuum fuel pump work on the Yamaha Rhino 660?
The vacuum fuel pump on the Yamaha Rhino 660 is a mechanical, diaphragm-type pump. It operates by converting pressure pulses from the engine’s intake manifold (or sometimes crankcase) into mechanical movement. A vacuum line connects the pump to the engine’s vacuum source. As the engine runs, these pressure differences cause a diaphragm inside the pump to flex, creating a pumping action that draws fuel from the tank and pushes it under low pressure to the carburetor. Unlike EFI systems, no electrical power is needed for the pump itself.
What are common fuel line sizes for the Yamaha Rhino 660?
The primary fuel lines for the Yamaha Rhino 660 typically utilize 1/4 inch (6mm) inner diameter (ID) fuel-grade hose. The vacuum line to the fuel pump may also be 1/4 inch or slightly smaller (e.g., 3/16 inch or 5mm ID), depending on the specific connection ports. Always verify the existing hose ID before purchasing replacements to ensure a snug and secure fit with appropriate clamps.
Can I upgrade my Rhino 660’s fuel system to EFI?
While technically possible, upgrading a carbureted Yamaha Rhino 660 to Electronic Fuel Injection (EFI) is a significant and complex undertaking. It involves replacing the carburetor with a throttle body, installing an ECU (Engine Control Unit), a high-pressure electric fuel pump (unlike the stock vacuum pump), fuel injectors, and numerous sensors (MAP, O2, TPS, etc.). It would also require extensive wiring modifications and custom tuning. This is not a direct bolt-on upgrade and often involves aftermarket kits or custom fabrication, making it costly and time-consuming. For more details on system conversions or advanced diagnostics, consulting a resource like the Yamaha Rhino 660 Service Manuals is recommended.
What are the common symptoms of a clogged fuel filter on a Yamaha Rhino 660?
A clogged fuel filter on a Yamaha Rhino 660 typically manifests as a progressive loss of engine performance. Early symptoms include hesitation, sputtering under acceleration, or a general lack of power. As the blockage worsens, the engine may become difficult to start, run roughly, stall at idle, or completely die, especially when the engine demands more fuel (e.g., at higher RPMs or under load). A visual inspection of the clear inline filter often reveals dark fuel or accumulated debris.
How often should I inspect my Yamaha Rhino 660 fuel lines?
It is recommended to inspect your Yamaha Rhino 660 fuel lines annually or every 100 operating hours, whichever comes first. If your vehicle is frequently exposed to harsh conditions, extreme temperatures, or aggressive fuels, more frequent inspection may be warranted. Look for signs of cracking, hardening, kinking, swelling, or any visible fuel seepage. Replacement is generally recommended every 3-5 years, even if no visible damage is present, as lines can degrade internally. Consider proactive fuel tank cleaning as part of comprehensive maintenance by referring to our Yamaha Rhino 660 Fuel Tank Maintenance guide.
Step-by-Step Guide to Understanding the Yamaha Rhino 660 Fuel Line Diagram: Component & Repair Guide 2026
Identify – Locate the fuel tank, petcock, fuel filter, and carburetor/throttle body on your Yamaha Rhino 660.
Locate – Trace the main fuel line from the tank through the filter to the engine, noting any fuel return line or vacuum lines.
Reference – Use the fuel line diagram to confirm the correct routing and connection points for all hoses and components.
Connect/Route – When replacing lines, ensure proper routing away from heat sources and moving parts, using new clamps for a secure fit.
Verify – After any work, check for fuel leaks by cycling the ignition or starting the engine and visually inspecting all connections.
Troubleshoot – If fuel flow issues persist, consult the diagram to systematically check the fuel pump, fuel filter, and fuel bowl/carburetor for blockages or malfunctions.
Frequently Asked Questions
What are the main components of the yamaha rhino 660 fuel line diagram?
The yamaha rhino 660 fuel line diagram illustrates key components like the fuel tank, fuel petcock, fuel filter, vacuum lines (if carb), fuel pump, main fuel line, and carburetor or throttle body connection. Some models might include a fuel return line or a more complex high-pressure fuel pump (HPFP) for EFI versions.
What are symptoms of a failing yamaha rhino 660 fuel line diagram pump?
Symptoms of a failing fuel pump in a yamaha rhino 660 include hard starting, loss of power under load, sputtering, stalling, or the engine not starting at all. You might also hear unusual whining noises from the pump itself, indicating it’s struggling to maintain adequate fuel pressure.
How do I diagnose a fuel leak in yamaha rhino 660 fuel line diagram?
To diagnose a fuel leak in your yamaha rhino 660 fuel line diagram, visually inspect all fuel lines, connections, and the fuel bowl for wet spots or drips. Pay close attention to hose clamps and where lines connect to components like the fuel filter or carburetor. A strong fuel smell is also a key indicator.
What is the fuel pressure spec for yamaha rhino 660 fuel line diagram?
For carburetor models of the yamaha rhino 660, fuel pressure is typically very low, often around 2-5 PSI, supplied by a vacuum-operated or electric low-pressure pump. EFI models, if any, would require much higher pressure, possibly 40-60 PSI from a high pressure fuel pump (HPFP), but the 660 is commonly carbureted.
How long does yamaha rhino 660 fuel line diagram fuel pump last?
The lifespan of a fuel pump for a yamaha rhino 660 can vary significantly, generally lasting between 50,000 to 100,000 miles or several years of use. Factors like fuel quality, filter maintenance, and operating conditions greatly influence its durability. Regular fuel filter replacement helps extend pump life.
Can I replace the yamaha rhino 660 fuel line diagram fuel filter myself?
Yes, replacing the fuel filter on a yamaha rhino 660 is a common and straightforward DIY task. It typically involves locating the inline filter, clamping the fuel lines, disconnecting the old filter, and installing a new one, ensuring correct flow direction and secure hose clamps. Always relieve pressure first.
