VR-HVAC-1000 Liquid Ring Vacuum Pump Diagram: Component Breakdown 2026
The liquid ring vacuum pump diagram illustrates the internal components, including the eccentric impeller, casing, and sealing liquid (often water). It details how the rotating liquid ring forms variable-volume chambers to draw air, creating a vacuum essential for HVAC system evacuation before refrigerant charging, ensuring optimal performance.
📌 Key Takeaways
- The eccentric impeller rotation within the liquid ring creates crucial vacuum chambers for gas compression.
- The sealing liquid, often water at 60-70°F, forms the liquid ring, dissipates heat, and maintains the vacuum seal.
- Proper motor voltage (e.g., 230V/460V AC) and correct impeller rotation direction are critical for pump efficiency.
- Seal fluid contamination or low liquid level is the most common cause of poor vacuum, overheating, or pump cavitation.
- Seek professional HVAC technician help for internal component wear, bearing replacement, or complex motor control issues affecting refrigerant recovery.
A thorough understanding of industrial equipment diagrams is paramount for effective maintenance, operation, and troubleshooting. This article delves into the intricacies of a liquid ring vacuum pump diagram, a critical component in numerous demanding process applications, from chemical processing to food packaging. While distinct from the refrigerant compressors found in HVAC systems, liquid ring pumps share fundamental principles of gas compression and fluid dynamics. We will meticulously break down its components, explain its operational cycle, and provide actionable troubleshooting insights, ensuring you possess the expertise to maintain optimal system performance.

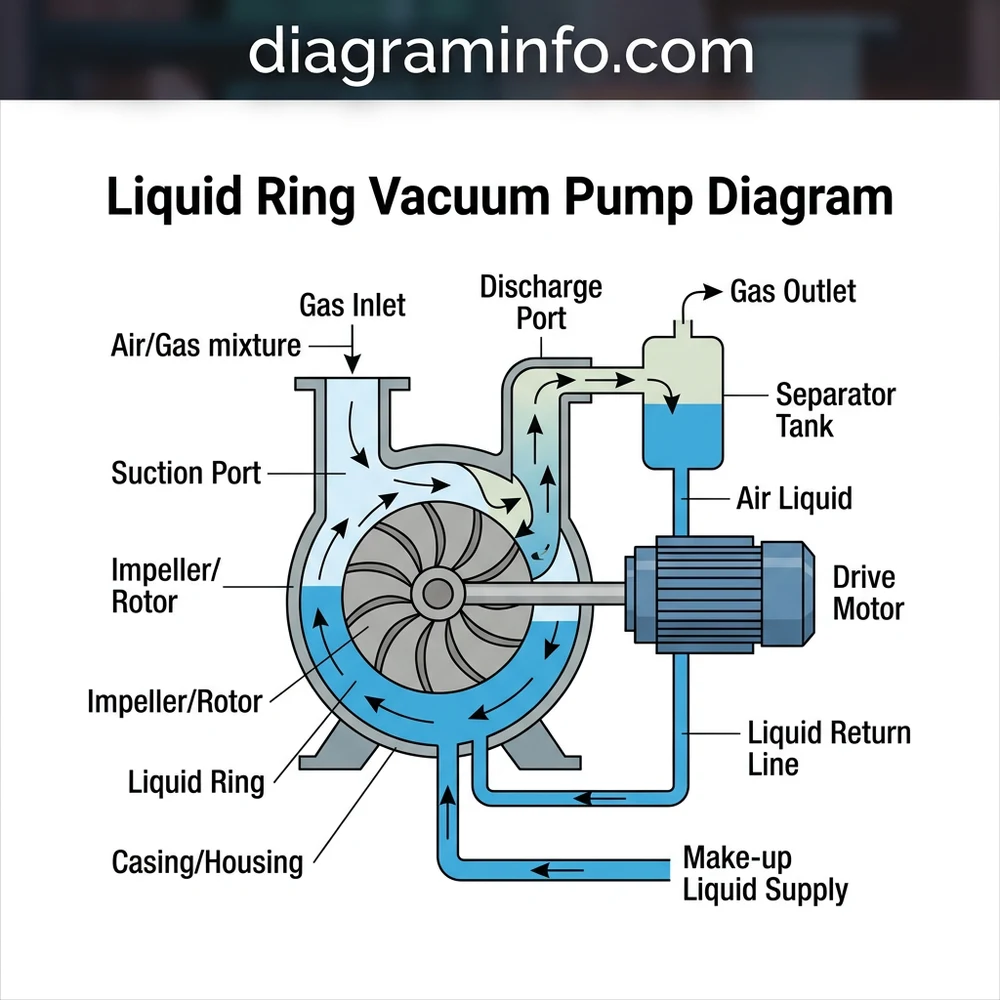

[DIAGRAM PLACEHOLDER: Insert a detailed, labeled diagram of a liquid ring vacuum pump here.
The diagram should clearly show the casing, impeller, port plates, shaft, inlet/discharge ports, seal liquid path,
and external connections like seal liquid supply, motor, and exhaust.
Labels should correspond to the components described in the “Component Breakdown” section.]
Component Breakdown
To effectively interpret any liquid ring vacuum pump diagram, a detailed understanding of each core component is essential. As shown in the diagram above, these pumps are robust machines designed for longevity and specific performance characteristics. Each part plays a critical role in generating and maintaining the vacuum:
| Component | Function | Typical Material / Specification Note |
|---|---|---|
| Casing (Housing) | Forms the outer shell, containing the impeller and seal liquid. Defines the working chamber. | Cast Iron, Ductile Iron, Stainless Steel (304, 316L). Check OEM specification for material compatibility with process gases. |
| Impeller (Rotor) | The rotating element, typically multi-bladed, mounted eccentrically within the casing. Creates the liquid ring. | Bronze, Cast Iron, Stainless Steel. Balanced to ISO 1940-1 Grade G6.3. |
| Port Plates (Cones/Inlet & Discharge Ports) | Stationary plates positioned on either side of the impeller. Contain the inlet and discharge openings for gas. | Cast Iron, Stainless Steel. Precise machining critical for sealing and port timing. |
| Shaft | Transmits power from the motor to the impeller. Supported by bearings. | Alloy Steel (e.g., AISI 4140), Stainless Steel. Requires precise alignment (typically <0.002 inch runout). |
| Seal Liquid Supply/Return | Provides the continuous flow of seal liquid, crucial for ring formation and heat dissipation. | Water (most common), oil, glycol, solvents. Flow rate and temperature are critical per manufacturer specifications. |
| Bearings | Support the shaft and impeller, reducing friction and ensuring smooth rotation. | Ball or roller bearings (e.g., SKF 6309 2RS1). Lubricated (grease or oil) to OEM specifications; typical regrease interval 500-2000 hours. |
| Mechanical Seals/Packing | Prevents leakage of process gas and seal liquid along the shaft. | Single/Double Mechanical Seals (e.g., carbon vs. ceramic faces), PTFE packing. Seal flush plan critical. |
| Motor | Provides rotational power to the pump shaft. | TEFC (Totally Enclosed Fan Cooled), Explosion-Proof (NEMA standards). Typical voltages 230/460V AC, 3-phase. |
The Casing forms the primary pressure boundary, engineered to withstand the specific vacuum levels and internal pressures generated. Within this casing, the Impeller, with its multiple blades, is mounted eccentrically to the main pump shaft. This eccentricity is the key to creating the variable volume chambers required for compression. The Port Plates, often referred to as cones, are precision-machined stationary components that define the inlet and discharge gas paths to and from the impeller blades. Their accurate positioning and sealing are vital for pump efficiency. The Shaft is the conduit for mechanical power, transmitting the rotational energy from the external motor to the impeller. It is supported by robust Bearings, which must be correctly lubricated and aligned to prevent premature failure. Mechanical Seals or packing systems are strategically placed where the shaft penetrates the casing, preventing leakage of process gas into the atmosphere or seal liquid out of the pump. Finally, the lifeblood of the pump, the Seal Liquid Supply, typically water, is continuously introduced to form the liquid ring, acting as the primary sealant and coolant. In some systems, a dedicated heat exchanger is employed to maintain the seal liquid within optimal temperature ranges, preventing issues similar to how a condenser or evaporator manages refrigerant temperature in an HVAC cycle. Regular inspection of these components, referencing manufacturer diagrams and part numbers (e.g., Impeller PN: XYZ-456, Seal Kit PN: ABC-123), is crucial for preventative maintenance.
While a liquid ring vacuum pump is not a direct component of a typical HVAC refrigerant cycle, the principles of gas compression, heat transfer, and fluid management are universally applicable. Understanding how a liquid ring pump uses a liquid for sealing and heat dissipation can provide valuable insights into how other systems, like those using a refrigerant or a blower motor, manage similar challenges through different mechanisms. Proper sizing and installation of seal liquid lines are as critical as sizing refrigerant lines in an HVAC system for optimal performance and efficiency.
Step-by-Step Guide: How a Liquid Ring Vacuum Pump Operates
Understanding the operational sequence of a liquid ring vacuum pump diagram provides invaluable insight into its efficiency and potential points of failure. This positive displacement machine utilizes a rotating impeller to create a moving ring of liquid, which acts as the compressing and sealing medium. Follow this sequence:
- Seal Liquid Introduction: Initially, a carefully metered flow of seal liquid (most commonly water) is introduced into the pump casing. This liquid is critical; it forms the ‘liquid ring’ from which the pump derives its name and fundamental operating principle. The flow rate is typically regulated by an orifice or control valve and must conform to OEM specifications (e.g., 2 GPM for a 100 CFM pump).
- Impeller Rotation & Liquid Ring Formation: As the electric motor (e.g., 460V, 3-phase, connected via wire colors L1-brown, L2-orange, L3-yellow) begins to rotate the shaft and attached impeller at high speed (e.g., 1750 RPM), centrifugal force slings the seal liquid to the perimeter of the casing. Due to the impeller’s eccentric mounting relative to the casing, this liquid forms a dynamic, concentric ring around the casing’s inner wall.
- Gas Inlet & Cavity Formation: Because the impeller is offset, the space between the impeller blades and the inner surface of the liquid ring varies during rotation. As the impeller blades sweep past the inlet port on the port plate, the increasing volume between the blade and the liquid ring creates a low-pressure area (a partial vacuum). Process gas from the system being evacuated is drawn into these expanding cavities through the pump’s inlet. This is analogous to the suction stroke in a reciprocating compressor, or how an air handler draws air into a return duct.
- Gas Compression: As the impeller continues to rotate, the volume between the blades and the liquid ring decreases. The liquid ring moves inward relative to the blades, compressing the trapped gas. The seal liquid effectively seals the compression chambers, preventing backflow and ensuring efficient compression. This compression also generates heat, similar to how a refrigerant compressor generates heat that must be dissipated by a condenser.
- Gas Discharge: When the compressed gas-filled cavities reach the discharge port on the port plate, the compressed gas, along with some of the seal liquid, is expelled from the pump. The discharge pressure can range from atmospheric to slightly above, depending on the system design.
- Seal Liquid Management: In an once-through system, the discharged seal liquid is discarded. More commonly, in a partial or full recirculation system, the discharged gas and liquid enter a separator. The gas is vented, and the liquid is cooled (often via a heat exchanger) and returned to the pump’s inlet. Maintaining the correct seal liquid temperature (e.g., 60-70°F / 15-21°C for water) is critical for optimal vacuum performance and preventing cavitation.
Each rotation of the impeller continuously repeats this cycle, ensuring a steady draw of process gas and the generation of a consistent vacuum level. Your vigilance in monitoring seal liquid parameters and motor health is crucial for sustained operation.
Troubleshooting Common Issues
Effective troubleshooting of a liquid ring vacuum pump diagram relies on a systematic approach, combining visual inspection, diagnostic tools, and a deep understanding of operational principles. Before initiating any repair, always consult the manufacturer’s specific maintenance manual for your pump model (e.g., Nash CL series, Siemens 2BE series) for torque specifications (e.g., casing bolts 80 ft-lbs, impeller nut 120 ft-lbs) and precise component instructions.
-
Loss of Vacuum / Poor Performance:
- Symptom: Pump runs, but process vacuum is lower than specified or takes too long to achieve.
- Possible Causes:
- Insufficient Seal Liquid Flow/Temperature: Most common cause. Check seal liquid supply pressure (e.g., 15-30 PSI differential) and flow rate against OEM specifications. Ensure the seal liquid temperature, especially if recirculating with a heat exchanger, is within the optimal range (e.g., 60-70°F). High temperatures reduce the vapor pressure differential, impacting performance.
- Air Leaks: Leaks in the system being evacuated, or even into the pump’s inlet piping. Conduct a vacuum decay test on the system or use a sonic leak detector.
- Worn Impeller or Port Plates: Internal wear increases internal clearances, reducing compression efficiency. Inspect during scheduled maintenance; check clearances against factory specs (e.g., impeller-to-cone clearance 0.015-0.030 inches).
- Discharge Line Obstruction: If discharge is restricted, the pump cannot evacuate properly. Check for blockages in the exhaust pipe or separator.
- Cavitation: Often indicated by a rattling or crackling noise. Occurs when vapor bubbles form and collapse due to excessively high seal liquid temperature or too low an inlet pressure. Increase seal liquid flow/cooling or throttle the inlet slightly.
-
Excessive Noise or Vibration:
- Symptom: Grinding, rumbling, or high-frequency vibration during operation.
- Possible Causes:
- Bearing Failure: A distinct rumbling or growling. Check bearing temperatures (typically below 180°F / 82°C) and listen with a stethoscope. Replace bearings according to OEM instructions, ensuring correct lubrication (e.g., specified grease type and fill volume).
- Impeller Imbalance or Damage: May be caused by corrosion or foreign object ingestion. Requires pump disassembly, impeller inspection, and rebalancing if necessary.
- Shaft Misalignment: Between the pump and motor. Verify alignment using a dial indicator or laser alignment tool (e.g., within 0.002 inches TIR). Misalignment can cause premature bearing and seal failure.
- Loose Mounting: Check anchor bolts and baseplate integrity.
-
Overheating:
- Symptom: Motor tripping on overload, hot casing, high seal liquid temperature.
- Possible Causes:
- Insufficient Seal Liquid Flow/Cooling: The seal liquid removes heat of compression. Ensure adequate flow and effective cooling, especially if a heat exchanger is part of the system.
- High Inlet Gas Temperature: If the gas entering the pump is unusually hot, it increases the thermal load.
- Motor Overload: Check motor amperage against nameplate FLA. Could indicate internal pump binding, excessive back pressure, or electrical issues (e.g., low voltage, phase imbalance). Consult a qualified electrician for motor diagnostics.
-
Seal Leakage:
- Symptom: Liquid dripping or gas escaping from the shaft seal area.
- Possible Causes:
- Worn Mechanical Seal Faces/Packing: Seals have a finite life. Replace seal components, ensuring correct installation and flush plan (if applicable). For mechanical seals, ensure mating faces are perfectly clean and undamaged.
- Shaft Damage/Runout: A bent or worn shaft can prevent seals from seating properly. Inspect shaft for damage or excessive runout.
- Improper Installation: Incorrect torque on gland bolts or misaligned components can lead to leaks.
Always ensure the power supply to the motor is disconnected and locked out according to LOTO (Lockout/Tagout) procedures before performing any inspection, maintenance, or repair on the pump or its associated electrical components. Failure to do so can result in severe injury or fatality. Verify capacitor discharge on single-phase motors before handling any wiring. Consult relevant NFPA 70E standards for electrical safety.
Frequently Asked Questions (FAQ)
What is the primary difference between a liquid ring vacuum pump and a dry vacuum pump?
The fundamental distinction lies in the use of a seal fluid. A liquid ring vacuum pump, as detailed in the liquid ring vacuum pump diagram, utilizes a continuous ring of liquid (typically water) to create, seal, and compress gas within its casing. This liquid also dissipates heat and washes contaminants. In contrast, dry vacuum pumps operate without any sealing or lubricating fluid in the pumping chamber, relying on tight mechanical tolerances (e.g., screw, claw, scroll designs) for compression. Dry pumps are excellent for preventing contamination of the process gas, but liquid ring pumps are generally more robust for handling condensable vapors, entrained liquids, and particulate matter, making them suitable for harsher industrial environments.
What critical maintenance procedures should be performed on a liquid ring vacuum pump?
Critical maintenance revolves around the seal liquid, bearings, and internal clearances. Regular checks include monitoring seal liquid flow rate, temperature, and cleanliness, especially in recirculation systems where a heat exchanger needs periodic cleaning. Bearing lubrication (greasing or oil changes) is essential at intervals specified by the OEM (e.g., every 1000 operating hours) to prevent overheating and premature failure. Mechanical seals or packing require inspection for leakage and replacement at scheduled intervals. Periodically, internal clearances between the impeller and port plates should be checked during major overhauls (e.g., every 5-7 years for continuous duty) to detect wear that can degrade performance, similar to how checking compressor valve plates might be critical in other systems.
Can liquid ring vacuum pumps handle corrosive gases and vapors?
Yes, one of the significant advantages of liquid ring vacuum pumps is their ability to handle corrosive process gases and vapors, provided the pump construction materials and the seal liquid are compatible with the media. Manufacturers offer pumps in various materials, including ductile iron, bronze, 304, 316L stainless steel, and even exotic alloys, selected based on the specific chemical properties of the process gas. The seal liquid can also be chosen to be inert or to absorb certain corrosive components. Always consult a chemical compatibility chart and the pump manufacturer’s engineering team when specifying a pump for corrosive applications to ensure material integrity and operational safety.
What role does the seal liquid’s temperature play in pump performance?
The seal liquid’s temperature is a critical factor directly impacting a liquid ring vacuum pump’s performance. As depicted in a liquid ring vacuum pump diagram, the liquid ring acts as the primary sealing and compressing element. Colder seal liquid has a lower vapor pressure, which allows the pump to achieve a deeper vacuum. Conversely, warmer seal liquid has a higher vapor pressure, meaning it will flash into vapor more readily, reducing the effective vacuum the pump can pull. Additionally, the seal liquid absorbs the heat generated during gas compression. If the liquid temperature rises too high, it diminishes the pump’s cooling capacity, potentially leading to overheating, cavitation, and reduced efficiency. Maintaining the seal liquid within the manufacturer-recommended temperature range (e.g., 60-70°F for water) is paramount for optimal operation and longevity, much like ensuring proper refrigerant temperature in an HVAC refrigerant cycle.
How is a liquid ring vacuum pump sized for a specific application?
Sizing a liquid ring vacuum pump involves a comprehensive evaluation of the process requirements, not just simple flow rates. Key parameters include the required vacuum level (inHg or Torr), the desired pumping speed (ACFM or m³/hr), the composition of the process gas (including condensable vapors), its temperature, and the presence of any particulate matter. The specific liquid ring pump model and its associated motor (e.g., a 10 HP motor for 200 ACFM at 20 inHg vacuum) are then selected from performance curves provided by the manufacturer. Factors like altitude and seal liquid temperature corrections must also be applied. Over-sizing can lead to inefficient operation, while under-sizing will fail to meet process demands. Accurate data collection from the process and collaboration with pump engineers are crucial for correct selection.
For optimal performance of most water-sealed liquid ring vacuum pumps operating at approximately 20 inHg (677 mbar) vacuum, maintaining the seal water temperature between 60-70°F (15-21°C) is ideal. A rise to 90°F (32°C) can reduce volumetric efficiency by 15-20%, while exceeding 120°F (49°C) can lead to significant cavitation and damage.
Frequently Asked Questions
What does the liquid ring vacuum pump diagram show?
The diagram illustrates the internal workings of a liquid ring vacuum pump, detailing key components like the eccentric impeller, casing, and sealing liquid flow paths. It visually explains how the rotating liquid creates varying volumes, drawing gas to establish a vacuum. This is crucial for properly evacuating HVAC systems before charging with refrigerant.
How do I read the liquid ring vacuum pump diagram?
To interpret the diagram, first identify the numbered or labeled components such as the impeller, inlet/outlet ports, and liquid reservoir. Follow the directional arrows to trace the gas flow (from the HVAC system) and the sealing liquid’s circulation. Pay attention to cross-sectional views that reveal internal operating principles and connections for the compressor or condenser.
What are the main components in liquid ring vacuum pump diagram?
The primary components shown include the pump casing, the eccentrically mounted impeller with multiple blades, the inlet and discharge ports, and the sealing liquid reservoir (often water). The diagram also typically shows the motor driving the impeller and the internal path where the liquid ring forms, vital for creating the vacuum used in HVAC refrigerant recovery.
What are common problems with liquid ring vacuum pump diagram?
The diagram helps identify issues like obstructed inlet/outlet ports, incorrect liquid levels, or potential impeller wear, which can lead to poor vacuum performance. Common problems include inadequate sealing liquid, leading to cavitation, or issues with the motor affecting the impeller’s rotation. These can hinder efficient HVAC system evacuation and damage the compressor.
Can I use liquid ring vacuum pump diagram for DIY repair?
While the diagram can guide basic troubleshooting and maintenance like checking liquid levels or filter cleanliness, complex internal repairs such as impeller or bearing replacement are typically beyond DIY scope. Improper repair can compromise pump efficiency, risking damage to HVAC components like the condenser or evaporator during vacuum procedures. Professional service is often recommended.
What tools do I need for liquid ring vacuum pump diagram?
To work with a liquid ring vacuum pump, referencing the diagram, you’ll need standard hand tools (wrenches, screwdrivers), a manometer or vacuum gauge for performance checks, and appropriate containers for handling sealing liquid. For HVAC applications, specialized refrigerant recovery equipment and safety gear are also essential to prevent damage to the compressor or release of refrigerants.
