7.3 Powerstroke Fuel Pressure Regulator Diagram: Component & Repair 2026
The 7.3 Powerstroke fuel pressure regulator (FPR) is typically located on the top of the engine within the fuel bowl, controlling fuel flow to the injectors and returning excess fuel via the fuel return line. It maintains a consistent fuel pressure of approximately 60-70 PSI for optimal engine performance and injector function, working in conjunction with the high pressure fuel pump (HPFP).
📌 Key Takeaways
- The 7.3 Powerstroke FPR regulates fuel pressure to approximately 60-70 PSI, critical for proper injector operation and preventing cavitation.
- The fuel pressure regulator is integrated into the fuel bowl assembly on top of the engine, often near the HPFP.
- Symptoms of a failing FPR include hard starting (especially hot), low power, poor fuel economy, and excessive smoke due to incorrect fuel delivery.
- A common failure point is a ruptured diaphragm or clogged screen within the FPR, causing inconsistent pressure or bleed-down.
- While FPR replacement is a common DIY, diagnosing underlying fuel system issues (like a weak high pressure fuel pump or injection pressure regulator) may require professional diagnostic tools.
The 7.3L Powerstroke engine, a robust and widely utilized diesel powerplant, relies on a precisely controlled fuel system for optimal performance and longevity. This article presents a comprehensive 7.3 Powerstroke fuel pressure regulator diagram, detailing the intricate pathways and critical components that ensure consistent fuel delivery to the injectors. Understanding this diagram is essential for accurate diagnostics, effective troubleshooting, and proper maintenance, allowing mechanics and experienced DIYers to maintain the peak efficiency and legendary reliability of these engines.

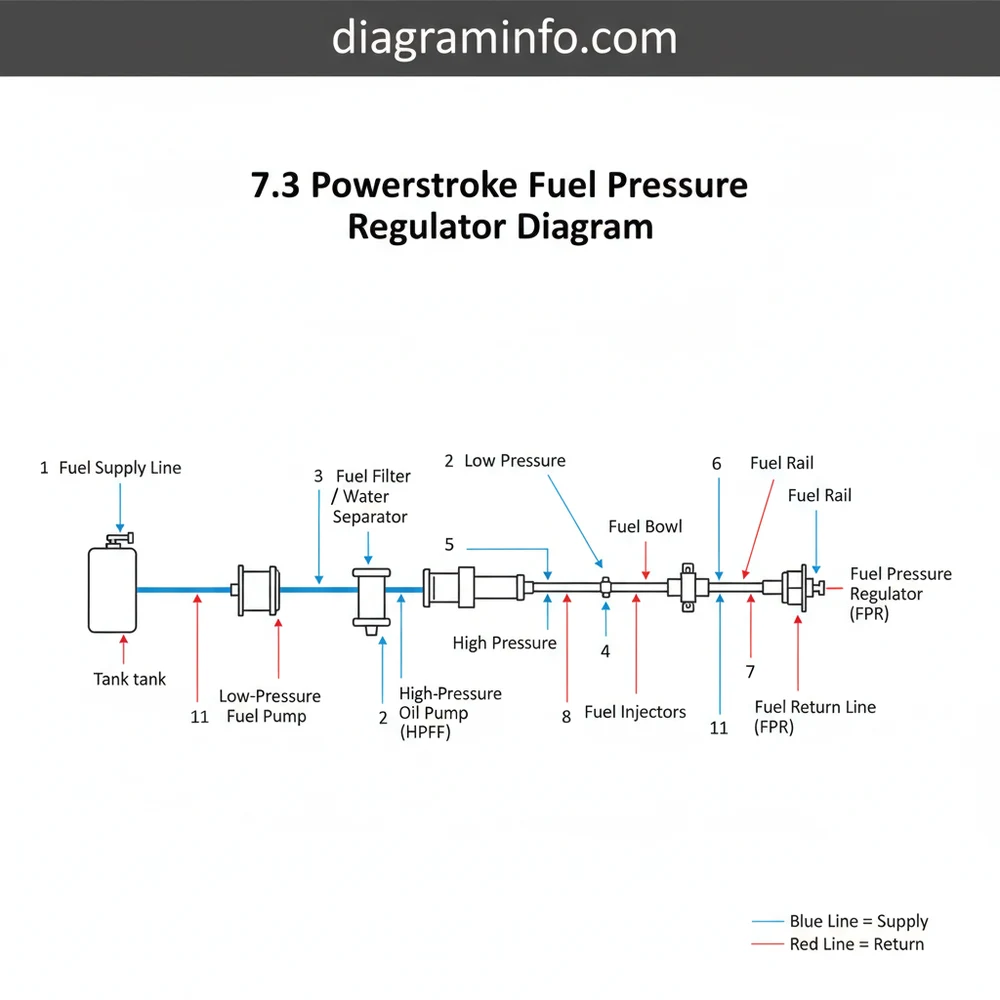

[DIAGRAM_PLACEHOLDER: Insert 7.3 Powerstroke Fuel System Diagram here, clearly labeling all components discussed in the article.]
FUEL SYSTEM COMPONENTS BREAKDOWN
The 7.3L Powerstroke fuel system is a low-pressure, high-volume design that delivers filtered fuel to the injectors via the fuel rails. Unlike common rail systems, the 7.3L uses high-pressure oil to actuate its hydraulically activated electronic unit injectors (HEUI). This section details the primary components shown in the 7.3 Powerstroke fuel pressure regulator diagram and their specific functions.
Fuel Tank: Stores the diesel fuel supply. It typically includes a sending unit for fuel level monitoring and a pickup screen to prevent large debris from entering the lines.
Electric Fuel Pump (Lift Pump): Mounted on the frame rail, this component draws fuel from the tank and pushes it forward through the system. Manufacturer specifications indicate this pump should provide approximately 40-70 PSI of fuel pressure to the fuel bowl. A failing lift pump is a common cause of low fuel pressure symptoms.
Fuel Heater: Integrated into the fuel filter housing (fuel bowl), the fuel heater warms the fuel, especially in cold weather, to prevent gelling and improve flow, ensuring proper atomization at the injectors.
Fuel Cooler: Found on some 7.3L applications, particularly those with higher duty cycles, the fuel cooler helps dissipate heat from the fuel after it has circulated through the engine and before returning to the tank. This prevents excessive fuel temperature build-up.
Fuel Bowl (Fuel Filter Housing): This critical assembly serves multiple functions: it houses the primary fuel filter, the fuel heater element, and the drain valve for water separation. It also provides the mounting point for the fuel pressure regulator.
Fuel Pressure Regulator (FPR): Located on the fuel bowl, the FPR is responsible for maintaining a consistent fuel pressure within the fuel bowl and supply galleries, typically between 40-70 PSI. It does this by bleeding off excess fuel back to the fuel return line when system pressure exceeds its set threshold. A faulty FPR is a direct cause of inconsistent or incorrect fuel pressure.
Fuel Return Line: After the fuel has passed through the fuel bowl and potentially the injectors (excess fuel not injected), it is routed back to the fuel tank via this line. The FPR uses this line to relieve excess pressure.
Primer Pump (Manual Pump): Integrated into the fuel bowl, this hand-operated pump allows the technician or owner to prime the fuel system after maintenance, such as a fuel filter replacement, by manually pushing fuel through the system and expelling air.
High Pressure Oil Pump (HPOP): While not directly part of the fuel flow path, the HPOP is integral to the 7.3L injection process. It pressurizes engine oil, which is then sent to the injectors to hydraulically actuate them. It’s crucial to distinguish this from a “high pressure fuel pump” found on common rail systems.
Injection Pressure Regulator (IPR): This solenoid-controlled valve regulates the pressure of the high-pressure oil delivered by the HPOP. It is distinct from the fuel pressure regulator and controls injection timing and fuel delivery volume by influencing the oil pressure acting on the injectors. `[Link to “Understanding 7.3L HPOP Function”]` for a detailed explanation of its operation.
Injectors: The HEUI injectors are responsible for atomizing and injecting fuel directly into the combustion chambers. Their operation is dependent on both adequate fuel pressure and correctly regulated high-pressure oil. `[Link to “7.3L Powerstroke Injector Replacement Guide”]` can provide further insight into injector maintenance.
For a complete understanding of the 7.3L system, it’s vital to recognize the distinction between the Fuel Pressure Regulator (FPR), which controls fuel delivery pressure to the injectors, and the Injection Pressure Regulator (IPR), which controls the high-pressure oil used to actuate the injectors. Both are critical for proper engine operation, but address different fluid systems.
COMMON FAILURE POINTS & SYMPTOMS
Understanding common failure points and their associated symptoms is paramount for efficient diagnostics of the 7.3L Powerstroke fuel system. Many issues can mimic each other, so a systematic approach is crucial.
1. Fuel Pressure Regulator (FPR) Diaphragm Failure:
Symptoms: Low fuel pressure at the fuel bowl (below 40 PSI), rough idle, poor acceleration, reduced power, prolonged cranking, black smoke under load, decreased fuel economy. In severe cases, fuel may leak externally from the FPR.
Diagnosis: Connect a calibrated fuel pressure gauge to the Schrader valve on the fuel bowl. A reading below OEM specifications (typically 40-70 PSI at idle) or erratic pressure fluctuations indicate a faulty FPR. Visual inspection for external fuel leaks around the FPR body.
2. Electric Fuel Pump (Lift Pump) Failure:
Symptoms: Engine crank-no-start, hard starting, lack of power under acceleration, stalling, a distinct whining noise from the frame rail where the pump is located, or complete silence when the key is turned to the “on” position (no prime).
Diagnosis: Listen for pump activation upon key-on. Test for voltage at the pump connector. Measure fuel pressure at the fuel bowl; if zero or very low, the pump is suspect. `[Link to “7.3L Powerstroke Lift Pump Diagnostics”]` for detailed testing procedures.
3. Clogged Fuel Filter / Contaminated Fuel Bowl:
Symptoms: Reduced power, sluggish acceleration, engine sputtering, hard starting, frequent activation of the water-in-fuel (WIF) light.
Diagnosis: Inspect the fuel filter for visible contamination (dark color, debris). Drain the fuel bowl to check for excessive water or sediment. A restricted filter will starve the FPR and injectors.
4. Fuel Heater / Wiring Issues:
Symptoms: Hard starting or no-start in cold weather, especially when temperatures drop below freezing. The “Check Engine” light may illuminate with codes related to fuel temperature or fuel system issues.
Diagnosis: Test resistance of the fuel heater element, typically specified in your service manual. Inspect wiring and connectors for corrosion or damage. This is often a preventative measure in cold climates.
5. Fuel Return Line Restriction or Leak:
Symptoms: If restricted, fuel pressure can be excessively high, potentially damaging injectors or causing over-fueling. If leaking, visible fuel leaks, fuel odor, and potentially low fuel pressure (if the leak is before the FPR).
Diagnosis: Visually inspect the entire fuel return line for kinks, damage, or leaks. A fuel pressure gauge will show abnormally high pressure if restricted.
6. Injection Pressure Regulator (IPR) Valve Issues:
Symptoms: While not directly affecting fuel pressure, a faulty IPR can cause engine no-start, hard starting, rough idle, stalling, and reduced power, often confused with fuel delivery problems.
Diagnosis: Scan tool diagnostics to monitor IPR duty cycle and Injection Control Pressure (ICP). A bad IPR will struggle to build or hold ICP.
| Component | Typical Symptoms | Diagnostic Action |
|---|---|---|
| Fuel Pressure Regulator (FPR) | Low power, rough idle, hard start, low fuel pressure gauge reading. | Fuel pressure test at Schrader valve. |
| Electric Fuel Pump | No prime noise, no start, low fuel pressure, stalling. | Check pump voltage, fuel pressure test. |
| Fuel Filter | Reduced power, sputtering, hard start, WIF light. | Visual inspection, drain fuel bowl. |
| Injection Pressure Regulator (IPR) | No start, rough idle, stalling (oil-related, not fuel pressure). | Scan tool for ICP/IPR duty cycle. |
REPAIR & REPLACEMENT STEPS: 7.3L Powerstroke Fuel Pressure Regulator (FPR)
Replacing the fuel pressure regulator on a 7.3L Powerstroke is a common maintenance task that can restore proper fuel pressure and engine performance. This procedure requires careful attention to detail and adherence to safety protocols.
Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working with fuel systems. Diesel fuel is highly flammable and can cause skin irritation. Ensure the engine is cool before beginning work. Disconnect the negative battery terminal to prevent accidental electrical shorts.
Tools Required:
Torx T20 bit (for FPR screws)
Flathead screwdriver (for hose clamps)
Pliers (for hose clamps)
Clean shop rags
Drain pan
Fuel pressure gauge (for verification)
Torque wrench
Parts Required:
New Fuel Pressure Regulator (Ford OEM Part # F81Z-9C968-AB or equivalent reputable aftermarket unit)
New O-rings for FPR (often included with new unit)
Replacement hose clamps (optional, but recommended if old ones are corroded)
Procedure:
1. Preparation:
Park the vehicle on a level surface and engage the parking brake.
Allow the engine to cool completely.
Disconnect both negative battery terminals to prevent any electrical hazards.
Locate the fuel bowl on the driver’s side of the engine, typically near the intake manifold.
2. Depressurize the Fuel System:
Place a drain pan under the fuel bowl.
Open the yellow fuel bowl drain valve (located at the bottom of the fuel bowl) to drain fuel and relieve pressure. Allow all fuel to drain. Once drained, close the valve.
3. Disconnect Fuel Lines (if necessary for access):
Depending on your specific truck configuration and access, you may need to temporarily disconnect the fuel supply line leading into the fuel bowl or the fuel return line exiting it to gain better access to the FPR. Use appropriate line wrenches to avoid stripping fittings. Be prepared for residual fuel to spill.
4. Remove the Old Fuel Pressure Regulator:
Identify the FPR, which is secured to the front of the fuel bowl with three Torx T20 screws.
Carefully remove the three Torx T20 screws.
Gently pull the FPR straight out from the fuel bowl. Be prepared for a small amount of residual fuel to spill from the orifice.
Ensure all old O-rings are removed from the fuel bowl housing.
5. Inspect and Clean:
Thoroughly clean the mounting surface of the fuel bowl where the FPR seats. Ensure there is no debris, old O-ring material, or corrosion that could compromise the seal of the new regulator.
Inspect the fuel return line fitting on the fuel bowl for any signs of damage or blockage.
6. Install the New Fuel Pressure Regulator:
Lubricate the new O-rings with a small amount of clean diesel fuel to aid in installation and prevent damage.
Install the new O-rings onto the new FPR according to the manufacturer’s instructions.
Carefully insert the new FPR into the fuel bowl, ensuring it seats squarely.
Thread in the three Torx T20 screws by hand to avoid cross-threading.
Tighten the screws evenly in a star pattern to the manufacturer-specified torque of 70-80 inch-pounds (in-lbs). Do not overtighten, as this can strip the threads in the aluminum fuel bowl.
According to OEM specifications for the 7.3L Powerstroke fuel pressure regulator mounting screws, the torque value is 70-80 inch-pounds (7.9-9.0 Nm). Always use a calibrated torque wrench for this crucial step.
7. Reconnect Fuel Lines:
If disconnected, reattach any fuel lines to the fuel bowl. Ensure all connections are secure and clamps are tightened.
8. Prime the Fuel System:
Reconnect the negative battery terminals.
Turn the ignition key to the “ON” position (do not start) for 30 seconds, then turn it off. Repeat this 3-4 times. This allows the electric fuel pump (lift pump) to prime the system.
Alternatively, use the manual primer pump on the fuel bowl until resistance is felt and no air is heard.
Check for any leaks around the new FPR and fuel line connections.
9. Start and Verify:
Start the engine. It may take a few extra cranking cycles to bleed all the air from the system.
Once running, carefully re-inspect for any fuel leaks.
Connect a fuel pressure gauge to the Schrader valve on the fuel bowl to verify that the fuel pressure is within the manufacturer’s specified range (40-70 PSI at idle). Consistency is key.
Monitor engine performance during a test drive. `[Link to “Advanced 7.3L Powerstroke Performance Upgrades”]` could be your next step once fuel delivery is optimized.
FAQ
What is the factory fuel pressure specification for a 7.3L Powerstroke?
Manufacturer specifications for the 7.3L Powerstroke typically recommend a fuel pressure range of 40-70 PSI at the fuel bowl with the engine running. Some performance-oriented setups might target slightly higher pressures (e.g., 65-70 PSI), but staying within the established OEM range ensures optimal performance and injector longevity. Pressures below 40 PSI or above 80 PSI indicate a problem with the fuel delivery system.
How does the fuel pressure regulator differ from the injection pressure regulator on a 7.3L?
These two components, despite similar names, serve fundamentally different functions on a 7.3L Powerstroke. The Fuel Pressure Regulator (FPR) controls the actual diesel fuel pressure delivered to the injectors, maintaining it within the specified 40-70 PSI range by bypassing excess fuel back to the tank. The Injection Pressure Regulator (IPR) controls the high-pressure engine oil, which is used to actuate the HEUI injectors. The IPR modulates this oil pressure (often exceeding 3,000 PSI) to control injection timing and fuel delivery volume.
What are common signs of a failing 7.3L fuel pressure regulator?
A failing 7.3L fuel pressure regulator often manifests as inconsistent engine performance. Common signs include: decreased fuel pressure readings at the fuel bowl, hard starting (especially when warm), prolonged cranking, rough or erratic idle, a noticeable loss of power under acceleration, and potentially increased black smoke from the exhaust due to improper fuel atomization. In some cases, a visible fuel leak may also occur from the FPR housing.
Can a bad fuel pressure regulator cause starting issues?
Absolutely. If the fuel pressure regulator fails to maintain adequate fuel pressure, the injectors may not receive enough fuel to properly atomize and inject it into the cylinders. This can lead to hard starting conditions, where the engine cranks but struggles to fire, or even a complete no-start situation if the pressure is critically low. Consistent fuel pressure is crucial for the HEUI system to function correctly.
Are there upgrades available for the 7.3L fuel pressure regulator?
Yes, various aftermarket upgrades are available for the 7.3L fuel pressure regulator. These often include “high-pressure spring” kits that increase the static fuel pressure slightly (e.g., to 65 PSI or 70 PSI) to ensure better fuel delivery, particularly beneficial for engines with performance modifications or higher mileage. There are also complete regulated return fuel systems that replace the entire fuel bowl and FPR assembly, often rerouting the fuel return line directly from the cylinder heads to ensure more consistent pressure to all injectors.
Step-by-Step Guide to Understanding the 7.3 Powerstroke Fuel Pressure Regulator Diagram: Component & Repair 2026
Identify – Locate the fuel pressure regulator (FPR) on the 7.3 Powerstroke by referencing the diagram, typically found on top of the engine within the fuel bowl assembly.
Locate – Pinpoint the fuel supply line from the high pressure fuel pump (HPFP) entering the fuel bowl and the fuel return line exiting the FPR back to the tank on the diagram.
Reference – Use the diagram to understand the internal components of the FPR, such as the spring and diaphragm, which dictate its function in controlling pressure.
Connect/Route – If replacing, follow diagram instructions for proper routing of the fuel lines and secure connection of the FPR to the fuel bowl, ensuring all seals are correctly seated.
Verify – After any repair or inspection, use a fuel pressure gauge to verify the operating fuel pressure at the fuel bowl matches the 60-70 PSI specification, confirming FPR functionality.
Troubleshoot – If pressure is incorrect or leaks are present, re-examine the diagram for potential overlooked connections or components, especially checking the injection pressure regulator for independent issues.
Frequently Asked Questions
What are the main components of the 7.3 powerstroke fuel pressure regulator diagram?
The diagram highlights the fuel pressure regulator itself, which is situated on the fuel bowl assembly. It shows its connection to the fuel supply from the high pressure fuel pump (HPFP) and the fuel return line back to the tank. Key elements include internal springs, a diaphragm, and a seat valve, all working to maintain consistent fuel pressure for the injectors, alongside the injection pressure regulator.
What are symptoms of a failing 7.3 powerstroke fuel pressure regulator?
Symptoms of a failing 7.3 Powerstroke fuel pressure regulator (FPR) often include prolonged crank times, especially when the engine is warm, low engine power, poor throttle response, and rough idling. You might also experience decreased fuel economy or black/white smoke from the exhaust due to incorrect fuel delivery pressure to the injectors, impacting overall performance.
How do I diagnose a fuel leak in the 7.3 powerstroke fuel pressure regulator area?
To diagnose a fuel leak around the 7.3 Powerstroke FPR, visually inspect the fuel bowl and surrounding lines, especially the fuel return line and connections, for any signs of wetness or fuel stains. You can also use a fuel pressure gauge to monitor pressure while checking for drops. A leaking FPR diaphragm or cracked fuel bowl can lead to external leaks and pressure loss, potentially affecting the high pressure fuel pump performance.
What is the fuel pressure spec for the 7.3 powerstroke fuel pressure regulator?
The optimal fuel pressure specification for the 7.3 Powerstroke, as regulated by the fuel pressure regulator (FPR), is typically between 60 to 70 PSI at idle and under load. A pressure consistently below 50 PSI can lead to cavitation in the injectors and high pressure fuel pump, causing damage and poor performance. Always verify with a reliable fuel pressure gauge connected to the fuel bowl.
How long does a 7.3 powerstroke fuel pressure regulator last?
A 7.3 Powerstroke fuel pressure regulator (FPR) can last anywhere from 100,000 to 200,000 miles, but its lifespan varies based on fuel quality, maintenance, and operating conditions. Contaminants can clog the internal screens, and the diaphragm can eventually rupture. Regular fuel filter changes and avoiding running on low fuel can extend its life, complementing the high pressure fuel pump’s longevity.
Can I replace the 7.3 powerstroke fuel filter and FPR myself?
Yes, replacing the 7.3 Powerstroke fuel filter and FPR (fuel pressure regulator) is a common DIY task. The fuel filter is located within the fuel bowl, directly accessible. The FPR often unbolts from the top of the bowl after removing the filter. Ensure you depressurize the system first, use new O-rings, and verify the correct fuel pressure post-installation to ensure proper high pressure fuel pump operation and no fuel return line leaks.
