Mercury 60 HP 4-Stroke Fuel System Diagram 2026: Component & Repair
The Mercury 60 HP 4-Stroke fuel system diagram details fuel flow from the tank through the low-pressure pump, fuel filter, and into the high-pressure fuel pump (HPFP). It often shows the fuel bowl, injection pressure regulator, and the fuel return line leading back to the tank or vapor separator for efficient fuel delivery.
📌 Key Takeaways
- The Mercury 60 HP 4-Stroke fuel system utilizes a two-stage pump system: a low-pressure pump (lift pump) and a high-pressure fuel pump (HPFP) operating around 43-45 PSI.
- Key components to identify include the fuel filter, vapor separator tank (VST), fuel pressure regulator, and injector rail, often with a dedicated fuel return line.
- Always relieve fuel system pressure before servicing components, and use appropriate fuel line clamps to prevent leaks, ensuring proper torque on fittings.
- The most common failure points are clogged fuel filters, a failing low-pressure pump, or a malfunctioning high-pressure fuel pump (HPFP) leading to poor engine performance.
- While routine maintenance like filter replacement is DIY, complex issues involving the HPFP or injection pressure regulator often require professional diagnostic tools and expertise.
This comprehensive guide meticulously details the intricate `mercury 60 hp 4 stroke fuel system diagram`, focusing on the Mercury F60 EFI FourStroke series, typically found in models from the early 2000s onwards. Understanding this `fuel_system` schematic is crucial for diagnosing, maintaining, and repairing fuel delivery issues, ensuring optimal engine performance and longevity. This article will break down each component, illustrate its function within the `mercury 60 hp 4 stroke fuel system`, identify common failure modes, and provide precise repair procedures for technical professionals and experienced marine mechanics.

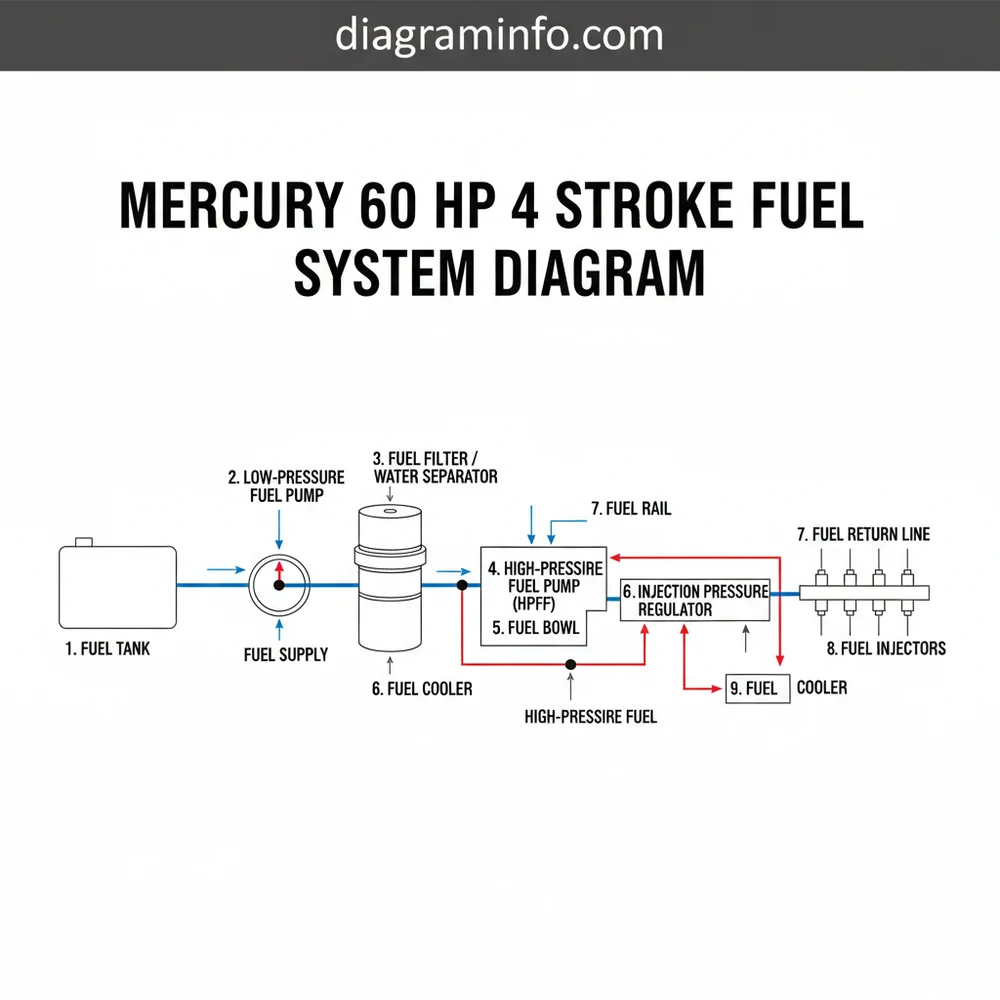

Fig 1: Illustrative Mercury 60 HP 4-Stroke Fuel System Diagram (EFI Models)
Fuel System Components Breakdown
The `mercury 60 hp 4 stroke fuel system` is a sophisticated assembly designed to deliver precisely measured, pressurized fuel to the combustion chambers. Each component plays a critical role in this process, from the fuel tank to the injectors. As you reference the `mercury 60 hp 4 stroke fuel system diagram` above, you can trace the fuel’s path and understand the function of each element.
| Component ID | Component Name | Function within Fuel System |
|---|---|---|
| 1 | External Fuel Tank / Pick-up Tube | Stores fuel; pick-up tube draws fuel, often with an anti-siphon valve. |
| 2 | Primer Bulb | Manual pump to prime the fuel system, expelling air and filling lines. |
| 3 | Water Separating Fuel Filter (WSFF) | Filters large contaminants and separates water from the fuel, crucial for engine protection. |
| 4 | Low-Pressure Fuel Pump (LPFP) | Electrically or mechanically driven, draws fuel from the tank and supplies it to the Vapor Separator Tank (VST). Some models may use a vacuum-driven diaphragm pump. |
| 5 | Vapor Separator Tank (VST) / Fuel Bowl | A small reservoir that separates fuel vapors from liquid fuel, preventing vapor lock. Houses the high-pressure fuel pump and a float valve. |
| 6 | High Pressure Fuel Pump (HPFP) | Located within the VST, this pump pressurizes fuel to the high levels required by the fuel injectors. Operates at pressures typically exceeding 40 PSI. |
| 7 | Fuel Pressure Regulator (FPR) / Injection Pressure Regulator | Maintains consistent fuel pressure in the fuel rail by bleeding off excess fuel back to the VST via the `fuel return line`. |
| 8 | Fuel Rail | Distributes high-pressure fuel evenly to all fuel injectors. |
| 9 | Fuel Injectors | Electronically controlled nozzles that atomize and spray fuel directly into the intake manifold or combustion chamber. |
| 10 | Fuel Return Line | Routes excess fuel from the fuel pressure regulator back to the VST. This system design helps cool the fuel and reduce vapor formation. |
While a dedicated `fuel cooler` and `fuel heater` are less common on 60 HP outboards, the recirculation of fuel via the `fuel return line` helps manage fuel temperature, reducing vapor lock risks. On larger, more complex EFI systems, external coolers or heaters might be integrated for extreme operating conditions.
Common Failure Points & Symptoms
Troubleshooting the `mercury 60 hp 4 stroke fuel system` requires a systematic approach, often beginning with an understanding of typical failure points and their associated symptoms. Early diagnosis can prevent further engine damage and costly repairs.
1. Component: Water Separating Fuel Filter (WSFF) / Inline Fuel Filters
Symptom: Engine runs rough, bogs down under acceleration, stalls at idle, reduced top speed, or won’t start.
Diagnosis: Reduced fuel flow to the LPFP and VST. Fuel pressure test will show low pressure pre-HPFP. A visual inspection may reveal discolored fuel or water accumulation in the filter bowl. Clogged filters are a primary cause of fuel starvation, affecting overall fuel economy and performance.
Related Reading: For a deeper dive into maintenance, consult our guide on [Outboard Engine Winterization Checklist](https://example.com/outboard-winterization-checklist).
2. Component: Low-Pressure Fuel Pump (LPFP)
Symptom: Engine cranks but won’t start, or starts and immediately dies. Engine loses power at higher RPMs.
Diagnosis: The LPFP fails to deliver sufficient fuel to the VST. Test the pump’s output pressure and volume. A good LPFP should deliver approximately 3-7 PSI to the VST. An audible hum may be absent if electric, or a mechanical pump may show no fuel flow when disconnected.
3. Component: High Pressure Fuel Pump (HPFP) / Electric Fuel Pump (within VST)
Symptom: Engine cranks but won’t start, or starts and immediately stalls. Significant loss of power, severe misfires under load.
Diagnosis: The `HPFP` fails to maintain the required `injection pressure regulator` settings (e.g., 40-50 PSI for these models). Perform a fuel pressure test at the fuel rail; readings below specifications indicate a failing `HPFP` or `injection pressure regulator`. The `HPFP` is commonly submerged in the `fuel bowl` (VST), relying on the VST for cooling and lubrication.
4. Component: Vapor Separator Tank (VST) / Fuel Bowl Contamination
Diagnosis: Ethanol-blended fuels can cause water separation and corrosion inside the VST, leading to clogs in internal filters or affecting the float valve operation. Inspection involves draining and disassembling the `fuel bowl` to check for debris, varnish, or corrosion. This is a common point of failure for the `mercury 60 hp 4 stroke fuel system`.
Related Reading: To understand fuel quality impacts, see our article on [Marine Fuel Additives Explained](https://example.com/marine-fuel-additives).
5. Component: Fuel Injectors
Symptom: Engine misfires, rough idle, poor acceleration, excessive fuel consumption, black exhaust smoke (rich condition) or lean misfires.
Diagnosis: Clogged or faulty injectors result in improper fuel atomization or incorrect fuel delivery volume. Perform an injector drop test or resistance test. A professional injector cleaning service or replacement is often necessary. A diagnostic scanner can also identify specific cylinder misfires.
6. Component: Fuel Pressure Regulator (FPR) / Injection Pressure Regulator
Symptom:
Stuck Open: Low fuel pressure at the rail, lean condition, hard starting, poor performance, often accompanied by excessive `fuel return line` flow.
Stuck Closed/Clogged: Excessively high fuel pressure, rich condition, engine flooding, difficulty starting, possibly fuel leaks due to overpressure.
Diagnosis: Test fuel pressure at the rail with the engine running. A faulty `injection pressure regulator` will show pressure readings outside OEM specifications. You may also observe unusual noise from the `fuel return line` if it’s struggling to relieve pressure.
Always relieve fuel system pressure before disconnecting any fuel lines or components. Fuel is highly flammable, and improper handling can lead to severe injury or fire. Work in a well-ventilated area and have a fire extinguisher readily available.
Repair & Replacement Steps: Water Separating Fuel Filter (WSFF)
Replacing the Water Separating Fuel Filter (WSFF) is one of the most critical and frequently performed maintenance tasks on the `mercury 60 hp 4 stroke fuel system`. This procedure applies generally to Mercury F60 EFI FourStroke models, though specific filter locations or types may vary slightly by year. Always refer to your specific model’s service manual for exact component locations and torque specifications.
Tools and Materials Required:
New WSFF cartridge (e.g., Mercury Part No. 35-8M0060041 or equivalent)
Oil filter wrench or strap wrench (if filter is tight)
Clean rags
Drain pan
Screwdriver or small hose clamps (if pre-filter)
Appropriate marine-grade sealant (for some filter types)
Torque wrench (for filter bowl/housing, if applicable)
Safety glasses and gloves
Procedure:
1. Relieve Fuel System Pressure:
Locate the Schrader valve on the fuel rail (if present) and depress the pin with a shop towel wrapped around it to absorb residual fuel pressure. Alternatively, run the engine until it stalls by disconnecting the main fuel supply hose from the engine (after the primer bulb) into a container. This purges the system.
Disconnect the battery’s negative terminal to prevent accidental starting or electrical shorts.
2. Locate and Prepare for Removal:
The WSFF is typically located on the engine’s starboard side, often near the transom or sometimes external to the engine on the boat itself. As depicted in the `mercury 60 hp 4 stroke fuel system diagram`, it’s positioned upstream of the LPFP.
Place a drain pan directly beneath the filter to catch any fuel that spills during removal.
3. Remove the Old Filter:
If your WSFF has a clear plastic bowl, loosen the metal retaining ring or spin the bowl counter-clockwise to remove it. Carefully drain the fuel and water mixture into your drain pan.
Unscrew the filter cartridge itself counter-clockwise. An oil filter wrench may be needed if it’s overtightened.
For spin-on type filters without a separate bowl, simply unscrew the entire filter element.
4. Inspect and Clean:
Examine the filter head/mounting surface for corrosion or damage. Clean any debris from the mounting area.
If your filter has a reusable bowl, thoroughly clean it. Inspect the O-ring or gasket on the bowl. If it’s cracked, stiff, or damaged, replace it.
5. Install the New Filter:
Lightly lubricate the new filter’s rubber gasket with a thin film of clean engine oil or fuel. This prevents tearing and ensures a proper seal.
For filters with a separate bowl, install the new cartridge into the clean bowl (if applicable) and seat the O-ring correctly.
Screw the new filter cartridge (or the bowl assembly) onto the mounting head clockwise.
Hand-tighten only for most spin-on filters. For filters with a separate bowl and retaining ring, tighten the ring according to manufacturer specifications, often with a specific torque or degree of turn (e.g., “turn 1/2 to 3/4 turn after gasket contact”).
OEM Specification: According to Mercury service manuals, typically for spin-on filters, tighten by hand until the gasket contacts the mounting base, then turn an additional 3/4 to 1 full turn. For bowl-type filters, torque the bowl retaining ring to 8-10 ft-lbs (10.8-13.6 Nm).
6. Prime the Fuel System:
Reconnect the negative battery terminal.
Locate the `primer pump` (primer bulb) in the `mercury 60 hp 4 stroke fuel system`. Squeeze it repeatedly until it becomes firm. This action pushes fuel through the new filter and fills the VST. Listen for the `HPFP` to cycle when you turn the key to the ON position, indicating it’s receiving fuel.
Inspect all connections for leaks.
7. Start the Engine and Check for Leaks:
Start the engine and allow it to idle for a few minutes.
Carefully check all fuel line connections and around the new filter for any signs of leakage. Address any leaks immediately.
Related Reading: For comprehensive engine diagnostics, refer to our article on [Outboard Diagnostic Tools and Techniques](https://example.com/outboard-diagnostic-tools).
For Mercury F60 EFI FourStroke models, a typical fuel pressure at the fuel rail (after the HPFP and FPR) should be 40-45 PSI (276-310 kPa) at idle, maintaining stable pressure throughout the RPM range. Always verify with specific model service manual.
FAQ
Q1: How often should I replace the fuel filters in my Mercury 60 HP 4-stroke?
A1: Manufacturer specifications generally recommend replacing the Water Separating Fuel Filter (WSFF) and the engine-mounted low-pressure fuel filter annually or every 100 hours of operation, whichever comes first. If you frequently use E10 (10% ethanol) fuel or notice symptoms of fuel starvation, more frequent replacement may be necessary. Regular inspection of the clear WSFF bowl can help you determine if it needs attention sooner.
Q2: What impact does ethanol fuel have on the Mercury 60 HP 4-stroke fuel system?
A2: Ethanol-blended fuels (E10, E15) can cause significant issues in older marine fuel systems and even modern ones not properly maintained. Ethanol is hygroscopic, meaning it absorbs water, which can lead to phase separation in the fuel tank. This water can then enter the `fuel_system`, causing corrosion, particularly in aluminum components like the `fuel bowl` (VST). It also acts as a solvent, loosening deposits and varnish that can clog fuel filters and injectors. Always use marine-grade fuel stabilizers when using ethanol-blended fuels and consider using non-ethanol fuel if available. This directly impacts the longevity of your `mercury 60 hp 4 stroke fuel system` components like the `HPFP`.
Q3: My engine cranks but won’t start. Where should I begin troubleshooting the fuel system?
A3: First, verify basic requirements: sufficient fresh fuel in the tank and a firm `primer pump` bulb. Next, check the kill switch lanyard. Then, proceed to fuel system diagnostics:
- Check the Water Separating Fuel Filter (WSFF) for water or excessive debris.
- Listen for the `HPFP` to hum for 2-3 seconds when you turn the key to the ON position. No hum indicates a potential electrical issue or failed `HPFP`.
- Perform a fuel pressure test at the fuel rail. A reading significantly below the specified 40-45 PSI (276-310 kPa) indicates a problem with the LPFP, HPFP, or `injection pressure regulator`.
- Visually inspect fuel lines for kinks or leaks.
If you suspect an electrical issue, refer to our resources on [Outboard Electrical System Troubleshooting](https://example.com/outboard-electrical-troubleshooting).
Q4: Can I clean my fuel injectors, or do they always need to be replaced?
A4: Fuel injectors can often be professionally cleaned and flow-tested, which is usually more cost-effective than immediate replacement. Specialized shops use ultrasonic cleaning baths and precision testing equipment to restore injector performance. However, if an injector is physically damaged, has internal electrical faults (e.g., open circuit), or exhibits severe corrosion, replacement is the only viable option. Always check the resistance of your injectors (typically 12-14 ohms for Mercury F60 models) using a multimeter before removal.
Step-by-Step Guide to Understanding the Mercury 60 Hp 4-Stroke Fuel System Diagram 2026: Component & Repair
Identify – Locate the main components of the Mercury 60 HP 4-Stroke fuel system on the diagram, such as the fuel tank, primer bulb, fuel filter, and high-pressure fuel pump (HPFP).
Locate – Pinpoint the fuel return line and the injection pressure regulator’s position relative to the fuel rail and VST.
Reference – Cross-reference the diagram’s flow paths with your engine to understand the fuel’s journey from tank to injectors and back.
Connect/Route – Verify correct routing of all fuel lines, ensuring no kinks or chafing, and proper connection of electrical harnesses to pumps and sensors.
Verify – Check fuel pressure at the rail using a pressure gauge, ensuring it meets OEM specifications (e.g., 43-45 PSI) after repairs or maintenance.
Troubleshoot – If issues persist, test individual components like the low-pressure pump, high-pressure fuel pump (HPFP), or fuel injectors using diagnostic tools as per the service manual.
Frequently Asked Questions
What are the main components of the mercury 60 hp 4 stroke fuel system diagram?
The main components include the external fuel tank, fuel line with primer bulb, water-separating fuel filter, low-pressure fuel pump, vapor separator tank (VST), high-pressure fuel pump (HPFP), fuel rail with injectors, and the fuel pressure regulator, often accompanied by a fuel return line.
What are symptoms of a failing mercury 60 hp 4 stroke fuel system pump?
Symptoms of a failing fuel pump (either low or high pressure) include hard starting, loss of power under load, rough idling, stalling, or the engine running lean. A weak high-pressure fuel pump (HPFP) specifically causes insufficient fuel delivery to injectors.
How do I diagnose a fuel leak in mercury 60 hp 4 stroke fuel system?
Visually inspect all fuel lines, connections, and components like the fuel filter housing, VST, and fuel pressure regulator for visible wetness or drips. A strong fuel odor, especially after running, is a key indicator. Use a bright flashlight and consider a pressure test for elusive leaks.
What is the fuel pressure spec for mercury 60 hp 4 stroke fuel system?
The typical fuel pressure specification for the Mercury 60 HP 4-Stroke at the fuel rail, after the high-pressure fuel pump (HPFP), is usually around 43-45 PSI (pounds per square inch). Always consult your specific service manual for the exact model-year specifications to ensure accuracy.
How long does mercury 60 hp 4 stroke fuel system fuel pump last?
The lifespan of a Mercury 60 HP 4-Stroke fuel pump varies significantly, but typically ranges from 500 to 1000 hours of operation or 5-10 years. Factors like fuel quality, regular filter changes, and avoiding ethanol-related issues greatly influence its longevity.
Can I replace the mercury 60 hp 4 stroke fuel system fuel filter myself?
Yes, replacing the fuel filter on a Mercury 60 HP 4-Stroke is generally a straightforward DIY task. Ensure you have the correct replacement filter, relieve fuel pressure, and follow the service manual for proper installation, including bleeding air and checking for leaks afterward.
