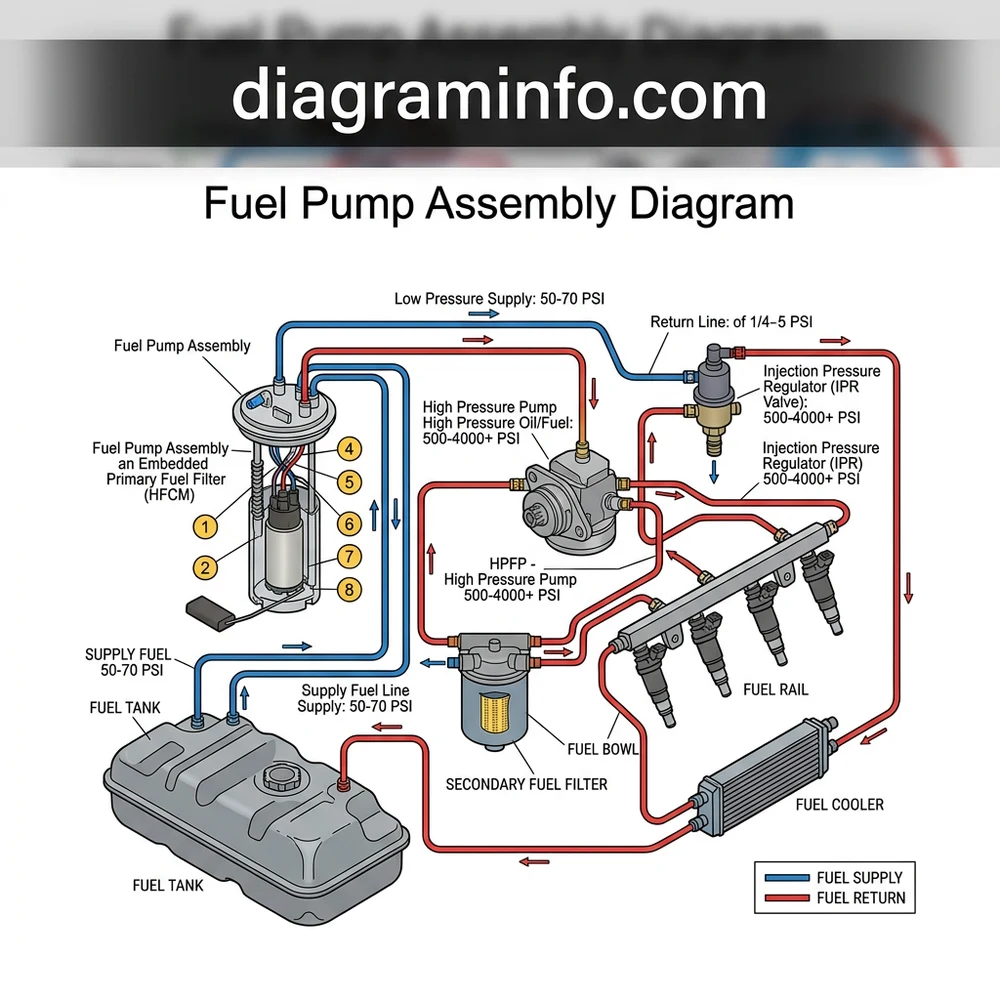

Mastering the Fuel Pump Assembly Diagram: Component Identification

To accurately interpret a fuel pump assembly diagram, you must trace the fuel flow path from the low-pressure supply tank to the high-pressure fuel rail, including the auxiliary thermal and pressure regulation loops. Below is a complete breakdown of every primary component identified in the schematic.

1. Low-Pressure In-Tank Lift Pump Module

The primary lift pump is housed inside the fuel tank module and operates as a turbine-style or G-rotor electric pump powered by a 12-volt DC supply from the fuel pump control module (FPCM). It draws fuel through an internal mesh strainer screen to filter particles down to 100 microns before sending low-pressure fuel (typically 55 to 75 PSI) downstream. This low-pressure supply protects the primary filtration media from premature clogging by larger debris.

2. Primer Pump and Filter Housing

Positioned on the engine bay bulk-head or frame rail, the manual primer pump and filter head serve as the air purging and fine-particle filtration hub. The manual primer pump incorporates a diaphragm-style vacuum plunger that allows technicians to purge entrained air out of the fuel lines after a filter element service without cranking the starter motor.

3. Fuel Bowl and Filtration Strainer

The fuel bowl acts as a primary settling reservoir and water-in-fuel (WIF) separation chamber. Utilizing cohesive media, the fuel bowl coalesces micro-droplets of water out of diesel or gasoline feeds, forcing moisture down to the base drain valve. An integrated water level sensor alerts the powertrain control module (PCM) when liquid accumulation exceeds 35 cc, preventing water from traveling further downstream to contaminate precision-machined elements.

4. Thermostatic Fuel Heater Circuit

Located on top of the fuel bowl housing, the fuel heater is a self-regulating Positive Temperature Coefficient (PTC) heating element. Activated when ambient fuel temperatures drop below 40°F (4°C), it prevents paraffin wax crystals from forming and blinding the 2-micron filter element during winter operation. The unit draws up to 15 Amps until fuel temperatures reach approximately 65°F (18°C), at which point internal resistance increases to automatically throttle current draw.

5. High Pressure Fuel Pump (HPFP)

The high pressure fuel pump (HPFP) is a mechanical, engine-driven radial or inline plunger pump timed directly to the camshaft or crankshaft gear train. Driven at a 1:1 or 1:2 ratio relative to engine speed, the HPFP takes fuel delivered at low pressure and compresses it up to 2,000–2,500 bar (29,000–36,000 PSI). Modern HPFP units rely heavily on ultra-clean fuel for internal lubrication; water contamination or dry cranking will cause immediate metal-on-metal galling and systemic failure.

6. Injection Pressure Regulator (IPR) / Fuel Volume Control Valve

The injection pressure regulator (IPR)—also referred to as the Quantity Control Valve (QCV) or Measurement Control Valve (MPROP)—is a pulse-width modulated (PWM) solenoid mounted directly on the HPFP inlet or high-pressure manifold. Operating at PWM frequencies between 200 Hz and 1 kHz, the PCM alters duty cycle percentages to meter the exact volume of low-pressure fuel entering the pump’s high-pressure compression chambers, controlling rail pressure on the inlet side to reduce parasitic engine drag.

7. Thermostatic Fuel Cooler Circuit

Because compressing fuel to extreme pressures generates significant thermal energy, fuel bleeding off the injectors and HPFP returns to the tank at temperatures exceeding 180°F (82°C). The fuel cooler line diverts return flow through an air-to-liquid heat exchanger mounted under the chassis. This keeps return-tank temperatures below 140°F (60°C), protecting plastic fuel tank shells, sender units, and internal check valves from thermal degradation.

8. Low and High Pressure Fuel Return Line Network

The fuel return line network acts as a pressure relief and thermal management bypass loop. It routes excess fuel bypassed by the IPR, residual leak-off fuel from the piezo/solenoid fuel injectors, and overflow from the HPFP back to the lift pump module. Operating under low backpressure (typically 1.5 to 3.5 bar), this line maintains static counter-pressure on injector leak-off ports required for correct internal needle valve operation.

Electrical Pinouts and Hydraulic Pressure Specifications

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Diagnosing modern fuel pump assemblies requires matching electrical sensor readings and hydraulic line pressures against exact factory parameters. Reference the technical matrix below when taking multimeter readings or plumbing hydraulic pressure gauges into the test ports indicated on the fuel pump assembly diagram.

Diagnosing Failures with a Fuel Pump Assembly Diagram

Systemic fuel supply failures can quickly paralyze modern direct-injection engines. By cross-referencing diagnostic codes with line pressures along the diagram paths, mechanics can systematically locate component failures without throwing unnecessary parts at the vehicle.

1. HPFP Camshaft Roller Tappet Failure & Cavitation

   Symptom: Crank-no-start, engine stall under load, DTC P0087 (Fuel Rail Pressure Too Low), glittery metallic particulate inside the fuel bowl filter housing.

   Diagnosis Procedure: Remove the fuel volume control valve (IPR) from the top of the HPFP. Inspect the internal metering screen using a borescope or flashlight. If metallic debris is present, the internal roller tappet has flaked or galling has occurred. The entire fuel system—including tank, low-pressure lines, fuel bowl, HPFP, rails, and fuel injectors—must be thoroughly flushed or replaced, as metal shavings travel through the high-pressure loop and damage components along the entire return flow path.

2. Injection Pressure Regulator (IPR) Solenoid Binding

   Symptom: Erratic idle, engine surging, severe diesel knock, DTC P0088 (Rail Pressure Too High) or P0251 (Pump Fuel Metering Control Driver Circuit).

   Diagnosis Procedure: Disconnect the electrical harness at the IPR solenoid valve. Using a digital multimeter, measure coil resistance across terminal pins 1 and 2. OEM specification typically ranges between 1.5 and 3.5 Ohms at 68°F (20°C). If resistance measures open or shorted to ground, replace the solenoid valve. If coil resistance is within specification, perform an oscilloscope back-probe while commanding duty cycle sweeps via a diagnostic scan tool to check for dynamic current draw stability.

3. Restricted Fuel Return Line Backpressure

   Symptom: Black smoke under acceleration, severe cylinder misfires, unseated return line fittings blowing off fuel injectors.

   Diagnosis Procedure: Tee an in-line pressure gauge into the low-pressure fuel return line upstream of the fuel cooler assembly. Start the engine and monitor static return line pressure. Readings exceeding 45 PSI (3.1 bar) indicate an obstruction in the return circuit—most commonly a clogged fuel cooler matrix, kinked rubber flex hose under the cab, or a collapsed check valve inside the in-tank pump module assembly.

4. In-Tank Lift Pump Cavitation or Supply Line Air Ingress

   Symptom: Engine stumbles on low tank levels (less than 1/4 tank), delayed starting times, visible air bubbles observed in clear diagnostic sight glasses connected at the fuel bowl intake.

   Diagnosis Procedure: Connect a mechanical low-pressure gauge to the Schrader valve or test port on the fuel bowl housing. Turn the ignition key ON to energize the lift pump module. If pressure fails to build past 20 PSI, verify that the fuel pump relay delivers full battery voltage (12V+) across the supply circuit. Trace the chassis wiring back to the powertrain control module schematic to confirm that signal grounds remain under 0.2V during operation. If voltage drop tests pass but low pressure persists, the lift pump assembly strainer is plugged or the internal pump impeller has degraded.

5. Thermostatic Fuel Heater Element Short Circuit

   Symptom: Repeatedly blown engine bay fuses (often sharing a bus line with ECM logic circuits), dead battery overnight, poor engine performance in freezing ambient conditions.

   Diagnosis Procedure: Disconnect the electrical connector at the fuel bowl cap. Check resistance across the heating element pins. A cold element should measure 0.8 to 2.0 Ohms. A reading of 0 Ohms indicates a direct short circuit that will trigger high current draw and open fuse links. Additionally, check for short-to-ground continuity between the heater pin and the aluminum filter housing shell.

Fuel Pump Assembly Removal and Replacement Procedure

Follow this standardized mechanic’s workflow when replacing a damaged in-tank fuel pump assembly or frame-mounted fuel bowl unit. Refer to your vehicle-specific workshop service manual for specific component layout details.

1. System Depressurization and Power Disconnection

   Disconnect both negative battery cables. Relieve residual low-pressure fuel system head pressure by loosening the fuel filter drain valve into an approved catch container. Verify using a diagnostic scan tool that high-pressure rail energy has bled down completely to 0 PSI before breaking open fuel lines.

2. Disconnect In-Tank Pump Harness and Return Lines

   Lower or drop the fuel tank (or remove the truck bed/access cover depending on chassis design). Clean all dirt, road grime, and debris away from the top ring of the pump sender module using compressed air. Disconnect the main 4-pin or 6-pin electrical harness connector, the main supply line quick-connect, and the primary fuel return line fitting using quick-disconnect release tools.
3. Remove Locking Ring and Lift Module

   Using a non-sparking brass drift punch or specialized OEM lock-ring removal tool, rotate the fuel tank lock ring counter-clockwise until the retaining tabs clear the notch detents. Carefully lift the pump assembly straight upward out of the tank reservoir, taking care not to bend or damage the float arm attached to the fuel level sender unit.

4. Clean and Inspect Tank Base

   Inspect the bottom of the fuel tank using a flash probe for dirt, rust scale, or metallic debris. If contamination is found, drain and wash out the tank completely prior to introducing new pump components. Failure to clean the tank will ruin new high-precision pump components within miles of startup.
5. Install New Pump Assembly and Seal Ring

   Always install a brand-new Viton rubber seal O-ring into the tank lip groove. Lightly lubricate the seal ring with clean diesel fuel or clean silicone lubricant—never use heavy lithium grease. Align the indexing notch on the top flange of the new pump module with the matching alignment arrow cast into the fuel tank shell. Press down firmly and tighten the locking ring clockwise until fully locked behind the retaining stops.

6. Service Engine-Bay Fuel Bowl and Primer Assembly

   If replacing or servicing the secondary fuel bowl and primer pump, unscrew the housing cap using a socket adapter. Replace all internal seals, replace the 2-micron filter element, and verify that the water-in-fuel sensor contacts are clean and free of corrosion. Refer to the fuel injector circuit diagram to trace and verify sensor pin integrity if past water codes were stored.
7. Prime System and Purge Entrained Air

   Close all drain valves. Manual priming systems require pumping the rubber primer pump plunger on top of the filter housing until firm resistance is felt (typically 30–50 strokes). For electric lift pump systems, cycle the ignition key to the ON position (without cranking the starter) for 30 seconds. Repeat key cycle sequences 5 to 8 times to run the lift pump and purge air out through the fuel return line back to the tank.

8. System Pressure Check and Final Verification

   Attach a diagnostic scan tool to the OBD-II port. Monitor the fuel rail pressure sensor diagram parameter while cranking the engine. Verify that low-pressure supply rises instantly to at least 55 PSI, and engine cranking rail pressure reaches at least 3,500 to 5,000 PSI before start-up ignition occurs. Check all fittings, fuel bowl seals, and quick-disconnect ports visually for liquid leaks while idling.

Fuel Pump Assembly Diagram Frequently Asked Questions

How do I isolate an in-tank lift pump failure from a high-pressure pump (HPFP) issue?

Connect a mechanical pressure gauge directly to the test port located on the secondary fuel bowl housing (upstream of the HPFP). Turn the ignition ON to energize the low-pressure lift pump circuit. If supply pressure reads below OEM spec (e.g., less than 45–55 PSI on common rail applications), the fault lies within the in-tank lift pump module, fuel pump driver module, fuel heater, or clogged fuel bowl filter element. If low-pressure supply is within specification but the scan tool shows rail pressure under 3,000 PSI during engine cranking, the diagnostic path shifts directly to the HPFP, injection pressure regulator (IPR), or worn fuel injectors bleeding pressure off to the return rail.

What diagnostic indicators confirm a restricted fuel return line?

A restricted return line causes extreme hydraulic backpressure to build within the low-pressure leak-off circuits. Physical indicators include fuel hoses blowing off the injector leak-off spigots, leaking injector body seals, engine misfires due to hydraulic locking of piezoelectric control valves, and diagnostic trouble codes related to control valve duty cycle limits. Measuring pressure directly on the return circuit with an inline tee gauge will show pressures exceeding the typical threshold of 15–30 PSI (1.0–2.0 bar).

Why is maintaining the thermostatic fuel heater circuit critical in cold weather operation?

Diesel fuel naturally contains paraffin wax compounds that remain dissolved in solution at ambient temperatures above 40°F (4°C). As temperatures drop toward the fuel’s “cloud point,” paraffin begins to crystallize, creating a thick, waxy gel that quickly blinds fine 2-micron filter media inside the fuel bowl. The thermostatic fuel heater melts these wax crystals as fuel enters the filter housing, maintaining unrestricted fuel flow to the HPFP and preventing pump starvation, air cavitation, and winter stalls.

How does an internal check valve failure inside the primer pump cause hard-start conditions?

The manual primer pump assembly contains internal one-way rubber check valves designed to prevent fuel from draining back into the tank when the engine is turned off. If dirt, debris, or seal degradation prevents these check valves from seating properly, gravity will pull the column of fuel back down the supply line toward the tank during extended parking periods. This introduces air pockets into the fuel bowl line, resulting in long cranking times or a temporary start followed by immediate stalling while the lift pump attempts to re-prime the system.

Can a shorted Water-In-Fuel (WIF) sensor pull down the entire low-voltage sensor circuit?

Yes. In many modern vehicle wiring schematics, the WIF sensor located at the base of the fuel bowl shares a 5-volt reference bus line with critical engine management sensors, such as the fuel rail pressure sensor, manifold absolute pressure (MAP) sensor, and camshaft position sensor. If water ingress or internal cracking shorts the WIF sensor signal wire directly to ground, the entire 5V reference bus line can collapse, triggering multiple sensor fault codes simultaneously and placing the powertrain control module into a forced shutdown state.
