Throttle Body Vacuum Line Diagram: Proper Routing 2026
The throttle body vacuum line typically connects to the PCV system for crankcase ventilation, and often to the brake booster vacuum source or a vacuum reservoir. Some systems also link to EGR or EVAP purge valves. Its primary role is to ensure proper engine idle and performance by regulating air-fuel mixture and supporting vacuum-powered accessories.
📌 Key Takeaways
- Throttle body vacuum is crucial for PCV valve, brake booster vacuum, and EVAP canister purge systems.
- Proper routing and intact vacuum lines prevent lean conditions, misfires, and rough idle.
- Inspect all vacuum lines for cracks, hardening, or disconnections regularly to maintain engine performance.
- The most common failure point is a cracked or collapsed vacuum hose near heat sources or stress points.
- DIY leak detection is possible with a smoke machine; complex diagnostic issues may require professional assistance.

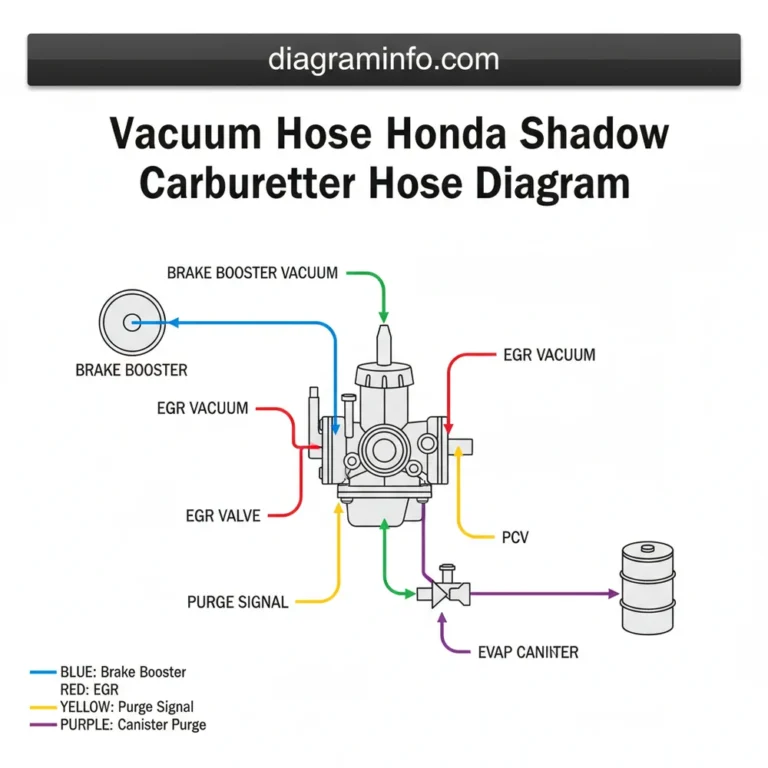

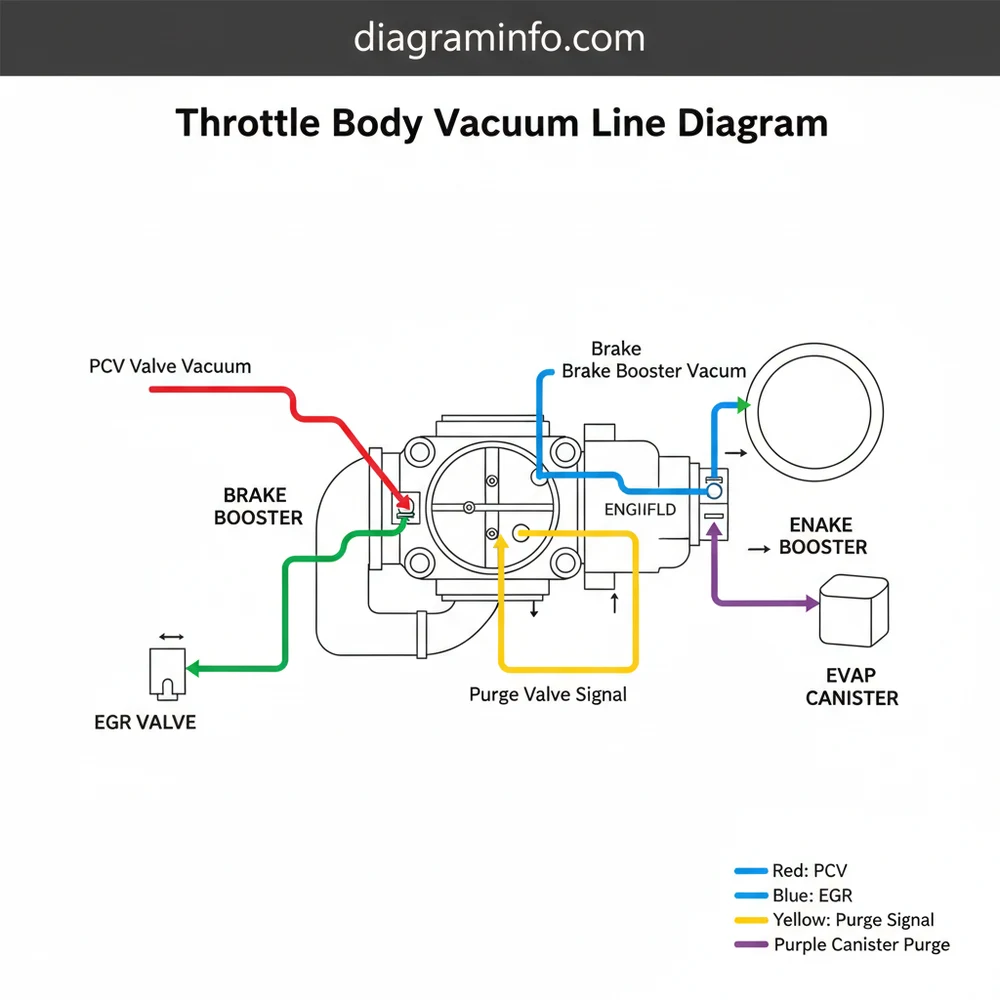

This comprehensive guide details the throttle body vacuum line diagram, a critical component for understanding and diagnosing vacuum-related issues in modern automotive and equipment engines. The intricate network of vacuum lines originating from or near the throttle body and intake manifold is integral to the precise operation of various engine systems, including emissions control, braking assistance, and fuel vapor management. Proper identification and routing, as depicted in your vehicle’s specific throttle body vacuum line diagram, are paramount for maintaining optimal engine performance, fuel efficiency, and compliance with emission standards. Variations in vacuum system configurations exist across different engine models and manufacturing years; therefore, referencing the precise OEM diagram for your application is always recommended.
VACUUM LINE COLOR & ROUTING TABLE
This table outlines common vacuum line routings and their functions, providing a standardized reference for interpreting your specific throttle body vacuum line diagram. Note that actual line colors and routing points may vary significantly by OEM and engine design; always defer to the manufacturer’s service manual.
| Line Color (Typical) | Routing From → To | Function/Connected Component |
|---|---|---|
| Black (Large Diameter) | Intake Manifold Vacuum Port → Brake Booster | Provides vacuum for power braking assistance. Often includes a one-way check valve. |
| Green/Blue Stripe | Intake Manifold Vacuum Port → PCV Valve → Engine Crankcase | Positive Crankcase Ventilation. Evacuates crankcase blow-by gases into the intake manifold for combustion. |
| Red (Small Diameter) | Throttle Body/Intake Manifold Port → EGR Valve Solenoid → EGR Valve | Controls Exhaust Gas Recirculation valve operation to reduce NOx emissions. |
| Yellow (Small Diameter) | Throttle Body/Intake Manifold Port → Purge Valve Solenoid → EVAP Canister | Manages fuel vapor purging from the canister purge system into the engine. |

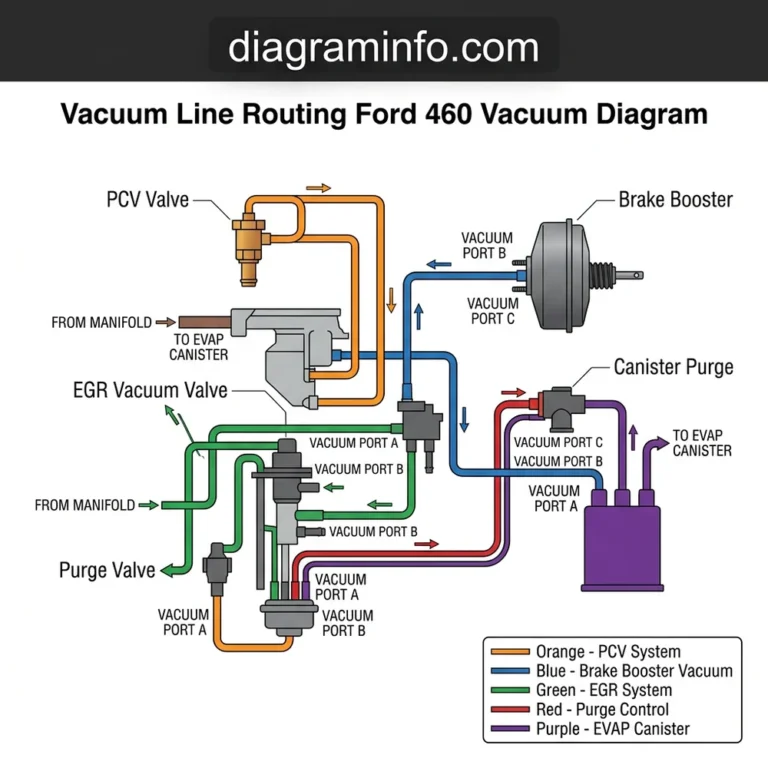

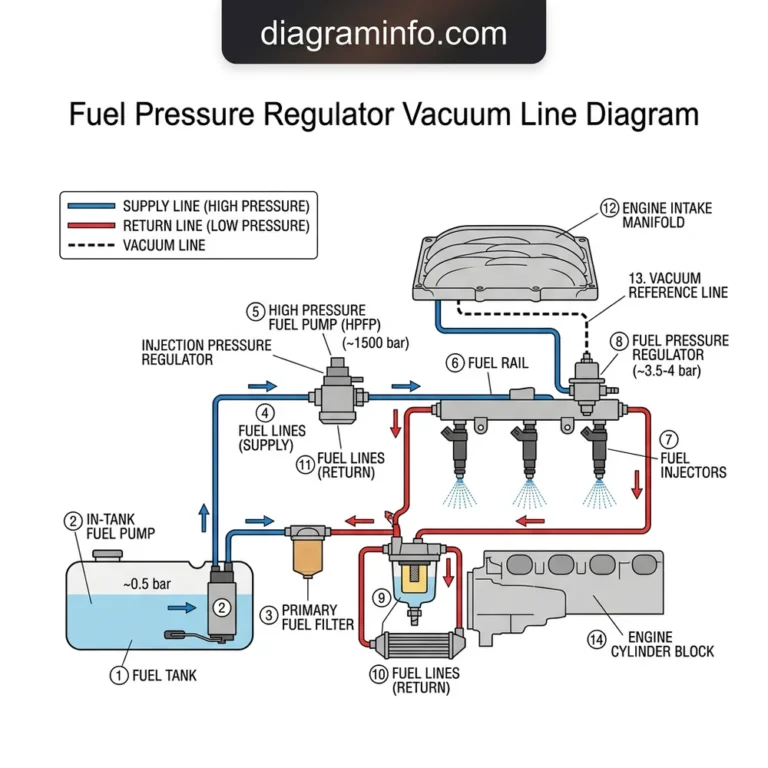

| White/Grey | Intake Manifold Vacuum Port → Fuel Pressure Regulator (FPR) | Modulates fuel pressure based on intake manifold vacuum for optimal fuel delivery. |
| Brown | Throttle Body Vacuum Port → MAP Sensor (if external) | Provides manifold absolute pressure signal to the Engine Control Unit (ECU). |
| Various (Small) | Intake Manifold Vacuum Port → HVAC Controls/Vacuum Actuators | Controls blend doors, defroster vents, and other accessories in older vehicles. |
Modern engines, particularly those with direct injection or forced induction, may integrate vacuum control into electronic systems more extensively, minimizing visible vacuum lines. However, the fundamental principles of engine vacuum for systems like the brake booster vacuum and PCV valve largely remain. Consult your specific OEM service manual for the most accurate throttle body vacuum line diagram.
COMMON VACUUM LEAK SYMPTOMS
Identifying the symptoms of a vacuum leak is the first step in effective diagnosis. A compromise in the integrity of any vacuum line, vacuum port, or associated component (like the PCV valve or check valve) directly impacts engine operation, as it introduces unmetered air into the intake manifold. This leads to a lean air-fuel mixture, which the Engine Control Unit (ECU) attempts to compensate for, often unsuccessfully.
Rough or High Idle: A very common indicator. The engine struggles to maintain a consistent idle RPM as the ECU tries to adjust for the excess air. This can manifest as a “hunting” idle.
Engine Hesitation or Misfires: Under acceleration, the lean condition becomes more pronounced, potentially leading to misfires, especially under load, or a general lack of power.
Check Engine Light (CEL) Illumination: The ECU will register diagnostic trouble codes (DTCs) related to lean conditions (e.g., P0171, P0174 – System Too Lean), O2 sensor performance, or specific component malfunctions if the leak impacts a monitored system like the EGR vacuum or canister purge.
Increased Fuel Consumption: Despite running lean, the ECU may inject more fuel in an attempt to correct the air-fuel ratio, paradoxically increasing fuel usage.
Hard Starting: Particularly if the leak is significant, disrupting the engine’s initial air-fuel calculations.
Hissing or Whistling Noises: Audibly detecting air being drawn through a compromised vacuum line or gasket can pinpoint a leak location.
Poor Brake Performance: If the brake booster vacuum line or check valve is compromised, you’ll experience a hard brake pedal due to insufficient power assist, requiring significantly more pedal effort.
Failed Emissions Test: Increased NOx emissions due to lean conditions or an improperly functioning EGR system are direct results of vacuum issues affecting the EGR valve.
Fuel Odor: A leak in the canister purge or associated EVAP vacuum lines might allow fuel vapors to escape, resulting in a distinct fuel smell, particularly when the engine is warm or after refueling.
To locate a vacuum leak, common methods include a smoke test (injecting theatrical smoke into the intake system and observing where it escapes), carefully spraying unlit propane or carburetor cleaner near suspected areas while monitoring engine RPM (a sudden increase indicates the leak), or using a stethoscope to listen for hissing sounds. Always refer to your throttle body vacuum line diagram to trace all potential leak points efficiently.
Understanding Lean Codes and Fuel Trims provides further insight into how the ECU responds to unmetered air.
DIAGNOSIS & REPAIR STEPS
Effectively diagnosing and repairing issues related to the throttle body vacuum line diagram requires a systematic approach, combining visual inspection with specialized tools. Prioritize safety and always consult your OEM service manual for vehicle-specific procedures and specifications.
1. Initial Visual Inspection: Begin by carefully inspecting all visible vacuum lines, hoses, and connections, starting from the throttle body vacuum port and intake manifold vacuum points. Look for obvious signs of degradation: cracks, dry rot, kinking, loose connections, or disconnected hoses. Pay close attention to areas where lines pass near heat sources or sharp edges. Check the integrity of the PCV valve and its associated hoses, as well as the brake booster vacuum line, often the largest diameter vacuum hose. Inspect any vacuum check valve for proper orientation and damage.
2. Scan Tool Analysis: Connect an automotive diagnostic scanner. Check for stored DTCs, particularly those related to lean conditions (e.g., P0171, P0174), misfires, or EVAP system failures (e.g., P0440, P0442). Monitor live data, focusing on Short-Term Fuel Trim (STFT) and Long-Term Fuel Trim (LTFT) values. Significantly positive fuel trims (+10% or higher, especially at idle) strongly indicate a vacuum leak, as the ECU is adding fuel to compensate for excess air. Observe manifold absolute pressure (MAP) readings; a higher than expected MAP at idle can also suggest a leak.
3. Vacuum Gauge Testing: Connect a calibrated vacuum gauge to a suitable intake manifold vacuum port. A healthy engine at idle should typically show 17-22 inches of mercury (inHg) for naturally aspirated engines, with a steady needle. A fluctuating or lower-than-normal reading (e.g., 10-15 inHg) suggests a leak or other engine performance issues. Snap the throttle open briefly; the needle should drop to near zero, then quickly rebound above the idle reading before settling back.
4. Leak Detection Methods:
Smoke Test: This is often the most effective method. Introduce automotive-grade smoke into the intake system (typically through a vacuum port or the EVAP service port). Observe where smoke escapes. This highlights leaks in lines, gaskets (e.g., intake manifold gasket), vacuum actuators, and components like the canister purge valve or EGR vacuum lines.
Propane/Carburetor Cleaner Test (Use with Extreme Caution): With the engine idling, carefully spray unlit propane or a small burst of carburetor cleaner around suspected vacuum lines and intake manifold gaskets. A noticeable increase in engine RPM indicates you’ve hit the leak, as the engine ingests the flammable vapor. Ensure adequate ventilation and have a fire extinguisher ready.
Listening: Use a mechanic’s stethoscope or a length of hose to listen for distinct hissing or whistling sounds around the engine bay.
5. Component Specific Checks:
PCV System: Inspect the PCV valve diagnostics and hoses for blockages or cracks. A simple shake test can often indicate if the PCV valve is stuck open or closed (it should rattle).
Brake Booster: With the engine off, pump the brake pedal several times to deplete any residual vacuum. Start the engine; the pedal should drop slightly as vacuum assistance returns. If not, suspect a leak in the brake booster vacuum line or the booster itself. Test the check valve by attempting to blow air into the booster side of the valve; air should only flow one way.
EGR System: If applicable, use the scan tool to command the EGR valve open and closed to verify its function and that the EGR vacuum lines are intact.
EVAP System: Perform an EVAP system leak test with the scan tool. Inspect the purge valve and its associated vacuum lines to the canister purge for integrity.
6. Repair and Verification:
Replace any identified faulty vacuum lines with OEM-grade or equivalent vacuum-rated hose of the correct diameter and material. Avoid using fuel line or general-purpose hose, which may collapse or degrade rapidly under vacuum.
Ensure all connections are secure, using proper clamps where necessary.
Replace damaged vacuum fittings, gaskets (e.g., intake manifold gasket), or components (PCV valve, check valve, purge valve, EGR valve).
After repairs, clear any stored DTCs and perform a drive cycle. Re-check fuel trims with the scan tool; they should return to near zero (typically within +/- 5%) at idle and under load. A successful repair will also resolve the initial symptoms.
When performing any diagnostic tests involving flammable liquids or gases, ensure proper ventilation, fire suppression equipment is at hand, and all electrical connections are secure to prevent ignition. Always wear appropriate personal protective equipment (PPE), including eye protection.
FAQ
What is the primary function of vacuum lines connected to the throttle body?
The throttle body itself doesn’t typically generate vacuum, but rather serves as a key location for manifold vacuum ports. These vacuum ports, located either directly on the throttle body or immediately downstream on the intake manifold, provide a stable vacuum source that fluctuates with engine load and RPM. This manifold vacuum is then utilized to operate various engine accessories and emission control systems, such as the brake booster, PCV valve, EGR vacuum solenoids, and canister purge valves, ensuring their proper function under different driving conditions.
How does a vacuum leak affect engine performance codes and what specific codes should I look for?
A vacuum leak introduces unmetered air into the engine, leading to a lean air-fuel mixture. The Engine Control Unit (ECU) detects this through oxygen sensor readings and attempts to compensate by increasing fuel delivery, resulting in positive fuel trim values (e.g., +10% or higher). If the compensation exceeds predetermined thresholds, the ECU will typically trigger a Check Engine Light (CEL) and store Diagnostic Trouble Codes (DTCs) such as P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2). Depending on the system affected, other codes like P0440, P0442 (EVAP system leaks), or P0401 (EGR flow insufficient) might also appear if the leak directly impacts those vacuum-controlled components.
Can I use any type of rubber hose to replace a cracked vacuum line?
No, it is crucial to use only vacuum-rated hose designed for automotive applications. Standard rubber hose or fuel line, while seemingly similar, may not withstand the continuous vacuum pressure, heat, and oil vapors present in an engine bay. Non-vacuum-rated hoses can collapse under vacuum, crack prematurely, or degrade, leading to recurring vacuum leaks. Always match the diameter and material specification (e.g., reinforced silicone, EPDM) to the OEM requirements for optimal longevity and performance.
Where can I find the most accurate throttle body vacuum line diagram for my specific vehicle?
The most accurate and reliable throttle body vacuum line diagram will always be found in your vehicle’s OEM (Original Equipment Manufacturer) service manual. These manuals contain detailed, year-specific, and engine-specific diagrams. Online subscription services for professional mechanics (e.g., AllData, Mitchell 1) also provide access to these OEM diagrams. Less comprehensive, but sometimes useful, diagrams can be found on stickers under the hood of older vehicles, particularly those focused on emissions systems. It is critical to use the diagram specific to your exact vehicle model, engine, and year, as vacuum line routings can vary significantly.
What role does a check valve play in the vacuum system, especially with the brake booster?
A check valve is a one-way valve critical for maintaining vacuum in specific parts of the system. For the brake booster vacuum line, the check valve is installed between the intake manifold and the brake booster. Its primary role is to allow vacuum into the booster from the intake manifold but prevent it from flowing back out. This ensures that the brake booster retains a reserve of vacuum even when the engine is under high load (low manifold vacuum) or shut off. Without a functional check valve, the brake booster would lose vacuum quickly, leading to a hard brake pedal and significantly reduced braking assist. Similar check valves can also be found in some EVAP or HVAC vacuum circuits. For more on related systems, see Troubleshooting EVAP System Faults.
Step-by-Step Guide to Understanding the Throttle Body Vacuum Line Diagram: Proper Routing 2026
Identify – Identify the specific engine, make, and model year of your vehicle to ensure you have the correct throttle body vacuum line diagram.
Locate – Locate the throttle body assembly and all associated vacuum ports and lines on the engine, including connections to the PCV valve and brake booster vacuum.
Reference – Reference the provided throttle body vacuum line diagram to trace each line’s origin and destination, noting any specific color codes or component connections like the EGR vacuum or purge valve.
Connect/Route – Carefully connect new or re-connect existing vacuum lines according to the diagram, ensuring proper routing away from heat sources and moving parts, using correct hose clamps for secure attachment.
Verify – Verify all connections are secure, free from kinks, cracks, or loose fittings by physically inspecting each line and connection point before starting the engine.
Troubleshoot – Troubleshoot by performing a vacuum leak test (e.g., smoke test) if engine performance issues persist, using a vacuum gauge to confirm manifold pressure is within specifications after routing.
Frequently Asked Questions
What are the symptoms of a vacuum leak in throttle body vacuum line diagram?
Symptoms include rough idle, misfires, poor fuel economy, engine hesitation, and an illuminated check engine light with lean codes (P0171/P0174). A whistling or hissing sound near the throttle body often indicates a leak, affecting PCV valve and brake booster vacuum performance, potentially leading to hard braking.
How do I find a vacuum leak in throttle body vacuum line diagram?
Use a smoke machine to introduce smoke into the vacuum system, observing where smoke exits. Alternatively, spray carb cleaner or propane near suspected areas; an engine RPM change indicates a leak. Inspect all lines connected to the throttle body, including those for the PCV valve, EGR vacuum, and canister purge, for cracks or disconnections.
What color are the vacuum lines on throttle body vacuum line diagram?
Vacuum line colors vary significantly by manufacturer and model year; there’s no universal standard. However, some systems use color-coding to denote specific functions, like black for main vacuum, green for EVAP (canister purge valve), or red for brake booster vacuum lines. Always refer to a vehicle-specific throttle body vacuum line diagram for accurate color identification.
What does the throttle body vacuum line diagram EVAP system do?
The EVAP system, often connected to the throttle body via a purge valve, captures fuel vapors from the fuel tank and canister purge, preventing their release into the atmosphere. These vapors are then drawn into the engine to be burned, improving emissions and fuel efficiency while avoiding a rich condition from the purge valve. This system relies on vacuum.
How do I replace vacuum lines on throttle body vacuum line diagram?
First, obtain a vehicle-specific throttle body vacuum line diagram. Carefully disconnect old lines, noting routing and connections to components like the PCV valve or EGR. Cut new, correctly sized vacuum hose to length, ensuring a snug fitment without kinks. Use clamps if necessary for critical connections, especially for the brake booster vacuum line, for optimal performance.
What tools do I need to diagnose throttle body vacuum line diagram vacuum issues?
Essential tools include a vacuum gauge to measure manifold vacuum, a smoke machine for precise leak detection, and an OBD-II scanner to read trouble codes. Carburetor cleaner or propane can be used for basic leak tests. Flashlights and inspection mirrors are helpful for visual inspection of lines around the throttle body, PCV valve, and canister purge valve connections.
