The 7.3L Powerstroke diesel engine, specifically the Powerstroke iterations manufactured from late 1994 to 2003 (engine code T444E variant), relies on a robust and meticulously designed fuel system. Understanding its operational diagram is critical for accurate diagnostics, maintenance, and repair. This guide provides an in-depth analysis of the 7.3 Powerstroke fuel line diagram, detailing each component, tracing fuel flow, and offering practical insights tailored for mechanics and experienced equipment owners. We will cover component identification, system functionality, common failure points, and essential repair procedures.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

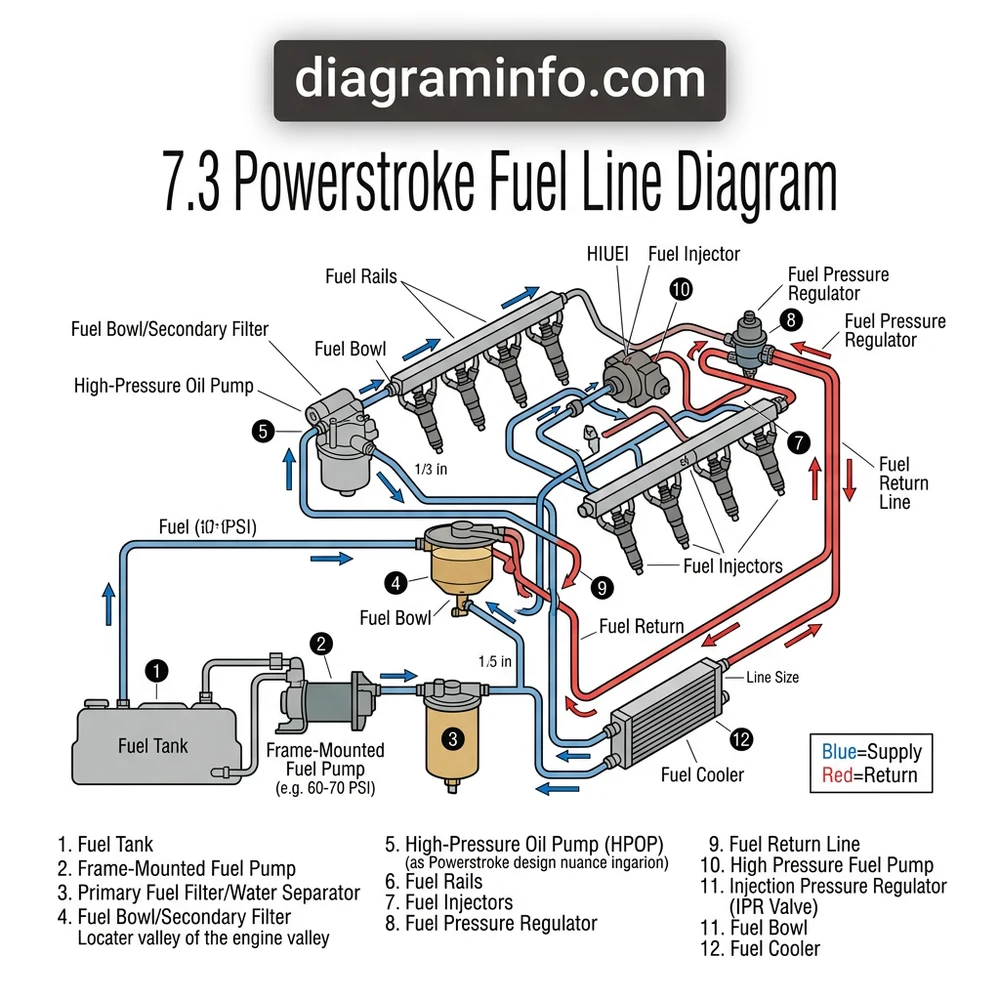

FUEL SYSTEM COMPONENTS BREAKDOWN

The 7.3L Powerstroke fuel system is a sophisticated assembly of components designed to deliver clean fuel at the correct pressure to the Injector Pressure Actuated (HEUI) injectors. While not a common-rail system, its reliance on high-pressure oil to actuate fuel injection distinguishes it. Below is a labeled breakdown of the primary components, critical for interpreting the 7.3 Powerstroke fuel line diagram.

• Fuel Tank and Sending Unit: Stores the diesel fuel. The sending unit includes the fuel pickup screen and float for fuel level measurement. Early 7.3L models (up to mid-1999) typically have an in-tank module with a single fuel pickup, while later models (mid-1999-2003) often feature a larger “Hutch” modification or improved factory designs for better fuel delivery.
• Frame-Mounted Fuel Pump: This low-pressure electric pump (located on the driver’s side frame rail) draws fuel from the tank. It typically operates at 40-70 psi, providing a consistent supply to the fuel filter bowl. Manufacturer specs indicate a typical flow rate of 30-40 gallons per hour under load.
• Fuel Supply Line: Carries fuel under low pressure from the frame-mounted pump to the fuel bowl assembly. This line is often constructed of rigid steel or reinforced rubber/nylon.
• Fuel Bowl Assembly: Located on top of the engine valley, this central component serves multiple functions. It houses the primary fuel filter, the fuel heater element, and the primer pump (a manual lever or button for bleeding air). It acts as a reservoir and filtration point before fuel enters the cylinder heads.
• Fuel Heater: Integrated into the fuel bowl, this electric heater prevents fuel gelling in cold weather by warming the fuel before filtration. It’s typically controlled by a thermostatic switch.
• Fuel Filter: A spin-on or cartridge-style filter within the fuel bowl, crucial for removing contaminants that could damage the injectors. Regular replacement is vital.
• Fuel Pressure Regulator (In-Bowl): Maintains a constant fuel pressure (typically 45-70 psi) within the fuel galleries of the cylinder heads. Excess fuel is routed back to the tank via the fuel return line.
• Fuel Supply Lines (Heads): After filtration and pressure regulation, fuel flows from the fuel bowl into the fuel galleries within each cylinder head, supplying the injectors.
• Fuel Injectors (HEUI): These hydraulically actuated electronic unit injectors receive low-pressure fuel from the head galleries and high-pressure oil from the HPOP. The high-pressure oil, controlled by the IPR, actuates an intensifier piston, which then pressurizes the fuel within the injector barrel to extreme levels (up to 21,000 psi) for atomization.
• High Pressure Oil Pump (HPOP): Crucial for the HEUI system, the HPOP pressurizes engine oil (not fuel) to actuate the fuel injectors. While not directly a fuel line component, its function is integral to fuel injection. For detailed information on 7.3L Powerstroke High Pressure Oil Pump diagnostics, refer to our dedicated guide.
• Injection Pressure Regulator (IPR): This solenoid-operated valve controls the amount of oil pressure exiting the HPOP, thereby regulating the injection pressure within the injectors. It’s located at the rear of the HPOP. Understanding the intricacies of the Injection Pressure Regulator (IPR) is crucial; see our comprehensive IPR troubleshooting article.
• Fuel Return Line: Excess fuel that bypasses the injectors or is not consumed by the engine, along with fuel regulated by the pressure regulator, flows back to the fuel tank through this line. This helps cool the fuel and ensures constant pressure.

COMMON FAILURE POINTS & SYMPTOMS

Diagnosing fuel system issues on a 7.3L Powerstroke requires a systematic approach, understanding the interconnectedness of its components. Here are common failure points and their associated symptoms:

1. Frame-Mounted Fuel Pump:
   • Symptom: Extended cranking, no-start condition, rough idle, loss of power under load, fuel starvation at higher RPMs. Audible whining from the frame rail may precede failure.
   • Diagnosis: Connect a fuel pressure gauge to the Schrader valve on the fuel bowl. OEM specifications typically indicate 45-70 psi at idle. Pressures below 30 psi are indicative of a failing pump or significant restriction. Check for proper voltage (12V) at the pump connector while cranking or with the key on (for a brief prime).
2. Fuel Filter / Fuel Bowl Restriction:
   • Symptom: Reduced power, rough running, engine surging, particularly under load. The engine may stall or fail to start.
   • Diagnosis: A clogged fuel filter is a primary suspect. Replace the filter. If symptoms persist, inspect the fuel bowl for debris, gelled fuel (in cold climates), or a faulty fuel heater element causing flow obstruction. Measure fuel pressure before and after the filter if possible.
3. Fuel Heater Element Failure:
   • Symptom: Blown fuse (F2.23 in the underhood fuse box, 30A), no heat in the fuel bowl leading to gelling in cold weather, or a short circuit causing other electrical issues.
   • Diagnosis: Check resistance across the fuel heater terminals. A normal resistance is typically 0.5-1.5 ohms. An open circuit (infinite resistance) means the element is failed, while very low resistance could indicate a short. Inspect wiring for chafing.
4. Injection Pressure Regulator (IPR) Valve:
   • Symptom: No-start or hard-start (especially when hot), rough idle, stalling, bucking, lack of power. P0611 (Injector Control Module performance) or P1211 (IPR actual vs desired pressure) codes are common.
   • Diagnosis: Monitor ICP (Injection Control Pressure) and IPR duty cycle with a scan tool. A faulty IPR may not be able to build sufficient ICP for starting (typically 500 psi minimum). A high IPR duty cycle (above 65-70%) at idle or cranking can indicate internal HPOP or injector leaks, or a failing IPR itself. Perform an air test into the ICP sensor port to listen for leaks.
5. Fuel Return Line Leaks / O-ring Failure:
   • Symptom: Loss of prime, hard starting, fuel odor, visible fuel leaks around the cylinder heads or engine valley. Fuel pressure may be low due to uncontrolled fuel dumping back to the tank.
   • Diagnosis: Visually inspect the fuel return lines and their banjo bolt connections for wetness. The small O-rings on the injector return side are common culprits. A fuel pressure test will show low pressure, even with a good pump.

REPAIR & REPLACEMENT STEPS: FRAME-MOUNTED FUEL PUMP

The frame-mounted fuel pump is a common failure point for the 7.3L Powerstroke. Its replacement is a straightforward procedure for experienced technicians.

1. Safety First:
   • Park the vehicle on a level surface and set the parking brake.
   • Disconnect both negative battery terminals to prevent accidental electrical activation.
   • Chock the wheels.
   • Ensure the fuel tank is less than half full to minimize spill risk, or consider draining it if full.
2. Relieve Fuel Pressure:
   • Locate the Schrader valve on the fuel bowl assembly. Place a shop towel over the valve and depress the core to release pressure. Collect any expelled fuel with the towel.
3. Access the Pump:
   • Raise the vehicle safely using a lift or jack stands to gain access to the driver’s side frame rail, below the driver’s seat area.
   • Identify the fuel pump. It’s typically cylindrical or rectangular, mounted to the frame with a bracket.
4. Disconnect Electrical and Fuel Lines:
   • Disconnect the electrical connector from the fuel pump. You may need a small flathead screwdriver to release the locking tab.
   • Using appropriate fuel line disconnect tools (available at most auto parts stores), carefully separate the fuel supply and return lines from the pump. Have drain pans ready to catch any residual fuel.
   • Note the orientation of the lines (inlet from tank, outlet to engine) to ensure correct reinstallation.
5. Remove Old Pump:
   • Unbolt the fuel pump mounting bracket from the frame. This usually involves two or three bolts (typically 10mm or 13mm).
   • Carefully lower and remove the old fuel pump assembly.
6. Install New Pump:
   • Ensure the new pump includes new O-rings or seals for the fuel lines. Apply a light coat of clean diesel fuel or approved lubricant to the O-rings before installation.
   • Mount the new pump into the bracket and reattach it to the frame.
   • Connect the fuel lines to the new pump, ensuring they click into place or are securely tightened if they are threaded fittings. Double-check that the supply and return lines are not swapped.
   • Reconnect the electrical connector.
7. Prime the System and Test:
   • Reconnect the negative battery cables.
   • Cycle the ignition key to the “ON” position (without starting) several times (e.g., 5-6 times, 30 seconds each) to allow the new pump to prime the system and fill the fuel bowl. You should hear the pump operating.
   • Check for any visible fuel leaks at the pump connections and throughout the fuel lines.
   • Start the engine. It may crank a bit longer than usual while air purges from the system. Monitor for smooth operation, listen for unusual noises, and recheck for leaks.
   • Verify fuel pressure at the fuel bowl Schrader valve (45-70 psi at idle).

FAQ

What is the minimum fuel pressure required for a 7.3L Powerstroke to start?

The 7.3L Powerstroke typically requires a minimum of 45 psi fuel pressure at the fuel bowl for reliable starting. While some engines may “start” with slightly lower pressure, consistent operation and full power will be compromised. Insufficient fuel pressure can lead to hard starting, especially when hot, and poor performance under load.

How does the 7.3L Powerstroke’s fuel system differ from common rail systems?

The 7.3L Powerstroke utilizes a Hydraulically Actuated Electronic Unit Injector (HEUI) system. Unlike common rail systems where a high pressure fuel pump directly pressurizes fuel to the injectors, the 7.3L uses a low-pressure electric fuel pump to supply fuel to the fuel bowl. A separate High Pressure Oil Pump (HPOP) then pressurizes engine oil, which is directed by the Injection Pressure Regulator (IPR) to actuate the individual fuel injectors. The injectors themselves then pressurize the fuel internally before spraying it into the combustion chamber. This distinction is crucial for diagnosis and repair. For more on the differences, explore our article on diesel fuel injection technologies.

Is a fuel cooler common on a 7.3L Powerstroke?

A dedicated fuel cooler was not a standard factory component on most 7.3L Powerstroke applications. The relatively low-pressure fuel system and its return path to the tank generally provided sufficient cooling. However, some aftermarket performance applications or severe-duty vehicles might incorporate an auxiliary fuel cooler to maintain optimal fuel temperature, especially if running aggressive tuning or operating in extreme conditions. Always consult the specific vehicle’s configuration or modification documentation.

What are common issues with the fuel return line on a 7.3L Powerstroke?

The fuel return line system on the 7.3L Powerstroke can develop leaks, primarily at the banjo bolt fittings on the cylinder heads or where the lines connect to the fuel pressure regulator within the fuel bowl. Over time, the O-rings at these connections can harden, crack, or become compressed, leading to external fuel leaks or internal pressure loss. Symptoms include fuel odor, visible wetness in the engine valley, and potential hard starting or poor fuel pressure due to fuel bypassing back to the tank prematurely. Replacement of these O-rings is a common maintenance item.
