The 6.4L Powerstroke engine, utilized in Ford F-Series Super Duty trucks from 2008 to 2010, employs a sophisticated high-pressure common rail fuel system critical for its performance and emissions compliance. This comprehensive 6.4 Powerstroke fuel system diagram illustrates the intricate network of components responsible for delivering, filtering, and pressurizing diesel fuel before it is precisely injected into the cylinders. Understanding this system is paramount for accurate diagnostics, effective maintenance, and ensuring the longevity of this robust, yet complex, diesel powerplant. Technicians and experienced DIYers will find this guide invaluable for demystifying the fuel flow and identifying potential failure points within the 6.4 Powerstroke architecture.

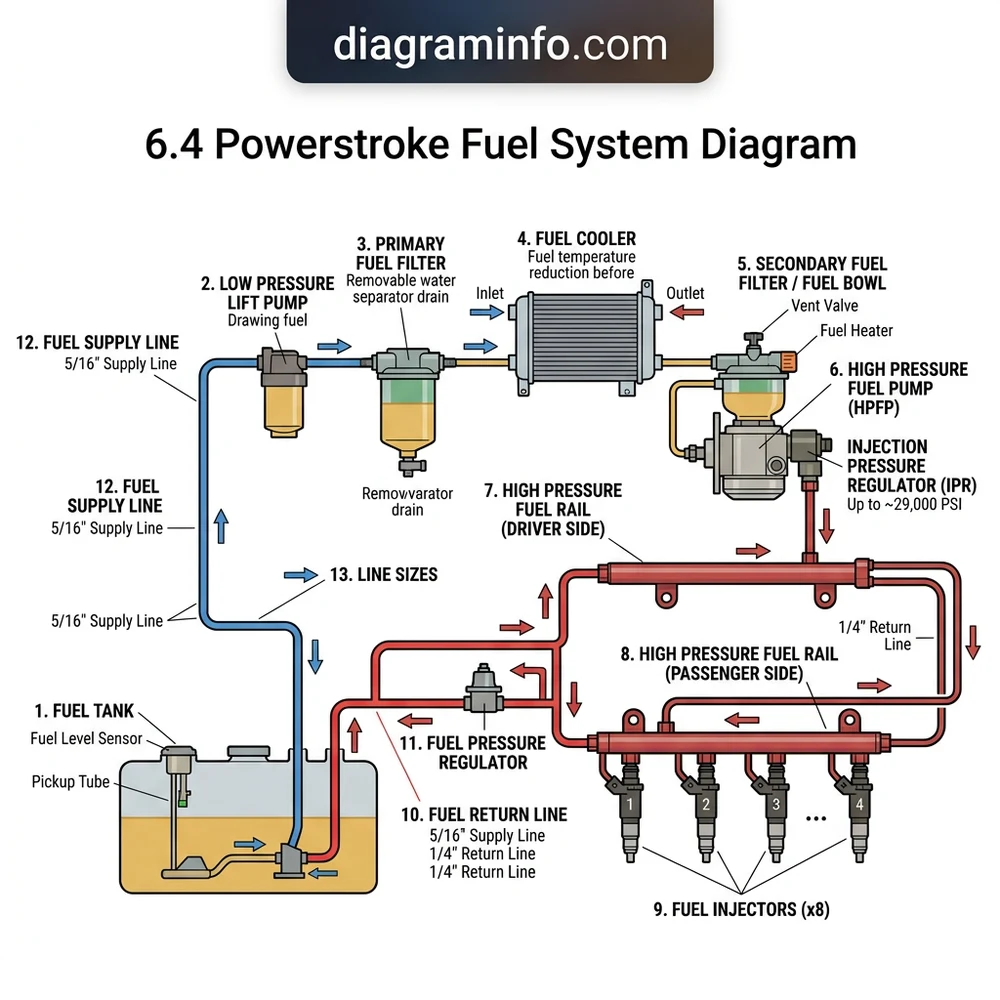

[Insert detailed, high-resolution 6.4 Powerstroke fuel system diagram here, clearly labeled with component numbers correlating to the breakdown below.]

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

FUEL SYSTEM COMPONENTS BREAKDOWN

The 6.4 Powerstroke fuel system is a meticulously engineered assembly designed to deliver fuel at extremely high pressures and precise timing. As shown in the 6.4 Powerstroke fuel system diagram above, fuel delivery begins from the tank and proceeds through several stages before injection. Each component plays a vital role:

1. Fuel Tank & Pickup: Stores diesel fuel. The in-tank module includes a coarse screen filter to prevent large contaminants from entering the system.
2. Lift Pump (Primary Fuel Pump): Located in the fuel tank, this electric pump draws fuel from the tank and pushes it forward to the primary fuel filter housing. It typically operates at a lower pressure, providing a steady supply to the engine-mounted components.
3. Primary Fuel Filter (Frame-Mounted): This filter (often a spin-on type, Part # FD4616 for example) removes larger particulates and water from the fuel stream before it reaches more sensitive components. It often includes a water-in-fuel (WIF) sensor.
4. Fuel Heater: Integrated into the primary filter housing or fuel lines, the fuel heater prevents fuel gelling in cold weather by warming the diesel, ensuring consistent flow.
5. Fuel Cooler: Located strategically, the fuel cooler dissipates heat from the returning fuel, preventing the fuel tank from overheating and maintaining fuel density for optimal performance. This is crucial for managing the heat generated by the high-pressure system.
6. Secondary Fuel Filter (Fuel Bowl): Positioned on the engine, this finer filter (Part # FD4604, for instance) removes much smaller contaminants missed by the primary filter. The “fuel bowl” is the housing for this filter and serves as a reservoir for the high-pressure pump.
7. Primer Pump (Manual Pump): Often found on or near the secondary fuel filter housing, this manual pump allows technicians to prime the fuel system after filter changes or if the system has been run dry, ensuring no air enters the high-pressure circuit.
8. High Pressure Fuel Pump (HPFP): This is the heart of the common rail system. The HPFP (e.g., Bosch CP3 style) is mechanically driven by the engine and capable of generating fuel pressures exceeding 26,000 PSI. It pressurizes fuel from the fuel bowl and sends it to the fuel rails. This component is a critical focus for understanding common 6.4 Powerstroke issues.
9. Fuel Rails (Common Rails): These components serve as high-pressure accumulators, storing pressurized fuel from the HPFP and distributing it evenly to all injectors.
10. Fuel Injectors: Electronically controlled, these piezoelectric or solenoid-actuated injectors precisely atomize and deliver fuel directly into the combustion chambers at specific times and durations, critical for combustion efficiency and emissions. For detailed diagnosis, refer to our guide on 6.4 Powerstroke fuel injector diagnosis.
11. Injection Pressure Regulator (IPR) Valve: The IPR valve, typically located on the HPFP or fuel rail, controls the fuel pressure within the high-pressure common rail by regulating the amount of fuel entering the HPFP’s high-pressure pumping elements. It works in conjunction with the PCM (Powertrain Control Module).
12. Fuel Pressure Sensor (FPS): Monitors the actual fuel pressure in the common rail, providing feedback to the PCM for precise pressure control via the IPR.
13. Fuel Return Line: Excess fuel not used by the injectors or regulated by the IPR valve, along with any air or contaminants, is returned to the fuel tank via this line, helping to cool the fuel and purge air from the system.

COMMON FAILURE POINTS & SYMPTOMS

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

The 6.4 Powerstroke fuel system, while robust, has several known failure points that technicians frequently encounter. Understanding these can significantly aid in diagnosis:

1. High Pressure Fuel Pump (HPFP) Failure:
   • Symptom: Hard start/no start, engine stalling, loss of power, P0087 (Fuel Rail/System Pressure – Too Low), P120F (Fuel Pressure Regulator Excess Pressure), metal contaminants in fuel filters.
   • Diagnosis: Often catastrophic, resulting in metal shavings circulated throughout the entire fuel system. A failing HPFP can also impact DPF regeneration cycles due to incorrect fueling. Check fuel pressure with a scan tool, inspect fuel filters for debris.
2. Fuel Injector Issues:
   • Symptom: Rough idle, excessive smoke (black or white), misfires, decreased fuel economy, cylinder contribution/balance faults (e.g., P02xx codes).
   • Diagnosis: Perform injector contribution tests using a diagnostic scanner. Check for fuel leaks at injector bodies or return lines. Sticking or worn injectors can lead to poor atomization or excessive fuel return.
3. Fuel Filter Neglect (Primary/Secondary):
   • Symptom: Reduced engine power, hard starts, P0087, P120F, frequent WIF (Water In Fuel) light illumination.
   • Diagnosis: Visually inspect filters for excessive contamination. Low fuel pressure readings before the HPFP, especially under load, often point to clogged filters.
4. Lift Pump Failure:
   • Symptom: Engine cranks but won’t start, loss of power under acceleration, P0087. Often no fuel pressure at the secondary filter housing.
   • Diagnosis: Check fuel pressure output from the lift pump. A diagnostic tool can activate the pump and monitor pressure. Listen for pump operation in the tank.
5. Injection Pressure Regulator (IPR) Valve Malfunction:
   • Symptom: Erratic rail pressure readings, engine stalling, hard starting (especially when hot), P0087, P120F.
   • Diagnosis: Monitor IPR duty cycle and fuel rail pressure (FRP) sensor readings with a scan tool. A high IPR duty cycle at idle (above 20-25%) or inability to maintain desired pressure indicates a problem, which could be the IPR itself, a high-pressure leak, or HPFP issues.

REPAIR & REPLACEMENT STEPS: SECONDARY FUEL FILTER (FUEL BOWL) REPLACEMENT

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Regular replacement of the secondary fuel filter is crucial for the longevity of your 6.4 Powerstroke’s fuel system, preventing premature wear on the HPFP and injectors. This procedure focuses on the engine-mounted “fuel bowl” filter (FD4604 equivalent).

Procedure:

1. Preparation:
   • Park the vehicle on a level surface and engage the parking brake.
   • Disconnect both negative battery cables to prevent accidental starting.
   • Locate the secondary fuel filter housing (fuel bowl) on top of the engine, typically near the intake manifold.
2. Depressurize and Drain:
   • Place a suitable drain pan underneath the fuel filter housing area.
   • Carefully loosen the fuel filter drain plug (usually a plastic hex plug on the bottom of the housing) to allow fuel to drain. Once drained, close the plug.
3. Remove Old Filter:
   • Using a 36mm socket or a specialized fuel filter wrench, carefully unscrew the fuel filter cap counter-clockwise.
   • Once loose, lift the entire cap and filter assembly out of the housing. Be prepared for some fuel spillage.
   • Separate the old filter element from the cap. Discard the old filter and its O-rings responsibly.
4. Inspect and Clean:
   • Inspect the inside of the fuel filter housing for any significant debris or contamination. Clean if necessary, ensuring no foreign material enters the fuel system.
   • Inspect the fuel filter cap for any cracks or damage. Replace if compromised.
5. Install New Filter:
   • Lubricate the new large O-ring for the filter cap and the small O-ring for the filter element (if separate) with clean diesel fuel.
   • Install the new filter element onto the cap (if applicable) or directly into the housing, ensuring it seats properly.
   • Carefully thread the fuel filter cap with the new filter and O-rings back into the housing by hand, ensuring it does not cross-thread.
6. Torque the Cap:
   • Using the 36mm socket, tighten the fuel filter cap to the manufacturer’s specified torque.
   🔧 Specification

   According to OEM specifications for the 2008-2010 6.4L Powerstroke, the secondary fuel filter cap torque is typically 18 ft-lbs (24 Nm). Always verify with current service literature for your specific model year.
7. Prime the System:
   • Reconnect the negative battery cables.
   • Turn the ignition key to the “ON” position (do not start the engine) for approximately 30 seconds. You should hear the lift pump running.
   • Repeat this “key on” cycle 2-3 times to ensure the system is fully primed and air is purged. Listen for the lift pump to cycle off.
   • Alternatively, use the manual primer pump (if equipped and accessible) until resistance is felt.
8. Check for Leaks and Test Drive:
   • Start the engine and allow it to idle for a few minutes. Visually inspect the fuel filter housing for any signs of leaks.
   • Perform a short test drive, paying attention to engine performance and any unusual noises. Recheck for leaks after the test drive.

Maintaining a clean fuel system is paramount. Consider using recommended fuel additives specifically formulated for the 6.4 Powerstroke to further protect your components.

FAQ

What are the critical maintenance intervals for the 6.4 Powerstroke fuel system?

According to Ford’s recommended service schedules, both the primary (frame-mounted) and secondary (engine-mounted) fuel filters on the 6.4 Powerstroke should be replaced every 15,000 miles or 24,000 kilometers, or annually, whichever comes first. In harsh operating conditions, such as extremely dusty environments or with questionable fuel quality, more frequent replacement may be necessary to prevent premature wear on the high-pressure fuel pump and injectors.

How can I detect early signs of a failing High Pressure Fuel Pump (HPFP) without a diagnostic tool?

While a diagnostic scanner provides the most accurate assessment, early signs of HPFP degradation on a 6.4 Powerstroke might include a subtle decrease in engine power under load, a slightly longer crank time before starting, or a noticeable increase in diesel “clatter” from the engine. Observing metal particulate in drained fuel filters during routine maintenance is a strong indicator of impending HPFP failure, necessitating immediate investigation to prevent widespread system contamination.

Is it safe to run a 6.4 Powerstroke with a Water In Fuel (WIF) light illuminated?

No, it is highly advisable to address a WIF light immediately. The Water In Fuel sensor indicates that water has accumulated in the primary fuel filter housing. Water in the fuel system is detrimental to all components, especially the HPFP and injectors, causing corrosion and accelerated wear. You should drain the water from the fuel filter housing as soon as possible and monitor for recurrence. Continued operation with water in the fuel significantly increases the risk of catastrophic fuel system component failure.

What are the common causes of low fuel pressure codes (e.g., P0087) on a 6.4 Powerstroke?

Low fuel pressure codes like P0087 on a 6.4 Powerstroke typically indicate an issue with maintaining the desired pressure in the high-pressure common rail. Common causes include severely clogged primary or secondary fuel filters, a failing lift pump (in-tank fuel pump), a malfunctioning Injection Pressure Regulator (IPR) valve that cannot effectively control rail pressure, or an actual mechanical failure within the HPFP itself. Less common but possible causes include fuel line restrictions, air leaks in the low-pressure side, or a faulty Fuel Rail Pressure (FRP) sensor providing incorrect readings to the PCM.
