2-Wire Lamp Holder Wiring Diagram: 2026 Pinout Guide
A wire lamp holder wiring diagram routes standard AC power: black (hot wire) connects to the brass terminal screw, white (neutral wire) attaches to the silver screw, and green or bare copper (ground wire) fastens to the green frame screw. Proper polarity prevents energized socket threads and electrical shock hazards.
📌 Key Takeaways
- Black hot wire always connects to the brass terminal leading to the socket center contact point.
- White neutral wire fastens to the silver terminal powering the outer threaded socket shell.
- Use 18 AWG SPT-2 lamp cord for standard indoor fixtures rated up to 300V and 105°C.
- Reversed polarity makes the threaded light bulb sleeve hot, creating a severe shock hazard.
- Always tie an Underwriters knot in two-conductor cord before attaching conductors to terminal screws.
Executing a clean fixture or auxiliary lighting installation requires absolute precision when matching wire lamp holder wiring diagram schematics to physical hardware terminals. Incorrectly routed leads, loose terminal block clamps, or reversed polarity between the hot wire and neutral wire create severe electrical hazards, including unexpected ground loops, intermittent voltage drop, or localized thermal melting at high-resistance contact points. Whether you are wiring a heavy-duty equipment work-light socket, a retrofitted automotive ceramic socket, or an industrial luminaire, following a certified wire lamp holder wiring diagram ensures optimal current delivery, circuit protection, and long-term component reliability across high-vibration operational environments.

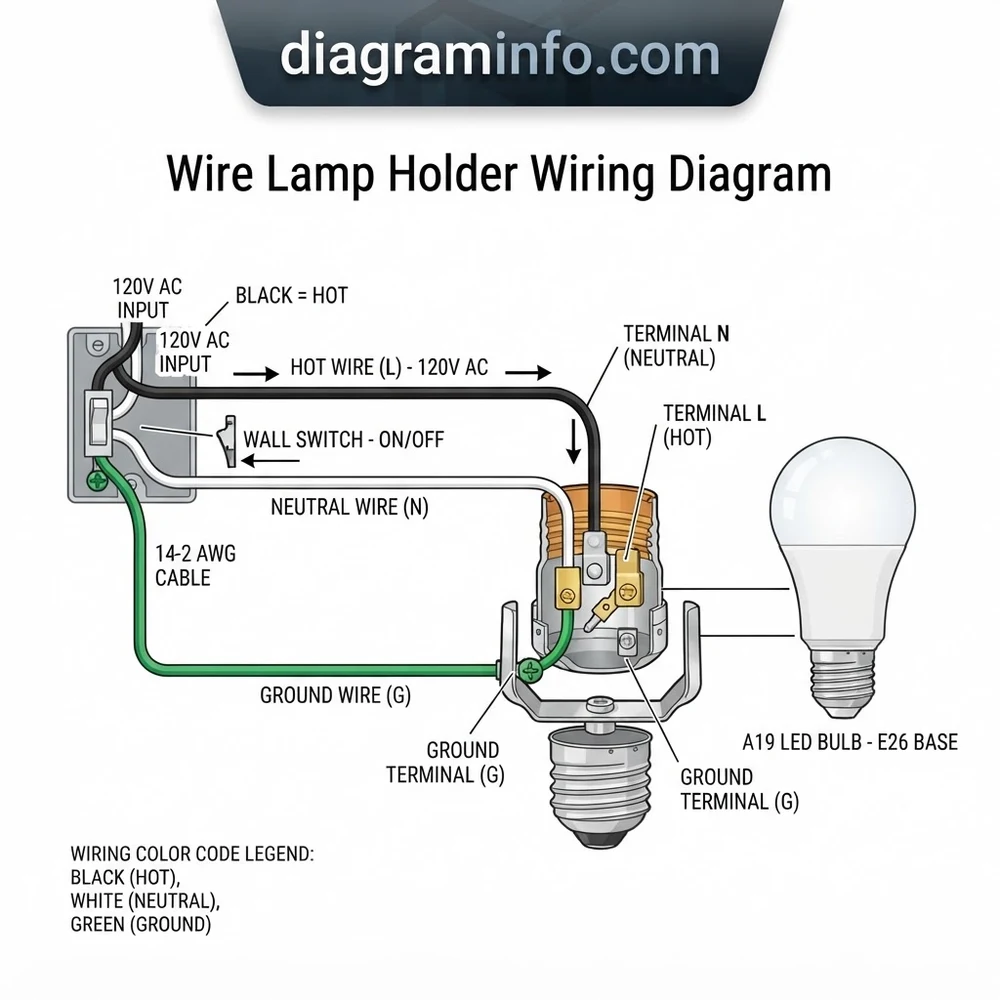

Schematic depicting DC automotive / AC industrial lamp holder pin assignment, showing terminal block bus connections, center contact hot wire path, outer screw shell neutral wire path, and dedicated chassis ground wire connection points.
Wire Lamp Holder Wiring Diagram Terminal Identification and Pin Architecture
Understanding the structural breakdown of a lamp socket assembly is the baseline requirement before attaching conductors to terminals. Every standard wire lamp holder utilizes a distinct pin assignment designed to isolate incoming energized current from accessible metallic hardware. In typical single-contact and dual-contact lamp holders, current flows from the feed line through a spring-loaded center contact, travels through the filament or LED driver circuit, and exits through the outer metallic sleeve or threaded shell.
According to OEM manufacturing standards, connecting the hot wire to the outer screw shell instead of the center contact tab leaves the external threads permanently energized. This severe misconfiguration creates an immediate shock hazard during lamp maintenance and significantly increases the probability of short-circuiting against adjacent grounded chassis panels. The terminal block integrated into modern heavy-duty ceramic and composite sockets relies on standardized marking conventions—typically brass screws or “L” stampings for the load/hot wire side, silver screws or “N” stampings for the neutral wire/return side, and green screws or “G” stampings for the frame ground wire.
| Wire Color Code | Circuit Function | Pin / Terminal Assignment | Technical Notes & Specifications |
|---|---|---|---|
| Black / Red | Hot Wire (Load / DC +) | Terminal L / Center Spring Tab | Carries positive voltage feed; brass terminal contact screw. |
| White / Blue | Neutral Wire (Return / DC -) | Terminal N / Threaded Shell Contact | Completes current path back to power supply; silver terminal screw. |
| Green / Bare Copper | Ground Wire (Equipment / Chassis) | Terminal G / External Yoke Ring | Binds metallic housing to chassis; green screw or direct stud weld. |
| Yellow / Brown | Secondary Feed (High Beam / Dual Filament) | Terminal L2 / Pin 2 (Dual Pin Sockets) | Found in dual-intensity lamps (e.g., 1157/H4); secondary center pin. |
Wire Color Code, System Voltage, and Gauge Selection Criteria
Selecting the correct conductor wire gauge and understanding standardized wire color codes prevents excessive resistance and heat buildup inside the lamp socket housing. Electrical systems on mobile equipment and industrial machinery operate across varying voltage levels—commonly 12V DC, 24V DC, 120V AC, or 277V AC. As voltage decreases in low-voltage DC applications, current amperage draw increases proportionally for equivalent wattage output. Consequently, wire gauge selection becomes a critical design parameter to limit line voltage drop to under 3 percent across extended harness runs.
In standard SAE automotive and heavy equipment applications, primary wire adhering to SAE J1128 specifications (such as TXL or GXL cross-linked polyethylene insulated wire) is recommended due to its thermal resistance (up to 125°C) and resistance to oil and hydraulic fluids. For 12V DC auxiliary lighting systems drawing up to 10 Amps, a minimum wire gauge of 16 AWG (1.3 mm²) is required for harness runs under 10 feet. If the current draw reaches 15 Amps or the run exceeds 15 feet, upgrading to a 14 AWG (2.08 mm²) conductor prevents heat-induced degradation at the terminal block.
Manufacturer specifications for heavy-duty ceramic lamp sockets require terminal block set screws to be torqued precisely to 12–15 in-lbs (1.36–1.70 Nm). Conductor insulation must be stripped clean to 3/8-inch (9.5 mm) without nicking core strands. Use 18 AWG for loads under 5A, 16 AWG for loads up to 10A, and 14 AWG for loads up to 15A in 12V/24V systems.
When reviewing your wire lamp holder wiring diagram, pay close attention to system-specific wire color code variations. In AC industrial lighting fixtures, standard National Electrical Code (NEC) conventions mandate black or red for the hot wire, white for the neutral wire, and green or bare copper for the equipment ground wire. Conversely, international IEC equipment standards use brown for the hot wire, blue for the neutral wire, and green with a yellow stripe for the protective ground wire. In DC mobile equipment, red or yellow usually denotes positive potential, while black or dark blue represents ground return pathways. Always cross-reference your specific schematic pin assignments rather than relying solely on jacket color.
How to Execute the Wire Lamp Holder Wiring Diagram Connection Sequence
Following a precise, systematic connection protocol guarantees mechanical security and flawless electrical conductivity. Before starting any work, ensure the upstream circuit breaker or inline fuse block is completely de-energized, and verify zero potential across all conductors using a calibrated digital multimeter.
Never attempt to insert conductors into a live wire lamp holder terminal block. Always isolate the primary power supply, lock out/tag out the supply breaker, and test for voltage with a DMM prior to handling bare conductors or terminal screws.
- Prepare Harness and Inspect Lamp Holder: Inspect the ceramic or composite body of the lamp holder for stress fractures, corrosion, or distorted pin contacts. Strip approximately 3/8-inch of insulation from the hot wire, neutral wire, and ground wire ends using a precision wire stripper, taking care not to sever copper strands.
- Connect the Equipment Ground Wire: Route the green or bare copper ground wire to the designated ground lug or green terminal screw marked “G” or with the international earth symbol. Terminate the wire using a copper ring terminal or slip it beneath the ground screw clamp plate. Torque the fastener securely to ensure low-resistance earth continuity to the outer housing.
- Attach the Neutral Wire Conductors: Locate the neutral terminal identified by silver plating, a white marking, or the letter “N”. On screw-shell lamp holders, this terminal connects directly to the threaded barrel. Insert the white or blue neutral wire conductor into the terminal block slot and tighten the screw clamp firmly. Ensure no stray wire strands extend past the terminal insulator barrier.
- Terminate the Hot Wire to Center Pin: Identify the hot wire terminal, recognized by brass plating or the letter “L”. As indicated on the wire lamp holder wiring diagram, this terminal supplies current directly to the spring-loaded center contact inside the socket cavity. Insert the black, red, or brown hot wire into the pin block and tighten to specified torque.
- Verify Strain Relief and Mechanical Integrity: Secure the incoming wire bundle using an integrated cord grip, Underwriters knot, or strain-relief clamp located at the entry point of the socket housing. This step prevents mechanical tension from transferring directly to the terminal block screws during operation or high-vibration exposure.
When attaching stranded wire directly under screw terminals without a pressure plate, twist stripped strands tightly in a clockwise direction. Wrap the twisted conductor clockwise around the screw shank so that tightening the fastener draws the wire tighter into the terminal rather than forcing it outward.
Common Wire Lamp Holder Wiring Diagram Errors and Troubleshooting
Diagnosing operational faults in lamp socket circuits requires a systematic approach using accurate diagnostic tools like a digital multimeter (DMM) set to DC/AC voltage and resistance modes. Most field failures stem from basic installation errors, improper wire gauge selection, or poor termination techniques at the socket terminal block.
1. Polarity Reversal (Hot Wire and Neutral Wire Transposition)
Reversing the hot wire and neutral wire connections keeps the circuit operational, but energizes the exposed metallic screw shell of the lamp holder. When troubleshooting, place the black DMM probe on a known chassis ground and touch the red probe to the inner thread barrel. If the meter reads full line voltage (12V/120V) when the switch is off, the hot wire and neutral wire are reversed at the terminal block. Disconnect power immediately and swap the lead locations according to the wire lamp holder wiring diagram pin assignments.
2. High-Resistance Connections and Thermal Degradation
Loose terminal block screws or under-crimped wire lugs create localized resistance bottlenecks. Per Ohm’s Law ($P = I^2 R$), even a small resistance increase of 0.5 Ohms across a 10 Amp circuit generates 5 Watts of localized heat directly at the terminal contact point. Over time, this thermal cycling degrades wire insulation, discolors ceramic bases, and leads to melting or catastrophic arc-over. Periodically check terminal tightness and inspect contact points for thermal bluing or carbon buildup.
3. Insulation Creep and Strand Short Circuits
Stripping excess insulation allows bare copper to extend beyond the protective plastic dividers of the terminal block, risking direct contact between adjacent terminals or the outer chassis shell. Conversely, failing to strip enough insulation can cause the terminal screw to clamp down on the PVC/TXL wire jacket instead of the conductive copper core, resulting in an open circuit or intermittent power delivery. Always measure strip length precisely against socket specs.
4. Floating or Corroded Ground Wire Connections
In mobile equipment and automotive systems, an open ground wire breaks the current return path back to the battery negative terminal. This failure often produces dim, flickering light output or causes current to backfeed through secondary circuits, illuminating unrelated dash indicators or secondary lamps. Perform a continuity check between the socket housing ground terminal and the main chassis frame; resistance must measure less than 0.2 Ohms.
Technical Wire Lamp Holder Wiring Diagram and Terminal Block FAQs
What happens if the hot wire and neutral wire are reversed on a wire lamp holder wiring diagram?
If the hot wire and neutral wire are reversed, the connected lamp will still illuminate, but the outer threaded socket shell becomes permanently energized at line voltage. This creates a severe shock hazard during bulb replacement and increases the risk of a direct short-circuit if a conductive object contacts the socket rim and adjacent grounded metal framework.
Which conductor gauge should be used for wiring a 12V DC auxiliary lamp holder?
For standard 12V DC work lamps drawing under 10 Amps over wire harness lengths under 10 feet, 16 AWG (1.3 mm²) copper wire is recommended. For higher wattage halogen or heavy multi-LED light bars drawing up to 15 Amps or operating over longer distances, upgrade to 14 AWG (2.08 mm²) conductor wire to limit line voltage drop below 3 percent.
Why does the wire lamp holder wiring diagram specify connecting the ground wire directly to the housing shell?
Connecting the ground wire to the metallic outer shell or mounting yoke provides a safe path to clear ground fault currents. If internal wire insulation breaks down and contacts the housing, the grounded enclosure safely trips the upstream fuse or circuit breaker instead of energizing the fixture exterior, protecting technicians from electrical shock.
How do you identify pin assignments on a sealed, multi-pin lamp holder connector?
Sealed multi-pin automotive connectors (such as Deutsch DT or Weather-Pack series) feature tiny raised numbers molded into the connector body next to each cavity. Pin 1 (or Pin A) generally corresponds to the main hot wire power feed, Pin 2 (or Pin B) connects to the ground wire return, and Pin 3 (or Pin C) serves dual-intensity secondary hot feeds. Always verify continuity from the socket interior contacts to these rear connector pins using a multimeter before making harness terminations.
Can stranded copper wire be inserted into push-in lamp holder terminal blocks?
Standard stranded wire should not be inserted directly into spring-push terminals unless the socket specifically features push-actuated release levers or internal spring clamps designed for stranded core. For standard push-in terminals, either install solid copper core wire or crimp a rigid metal wire end ferrule onto the stranded copper conductor end to ensure secure contact and prevent bent wire strands.
Step-by-Step Guide to Understanding the Wire Lamp Holder Wiring Diagram
Identify – Turn off main power circuit or unplug lamp, then identify hot wire, neutral wire, and ground wire conductors.
Locate – Locate brass (hot), silver (neutral), and green ground terminal screws on the lamp holder socket base.
Reference – Consult the wire lamp holder wiring diagram to confirm pin assignment and terminal pin identification.
Connect/Route – Tie an Underwriters knot for strain relief, wrap exposed copper clockwise under corresponding terminal screws, and torque securely.
Verify – Verify wire color code alignment and check with a continuity tester to ensure no shorts between conductors and outer metal housing.
Troubleshoot – If bulb fails to light, test for line voltage across brass and silver terminals using a multimeter.
