Heavy Crane Parts of a Crane Diagram: 2026 Guide
A parts of a crane diagram details the structural layout, including outriggers, slewing ring, turntable, engine housing, winch drum, wire rope, hoist mechanism, lattice or telescopic boom, and hook block. It maps hydraulic pressure lines operating at 3,000–5,000 PSI and electrical safety wiring connected to the Load Moment Indicator (LMI).
📌 Key Takeaways
- Identifies core structural systems including outriggers, slewing assembly, boom configuration, and wire hoist mechanisms.
- Crucial for locating high-pressure hydraulic lines rated at 3,000 to 5,000 PSI and Load Moment Indicator sensors.
- Highlights proper outrigger torque and pin lock specifications to prevent structural tipping during heavy lifts.
- Most common failure points include worn wire ropes, leaking hydraulic cylinder seals, and damaged slewing ring bearings.
- Minor mechanical pin swaps can be DIY, but major hydraulic or structural frame repairs require certified crane technicians.
Interpreting a detailed parts of a crane diagram is a fundamental skill for heavy equipment technicians, crane inspectors, and fleet maintenance engineers. Modern mobile and crawler cranes operate as complex integrated systems combining high-tensile structural steel, high-pressure electro-hydraulics, mechanical gear trains, and digital Load Moment Indicator (LMI) electronics. According to ASME B30.5 and OSHA 1926.1400 standards, maintaining complete structural integrity and functional system calibration requires a deep schematic understanding of all sub-assemblies. This guide breaks down crane layout blueprints, system schematics, and component configurations to streamline diagnostic procedures, preventive maintenance routines, and overhaul operations.

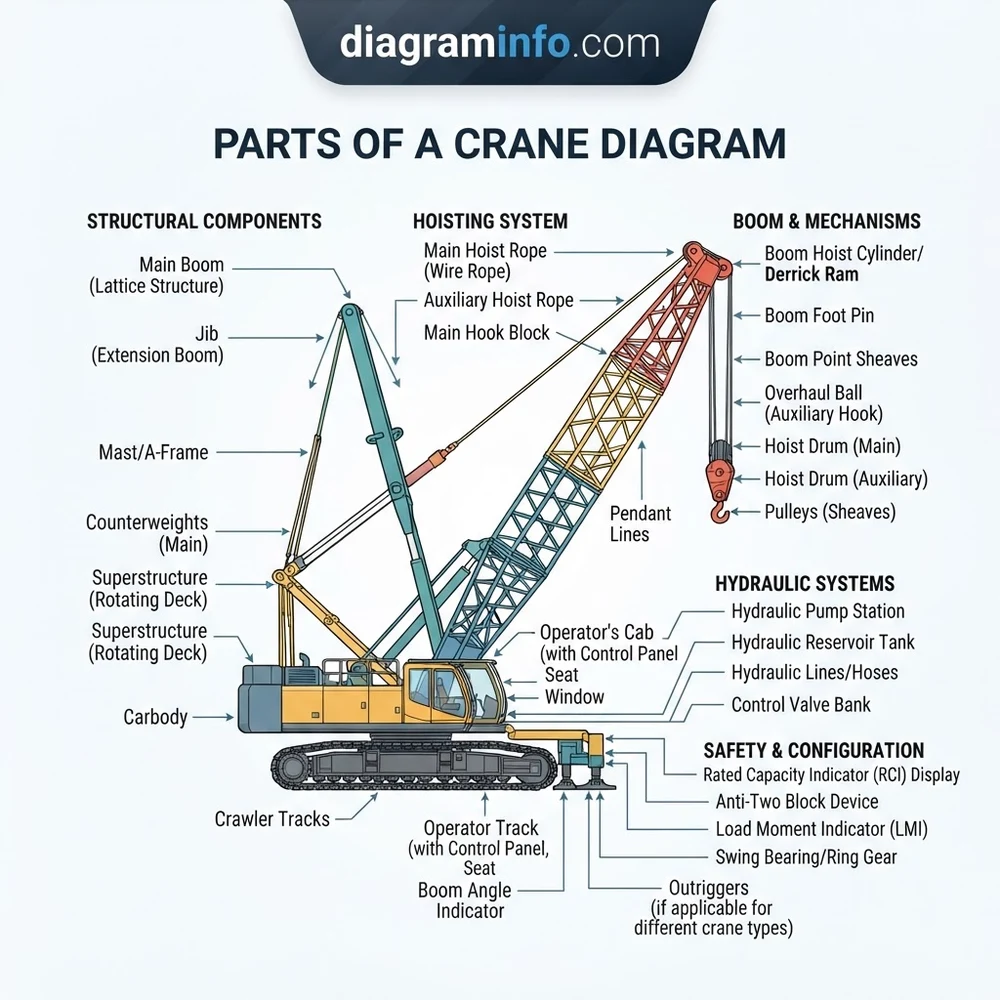

Parts of a Crane Diagram: Full Structural Breakdown
A comprehensive parts of a crane diagram divides the machine into three primary structural zones: the carrier (lowerworks), the superstructure (upperworks), and the front-end attachment assembly. Each zone relies on specific mechanical and hydraulic systems to distribute load forces safely during lifting operations.
Primary Load-Bearing Assembly Components
The structural foundation of any mobile crane relies on rigid steel fabrications engineered to resist torsional twisting and extreme bending moments. Blueprint analysis reveals how load distribution flows from the hook block through the boom structure directly into the slewing bearing and outrigger chassis.
- Outrigger System: Extensible structural beams housing vertical hydraulic jacks (floats) that lift the chassis to establish a stable geometric baseline. Incorporates internal pilot-operated check valves to prevent hydraulic collapse during pressure spikes.
- Carrier Frame: High-strength, low-alloy steel box structure housing the engine drive train, steering axles, and outrigger boxes. Designed to sustain dynamic forces during transport and operating modes.
- Slewing Ring (Turntable Bearing): A large-diameter bearing featuring internal or external gear teeth bolted between the upper superstructure and lower carrier. Secured using high-tensile Grade 10.9 or 12.9 fasteners torqued to strict OEM specifications (typically 750–1,200 Nm depending on bolt diameter).
- Telescopic Boom Assembly: Composed of a base section and multiple inner section tele-tubes extended via hydraulic cylinders and internal synchronized fly cables. Structural plates are fabricated from high-yield steel (e.g., Weldox 700/960) to maximize strength-to-weight ratios.
- Counterweight Stack: Removable cast-iron or steel composite blocks mounted to the rear of the superstructure to offset the forward tipping moment created by the suspended load.
- Hook Block and Overhaul Ball: Heavy steel pulley sheaves housing high-grade bearings through which wire rope is reeved. The overhaul ball provides downhaul weight to lower the hoist line when unloaded.
Hydraulic and Electrical Control Systems Layout
Beyond the structural frame, the schematic illustrates the underlying fluid power and CAN-bus sensor networks essential for precision control and load monitoring.
| Component Name | Schematic Designation | Engineering Function & Operating Spec |
|---|---|---|
| Main Hydraulic Pump | P1 / P2 (Variable Displacement) | Variable axial piston pump supplying 350 bar (5,076 PSI) working pressure to main control block. |
| Slewing Drive Motor | M-SLEW (Fixed/Variable) | Hydraulic motor mated to a planetary gearbox with integrated multi-disc wet spring-applied brake. |
| Main Hoist Winch | W1 (Drum Assembly) | Axial piston motor driving a grooved drum via internal planetary reduction gear; rated for 2160 N/mm² wire rope tension. |
| LMI Length/Angle Sensor | SE-BOOM-01 | Dual-potentiometer or optical encoder reel outputting 4–20 mA or CANopen signal tracking boom length and angle. |
| Counterbalance Valve | CBV-LIFT | Direct-acting, pilot-assisted relief valve mounted directly on the luffing cylinder port to prevent load runaway. |
How to Read a Crane Schematic and System Blueprint
Reading a combined hydraulic and electrical layout requires a step-by-step methodology to map line connections, power distribution, and control logic. Mechanical schematics depict the physical structural architecture, while fluid and electrical blueprints map functional control circuits.
Tracing Load Paths and Hydraulic Lines
Follow this systematic procedure when interpreting a crane fluid power and structural layout diagram:
- Identify Primary Power Inputs: Start at the diesel engine power take-off (PTO) drive shaft connecting to the main variable-displacement hydraulic pump group (P1/P2/P3). Trace the high-pressure supply lines (typically rendered as heavy solid lines) leading to the proportional directional valve bank.
- Follow Control Signal Flow: Locate pilot control lines (dashed lines). Pilot oil at 30–50 bar (435–725 PSI) routes through joystick pilot valves or electro-proportional solenoids to shift main valve spools, directing full hydraulic flow to selected actuators.
- Locate Safety Valves: Map all inline lock valves, load-holding counterbalance valves, and primary system pressure relief valves. When referencing a hydraulic pump wiring schematic, confirm whether solenoid valves are normally open (NO) or normally closed (NC) during dynamic braking or emergency shutdown states.
- Trace System Return Circuits: Follow return lines (light solid lines) passing back through main return filters, air-to-oil heat exchangers, and into the hydraulic fluid reservoir (tank).
On hydraulic schematics, a square symbol containing an internal arrow and external pilot connection represents a pilot-operated directional control valve. Variable-displacement pumps are denoted by a circle with a solid triangle pointing outward and a diagonal arrow passing through the body.
Verifying Outrigger Pressure and Load Cell Circuits
Modern crane diagrams highlight digital protection networks alongside mechanical layouts. Cross-checking values against a telescopic boom load chart guide requires understanding how load sensors communicate with the cabin display computer.
System schematics illustrate strain-gauge load cells installed at the boom tip dead-end anchor or integrated inside the luffing cylinder pins. These sensors send millivolt signals to an amplifier unit, converting analog force inputs into a digital CAN-bus telemetry stream. Ground pressure sensor circuits on each outrigger beam route 24V DC excitation voltage to strain pads, returning a proportional voltage (typically 0.5V to 4.5V DC) indicating ground bearing load. Trace these signal pathways to isolate communication faults from mechanical overload states.
Standard LMI Sensor Specifications: Supply Voltage: 18–32V DC; Operating Temperature Range: -40°C to +85°C; Signal Output: CANopen (ISO 11898); Ingress Protection: IP67/IP69K; Signal Cable Impedance: 120 ohms nominal across CAN_H and CAN_L lines.
Diagnosing Equipment Failures Using the Parts of a Crane Diagram
When troubleshooting operational faults, technicians must use the parts of a crane diagram to systematically eliminate structural, mechanical, hydraulic, and electrical failure modes. Isolated symptoms often stem from upstream control or hydraulic faults rather than structural failure.
System Hydraulic Pressure Loss and Cylinder Drift
Unintended lowering of the main boom (luffing cylinder drift) or outrigger jack retraction under load indicates fluid bypassing a internal sealing surface or holding valve seat.
- Step 1: Check Thermal Expansion vs. Internal Leakage: Verify if cylinder movement is caused by cooling hydraulic oil or mechanical seal failure. Connect a 0–600 bar calibrated test gauge to the pressure diagnostic port on the cylinder’s cap end.
- Step 2: Isolate the Counterbalance Valve: Refer to the hydraulic circuit diagram to locate the cylinder-mounted load-holding valve (CBV). If hydraulic pressure holds at the port while the cylinder rod retracts, internal piston seal leakage is present. If pressure bleeds off at the diagnostic port, the counterbalance valve seat is contaminated or damaged.
- Step 3: Test Pilot Control Signal: Check if unwanted pilot pressure (exceeding 5 bar) is reaching the pilot port of the counterbalance valve due to a sticking proportional control valve spool or leaking solenoid. Diagnosing these control lines is essential when performing an outrigger pressure sensor diagnosis or boom control trace.
Electrical Signal Interruption in Load Moment Indicators
An abrupt system shutdown accompanied by an LMI error code (e.g., E04 or E12) indicates a broken feedback loop in the boom-tip sensor array or Anti-Two-Block (A2B) circuit.
- Step 1: Consult the Wiring Harness Blueprint: Locate the junction box schematic for the cable reel mounted on the base boom section. Identify terminal strip IDs for power (+24V), ground (GND), CAN_HIGH, and CAN_LOW lines.
- Step 2: Test Wire Harness Continuity: Disconnect the main harness at the cabin control unit and perform resistance checks across the cable reel conductors. A healthy slip ring assembly inside the cable drum should show less than 0.5 ohms resistance per line while manually rotating the drum.
- Step 3: Verify A2B Switch Logic: The Anti-Two-Block switch operates as a normally closed (NC) circuit held open by a suspended counterweight around the hoist wire rope. Trace the switch signal using the schematic; a open circuit state without physical contact indicates a shorted signal cable, corroded switch contacts, or a broken weight chain.
NEVER bypass or mechanically wedge an Anti-Two-Block (A2B) switch or Load Moment Indicator lockout solenoid during diagnostic testing while the crane is under load. Bypassing safety circuits during live lifts risks structural boom collapse, wire rope parting, or tipping accidents.
Parts of a Crane Diagram Configurations: Technical FAQ
How are load-holding valves identified on a crane hydraulic schematic?
Load-holding counterbalance valves are depicted as a square valve body containing a spring-loaded relief spool, an internal check valve symbol running parallel to the spool, and an external dotted pilot line connected to the opposite cylinder port. They are physically bolted directly to cylinder port flanges to provide drop-proof protection in the event of a hose burst.
What structural components differ between telescopic and lattice boom crane diagrams?
Telescopic boom diagrams feature nested hollow box sections, internal extension cylinders, wear pads, and synchronization cable/chain sheaves. In contrast, lattice boom blueprints depict a fixed-length tubular steel framework composed of chords and lacing members subjected purely to tension and compression forces, utilizing pendant lines, gantry/A-frames, and bridle sheaves for boom elevation.
How is wire rope reeving represented on mechanical crane schematics?
Mechanical blueprints illustrate wire rope reeving using continuous lines looped around upper boom-point sheaves and lower hook-block sheaves. The diagram specifies the mechanical advantage ratio (e.g., 2-part, 4-part, or 8-part line) by showing the exact number of rope falls, alongside rope termination hardware like wedge sockets, dead-end anchors, and force-transmitting load cells.
What schematic symbols represent the Anti-Two-Block (A2B) proximity limit switch?
On electrical blueprints, an A2B switch is represented as a normally closed (NC) limit switch symbol linked mechanically to an actuator symbol (representing the suspended counterweight). It is wired in series with the lockout solenoid valve circuit governing hoist-up, boom-down, and telescope-extend functions, opening the circuit when the hook block trips the weight.
Where are the main high-pressure relief valves located on a mobile crane layout?
Primary system relief valves are integrated directly into the main directional control valve block manifold located on the upper superstructure. On fluid schematics, they appear immediately downstream of the variable-displacement hydraulic pump delivery lines, Tee-connected into the main gallery and dumping directly into the tank return manifold if system pressure exceeds factory limits (typically 320 to 350 bar).
Step-by-Step Guide to Understanding the Parts Of A Crane Diagram
Identify – Locate the specific crane sub-assembly on the master structural layout diagram.
Locate – Find physical markers, structural chassis numbers, and hydraulic manifold ports on the machine.
Reference – Cross-check color codes, line numbers, and part schematics against the system legend.
Connect/Route – Route replacement hydraulic hoses or re-wire anti-two-block sensors following mapped paths.
Verify – Perform a torque check on structural bolts and test safety cut-off switches under no-load conditions.
Troubleshoot – Trace pressure drops or electrical open circuits backward from the component failure point to the main pump or control module.
