A standard 7-way RV blade trailer connector uses Pin 1 (White, 10 AWG) for ground, Pin 2 (Blue) for electric brake controller output, Pin 3 (Green) for running lights, Pin 4 (Black) for +12V auxiliary power, Pin 5 (Red) for left turn/brake, Pin 6 (Brown) for right turn/brake, and Pin 7 (Yellow) for auxiliary reverse.
📌 Key Takeaways
- Pin 1 (White) requires a heavy 10 AWG wire grounded directly to the trailer frame.
- Pin 2 (Blue) feeds 12V PWM current directly from the electric brake controller.
- Pin 4 (Black) supplies 30A fused 12V DC auxiliary power to charge house batteries.
- Corrosion at the rear connector housing causes over 80% of intermittent trailer ground faults.
- Always use a dielectric grease seal and 7-to-4 pin adapter when towing non-braked light utility loads.
When retrofitting or maintaining recreational vehicle utility systems, understanding the electrical interface and wet-bay plumbing configurations is critical for reliable equipment operation. The standard 7-way RV blade connector serves as the primary electrical umbilical connection between the towing vehicle and the trailer, supplying dedicated circuits for the electric brake system, auxiliary power, running lights, and turn signal operations. Paired with accurate service bay schematics—such as a comprehensive RV shower faucet parts diagram—technicians can systematically service both high-current electrical feeds and plumbing assemblies without risking ground loops, harness degradation, or fluid leaks across adjacent chassis conduits.

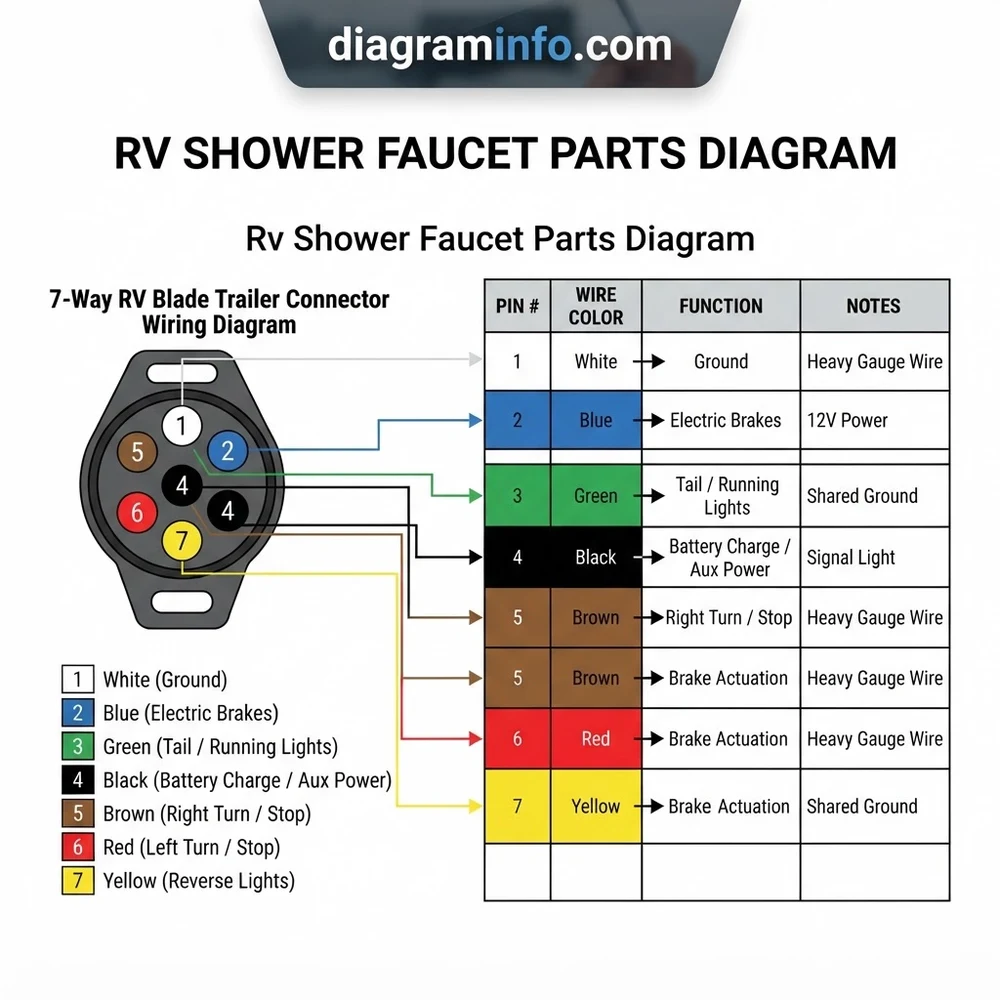

Schematic illustrating vehicle-side and trailer-side 7-pin RV blade configurations, ground paths, and service bay plumbing interfaces.
Reading the RV Shower Faucet Parts Diagram and Service Bay Wiring
In modern travel trailers and motorhomes, service bays house both wet utility plumbing and primary 12V DC distribution lines. An RV shower faucet parts diagram illustrates the exploded view of mechanical water control assemblies, including the dual-knob or single-lever diverter valve body, valve cartridges, compression washers, vacuum breaker outlets, and PEX inlet swivel connections. According to OEM engineering specifications, these plumbing components sit within inches of chassis wire routing harnesses that carry current from the vehicle’s brake controller and auxiliary power circuits.
When reviewing an RV shower faucet parts diagram during plumbing maintenance, always inspect adjacent electrical conduits. Ensure that non-metallic flexible PEX lines do not chafe against the primary 10 AWG trailer wire harness or ground pin bonding studs mounted to the subframe.
Understanding how mechanical fluid lines and electrical wiring coexist in the service bay prevents cross-system damage. Water intrusion from a failed shower faucet check valve or worn O-ring cartridge can seep down interior wall cavities directly into utility junction boxes. This moisture accelerates terminal oxidation on flat connector terminals, relay switches, and chassis ground lugs, ultimately causing voltage drops across tail light and electric brake circuits.
7-Way RV Blade and Flat Connector Pin Assignment Specifications
The standard SAE J2863 7-way RV blade connector is engineered to deliver power and control signals from the tow vehicle to the trailer. Unlike a light-duty 4-way flat connector that only handles basic lighting functions, the 7-pin RV blade configuration supports heavy-duty electric brake actuation and high-current battery charging line pass-throughs. The table below details standard color coding, pin position assignments, wire gauge recommendations, and circuit functions according to industry standards.
| Pin # | Wire Color | Function | Gauge & Circuit Notes |
|---|---|---|---|
| 1 | White | Ground Pin | 10 AWG (12 AWG min); direct return to vehicle negative frame chassis |
| 2 | Blue | Electric Brake | 12 AWG / 10 AWG; variable output driven by in-cab brake controller |
| 3 | Green | Running Lights / Clearance | 14 AWG; powers tail lamps, side markers, and ID light bars |
| 4 | Black / Red | Auxiliary Power (+12V) | 10 AWG; fused 30A battery charge line from alternator relay |
| 5 | Yellow | Left Turn Signal / Stop | 14 AWG; dual-function high-intensity hazard and left signal circuit |
| 6 | Brown | Right Turn Signal / Stop | 14 AWG; dual-function high-intensity hazard and right signal circuit |
| 7 | Purple | Reverse / Auxiliary | 14 AWG; reverse lights or surge brake lockout solenoid activation |
Manufacturer specs indicate that standard wire colors may vary between RV manufacturers (e.g., traditional RV color coding vs. commercial trailer standards). Always verify circuit functions using a digital multimeter (DMM) set to DC voltage rather than relying solely on conductor insulation color.
When adapting a standard 4-way flat connector to a 7-way RV blade socket, only the running lights, left turn signal, right turn signal, and ground pin circuits are mapped directly. The electric brake feed, auxiliary power line, and reverse circuit must be wired independently with discrete fused lines capable of handling continuous amperage without excessive line loss.
Step-by-Step Harness Routing for Brake Controller, Auxiliary Power, and Electric Brake Systems
Wiring a trailer electrical system requires strict adherence to conductor sizing, terminal crimping procedures, and circuit protection. Follow these steps to route and install a 7-way RV blade harness across your vehicle and trailer chassis:
- Establish the Primary Chassis Ground Pin Connection: Mount a 10 AWG white ground wire directly to bare metal on the trailer frame. Scrape away paint or powder coating, apply dielectric grease, and secure the ring terminal with a star washer to prevent loosening from vibration. Torque the grounding fastener to 35-40 in-lbs. Refer to our trailer wiring troubleshooting manual for grounding integrity verification steps.
- Route the Electric Brake Signal Output: Connect the 10 AWG or 12 AWG blue wire from the pin 2 terminal of the RV blade plug directly to the trailer brake magnet leads. Wire the dual electric brake electromagnets in parallel across the axle assemblies. Measure static resistance across the circuit using a digital multimeter; a dual-axle system with four brake magnets should read between 0.9 and 1.2 ohms total resistance.
- Install the High-Amperage Auxiliary Power Feed: Connect the black 10 AWG auxiliary power line to the positive terminal of the house battery bank or onboard power converter. Install an inline 30-amp auto-reset thermal circuit breaker within 12 inches of the power source to protect against short circuits. Integrate this line alongside the main chassis loom passing through the service compartment near the wet-bay utility distribution area.
- Terminate Light Circuits and Signal Conductors: Splice the green wire (running lights), yellow wire (left turn signal/brake), and brown wire (right turn signal/brake) to their respective LED or incandescent lighting assemblies. Use adhesive-lined heat-shrink butt connectors to seal all outdoor junctions against road spray and chemical corrosion.
- Integrate and Calibrate the In-Cab Brake Controller: Connect the tow vehicle brake controller unit to the vehicle power supply, brake pedal switch signal, vehicle ground, and blue output line leading to the rear bumper socket. Set the gain baseline on the brake controller according to the gross vehicle weight rating (GVWR) of the trailer, ensuring the proportional sensor delivers smooth output voltage during inertia deceleration.
- Verify Service Bay Utility Clearance: Ensure all routed wire looms maintain a minimum clearance of 3 inches from hot water heater exhaust flues and active plumbing diverter valves detailed on your RV shower faucet parts diagram. For detailed plumbing layout guidelines, consult our rv plumbing maintenance guide.
Identifying Wiring Mistakes on the RV Shower Faucet Parts Diagram and Harnesses
Trailer utility malfunctions typically stem from improper wiring terminations, incorrect wire gauges, or localized environmental degradation within utility compartments. The most frequent installation failure involves high resistance on the negative return circuit. When the primary ground pin connection becomes corroded or loose, low-voltage current paths search for alternative loops, causing lights to dim or back-feed into adjacent circuits when the electric brake pedal is depressed.
Never swap the auxiliary power (+12V) feed with the blue electric brake signal feed. Reversing these connections will apply continuous continuous battery voltage directly to the electric brake magnets, causing severe brake overheating, hub seal destruction, and potential electrical fires within the axle assemblies.
Another common mistake occurs when technicians install undersized wiring for long harness runs. Operating a 10-amp electric brake circuit or a 20-amp auxiliary power charge line over a 30-foot trailer length using 14 AWG wire results in excessive voltage drop. According to electrical engineering formulas, a 10-amp load through 30 feet of 14 AWG wire incurs a voltage drop exceeding 8%, reducing brake actuation efficiency and preventing proper house battery charging during transit.
In wet bays, failing to isolate plumbing diverters shown in an RV shower faucet parts diagram from high-amperage 12V DC power leads creates significant hazards. Water leaking from shower valve stem packing nuts or cold-water inlet PEX fittings can wick along wire looms into non-weatherproof junction boxes, resulting in short circuits that trip line fuses or disable turn signals.
Troubleshooting Ground Pin Resistance, Running Lights, and Turn Signal Dropouts
Diagnosing low-voltage distribution problems requires a methodical approach utilizing a digital multimeter and standard circuit load testing tools. Follow these diagnostic steps to isolate ground faults and signal losses across trailer harnesses:
Begin by measuring ground pin continuity. Set your DMM to the resistance (Ohms) setting and place one probe on the ground pin of the 7-way RV blade plug and the other probe on bare metal frame chassis. The reading must display less than 0.2 ohms. Any higher resistance indicates paint contamination, terminal corrosion, or undersized grounding jumpers.
Next, perform a loaded voltage test on the running lights and turn signal lines. Connect the vehicle plug to the trailer, switch on the vehicle headlights and hazard flashers, and measure DC voltage at the rearmost lighting fixtures. Standard operating voltage should remain between 12.2V DC and 13.8V DC. If voltage drops below 11.5V DC while the vehicle engine is running, inspect all intermediate harness splices for resistance buildup or pinch points along the subframe.
For complex diagnostic scenarios involving integrated power hubs or smart towing modules, review our detailed guide on 12v electrical distribution systems to evaluate relay switching and pulse-width modulation (PWM) signals sent by modern tow vehicles.
Frequently Asked Questions About the RV Shower Faucet Parts Diagram and Electrical Systems
How does a 7-way RV blade plug differ from a standard 4-way flat connector?
A standard 4-way flat connector provides basic lighting functions: ground pin, tail/running lights, left turn/brake, and right turn/brake. A 7-way RV blade plug expands this capacity by adding three high-amperage circuits: dedicated electric brake actuation, +12V auxiliary power charge line, and auxiliary/reverse lights. This makes the 7-way RV blade essential for heavier trailers equipped with electric braking systems and house batteries.
Why does the brake controller display an open circuit code while running lights function normally?
An open circuit display (such as “NC” or “No Connection”) on an electronic brake controller indicates that the controller does not detect complete continuity through the electric brake magnet circuit. Because the running lights operate on a separate circuit (green wire), they can function normally even if the blue electric brake wire is broken, disconnected at the axle junction, or experiencing a severed magnet ground wire.
Can a leaking valve cartridge on an RV shower faucet damage adjacent trailer wiring harnesses?
Yes. Slow leaks from internal valve cartridges, vacuum breakers, or compression fittings behind an RV shower faucet assembly can trickle down interior wall cavities into chassis wire channels. Moisture intrusion leads to rapid copper conductor corrosion (green oxidation), insulation breakdown, short circuits, and localized ground loops that degrade both trailer lighting and electric brake performance.
What wire gauge specifications are mandated for high-amperage auxiliary power and ground pin runs?
According to SAE J1128 standards for low-voltage primary cable in marine and trailer applications, the negative ground pin (white wire) and positive auxiliary power line (black/red wire) should be at least 10 AWG wire for standard trailer lengths. For long trailers exceeding 25 feet, upgrading to 8 AWG wire is recommended to minimize voltage drop across the 12V charging circuit.
