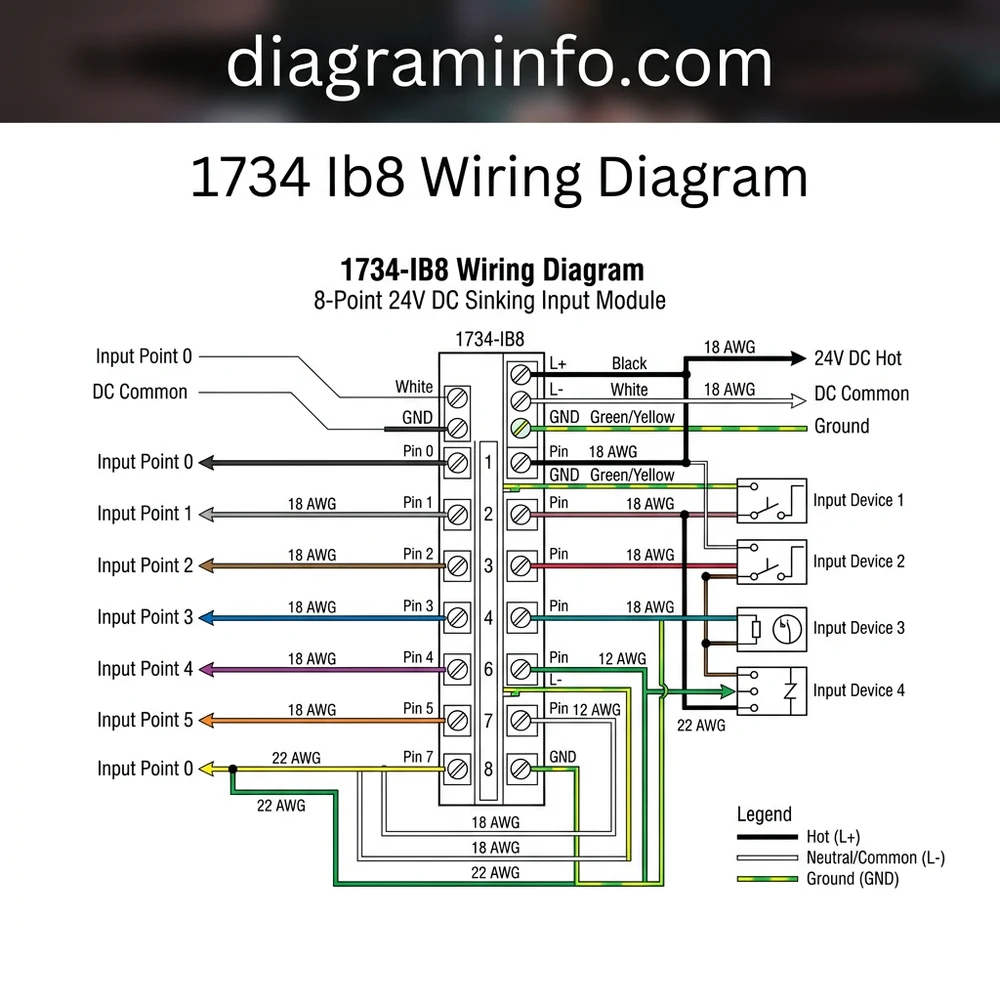

1734-IB8 Wiring Diagram: Pinout & Connection Guide 2026
The Allen-Bradley 1734-IB8 wiring diagram configures an 8-channel 24V DC sinking input module on a 1734 terminal base. Field sensors connect to pin assignment terminals 0 through 7 (IN0–IN7). The 24V DC hot wire supplies sourcing sensor power, while the 0V DC neutral/common wire completes the return circuit via the bus.
📌 Key Takeaways
- Terminals 0 to 7 handle input signal channels IN0 through IN7 for 24V DC sourcing field devices.
- Requires terminal base mechanical keying set to Position 1 before module insertion.
- Operates on 24V DC nominal input voltage (10–28.8V DC range) with 2.8mA current draw per channel.
- Module uses sinking inputs, requiring PNP (sourcing) field sensors or contact switches connected to the hot wire.
- Proper ground wire attachment to the mounting DIN rail is mandatory for EMC compliance and surge protection.
Integrating an Allen-Bradley POINT I/O 8-channel digital input module into an industrial control enclosure requires precise terminal identification, accurate current-sinking logic, and strict adherence to industrial electrical standards. This technical guide breaks down the official 1734-ib8 wiring diagram, outlining channel pin assignments, wire color codes, input sinking mechanics, and field power supply integration. Following OEM specifications from Rockwell Automation ensures system reliability, prevents ground loops, and eliminates common backplane communication faults during commissioning.
Allen-Bradley 1734-IB8 Module Specifications and Terminal Base Compatibility
The 1734-IB8 module is an 8-channel, 24V DC sinking input device designed to operate within the Allen-Bradley POINT I/O architecture. It receives discrete signals from field switches, proximity sensors, and photoelectric eyes. Because the 1734-IB8 utilizes sinking input circuitry, current flows from the field device (sourcing/PNP) through the input terminal and internal optical isolator to the DC Common line. Understanding this electrical path is critical when designing enclosure schematics and executing the 1734-ib8 wiring diagram.
Recommended Best Deal Products
• Operating Voltage Range: 10V DC to 28.8V DC (24V DC nominal)
• Input On-State Voltage: 10V DC minimum to 28.8V DC maximum
• Input Off-State Voltage: 5V DC maximum
• On-State Current Range: 1.5 mA minimum to 5.0 mA maximum (2.8 mA @ 24V DC typical)
• POINTBus Current Draw: 75 mA max @ 5V DC
• Module Power Dissipation: 1.6 W max @ 28.8V DC
• Terminal Base Compatibility: 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS
• Terminal Screw Torque Spec: 0.5 to 0.6 Nm (5 to 7 lb-in)
The module installs onto a removable terminal block (RTB) assembly, such as the 1734-TB (cage-clamp) or 1734-TBS (spring-clamp). Power for the module’s internal electronics is supplied via the POINTBus backplane, whereas field device power is drawn through the internal field power bus. If your enclosure design incorporates high-density wiring, utilizing a 12-terminal base like the 1734-TOP provides integrated common and voltage expansion points directly below the input channels.
Understanding 1734-IB8 Terminal Block Pin Assignment and Wire Color Code
Executing an installation correctly requires mapping each field signal lead to its corresponding terminal on the RTB. Standard industrial enclosures following NFPA 79 standards utilize designated control circuit wire colors: ungrounded 24V DC hot wire power conductors are standard Blue, DC Common/Neutral wire conductors are Blue with a White stripe, and protective ground wire paths are Green with a Yellow stripe. Sensor drop cables follow IEC 60947-5-2 standards (Brown = 24V DC+, Blue = 0V DC-, Black/White = Signal Output).
The table below lists the pin assignment layout, channel functions, recommended wire gauge, and color coding for both standard 8-terminal (1734-TB) and 12-terminal (1734-TOP) bases when applying the 1734-ib8 wiring diagram in a 24V DC control cabinet.
| Terminal Pin | Channel / Function | Standard Wire Color Code | Recommended Wire Gauge | Operating Voltage |
|---|---|---|---|---|
| Pin 0 | Input Channel 0 (IN 0) | Black (Sensor Signal Out) / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 1 | Input Channel 1 (IN 1) | Black or White / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 2 | Input Channel 2 (IN 2) | Black (Sensor Signal Out) / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 3 | Input Channel 3 (IN 3) | Black or White / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 4 | Input Channel 4 (IN 4) | Black (Sensor Signal Out) / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 5 | Input Channel 5 (IN 5) | Black or White / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 6 | Input Channel 6 (IN 6) | Black (Sensor Signal Out) / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 7 | Input Channel 7 (IN 7) | Black or White / Blue | 18–22 AWG (0.34–0.75 mm²) | 24V DC Sinking (10–28.8V) |
| Pin 8–9 (1734-TOP) | Field Power Bus (+24V DC Hot Wire) | Solid Blue / Brown (Sensor Power) | 14–18 AWG (0.75–2.5 mm²) | 24V DC Nominal Supply |
| Pin 10–11 (1734-TOP) | Field Common (0V DC Neutral Wire) | Blue with White Stripe / Blue | 14–18 AWG (0.75–2.5 mm²) | 0V DC Return / Reference |
When wiring standard 8-terminal bases (1734-TB), pins 0 through 7 serve exclusively as channel input terminals. External terminal blocks or common distribution modules (such as a 1734-CTM or 1734-VTM) must be installed adjacent to the base to supply +24V DC hot wire power to 3-wire field sensors and route the 0V DC return neutral wire network back to the power supply.
Step-by-Step Guide to Executing the 1734-IB8 Wiring Diagram
To establish clean signal path transitions and prevent erratic input toggling due to noise or poor connections, execute field terminations sequentially. Review your system schematic alongside similar POINT I/O documentation, such as the 1734-AENT network communication layout or adjacent 1734-OW4 relay module setups, to verify overall backplane load capabilities.
- Isolate Field Power and Backplane Voltage: Before connecting conductors to the terminal block, switch off main cabinet disconnects and lock out all 24V DC power supply feeds powering the POINT I/O assembly adapter (e.g., 1734-AENT or 1734-PDN). Verify 0V potential using a calibrated multimeter across hot wire and ground wire test points.
- Mount and Inspect the Terminal Base Assembly: Lock the 1734-TB or 1734-TOP base onto the DIN rail by sliding it into place until the orange locking lever clicks. Ensure the backplane interlock key is rotated to Position 1 (the specific key position required for 1734-IB8 digital input modules).
- Prepare Conductors and Wire Gauge Selection: Strip field conductors back exactly 8 mm (0.31 in). Use 18 AWG copper conductors rated for at least 75°C for main field power feeds, and 22 AWG or 20 AWG shielded twisted-pair wire for long sensor signal lines prone to electromagnetic interference (EMI).
- Terminate Sourcing (PNP) Field Device Signals: Route the output signal wire from each field switch or sensor directly to its designated channel pin (Pins 0 to 7) on the RTB.
- Connect Sensor Channel 0 signal wire (Black lead) to Pin 0.
- Connect Sensor Channel 1 signal wire (Black lead) to Pin 1.
- Continue terminating through Channel 7 on Pin 7.
- Connect 3-Wire Sensor Auxiliary Voltage Lines: Land sensor power supply feeds (+24V DC Brown wires) onto a 1734-VTM voltage terminal module or fused distribution block. Connect sensor return leads (Blue wires) to a 1734-CTM common terminal module or ground-referenced terminal strip linked to the primary power supply neutral wire connection.
- Secure Wire Clamps and Perform Torque Check: Insert stripped wire leads fully into cage-clamp terminals and torque screw terminals to 0.5–0.6 Nm (5–7 lb-in). Tug lightly on individual conductors to confirm mechanical retention before inserting the 1734-IB8 module into the base.
Sinking Input Mechanics and Voltage Distribution in the 1734-IB8 Wiring Diagram
A primary point of confusion when reading a 1734-ib8 wiring diagram is understanding sinking input logic vs. sourcing field sensors. The 1734-IB8 contains internal optical isolators connected between each input pin (Pins 0–7) and the internal DC Common rail of the POINT I/O field power bus.
In a sinking input circuit, current enters terminal pins 0–7 from an external sourcing (PNP) field device. The 24V DC hot wire powers the field device. When activated, the field device drives current into the 1734-IB8 input channel pin. The current passes through an internal LED optocoupler, registering an “ON” state in the PLC input image table, and exits back to the power supply through the internal field 0V DC bus neutral wire connection.
Because current flows into the module terminals, non-powered mechanical switches (pushbuttons, limit switches, relay contacts) must have one side wired to the +24V DC field supply hot wire, while the switched contact wire routes directly to the 1734-IB8 input channel terminal.
If field power expansion is required across large DIN rail racks, install a 1734-FPD (Field Potential Distributor) or 1734-EP24DC power supply module to break the field power bus. This isolates distinct 24V DC voltage zones and prevents current draw across the internal bus from exceeding the maximum 10 A field bus rating mandated by Allen-Bradley specifications.
Common 1734-IB8 Wiring Diagram Mistakes and Field Diagnostics
Commissioning errors often stem from wiring polarity inversions or mismatched field sensor types. Review these technical diagnostic steps when troubleshooting channel faults or missing I/O signals:
1. Attempting to Wire NPN (Sinking Output) Sensors to a Sinking Input Module
Wiring an NPN sensor to a 1734-IB8 creates a circuit where both the sensor and the input module attempt to sink current to 0V DC Common. Voltage across the terminal remains at 0V, preventing channel activation. Fix: Replace NPN sensors with sourcing PNP sensors, or install interposing relays. Alternatively, swap the 1734-IB8 for a 1734-IV8 sourcing input module.
2. Omission of Field Power Supply Feed on the Adapter Module
Technicians often wire the 1734-AENT adapter backplane logic power while forgetting to wire the 24V DC field power terminals on the adapter base. In this condition, backplane communications stay online, but all 1734-IB8 channel LEDs remain dark even when 24V DC is present at the physical terminal pin. Fix: Verify 24V DC potential across the primary field power terminals on the adapter or preceding 1734-FPD module.
Always bond the 0V DC neutral wire return rail of your 24V power supply to chassis ground at a single star-point location. Allowing DC Common to float causes noise accumulation across field input wires, leading to erratic channel flickering on high-speed digital inputs and potential backplane communication drops.
3. Over-Torquing Cage Clamps and Terminal Stripping
Applying excessive torque to the terminal block screws strips cage-clamp threads or shears small 22 AWG conductor strands. Fix: Stick strictly to the OEM torque rating of 0.5–0.6 Nm (5–7 lb-in). Use insulated wire ferrules on all fine-stranded conductors to guarantee robust physical contact and prevent stray wire strands from shorting adjacent channels.
1734-IB8 Wiring Diagram Frequently Asked Questions
What wire gauge is recommended for the 1734-IB8 terminal block?
According to Rockwell Automation OEM guidelines, field signal conductors connected to the 1734-TB cage-clamp terminal base should be solid or stranded copper wire sized between 22 AWG minimum and 14 AWG maximum (0.25 to 2.5 mm²). For standard 24V DC discrete signal drops, 18 AWG to 20 AWG stranded wire with ferrules offers optimal strain relief and conductivity.
Can I wire 2-wire proximity sensors into the 1734-IB8 wiring diagram?
Yes, 2-wire DC proximity sensors can be wired to the 1734-IB8, provided their off-state leakage current is less than 1.5 mA. Wire the brown wire (+24V DC supply) to the 24V DC hot wire bus, and connect the blue wire (sensor signal/return) directly to the designated channel terminal pin (Pins 0–7). If leakage current exceeds 1.5 mA, add a parallel load resistor across the input pin and 0V DC Common to dump off-state current.
What is the difference between hot wire and neutral wire connections on 24V DC I/O?
In DC control circuits, “hot wire” refers to the positive +24V DC ungrounded conductor (standardized as Blue in NFPA 79 panel construction), while “neutral wire” or “field common” refers to the 0V DC return path (Blue with White stripe). On the 1734-IB8 sinking module, field sensors receive +24V DC hot wire power, while the 0V DC neutral wire connection is completed inside the module through the internal field power bus.
How do I diagnose a dark channel LED when sensor voltage is present at the terminal?
Use a digital multimeter to measure DC voltage directly between the active input pin (Pins 0–7) and the 0V DC common terminal. If voltage reads above 10V DC (the minimum on-state threshold) but the status LED remains dark, verify that field power bus voltage is present at the POINT I/O adapter module. If field power is verified and backplane bus connections are clean, the channel’s optocoupler circuit may be damaged, requiring module replacement.
When is a 1734-FPD field power distributor module required in a 1734-IB8 installation?
A 1734-FPD module is required whenever field current pass-through on the POINT I/O backplane bus reaches 10 Amps, or when you need to change voltage zones (e.g., transitioning from a group of 120V AC output modules to 24V DC 1734-IB8 input modules). The 1734-FPD breaks the field power bus while maintaining POINTBus data pass-through to downstream I/O units.
