120V How to Wire Under Cabinet Lighting Diagram: 2026 Setup
Direct wiring requires a dedicated 120V circuit routed to a junction box or low-voltage driver. Connect the black hot wire to the line terminal, the white neutral wire to the neutral terminal, and the bare copper ground wire to the grounding screw. Ensure proper 14/2 NM-B cable and matching wire color code standard.
📌 Key Takeaways
- Use 14/2 NM-B wire for standard 15-amp 120V residential lighting circuits
- Black functions as hot wire, white as neutral wire, and bare copper or green as ground wire
- Low-voltage LED strip lights require an electronic driver/transformer to convert 120V AC to 12V/24V DC
- Loose wire nut connections in junction boxes are the leading cause of flickering under-cabinet fixtures
- Consult a licensed electrician if adding a new circuit breaker or modifying main panel connections
Hardwiring under-cabinet task illumination requires precise adherence to low-voltage driver specs, National Electrical Code (NEC) standards, and systematic conductor routing. Utilizing a comprehensive how to wire under cabinet lighting diagram eliminates guesswork during main service splice operations, driver location planning, and secondary circuit runs. Proper terminal identification, conductor sizing, and pin assignment selection ensure stable DC output without thermal overload or line-side voltage sag. The following technical guide outlines the exact wire color code standards, terminal block configurations, and conductor gauge requirements for installing direct-wire 12V/24V DC LED under-cabinet systems.
Electrical Specifications for Under Cabinet LED Driver Wiring
According to OEM installation standards and NEC Article 410, hardwired LED under-cabinet systems must utilize a dedicated or load-calculated Class 2 power supply. Sizing your electrical supply cables correctly prevents over-current tripping and excessive voltage drop across long under-cabinet runs.
• Primary Input Voltage: 120V AC, 60 Hz (Line Voltage)
• Secondary Output Voltage: 12V DC or 24V DC (Constant Voltage Class 2)
• Primary Wire Gauge: 14 AWG or 12 AWG Solid Copper (NM-B Building Wire)
• Secondary Wire Gauge: 18 AWG to 20 AWG Stranded Copper (CL2/CL3 Rated)
• Terminal Block Torque Rating: 4.4 to 5.3 in-lbs (0.5 to 0.6 Nm)
• Maximum Driver Load Factor: 80% continuous rated capacity (e.g., max 76W load on a 96W driver)
When selecting your power unit, review our LED driver dimming compatibility chart to match magnetic low voltage (MLV) or electronic low voltage (ELV) dimmers with your specific driver topology. Primary supply circuits typically tie into an existing 15-Amp or 20-Amp branch circuit, requiring standard 14/2 or 12/2 Non-Metallic Sheathed Cable (NM-B).

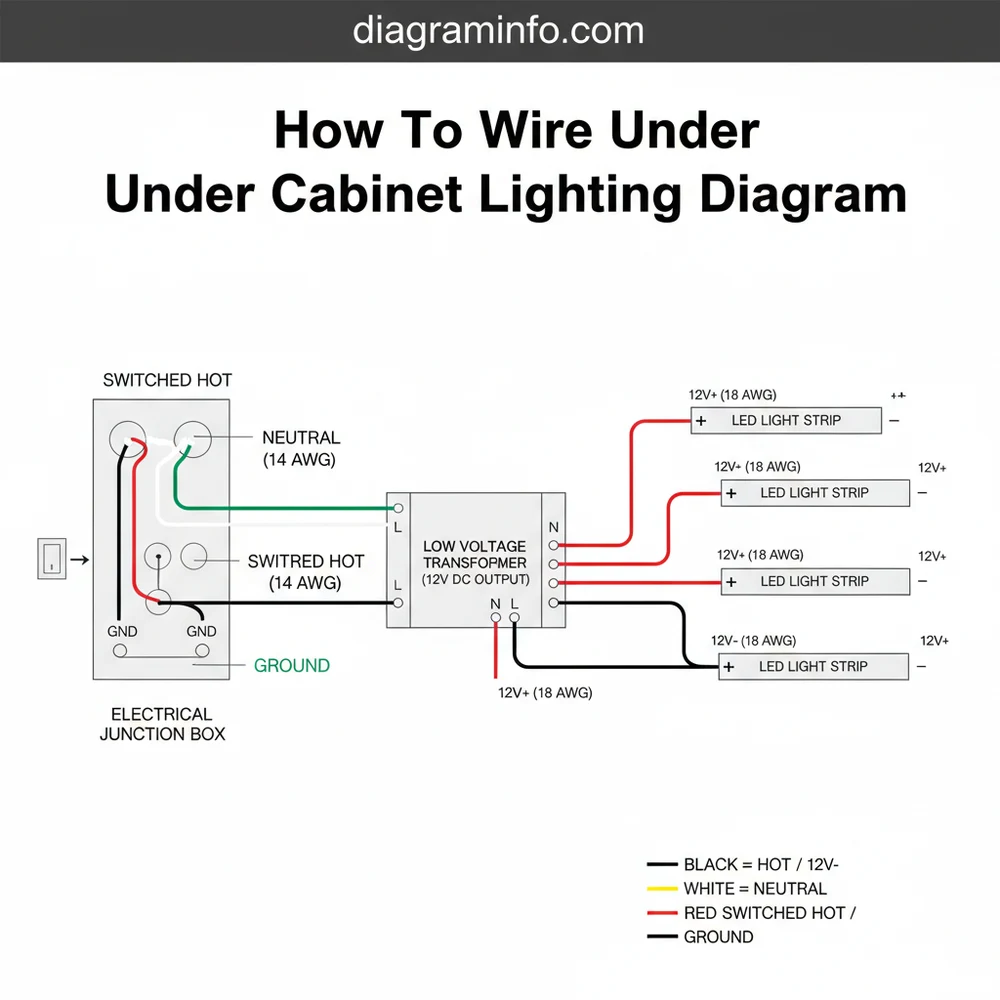

How to Wire Under Cabinet Lighting Diagram: Color Codes and Terminals
Executing a reliable splice requires strict adherence to standardized electrical color coding. Primary line voltage (120V AC) feeds into the line side of the power supply housing, where a integrated terminal block or wire lead set segregates high-voltage AC from low-voltage DC output leads.
| Wire Color | Circuit Function | Terminal / Pin Assignment | Conductor Specifications |
|---|---|---|---|
| Black | 120V AC Line Supply (Hot Wire) | Line Terminal (L) / Screw 1 | 14 AWG / 12 AWG Solid Cu |
| White | 120V AC Neutral Wire | Neutral Terminal (N) / Screw 2 | 14 AWG / 12 AWG Solid Cu |
| Bare Copper / Green | Equipment Ground Wire | Ground Terminal (G/PE) / Case Screw | 14 AWG / 12 AWG Solid Cu |
| Red (or White w/ Red Stripe) | DC Secondary Output (+ Positive) | V+ Terminal / Output Pin 1 | 18 AWG Stranded CL2/CL3 |
| Black (Secondary Side) | DC Secondary Return (- Negative) | V- Terminal / Output Pin 2 | 18 AWG Stranded CL2/CL3 |
When landing solid core 14 AWG wire directly into screw-clamp terminal blocks, strip back insulation exactly 3/8 inch (10mm). Ensure no bare copper extends beyond the insulating shroud to prevent line-to-line arc faults inside the driver housing enclosure.
Executing the How to Wire Under Cabinet Lighting Diagram Step-by-Step
To successfully implement the system according to our schematics, complete the wiring process in logical sequence. Always verify that the main supply circuit breaker is locked out and tagged out prior to removing junction box covers or stripping insulation.
1. Mount the Direct-Wire Junction Box and LED Driver
Secure the hardwire driver housing inside a sink base cabinet, upper cabinet interior, or adjacent pantry area where passive airflow is adequate. Ensure the enclosure provides at least 2 inches of clearance on all sides for convective cooling. Fasten the metal chassis to a solid wood mounting surface using 3/4-inch pan-head wood screws.
2. Route Primary AC Power Cable
Run 14/2 NM-B wire from the wall switch box to the line-side knock-out port on the driver enclosure. Secure the cable using an approved metallic clamp strain relief or non-metallic push-in connector. Strip 6 inches of outer PVC jacketing off the NM-B cable to expose individual conductors. For specialized installations involving multi-zone switching, consult our auxiliary relay wiring diagram to properly split switched-leg feeds.
3. Wire the High-Voltage Primary Terminal Block
Connect the primary supply wires to the input terminal block following the schematic pin layout:
- Insert the black hot wire into the terminal marked L (Line) and torque the screw to 4.5 in-lbs.
- Insert the white neutral wire into the terminal marked N (Neutral) and secure firmly.
- Connect the bare copper ground wire directly to the green grounding screw or the PE terminal block lug. This bonds the metal driver chassis to the electrical system ground.
4. Connect the Low-Voltage Secondary Harness
Measure the distance from the secondary DC output terminal block to the first LED fixture or puck light installation point. Strip 1/4 inch of insulation from 18 AWG 2-conductor in-wall rated wire (CL2/CL3):
- Land the positive conductor (Red wire) into the terminal marked V+ (DC Positive).
- Land the negative conductor (Black wire) into the terminal marked V- (DC Negative).
- For multi-channel dynamic white or RGB systems, verify color-coded pin assignment layout (V+, R, G, B) before tightening terminal screws.
5. Interconnect LED Puck or Tape Fixtures
Route secondary wiring underneath upper cabinets through pre-drilled 3/8-inch access holes. Join linear strip light connectors or puck light quick-connect pigtails using lever-actuated terminal block connectors (such as WAGO 221 series) or soldered sleeve joints protected by heat-shrink tubing. Maintain parallel electrical connections across all light fixtures to maintain uniform nominal voltage across every light source.
Never run 120V AC primary supply wires and low-voltage 12V/24V DC secondary wires through the same conduit or wiring compartment unless the enclosure features a physical metal partition certified for Class 1 and Class 2 conductor separation.
Diagnosing Voltage Drop and Wire Color Misconfigurations
Troubleshooting under-cabinet electrical systems involves systematic meter checks across primary terminals, secondary output points, and load connections. Below are the three most prevalent technical installation errors encountered during testing.
1. Polarity Reversal on Low-Voltage DC Output Leads
Symptom: LED strips fail to illuminate upon energizing the circuit, while the power supply operates normally without tripping overload protection.
Cause: Reversing the positive (V+) and negative (V-) DC output leads during terminal block assembly. Because light-emitting diodes are polarity-sensitive solid-state devices, current flow is blocked when wired backwards.
Correction: Isolate power. Use a digital multimeter set to DC Voltage mode across the driver terminal block. Confirm that the positive meter probe on the red wire yields a positive voltage reading (+12V DC or +24V DC relative to negative). Swap low-voltage wire connections if readings display negative voltage polarity.
2. Excessive Secondary DC Voltage Drop
Symptom: Fixtures at the far end of an under-cabinet run appear noticeably dim compared to fixtures nearest to the driver, or flicker rapidly during operation.
Cause: Undersized secondary conductor gauge combined with long wire runs. At 12V DC, current draw is doubled compared to a 24V DC system for the same total wattage, drastically increasing line resistance.
Correction: Upsize secondary field wiring from 20 AWG to 16 AWG or 14 AWG stranded copper wire. Alternatively, step up to a 24V DC driver and 24V tape/puck setup, which cuts operating amperage in half and reduces line resistance losses over identical distances. For complex multi-cabinet setups, refer to our direct-wire junction box guides for center-feed topology layouts.
3. Floating Ground Wire Creating Chassis Potential
Symptom: Nuisance tripping of Ground Fault Circuit Interrupter (GFCI) breakers or localized hum/interference on nearby low-voltage audio/visual cables.
Cause: Failure to ground the metallic driver chassis enclosure, leaving the ground wire disconnected or loose at the PE terminal.
Correction: Ensure the bare copper ground wire from the 14/2 NM-B line cable is mechanically bonded to the cabinet metal housing ground lug. Measure resistance between the chassis body and the main electrical service ground point using an ohmmeter; total resistance must remain below 0.5 Ohms.
Under Cabinet Lighting Wiring Diagram Technical FAQ
What AWG wire gauge is required for hardwiring under cabinet LED lighting?
For the primary 120V AC input side, use 14 AWG solid copper wire on a 15-Amp branch circuit or 12 AWG solid copper wire on a 20-Amp branch circuit (typically standard NM-B cable). For the low-voltage secondary side (12V or 24V DC), use 18 AWG stranded copper wire for runs under 20 feet. Sizing up to 16 AWG or 14 AWG stranded wire is required for secondary runs exceeding 20 feet to prevent excessive DC voltage drop.
Can you wire multiple LED drivers to a single wall switch circuit?
Yes, multiple LED drivers can be wired in parallel on a single switched 120V AC branch circuit. Ensure total combined primary wattage of all connected drivers does not exceed 80% of the maximum switch and circuit ampacity rating. Connect all black hot wires together to the switch leg, all white neutral wires together, and bond all ground wire leads to the system grounding conductor.
How do you prevent LED flickering when wiring with a wall dimmer?
LED flickering is almost always caused by a mismatch between the wall dimmer technology and the driver circuit type. Verify whether your driver requires an Electronic Low Voltage (ELV / Reverse Phase) dimmer, a Magnetic Low Voltage (MLV / Forward Phase) dimmer, or a 0-10V analog dimming control loop. Additionally, ensure the total LED fixture load meets the minimum wattage threshold specified by the dimmer manufacturer.
Why is the neutral wire isolated from the output negative terminal on Class 2 drivers?
Class 2 power supplies utilize an internal isolation transformer that galvanically separates the primary high-voltage AC circuit from the secondary low-voltage DC circuit. Connecting the primary white neutral wire to the secondary V- negative terminal defeats this safety barrier, presenting an immediate electrical shock hazard and risking catastrophic destruction of the driver’s internal rectifier circuitry.
What is the maximum recommended run distance for 24V DC under-cabinet wiring?
For 24V DC systems using 18 AWG copper conductors, the maximum recommended continuous secondary wiring run between the power supply and the last lighting fixture is 30 feet, provided total load stays below 60 Watts. For distances between 30 and 50 feet, increase conductor size to 16 AWG or 14 AWG to maintain output voltage within the +/- 5% tolerance range required by LED strip controllers.
