Yamaha Basic PA System Setup Diagram: 2026 Layout

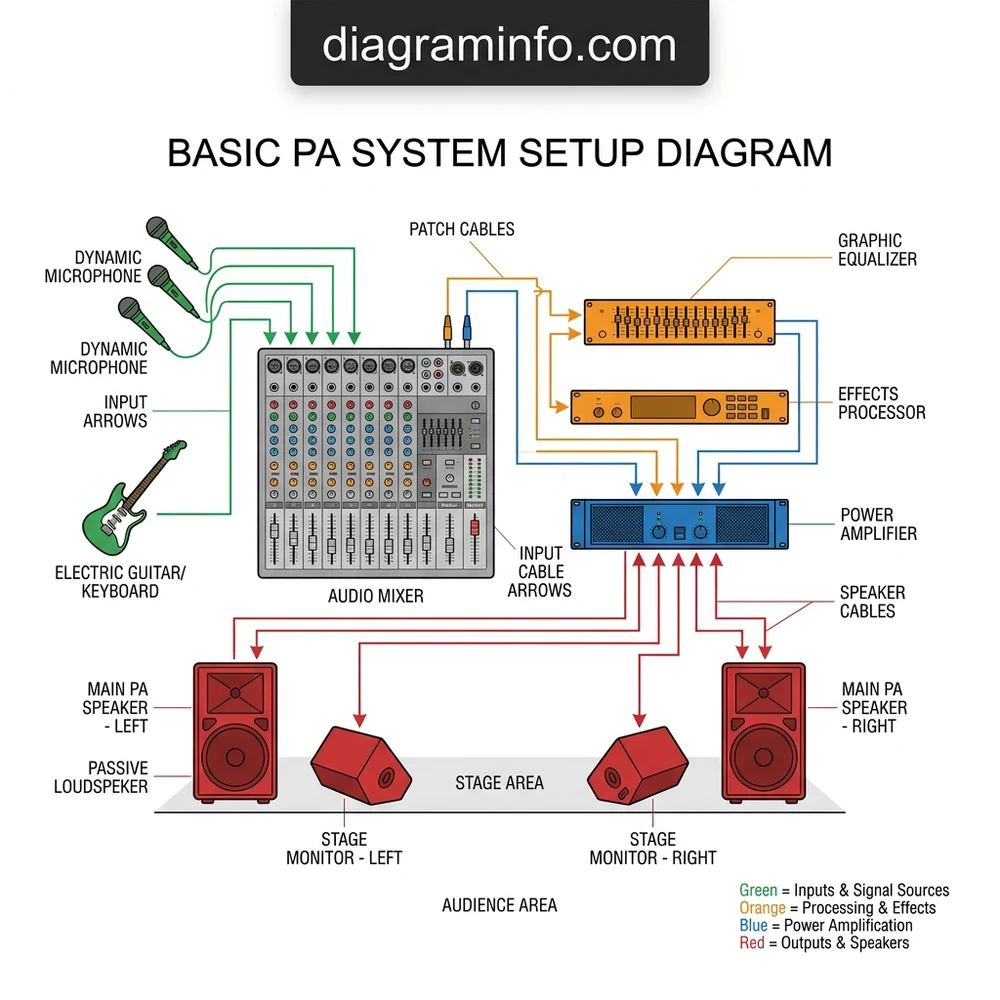

A basic PA system setup diagram illustrates signal flow from input sources (XLR microphones/instruments) into mixer channels, through main stereo outputs (XLR/TRS) to power amplifiers, and via Speakon or 1/4-inch cables to 8-ohm passive speakers. Always verify gain staging and power down amplifiers before altering audio cable configuration.
📌 Key Takeaways
- Follow a strict signal flow: Input Transducers -> Audio Mixer -> Signal Processing -> Power Amplifier -> Passive Speakers.
- Always use balanced XLR or TRS cables for long line-level runs to eliminate 60 Hz hum and electromagnetic interference.
- Match power amplifier RMS output (e.g., 500W at 8 ohms) to speaker continuous power handling to prevent clipping or voice coil damage.
- The most common system failure point is incorrect gain staging, causing preamp distortion or blown high-frequency tweeter drivers.
- DIY configuration is suitable for portable small-venue setups; permanent commercial installations require certified audio engineers.
Designing and deploying a public address installation requires a clear understanding of signal flow, impedance management, and component interconnection. A basic pa system setup diagram serves as the foundational schematic for mobile command units, commercial equipment fleets, industrial facilities, and emergency response vehicles. By establishing a standardized layout, technicians can ensure optimal signal-to-noise ratios, prevent equipment damage caused by thermal overloading or impedance mismatching, and rapidly isolate faults during field operation. This article analyzes the structural architecture of a public address system, outlining signal paths from transducer input to high-voltage output.
Anatomy of a Basic PA System Setup Diagram: Component Identification
Every basic pa system setup diagram relies on a linear architecture engineered to process, amplify, and project acoustic signals. Understanding the physical layout and electrical properties of each stage is critical for establishing high-fidelity audio transmission and preventing signal degradation across long cable runs.
Recommended Best Deal Products
1. Transducer Inputs (Microphones and Line Sources)
The input stage converts acoustic energy or electromagnetic data into low-voltage electrical signals. Dynamic microphones utilize moving-coil transducers generating standard mic-level signals ranging between -60 dBu and -40 dBu. Condenser microphones require 48V DC phantom power supplied directly through the input jack. Auxiliary line-level sources, such as media units or communication receivers, deliver higher nominal levels (+4 dBu for balanced professional equipment or -10 dBV for unbalanced consumer units), requiring dedicated high-impedance input channels to prevent preamplifier clipping.
2. Signal Processing and Mixing Console
The mixing console acts as the core routing terminal within the blueprint layout. It houses individual preamplifiers that boost mic-level signals to internal line-level standards (+4 dBu). Key processing stages within the mixer schematic include parametric equalization (EQ) for frequency tailoring, high-pass filtering (typically set at 80 Hz to eliminate low-frequency rumble), and bus assignment routing. The main master output bus collects summed audio signals and routes them toward the main power amplifier stage.
Standard operating preamplifier line level: +4 dBu (1.228 V RMS). Dynamic microphone input impedance: 1.5 kΩ to 3 kΩ. Line input impedance: 10 kΩ minimum.
3. Power Amplifier Circuitry
The power amplifier scales line-level signals up to high-voltage output levels capable of driving mechanical speaker cones. Modern installations frequently utilize Class-D amplifier topologies due to their high power efficiency exceeding 90%, which minimizes heat dissipation in enclosed mobile racks or vehicle equipment bays. Amplifiers operate under low-impedance modes (4Ω or 8Ω direct drive) or high-impedance constant-voltage modes (70V or 100V line distribution using step-up transformers).
4. Loudspeaker Transducers and Constant-Voltage Transformers
The final output component converts amplified electrical signals back into acoustic sound pressure. In standard low-impedance configurations, driver coils interface directly with the amplifier terminal. In 70V or 100V commercial and mobile fleet deployments, each speaker incorporates a line-matching step-down transformer. This transformer steps down the high line voltage to driver level while allowing technicians to select wattage taps (e.g., 30W, 15W, 7.5W) to control individual speaker output levels without altering overall system impedance loading.
How to Read the Basic PA System Setup Diagram and Wire Layout
Interpreting a basic pa system setup diagram requires tracing the signal flow sequentially from left to right or top to bottom, following the standardized schematic conventions. Understanding cable types, conductor pinouts, and grounding topologies is essential for correct field installation.
Signal flow begins at the input device and proceeds through three distinct electrical stages: Mic Level (-60 dBu), Line Level (+4 dBu), and Speaker Level (up to 100V). Interconnecting these stages improperly will cause severe distortion or circuit damage. Refer to our vehicle auxiliary power routing schematic for detailed integration with primary mobile electrical systems.
Always maintain strict separation between low-level signal cables (XLR/TRS) and high-current AC/DC power lines. Running signal wiring parallel to power lines introduces 60Hz hum and alternator noise via electromagnetic induction. Cross power and signal wires at 90-degree angles whenever intersections are required.
Balanced audio connections form the backbone of clean signal distribution in professional schematics. A balanced XLR or 1/4″ TRS (Tip-Ring-Sleeve) layout uses three conductors:
- Pin 1 / Sleeve: Ground / Shielding braid (drains external RF/EMI interference).
- Pin 2 / Tip: Hot positive conductor (+ signal polarity).
- Pin 3 / Ring: Cold negative conductor (- signal inverted polarity).
At the receiving differential amplifier, the cold signal polarity is inverted and added to the hot signal. This phase cancellation process—known as Common Mode Rejection (CMRR)—eliminates electromagnetic interference accumulated along the cable run.
Wiring Specifications and PA System Configuration Guidelines
Correct cable selection and system configuration ensure minimal signal attenuation, proper thermal management, and reliable frequency response across extended equipment runs. The reference table below details physical wire parameters, terminal types, and signal specifications required for standard public address system layouts.
| System Stage | Nominal Voltage/Level | Connector Type | Recommended Cable/Gauge | Max Distance |
|---|---|---|---|---|
| Mic Input Stage | -60 to -40 dBu | 3-Pin XLR / 1/4″ TRS | 22 AWG Shielded Twisted Pair | 100 meters (330 ft) |
| Line Level Interconnect | +4 dBu (1.23V) | 1/4″ TRS / RCA / XLR | 24 AWG Shielded Pair | 150 meters (500 ft) |
| Low-Impedance Output (4Ω/8Ω) | 10V to 40V RMS | Neutrik Speakon / Binding Post | 12–14 AWG Unshielded 2-Conconductor | 15 meters (50 ft) |
| High-Impedance Output (70V/100V) | 70.7V / 100V RMS | Terminal Strip / Screw Block | 16–18 AWG Speaker Cable | 600 meters (2000 ft) |
When engineering low-impedance configurations, total speaker load impedance must never drop below the amplifier’s minimum rated impedance rating (typically 4 Ohms). Wiring speakers in parallel reduces overall impedance according to the formula:
1 / Z_total = 1 / Z1 + 1 / Z2 + … + 1 / Zn
Connecting two 8-ohm drivers in parallel yields a total load of 4 ohms. Adding a third 8-ohm driver drops total load to 2.67 ohms, which will trip the thermal and overcurrent protection circuits on standard amplifiers. For extensive multi-speaker layouts across facilities or large fleet platforms, consult our emergency siren wiring manual for high-output constant-voltage matching protocols.
Do not connect low-impedance 4Ω or 8Ω loudspeakers directly to a 70V or 100V amplifier output terminal without a line-matching step-down transformer. Direct connection will cause immediate overcurrent, severe voice-coil burnout, and permanent amplifier stage damage.
Diagnosing Faults in Your Basic PA System Setup Diagram
System failures in public address networks typically present as ground hum, non-linear harmonic distortion, low signal volume, or complete acoustic dropouts. Technicians should execute systematic diagnosis using digital multimeters (DMM) and audio signal generators following the workflow below.
1. Identifying and Eliminating Ground Loops (60Hz / 120Hz Hum)
Ground loops occur when multiple equipment chassis in the system layout are connected to ground at different electrical potentials. Current flows through the signal cable shield, introducing continuous 60Hz fundamental hum (or 120Hz harmonic hum from rectified power supplies).
- Diagnostic Method: Measure AC voltage between signal ground and chassis ground with signal lines disconnected. Any reading above 0.05V AC indicates a ground potential variance.
- Correction: Engage ground-lift switches on preamplifiers/amplifiers to isolate pin 1 from chassis ground, or install 1:1 audio isolation transformers inline along the line-level transmission path. Verify compliance with automotive audio grounding guidelines.
2. Resolving Overdrive Clipping and Signal Distortion
Acoustic distortion indicates improper gain staging across the signal flow blueprint. If the preamplifier stage output exceeds the maximum input threshold of the power amplifier, peak waveform clipping occurs.
- Diagnostic Method: Check clipping indicators (CLIP LED) along the processing chain. Inject a 1 kHz sine wave at nominal input level (-50 dBu for mic inputs) and monitor signal integrity at intermediate outputs using an oscilloscope.
- Correction: Reduce trim/gain controls at the input preamplifier while raising main master volume faders to maintain proper signal-to-noise ratio headroom without exceeding saturation thresholds.
3. Troubleshooting Amplifier Thermal Shutdown and Overcurrent Protection
Modern amplifiers shut down automatically when internal temperatures exceed safe operating parameters (typically above 85°C/185°F) or when current draw exceeds rated thresholds.
- Diagnostic Method: Measure output load impedance across speaker line terminals with the amplifier powered OFF using a DMM set to resistance (Ohms).
- Correction: If measured resistance is significantly lower than rated load impedance, inspect the speaker network for shorted wiring conductors or failed matching transformers. Ensure minimum 2-inch clearance around amplifier heat sinks for adequate convection cooling.
Basic PA System Setup Diagram Frequently Answered Questions
What Cable Types Are Required in a Standard PA System Layout?
Standard installations require three distinct cable categories based on signal level and shielding requirements. Input connections utilize 2-conductor shielded twisted-pair cables with XLR or 1/4″ TRS jacks to eliminate ambient RF interference. Line-level interconnections between mixers, equalizers, and power amplifiers use balanced 24 AWG shielded cable. Power amplifier outputs driving speakers require heavy-gauge unshielded 2-conductor cables (12 AWG to 16 AWG) to minimize DC resistance and power loss across the run.
How Does Impedance Matching Work in High-Voltage Line Systems?
In 70V or 100V constant-voltage sound distribution systems, step-up transformers at the amplifier output raise signal voltage while reducing current. Individual speakers utilize step-down transformers to step the line voltage back down to driver levels. Impedance matching is simplified: technicians sum the wattage selection taps of all connected speakers. The total combined wattage of all transformer taps must not exceed 80% of the amplifier’s maximum rated RMS output capacity.
Why Is Audio Signal Distortion Occurring at the Power Amplifier Stage?
Audio distortion at the amplifier stage typically stems from improper gain staging or impedance overload. If the input line signal delivered to the amplifier exceeds its rated input sensitivity (e.g., sending +12 dBu into a nominal +4 dBu input), input clipping occurs. Alternatively, connecting a total speaker load below the amplifier’s minimum rated impedance causes high current draw, pushing the output transistors beyond their linear operating range into hard clipping.
Can Mobile PA Systems Run directly from 12V DC Vehicle Power?
Mobile PA systems designed for vehicles can operate directly from 12V DC auxiliary electrical systems, provided the amplifier features internal DC-to-DC step-up switching power supplies. Standard high-output public address amplifiers require stable operating voltages between 11.5V DC and 14.4V DC. High-draw amplification setups require dedicated inline fusing (positioned within 18 inches of the battery terminal) and minimum 8 AWG stranded copper power wiring to prevent voltage drop under peak output transients.
How Do Active and Passive Speakers Differ in Schematic Layouts?
Passive speaker configurations require external power amplifiers; the signal path flows from mixer to amplifier at line level, then from amplifier to passive speakers at high-voltage speaker level over heavy-gauge speaker wire. Active (powered) speakers combine crossover circuits, equalization, and internal power amplifiers inside the speaker enclosure. In an active layout diagram, line-level signals (+4 dBu) route directly from the mixer output to the active speaker cabinet using balanced XLR or TRS cables, requiring local AC or DC power at each speaker location.
Step-by-Step Guide to Understanding the Basic Pa System Setup Diagram
Identify – Identify all audio hardware components including input sources, mixer channel strips, power amplifiers, and speaker cabinets.
Locate – Locate input and output connection panels on each device, referencing balanced XLR and unbalanced TS line-level jack markings.
Reference – Reference the basic pa system setup diagram to trace signal paths from microphones to mixer inputs, then main outputs to amplifiers.
Connect/Route – Route balanced cables from mixer main outputs to amplifier inputs, and high-gauge Speakon cables from amp outputs to passive speakers.
Verify – Verify system impedance loads (4-8 ohms) and ensure gain controls are fully lowered before turning on hardware power switches.
Troubleshoot – Troubleshoot dead channels or hum by isolating connections according to diagram paths using a dedicated audio cable tester.
Basic Pa System Setup Diagram: Frequently Asked Questions
What does the basic pa system setup diagram show?
The basic pa system setup diagram shows the directional routing of audio signals throughout the live sound system layout. It illustrates how microphones, instruments, audio mixers, equalizers, power amplifiers, and passive or active loudspeakers interconnect using standard XLR, TRS, and Speakon cabling structures.
How do I read the basic pa system setup diagram?
Read the basic pa system setup diagram from left to right, following the arrow indicators representing signal path. Input sources connect to channel inputs, line-level outputs feed external processors or amplifiers, and high-power speaker level outputs connect to cabinet terminals using proper conductor gauges.
What are the main components in basic pa system setup diagram?
The primary components shown in a basic pa system setup diagram include input transducers (microphones), sound sources (media players), an mixing console, outboard processors (EQ/crossover), power amplifiers, and loudspeaker cabinets. Each component structure performs a specific role in amplification and frequency distribution.
What are common problems with basic pa system setup diagram?
Common configuration issues highlighted by the diagram include ground loop hum from unbalanced lines, phase cancellation caused by reversed speaker wiring polarities, impedance mismatches when daisy-chaining speakers below 4 ohms, and thermal amplifier shutdown resulting from improper impedance loads.
Can I use basic pa system setup diagram for DIY repair?
Yes, you can use the basic pa system setup diagram for DIY troubleshooting and setup correction. It enables audio technicians to isolate faulty cables, misrouted channels, or incorrect amplifier bridge modes quickly before opening equipment chassis or seeking professional service.
What tools do I need for basic pa system setup diagram?
To implement the configuration in the basic pa system setup diagram, you need a cable tester (XLR/TRS/Speakon), digital multimeter for checking voice coil impedance, electrical tape, wire strippers for raw speaker leads, and sound level measurement tools for calibration.
